DALE SKU # GLYP-TRIP02

Glyph Triplicator 3 - Three-Way Hard Drive Backup System

Sale price$99.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Triplicator makes your job easier. When you need to copy your critical data to multiple drives, Triplicator saves you time and energy by doing the copies in a single action. When you copy data through the Triplicator, identical data will be copied to all the target drives. Perfect for any production workflow when you need on-site backups of your valuable data. The first product from the new Glyph Production Technologies.

    How It Works:

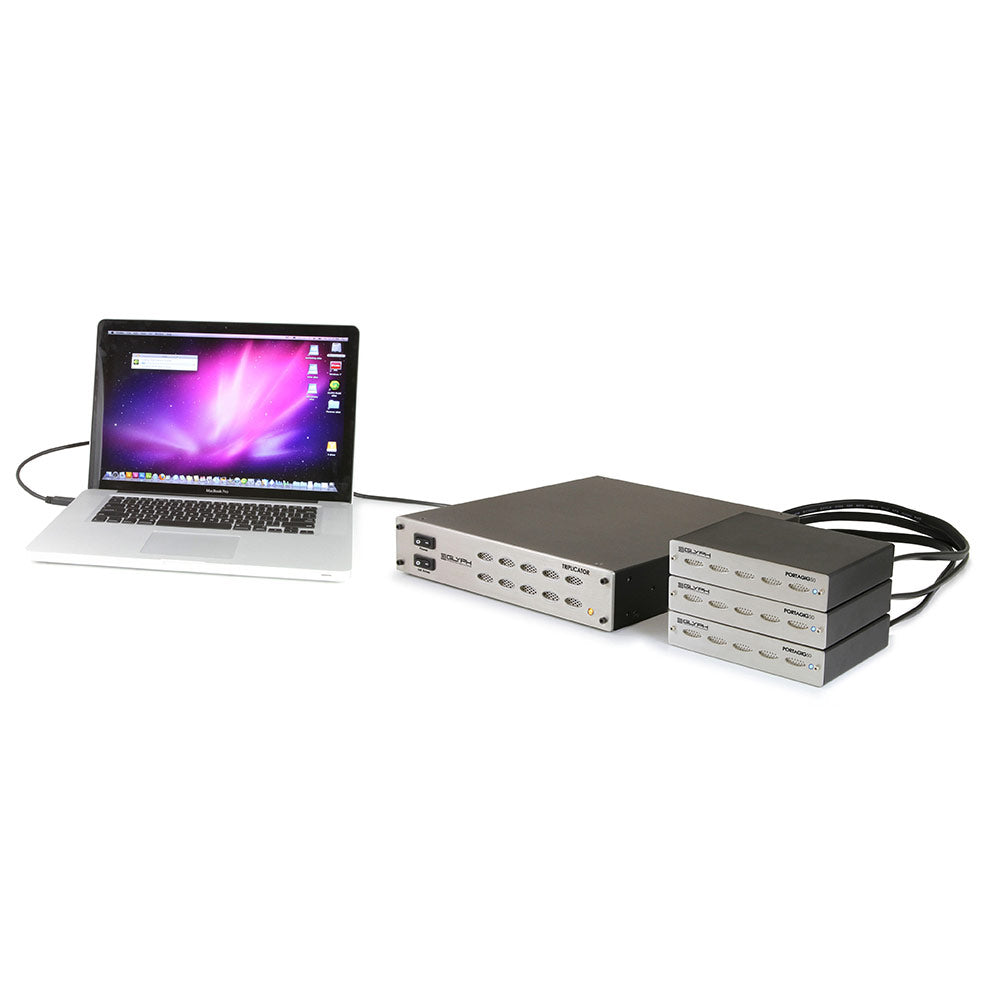

    1. Connect two or three drives to Triplicator's eSATA device ports
    2. Connect the Triplicator to your computer via FireWire 800, USB or eSATA
    3. Power on drives and Triplicator. LED tells you number of drives attached
    4. Copy data - the destination is seen as one drive through the Triplicator


    Connections

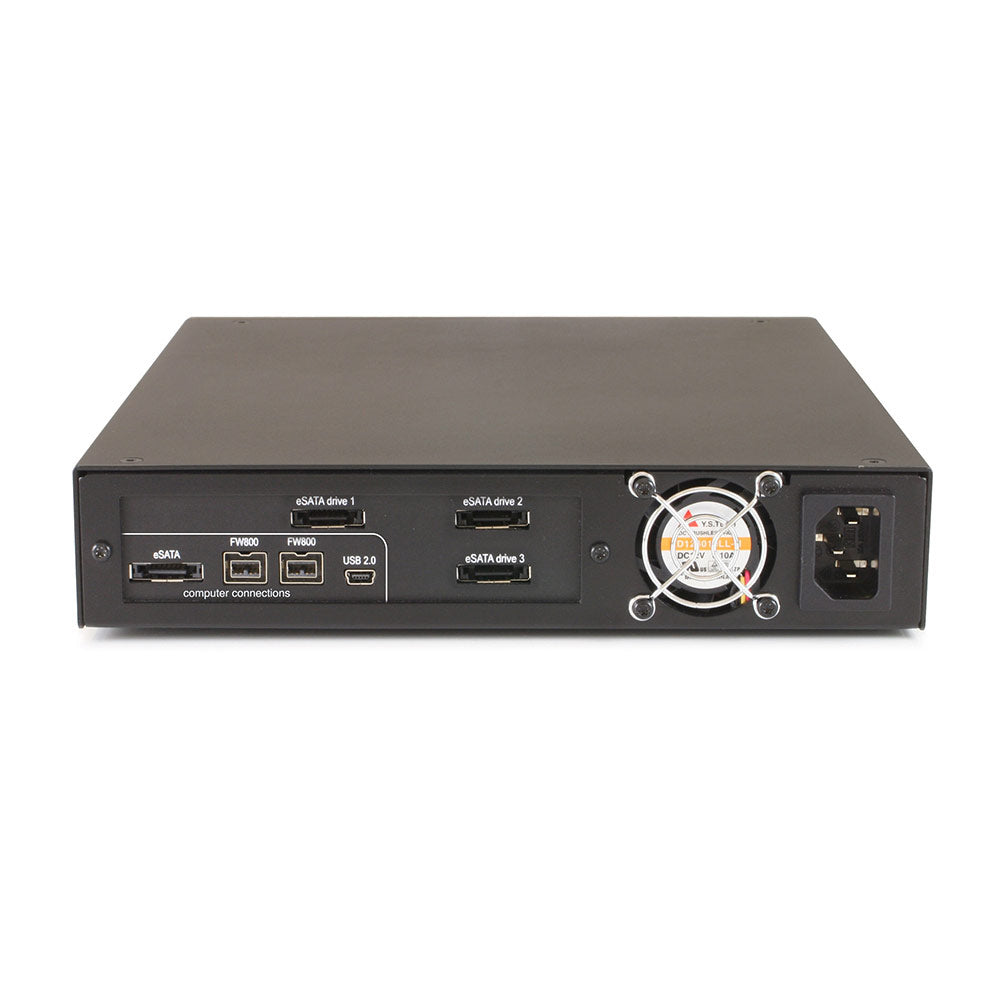

    The Triplicator can be connected to the computer via eSATA, FireWire or USB using any of the ports marked "computer connections". The target drives are connected to the Triplicator via eSATA cables only, using the ports marked "eSATA drive 1", "eSATA drive 2", etc. The Triplicator supports any eSATA connected drives, including the Glyph PortaGig 50, PortaGig 62, GT 050Q and GT 062E.

    User Interface

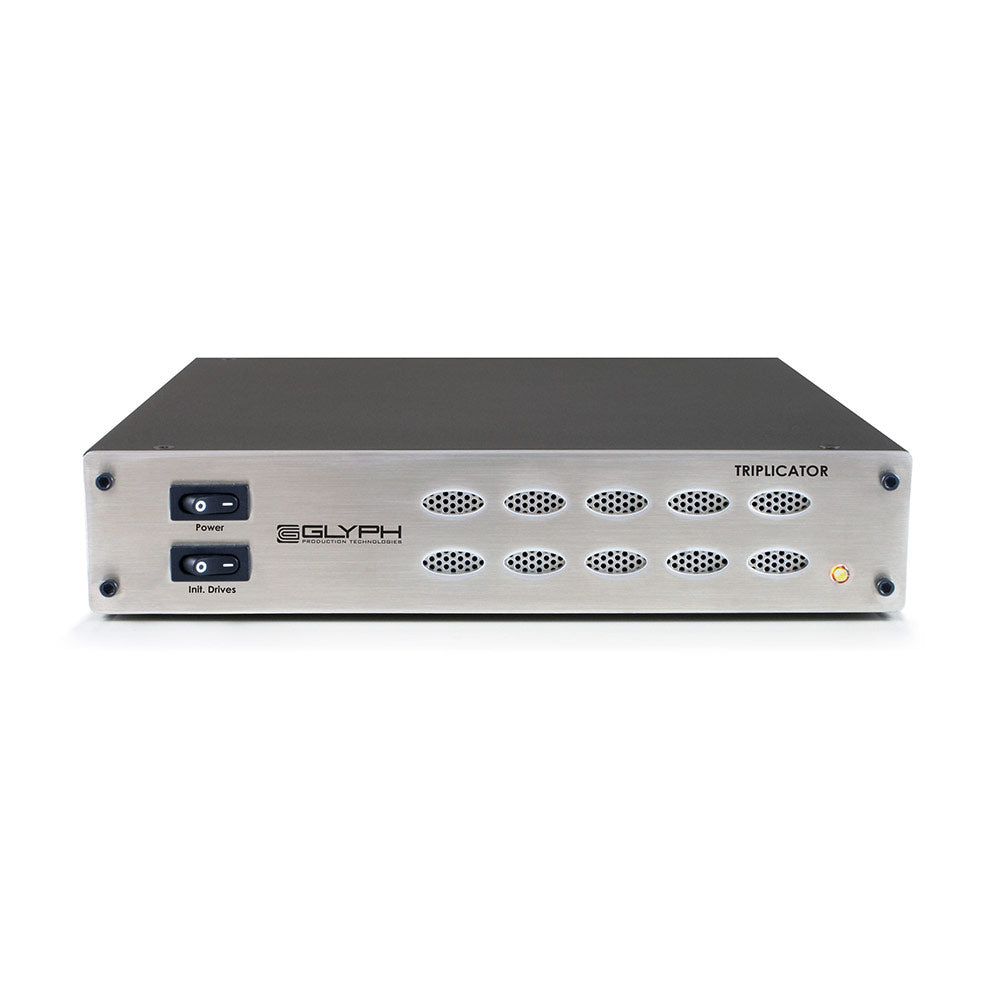

    Triplicator's user interface also provides important information during the copy process. The front panel includes a button designed to guard against unintended drive initialization. The first time you power on the Triplicator, the blue LED blinks to indicate that button press is required. On button press, the drives initialize and the blue LED goes to solid. After a few seconds a volume will be visible to your computer. Format this volume using your operating system utility, and you're ready to go. After the Triplicator has initialized the drives, the red LED pattern blinks to show the number of attached drives. If no drives are attached, the LED goes solid red. If a discovered drive disappears in the course of operation, it goes solid red.

    In use
    You can use the Triplicator volume as you would use the volume on any drive. However, when you copy data to the Triplicator volume, the data will be copied to all target drives at the same time. Once you are done working with the drives, you can unmount the volume just like any external drive, and connect the target drives individually to a computer. You will see that the same data is on each drive.

    Drive capacities
    It is best, but not necessary, for all of the drive capacities to be the same. If you connect three 500GB drives, the volume will be 500GB, because the same data is copied to all drives. If you connect two 500GB drives and one 250GB drive, the capacity will be equal to the smallest drive, so total capacity will be 250GB.

    Remount functionality
    After you have created a Triplicator drive set and copied data to the drives, the Triplicator and drives can be powered off and on. On power up, the Triplicator will discover and mount the previously created drive set. This allows you to work with the Triplicator as you would any other drive, while at the same time having your data present on up to three hard drives.

    Host computer connectivityeSATA - One port
    FireWire 800 (IEEE 1394b) - Two 9-pin ports
    USB 2.0 Hi-speed (device-side) port
    Target drive connectivityeSATA - Three ports
    Drive capacities supportedAll drive capacities are supported
    Maximum transfer rate (eSATA port)3 Gbit/s (300MB/sec)
    Dimensions (HxWxD)Product:
    1.7" x 8.6" x 9.5" / 4.3 x 21.8 x 24.1 cm
    Packaging:
    4.2" x 15" x 13.1" / 10.8 x 38.1 x 33.3 cm
    WeightProduct:
    3 pounds / 1.4 kg
    With pkg:
    7.2 pounds / 3.3 kg
    Power SupplyInternal Universal 100-240v 50/60 Hz
    Compatible Operating SystemsMac OS 8.6, 9.X, 10.X
    Microsoft Windows 98SE, ME, 2000, XP, Vista, 7
    Inside The Box9-Pin FireWire 800 Cable
    IEC Power Cable
    Three eSATA cables (1.5ft) for target drive connection
    One eSATA cable (3ft.) for host connection
    WarrantyFull 3 Years
    1 Year Advance Replace (U.S. 48 States only)

    Triplicator makes your job easier. When you need to copy your critical data to multiple drives, Triplicator saves you time and energy by doing the copies in a single action. When you copy data through the Triplicator, identical data will be copied to all the target drives. Perfect for any production workflow when you need on-site backups of your valuable data. The first product from the new Glyph Production Technologies.

    How It Works:

    1. Connect two or three drives to Triplicator's eSATA device ports
    2. Connect the Triplicator to your computer via FireWire 800, USB or eSATA
    3. Power on drives and Triplicator. LED tells you number of drives attached
    4. Copy data - the destination is seen as one drive through the Triplicator


    Connections
    The Triplicator can be connected to the computer via eSATA, FireWire or USB using any of the ports marked "computer connections". The target drives are connected to the Triplicator via eSATA cables only, using the ports marked "eSATA drive 1", "eSATA drive 2", etc. The Triplicator supports any eSATA connected drives, including the Glyph PortaGig 50, PortaGig 62, GT 050Q and GT 062E.

    User Interface
    Triplicator's user interface also provides important information during the copy process. The front panel includes a button designed to guard against unintended drive initialization. The first time you power on the Triplicator, the blue LED blinks to indicate that button press is required. On button press, the drives initialize and the blue LED goes to solid. After a few seconds a volume will be visible to your computer. Format this volume using your operating system utility, and you're ready to go. After the Triplicator has initialized the drives, the red LED pattern blinks to show the number of attached drives. If no drives are attached, the LED goes solid red. If a discovered drive disappears in the course of operation, it goes solid red.

    In use
    You can use the Triplicator volume as you would use the volume on any drive. However, when you copy data to the Triplicator volume, the data will be copied to all target drives at the same time. Once you are done working with the drives, you can unmount the volume just like any external drive, and connect the target drives individually to a computer. You will see that the same data is on each drive.

    Drive capacities
    It is best, but not necessary, for all of the drive capacities to be the same. If you connect three 500GB drives, the volume will be 500GB, because the same data is copied to all drives. If you connect two 500GB drives and one 250GB drive, the capacity will be equal to the smallest drive, so total capacity will be 250GB.

    Remount functionality
    After you have created a Triplicator drive set and copied data to the drives, the Triplicator and drives can be powered off and on. On power up, the Triplicator will discover and mount the previously created drive set. This allows you to work with the Triplicator as you would any other drive, while at the same time having your data present on up to three hard drives.

    Host computer connectivityeSATA - One port
    FireWire 800 (IEEE 1394b) - Two 9-pin ports
    USB 2.0 Hi-speed (device-side) port
    Target drive connectivityeSATA - Three ports
    Drive capacities supportedAll drive capacities are supported
    Maximum transfer rate (eSATA port)3 Gbit/s (300MB/sec)
    Dimensions (HxWxD)Product:
    1.7" x 8.6" x 9.5" / 4.3 x 21.8 x 24.1 cm
    Packaging:
    4.2" x 15" x 13.1" / 10.8 x 38.1 x 33.3 cm
    WeightProduct:
    3 pounds / 1.4 kg
    With pkg:
    7.2 pounds / 3.3 kg
    Power SupplyInternal Universal 100-240v 50/60 Hz
    Compatible Operating SystemsMac OS 8.6, 9.X, 10.X
    Microsoft Windows 98SE, ME, 2000, XP, Vista, 7
    Inside The Box9-Pin FireWire 800 Cable
    IEC Power Cable
    Three eSATA cables (1.5ft) for target drive connection
    One eSATA cable (3ft.) for host connection
    WarrantyFull 3 Years
    1 Year Advance Replace (U.S. 48 States only)
