Hear Technologies Mix Back 16x12x2x2 Personal Monitor Mixer


  • Dale #:

    HEAR-MB
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Mix Back is a flexible and affordable 16 x 12 x 2 x 2 monitor mixer that features two stereo outputs and twelve mono outputs. There are sixteen high quality Mic/Line inputs with passive split. It also features two HearBus outputs and two ADAT optical outputs. A perfect companion to the Hear B... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

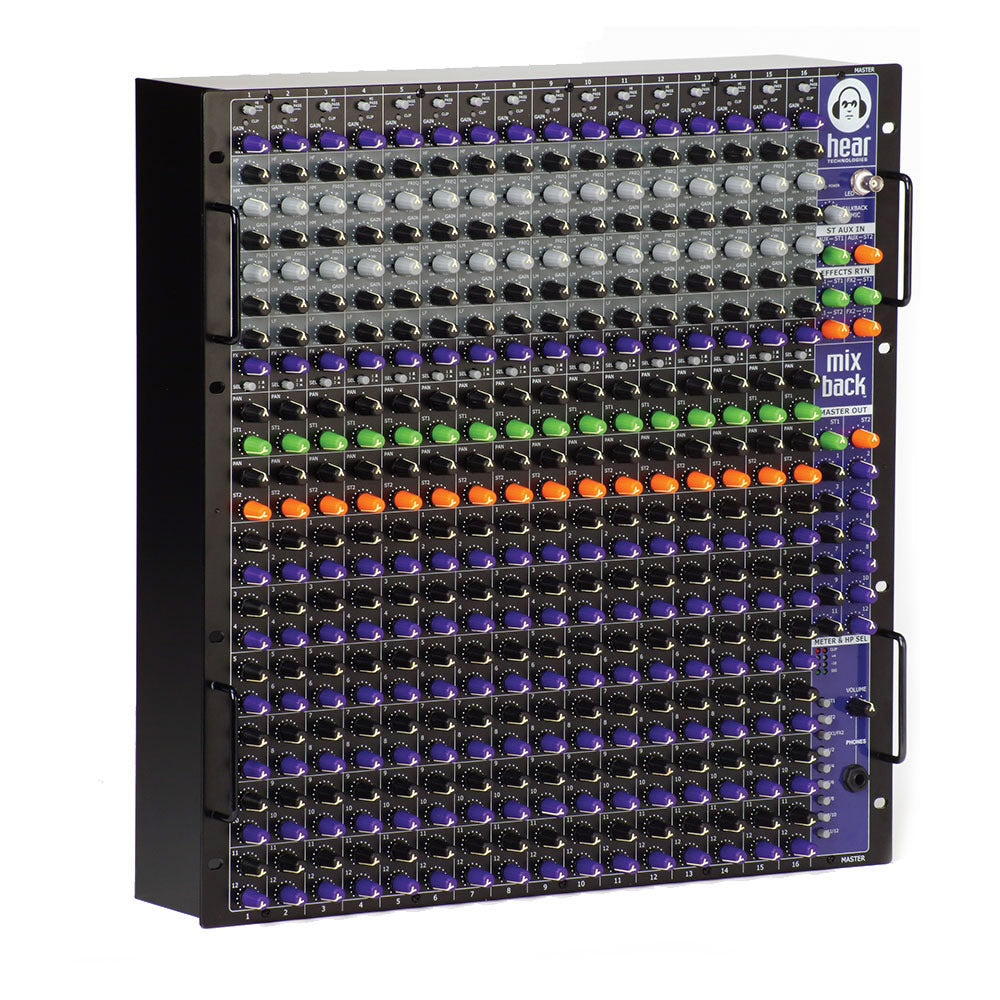

The Mix Back is a flexible and affordable 16 x 12 x 2 x 2 monitor mixer that features two stereo outputs and twelve mono outputs. There are sixteen high quality Mic/Line inputs with passive split. It also features two HearBus outputs and two ADAT optical outputs. A perfect companion to the Hear Back personal monitor system. A talkback mic preamp permits talking to any mono output, master outputs and the intercom output. Included is a UV LED gooseneck lamp that makes the knob pointers and silkscreen on the front of Mix Back glow-in-the-dark!

Features:

  • 2 stereo and 12 mono TRS outputs
  • Switch selectable meter/headphone monitoring
  • 2 stereo TRS balanced effect returns
  • Switch assignable FX1/FX2 returns to the 12 mono masters
  • Stereo Aux return with level controls to both stereo busses - great for FOH mix or the studio "two mix"
  • Buss inputs permit stacking of multiple mixers
  • Talk back mic preamp assignable to stereo masters 1 and 2, mono outputs 1-12, and the balanced Intercom/slate output
  • Relay contact when the talk back intercom switch is pressed
  • 16 button talkback remote connects using standard CAT5e cable
  • 16 channels of ADAT and HearBus output

Input Channel Features:

  • 16 quality Mic/Line inputs with passive XLR split
  • Pin 1 lift and Mic phantom power switches
  • Channel inserts
  • Signal/Clip LED indicator
  • 100 Hz high-pass filter
  • Gain control
  • 4 band EQ with separate controls for sweep and cut/boost on mid bands
  • Two stereo level and pan controls (ST1 and ST2)
  • Twelve mono level controls (1-12)
  • Switch selectable effects 1-2 sends

Other Features:

  • Universal internationally approved internal power supply
  • 11 RU chassis
  • All analog inputs and outputs are balanced

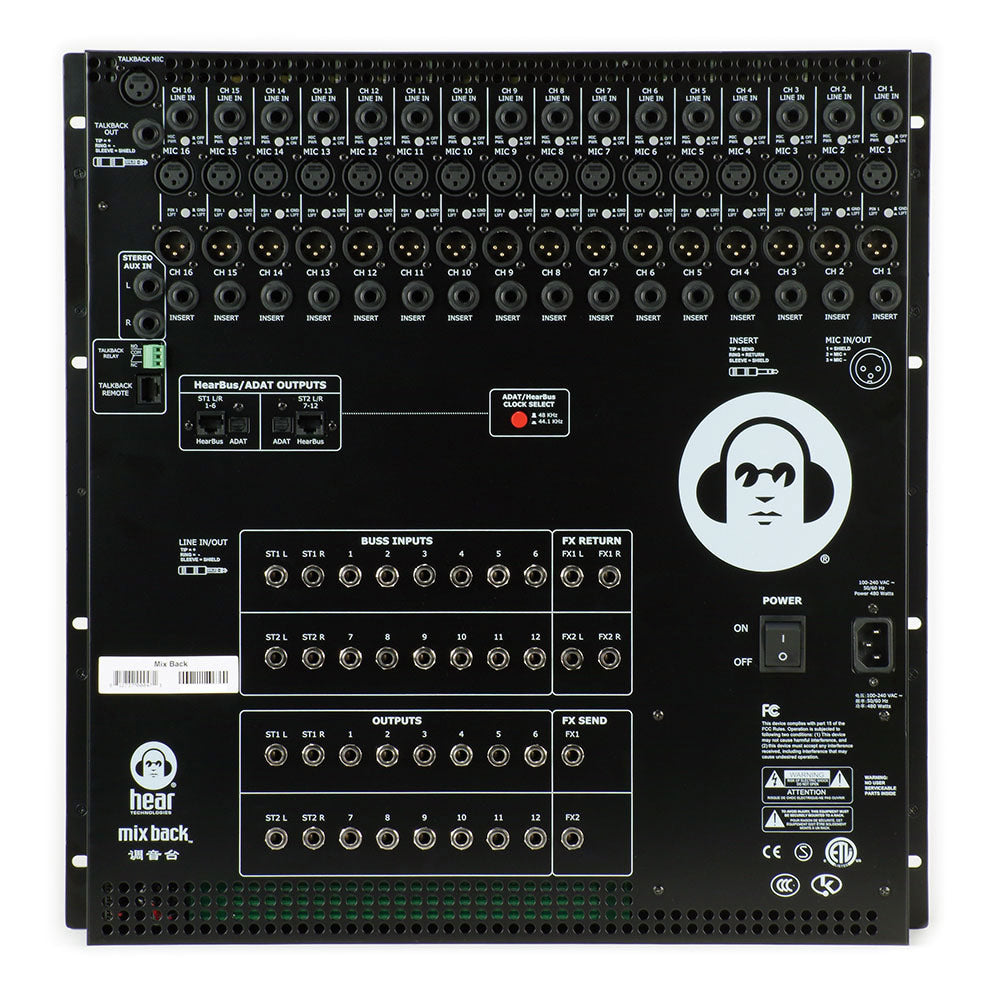

Outputs Inputs
• ST1 L/R
• ST2 L/R
• Mono 1-12
• FX1 Send
• FX2 Send
• Talkback output
• Talkback Relay
• ADAT - 16 Channels
• HearBus - 16 Channels
• ST1 L/R
• ST2 L/R
• Mono 1-12
• FX1 L/R
• FX2 L/R
• Stereo Aux inputs
• Talkback Mic
• Talkback remote Control

More +

Product Specs

Passive Microphone Split (Each Channel)
Mic In to Mic Out Passive
Mic Power +18 VDC
Pin 1 Lift Output XLR
Mic Input to Insert Output
Conditions +14 dBu input, Gain full CCW, 150 , Balanced
Frequency Response

20 Hz to 20 KHz, +/- 0.05 dBu
10 Hz to 120 KHz, +/- 0.3 dBu

THD+N 0.002%, 22 Hz to 22 KHz, unweighted
IMD 0.003%
EIN -121 dBu, 150 Source, -40 dBu input
Mic Pre to Master Output
Conditions 0 dBu input, Gain full CCW, 150 , Balanced
Frequency Response 20 Hz to 20 KHz, +/- 0.5 dBu
THD+N 0.004%, 22 Hz to 22 KHz, unweighted
IMD 0.004%
Maximum Gain 60 dBu, EQ Flat
Line Inputs to Insert Outputs
Conditions +18 dBu input, Gain full CCW, 150 , Balanced
Frequency Response 20 Hz to 20 KHz, +/- 0.3 dBu
THD+N 0.005%, 22 Hz to 22 KHz, unweighted
IMD 0.005%
Input Impedance 10K , balanced
Attenuation 18 dB
Channel Equalization
Hi Frequency 10 KHz shelving, +/- 15 dB
Hi Mid Frequency 500 Hz to 15 KHz, +/- 15 dB
Lo Mid Frequency 50 Hz to 3 KHz, +/- 15 dB
Lo Frequency 100 Hz shelving, +/- 15 dB
Hi-Pass Filter 100 Hz, 3 pole, 18 dB/Octave
Stereo Aux Input
Conditions +4 dBu input, 150 , Balanced
Frequency Response 20 Hz to 20 KHz, +/- 0.5 dBu
Gain Off to +6 dBu, Aux to Stereo Masters
THD+N 0.0033%, 20 Hz to 20 KHz
IMD 0.004%, 20 Hz to 20 KHz
Input Imedance 10K , balanced
Maximum Input Level +8 dBu
Buss Inputs to Master Outputs
Conditions +4 dBu input, 150 Ohms, Balanced
Frequency Response 20 Hz to 20 KHz, +/- 0.2 dBu
THD+N 0.005%
IMD 0.005%
Input Impedance 10K , balanced
Digital Output
ADAT Output 24 Bit, 44.1 KHz / 48 KHz Selectable
HearBus Output 24 Bit, 44.1 KHz / 48 KHz Selectable
ADAT/HearBus 1 Master 1 L/R, Channels 1-6
ADAT/HearBus 2 Master 2 L/R, Channels 7-12
Analog Line Outputs
Maximum Output Level +24 dBu, TRS Balanced
Output Impedance 121 , balanced
Talkback Mic Pre Amplifier
Conditions -40 dBu input, 150 , Balanced
Frequency Response 20 Hz to 20 KHz, +/- 1.5 dBu
Gain Off to 50 dBu, variable
Line Output 121 , TRS Balanced
Input Impedance 1K , balanced
THD 0.05%
IMD 0.09%
Remote Control 1-12, ST1, ST2, COM, ALL
Remote Cable CAT5e, 500 ft. max, wired pin-to-pin
Effects (FX) Return
Conditions +4 dBu input, 150 , Balanced
Frequency Response 20 Hz to 20 KHz, +/- 0.5 dBu
Gain, FX return to Master 1 dB, Master at center
THD+N 0.0025%, 20 Hz to 20 KHz
IMD 0.0027%, 20 Hz to 20 KHz
Input Imedance 10K , balanced
Maximum Input Level +10 dBu, control centered
Power Supply (Universal)
Input Voltage 100 to 240 VAC~, 50-60 Hz
Input Current 2 Amps
Maximum Continuous Input Power 240 Watts
Fuse (Internal) 3.15 Amp
Inrush 60 Amps, 2 mSec
Short Circuit Protection Yes
AC Input Connector IEC 320-C14, International
Agency Listing FCC class B, CISPR 22 class B, IEC 60950-1 safety, EN 61000-4-2, 4-4, 4-5
Physical
Construction Steel Chassis / Steel Front Panel
Size (with 1” handles) 19.23" H x 19" W x 5.35" D (488mm H x 482.6mm W x 135mm D)
Unit Weight 30.8 lbs (14 kg)
Mounting Standard rack mount, 11RU
Shipping Size 10.55" H x 25.0" W x 24.53" D (268mm H x 635mm W x 623mm D)
Shipping Weight 42.9 lb. (19.5 kg)
