Henry Engineering LogiConverter - General Purpose Control Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

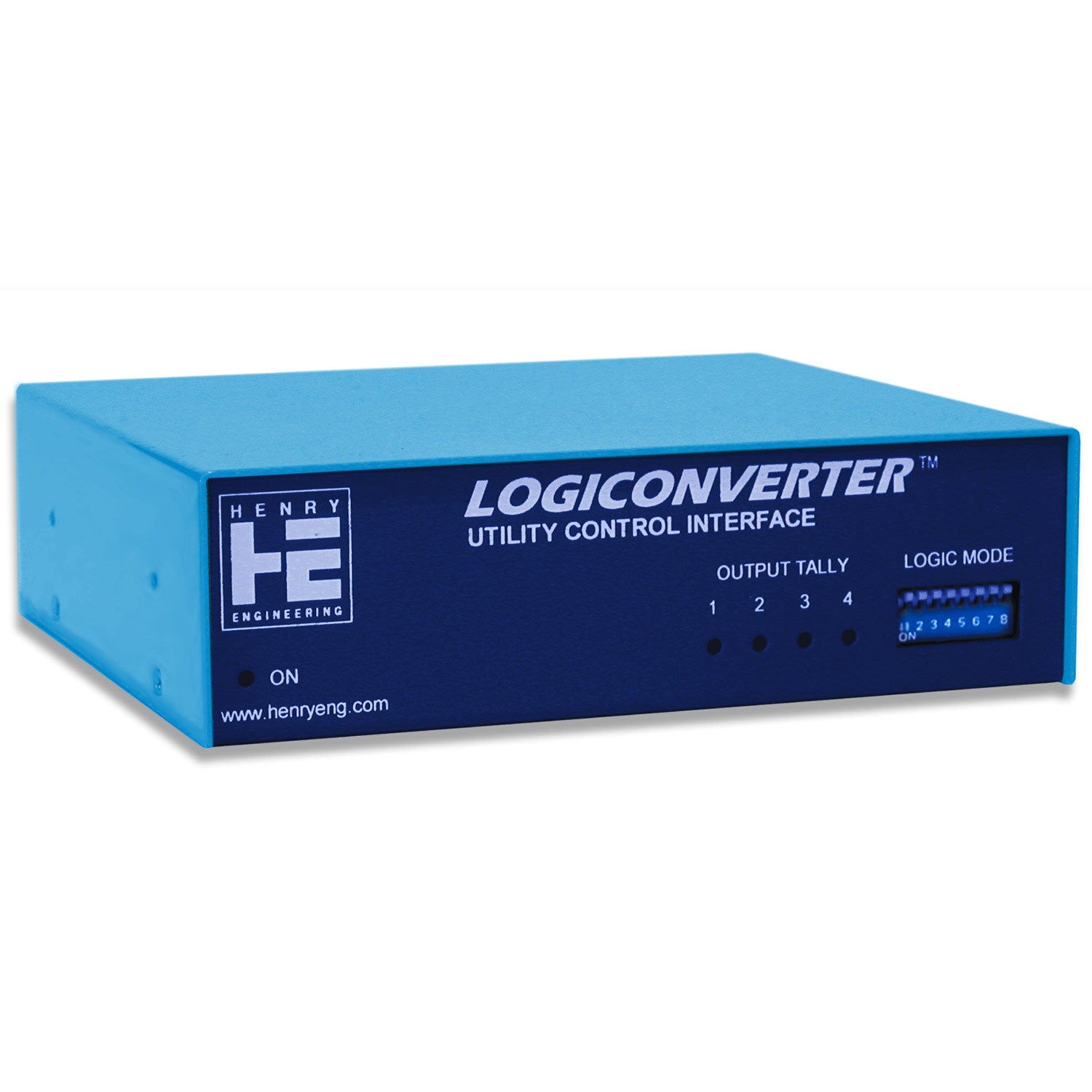

A general purpose control interface that eliminates the incompatibility between various audio and video equipment remote control circuits.LogiConverter has 4 opto-isolated inputs that control 4 isolated relay outputs. The unit can be programmed to provide either latched or momentary outputs from either continuous or momentary inputs with up to 24 combinations possible. A single input can provide single or dual flip-flop outputs; two inputs can latch and reset an output.Logic modes are selected by front-panel switches; LEDs indicate the output status of the four logic channels. Inputs can be any DC voltage from 5-24 vdc, TTL or CMOS logic outputs, open collectors, or contact closures. Inputs are via a 15-pin D connector; relay outputs are via plug-in euroblock connectors.LogiConverter is 1/3 rack width and can be mounted in an optional rack shelf, or wall mounted with optional wall/cabinet mounting brackets. LogiConverter is powered by an internal AC power supply.
| Control Inputs | Opto-isolated 5-24VDC or ground closure |
| Input Resistance | 1.5K ohms per input |
| Input Pulse Duration | >50ms for latched outputs>250ms for momentary outputs |
| Input Connector | 15-pin D-sub |
| Outputs | 4 Form-C (SPDT) relays |
| Load Capacity | 1A/28VDC, .5A/120VDC res max |
| Output Connections | Plug-in euroblocks |
| Power Requirements | 115/230VAC, 50/60Hz, 3 W |
| Construction | Steel enclosure |
| Dimensions (W x H x D) | 5.7 x 1.7 x 6.0 |
| Weight | 3.0 lbs. |
A general purpose control interface that eliminates the incompatibility between various audio and video equipment remote control circuits.LogiConverter has 4 opto-isolated inputs that control 4 isolated relay outputs. The unit can be programmed to provide either latched or momentary outputs from either continuous or momentary inputs with up to 24 combinations possible. A single input can provide single or dual flip-flop outputs; two inputs can latch and reset an output.Logic modes are selected by front-panel switches; LEDs indicate the output status of the four logic channels. Inputs can be any DC voltage from 5-24 vdc, TTL or CMOS logic outputs, open collectors, or contact closures. Inputs are via a 15-pin D connector; relay outputs are via plug-in euroblock connectors.LogiConverter is 1/3 rack width and can be mounted in an optional rack shelf, or wall mounted with optional wall/cabinet mounting brackets. LogiConverter is powered by an internal AC power supply.
| Control Inputs | Opto-isolated 5-24VDC or ground closure |
| Input Resistance | 1.5K ohms per input |
| Input Pulse Duration | >50ms for latched outputs>250ms for momentary outputs |
| Input Connector | 15-pin D-sub |
| Outputs | 4 Form-C (SPDT) relays |
| Load Capacity | 1A/28VDC, .5A/120VDC res max |
| Output Connections | Plug-in euroblocks |
| Power Requirements | 115/230VAC, 50/60Hz, 3 W |
| Construction | Steel enclosure |
| Dimensions (W x H x D) | 5.7 x 1.7 x 6.0 |
| Weight | 3.0 lbs. |
