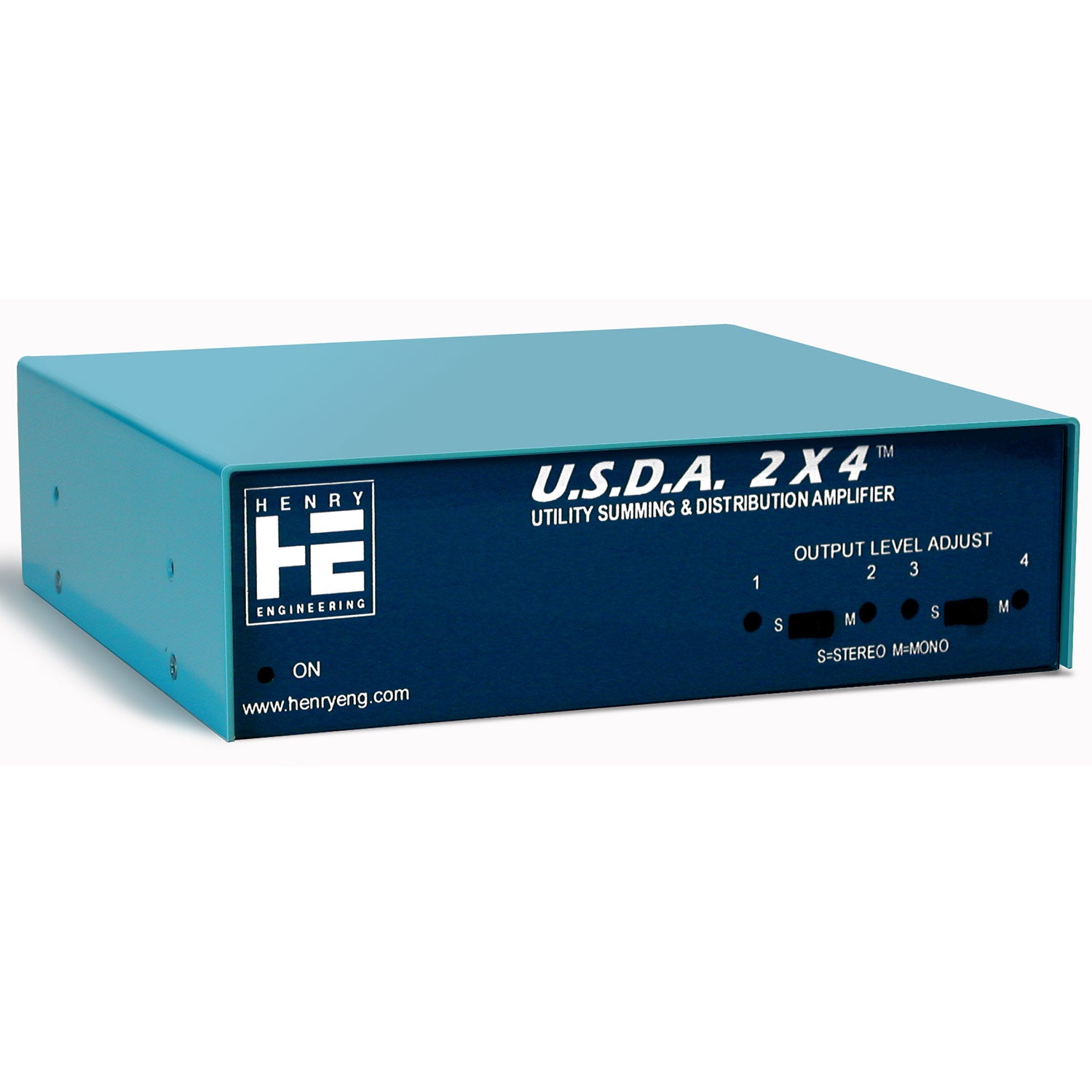

Henry Engineering USDA 2X4 - Utility Summing and Distribution Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
U.S.D.A. (Utility Summing & Distribution Amplifier) is a unique 2x4 mini-DA that can be used to combine or split audio signals for distribution. It can be used as a 1x4 or 2x4 DA in stereo or mono.
There are 2 inputs (1 stereo pair) and 4 outputs (2 stereo pairs). Front panel "Stereo/Mono" switches select either a stereo or mono output from each output pair. USDA can produce both stereo and mono outputs simultaneously from a stereo source. Inputs and outputs can be operated either balanced or unbalanced. The audio level of each output can be adjusted over a 26db range. All circuitry is transformerless and direct-coupled for sonic accuracy.
Connections are via plug-in euroblock connectors. USDA 2X4 is 1/3 rack width and can be mounted in an optional rack shelf, or wall mounted with optional wall/cabinet mounting brackets. USDA 2X4 is powered by an internal AC power supply.
| Input Level | -14 to +8 dBm nominal |
| Input Impedance | 20K ohms bal, 10K ohms unbal |
| Output Level | 0 to +8 dBm nominal, +26 dBm max |
| Output Load | 600 ohms or higher per output, bal |
| Controls | Output Level for each channel |
| Gain | -12 to +14 dB |
| Frequency Response | DC to 20kHz, ±0.25 dB |
| Distortion | <.01% IM/THD |
| Noise | >80 dB below nominal output, typ |
| Power Requirements | 115/230VAC, 50/60Hz, 3 W |
| Physical Size | 5.7Ów X 1.7Óh X 6.0Ód, 3lbs |
| Construction | Steel enclosure |
| Mounting | Table top, optional rack mount shelf, optional wall/cabinet mounting brackets |
| Approval | City of Los Angeles Elect. Test Lab |
