Description

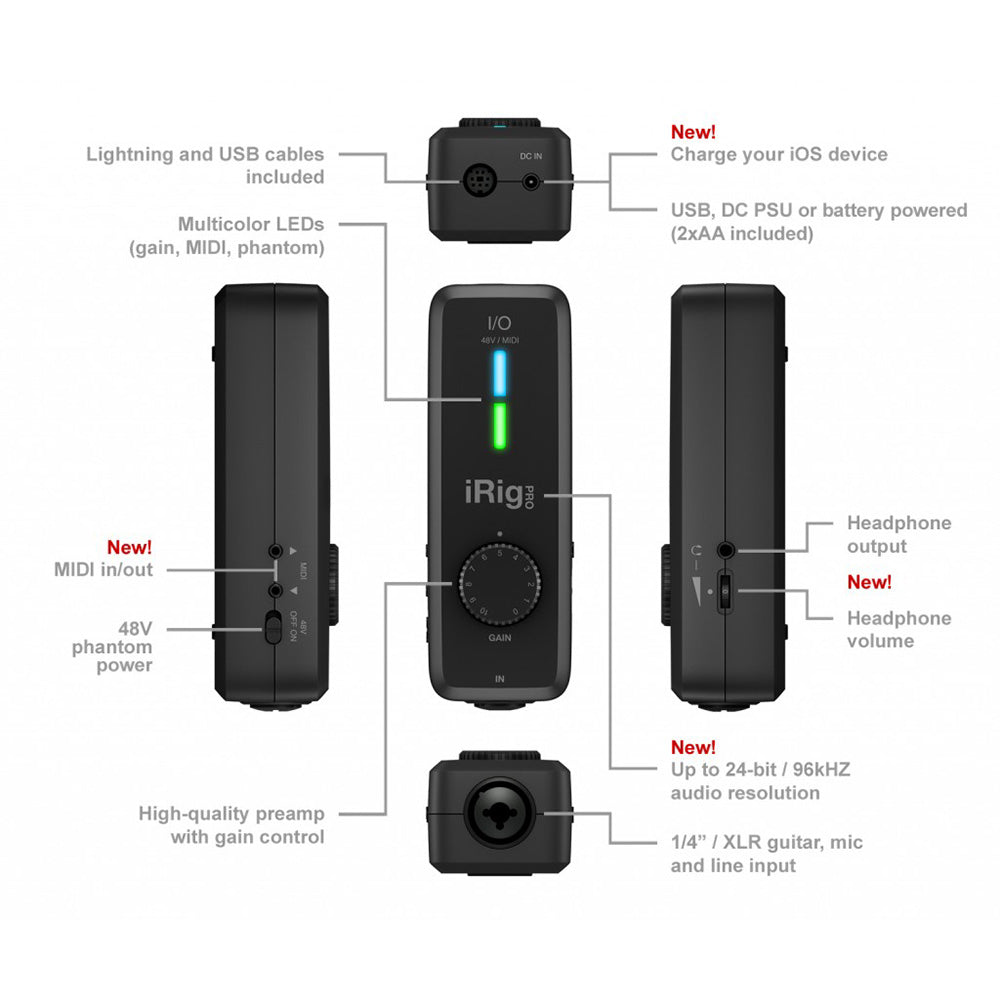

The ultra-compact professional audio/MIDI interface for all your gear. Now record with any of your gear on the go, and monitor in real time with any compatible device! That's iRig Pro I/O, the ultra-compact professional quality audio and MIDI in/out for your mobile recording life!
iRig Pro I/O is the next generation of the iRig Pro - the first mobile interface for connecting all of your studio gear to your iPhone, iPad, Mac, PC or Android device to play and record on the go.
iRig Pro I/O is a pocket-sized full-featured audio and MIDI interface that gives you 24-bit/96kHz recording studio quality sound everywhere you go with a few additional essential features for mobile recording.
Features:
First, iRig Pro I/O is designed to be "plug and play" easy to use with all of your gear - studio mics, vocal performance mics, guitars, basses, keyboards - whatever it is, iRig Pro I/O can handle it.
Second, iRig Pro I/O features a new 1/8" stereo headphone out with preamp and level control, making it compatible with even the most recent iOS devices. Plus, when used with the optional DC power supply, iRig Pro I/O will charge your iPhone or iPad while in use for unlimited playing and recording time. iRig Pro I/O also features a new MIDI Out jack that gives you even more flexibility and control over your outboard MIDI gear.
Bottom line: iRig Pro I/O is the most versatile and intuitive "all in one" mobile interface available.
All your gear, all the time
iRig Pro I/O is designed for all your gear - studio mics, vocal mics, guitars, basses, keyboards, sound modules, MIDI Controllers - you name it. At its core, iRig Pro I/O features 24-bit A/D and D/A converters, and a 96kHz sample rate for professional quality audio on the go. When using a studio microphone, iRig Pro I/O can supply 48V of phantom power to the XLR jack for your active condensers. Plus, you can dial in the perfect and precise amount of gain with the new marked gain control knob. Recalling your gain settings for your mics and instruments has never been easier.
iRig Pro I/O also features a 1/4" Hi-Z input that easily handles passive and active pickup configurations. Again, the numbered gain wheel lets you dial in the perfect amount of input signal for your recordings and recall them with ease.
It also adds a MIDI Out jack (and included the cables for you) that lets you easily chain and control your outboard MIDI gear.
Use your studio mics anywhere

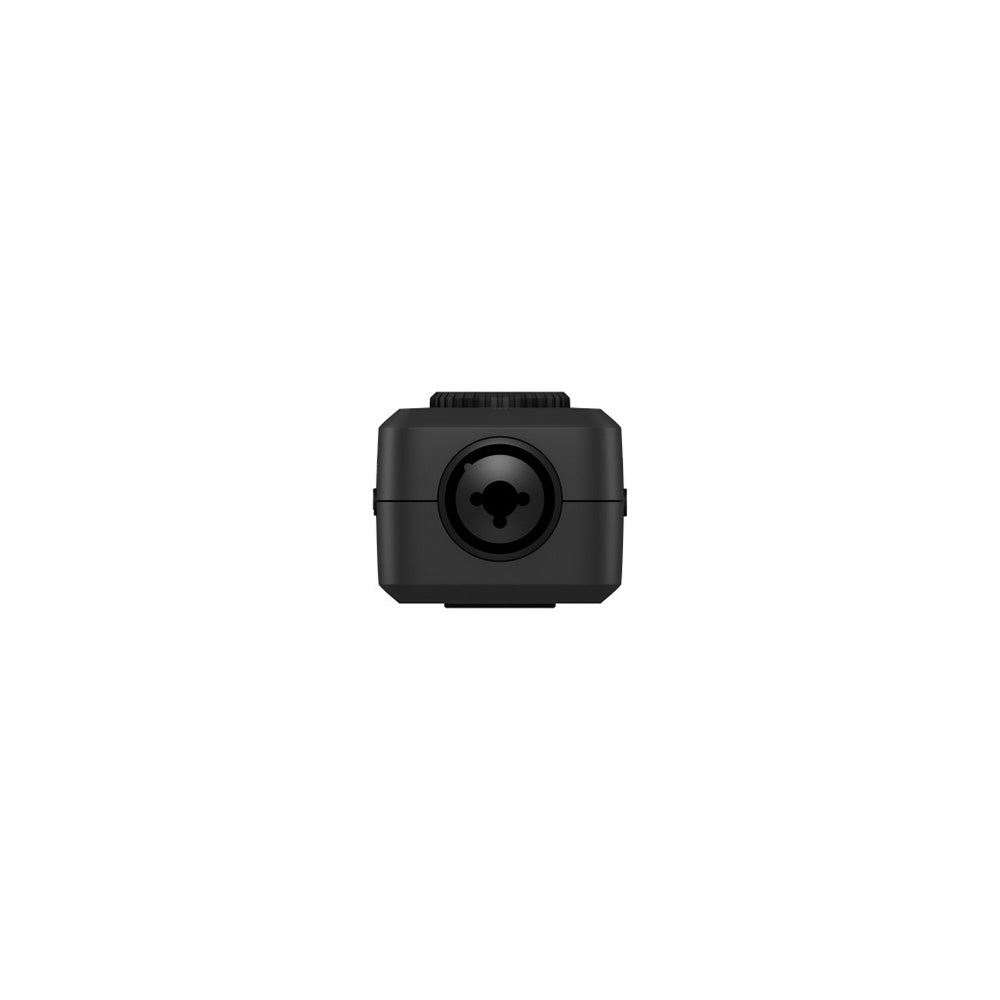

With iRig Pro I/O, you can use any microphone you own because it sports onboard 48V switchable phantom power for your condensers. iRig Pro I/O features a combination Neutrik XLR and 1/4" input jack, and an input gain control with a calibrated oversize knob for precise gain setting and recall. Now setup with your studio gear is easier than ever before. Simply plug in, adjust your input gain and hit record.
Listen Up
One of the major advancements of iRig Pro I/O is the addition of an 1/8" stereo headphone output with preamp and level control. Now you can play, record and monitor with all of your devices - even the most recent iPhones and iPads - with the depth and headroom you'd get only from a traditional recording studio setup.
MIDI In, MIDI Out

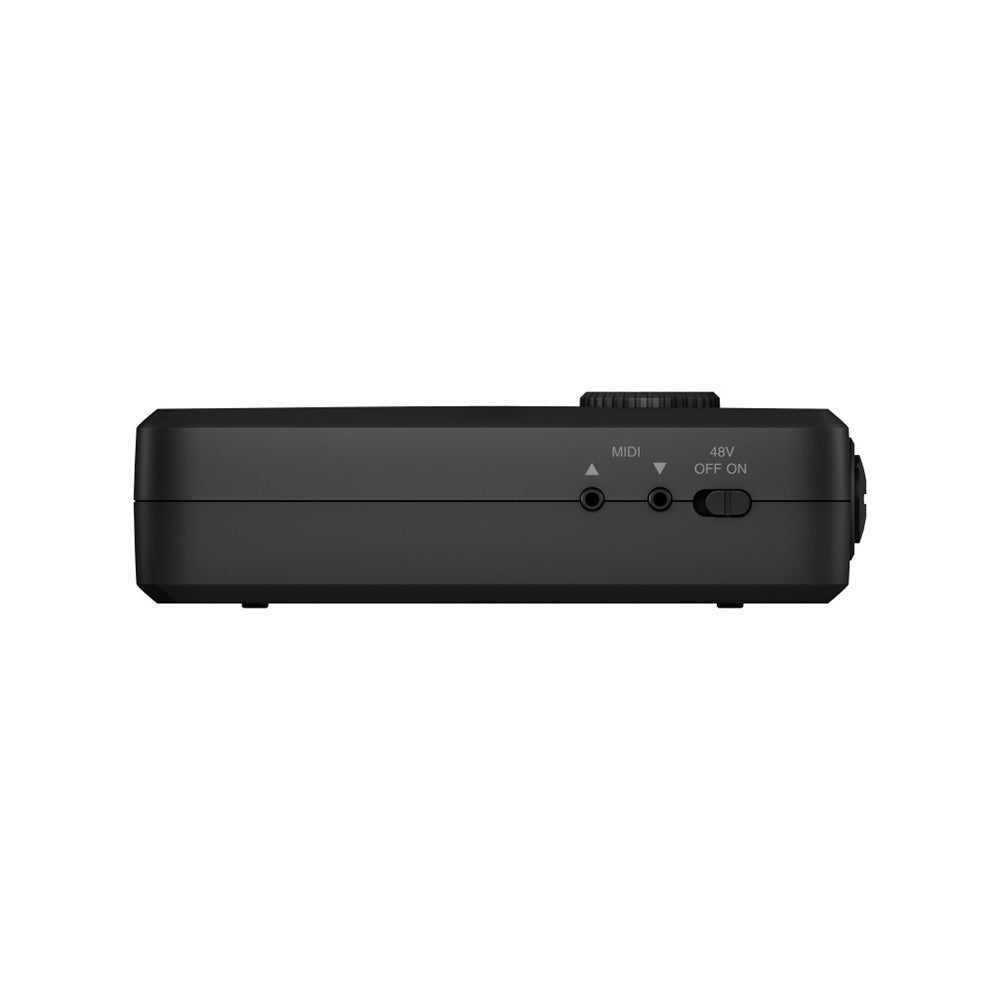

In addition to the MIDI IN jack, iRig Pro I/O now features a MIDI OUT (thru) for even more routing flexibility. Now connect your outboard keyboards, controllers and sound modules and even control surfaces with just one simple interface. iRig Pro I/O comes complete with two standard 5-pin MIDI to 2.5 mm cables for hookup.
Power up
iRig Pro I/O has multiple power options depending upon your recording preferences. When used as a standalone interface for iPhone, iPad or Android device, you can power iRig Pro I/O with 2 - AA batteries that also provide switchable 48V phantom power for condenser mics. When used with iRig PSU 3A*, the optional DC PSU, iRig Pro I/O will charge your iPhone or iPad while plugged in for endless or extended recording and playing sessions. Buy the iRig PSU 3A now!* When used with a Mac/PC, iRig Pro I/O gets its power from the USB port and the connected laptop. Whichever method you choose, iRig Pro I/O will adapt and is ready to go at a moment's notice.
Fully Loaded
iRig Pro I/O comes with over $/550 worth of full version IK Software including AmpliTube for iOS, AmpliTube 4 for Mac/PC, SampleTank 4 SE, T-RackS 4 Deluxe with Mic Room, and more. No other interface gives you so much value and playability right out of the box. With iRig Pro I/O and IK Software, there's no limit to what you can do.
More +
Product Specs
Microphone Input | Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground Microphone Input Level: from 6 mVpp to 1.4 Vpp Microphone Input Impedance: 3.2 kOhms Gain Range: 40 dB Phantom Power: +48V ± 4V Frequency Response: 20 Hz - 20 kHz +/-1.5dB Input Noise: -103 dB(A), -97 dB RMS |
Instrument Input | Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground Instrument Input Level: from 30 mVpp to 6.9 Vpp Instrument Input Impedance: 1 MOhms Gain Range: 27 dB Frequency Response: 20 Hz - 20 kHz +/-1.5dB Input Noise: -103 dB(A), -97 dB RMS |
Stereo Headphone Output | Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground Headphone Level Control numbered thumbwheel Headphone Level Power 100mW into 50 Ohms |
Stereo Headphone Output | Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground Headphone Level Power 100mW into 50 Ohms |

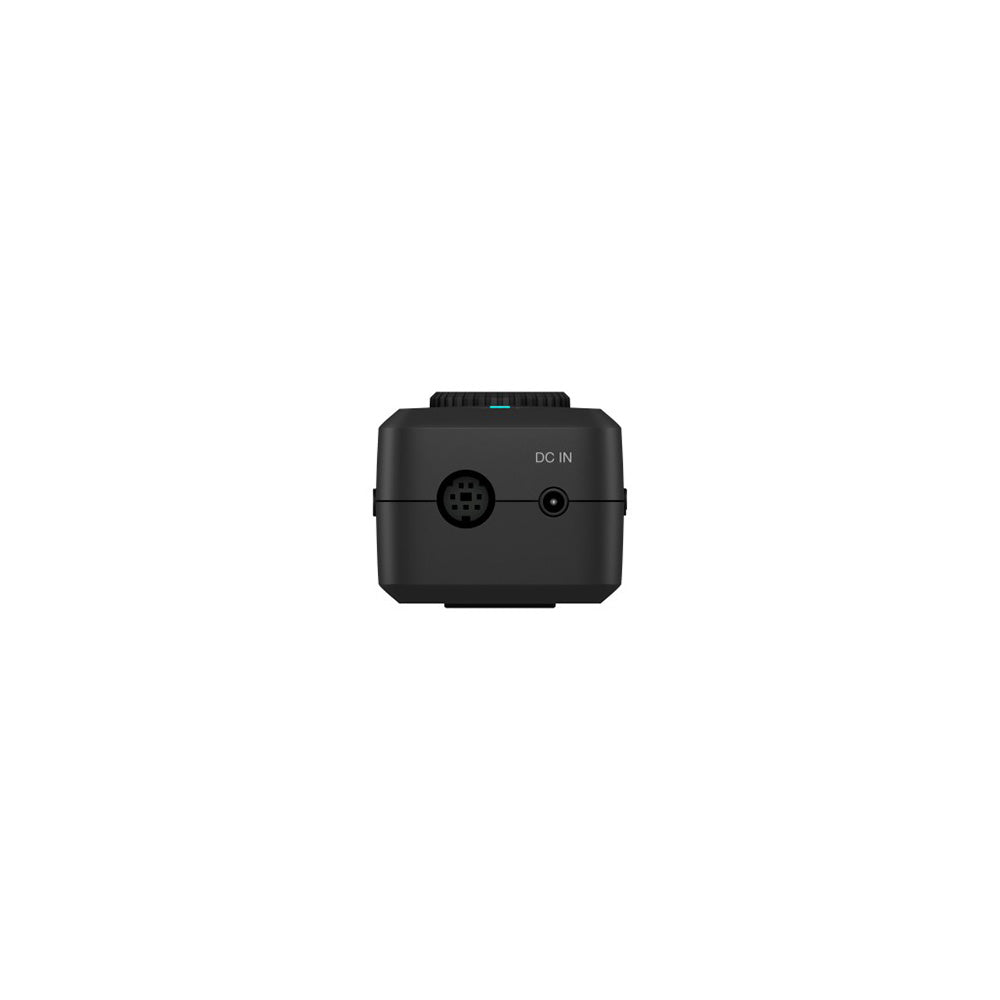

MIDI Input/Output | Connector: 2x2.5mm TS Jack Other Input/Output DC barrel: 1x DC barrel. For power and device charging. Device Connector: mini-DIN |
Common | Conversion: 24-bit A/D, 24-bit D/A Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz |
Power | - USB bus powered when used with a computer - Battery powered (2xAA included) when used with an iOS device - DC power supply (not included, iRig PSU 3A sold separately) |
Package includes | iRig Pro I/O universal Audio-MIDI interface Lightning to Mini-DIN connection cable with charging features (60cm/23.62") USB-A to Mini-DIN connection cable (60cm/23.62") 2.5mm TRS male to MIDI female adapter (10cm / 3.9") 2 x 1.5V AA Battery Velcro strip |
Dimensions | Size: 43mm/1.69" x 127mm/5" x 37mm/1.46" Weight: ~120g/4.23oz (batteries excluded) |
Compatibility | |
iOS Devices | Compatible with iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4th generation. iOS 6 or later is required. Also compatible with all newer iPhone, iPad and iPod touch models. |
Computers | Mac®: Mac OS X 10.6 or later. One free USB port. Windows®: One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed. |
Android Devices | Compatible with Android devices running Android 5 or later and with USB digital audio capabilities. Micro-USB-OTG to Mini-DIN cable (sold separately) is required. |
