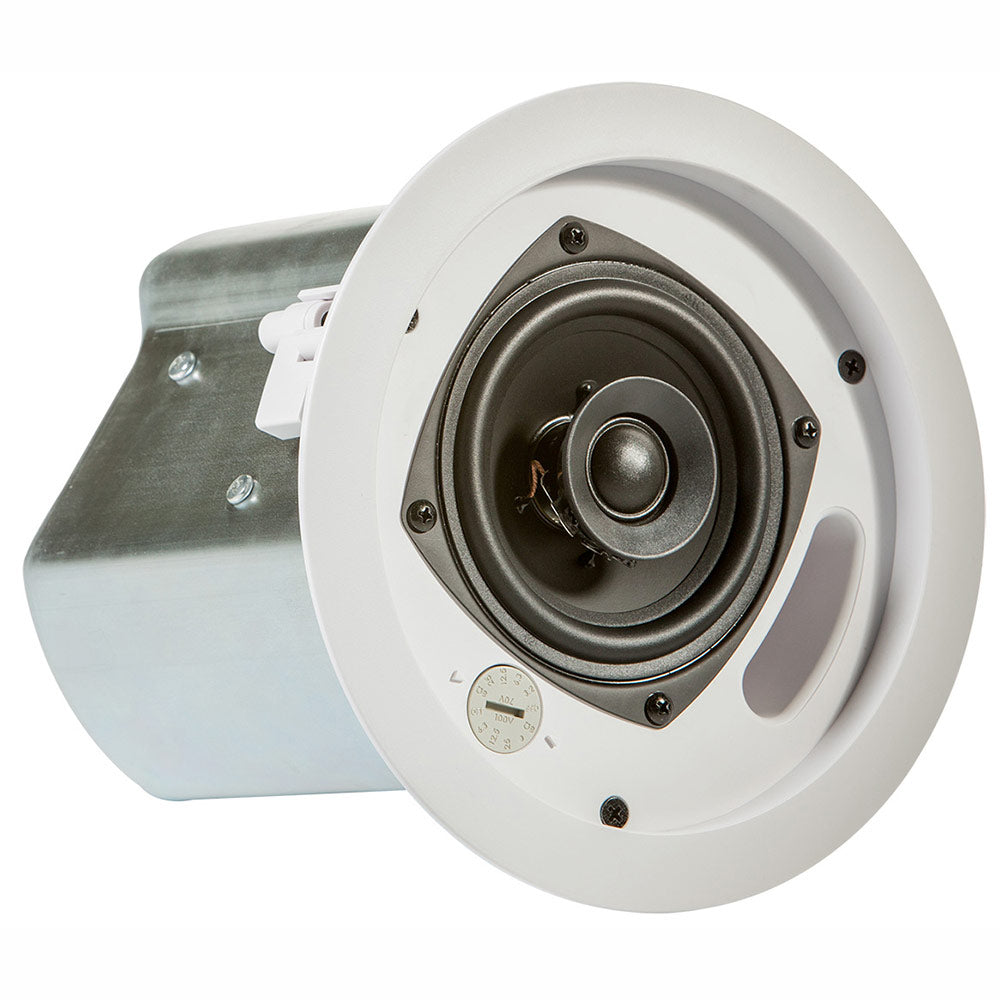

JBL CONTROL 14C/T 4-inch Coaxial Ceiling Loudspeaker (White)
Dale #:
JBL-CONTROL14CTWHAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
Priced individually, but sold in pairs.The Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached ... Read MoreRetail Price: $153.46 Our Price: $121.00
Free Shipping (Continental US)
Suggested Accessories
Description
Priced individually, but sold in pairs.
The Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.
Features:
- Components:
- 100 mm (4.0 in) high output driver with polypropylene cone and butyl rubber surround
- 19 mm (0.75 in) soft-dome liquid-cooled tweeter
- Blind-mount backcan for quick and easy install
- Dual conduit/cable clamps
- Combined 70V/100V and low impedance direct operation
- 30 Watts at 8ohm nominal setting
- 25W multi-tap at 70V/100V
- 74 Hz - 20 kHz bandwidth with wide 120 deg. coverage
More +
Product Specs
| Frequency Range (-10 dB) | 74 Hz - 20 kHz |
| Power Capacity (at low-Z) | 60 Watts Continuous Program Power 30 Watts Continuous Pink Noise |
| Transformer Taps | 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only) |
| Frequency Response (+/- 3 dB) | 100 Hz - 20 kHz |
| Nominal Sensivity | 87 dB |
| Nominal Coverage Angle | 120Á conical coverage |
| Directivity Factor (Q) | 7.6 |
| Directivity Index (DI) | 8.1 dB |
| Rated Maximum SPL | 102 dB @ 1 m (3.3 ft) average, 108 dB peak |
| Nominal Impedance | 8 ohms (in direct/bypass 8? setting) |
| Crossover Network | 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
| LF Driver | 100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil |
| HF Driver | 19 mm (3/4 in), highly-damped treated-silk dome, Kapton» voice coil, liquid cooling, wide dispersion waveguide |
| Input Connector | Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2) |
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
| Strain Reliefs | Strain relief for two cables or two flex conduits via coupled clamping mechanism |
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90 / NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Dimensions | 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth) |
| Ceiling Cutout Size | Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included) |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses |
| Safety Seismic Attachment | One point, top surface |
| Net Weight | 2.2 kg (4.8 lbs, one speaker) |
| Shipping Weight | 8.2 kg (17.9 lbs, pair in master carton) |
| Included Accesories | C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille |
| Optional Accessories | MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |
