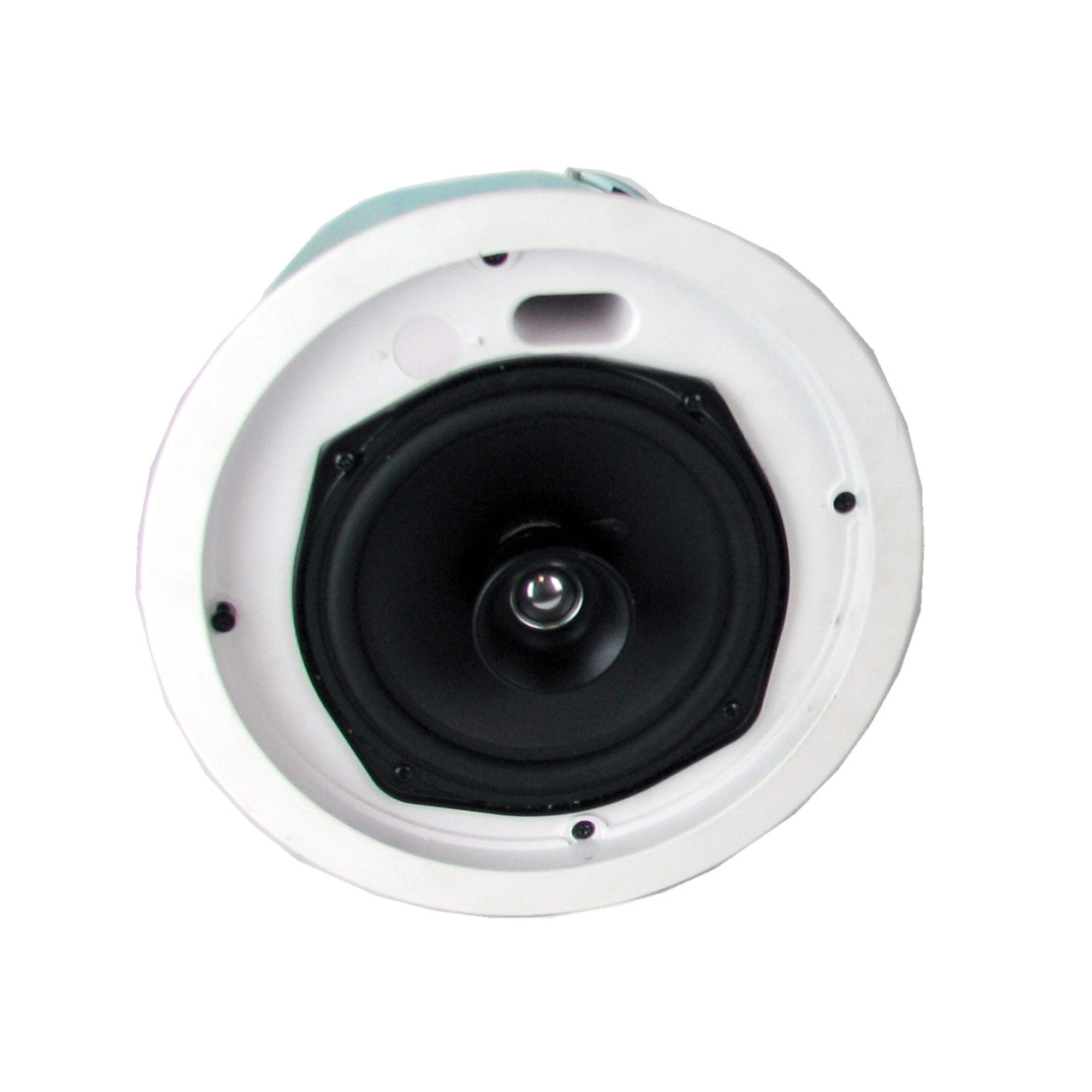

JBL CONTROL 26C 6.5" 2WAY Vented Ceiling Speaker (PAIR) B-Stock
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

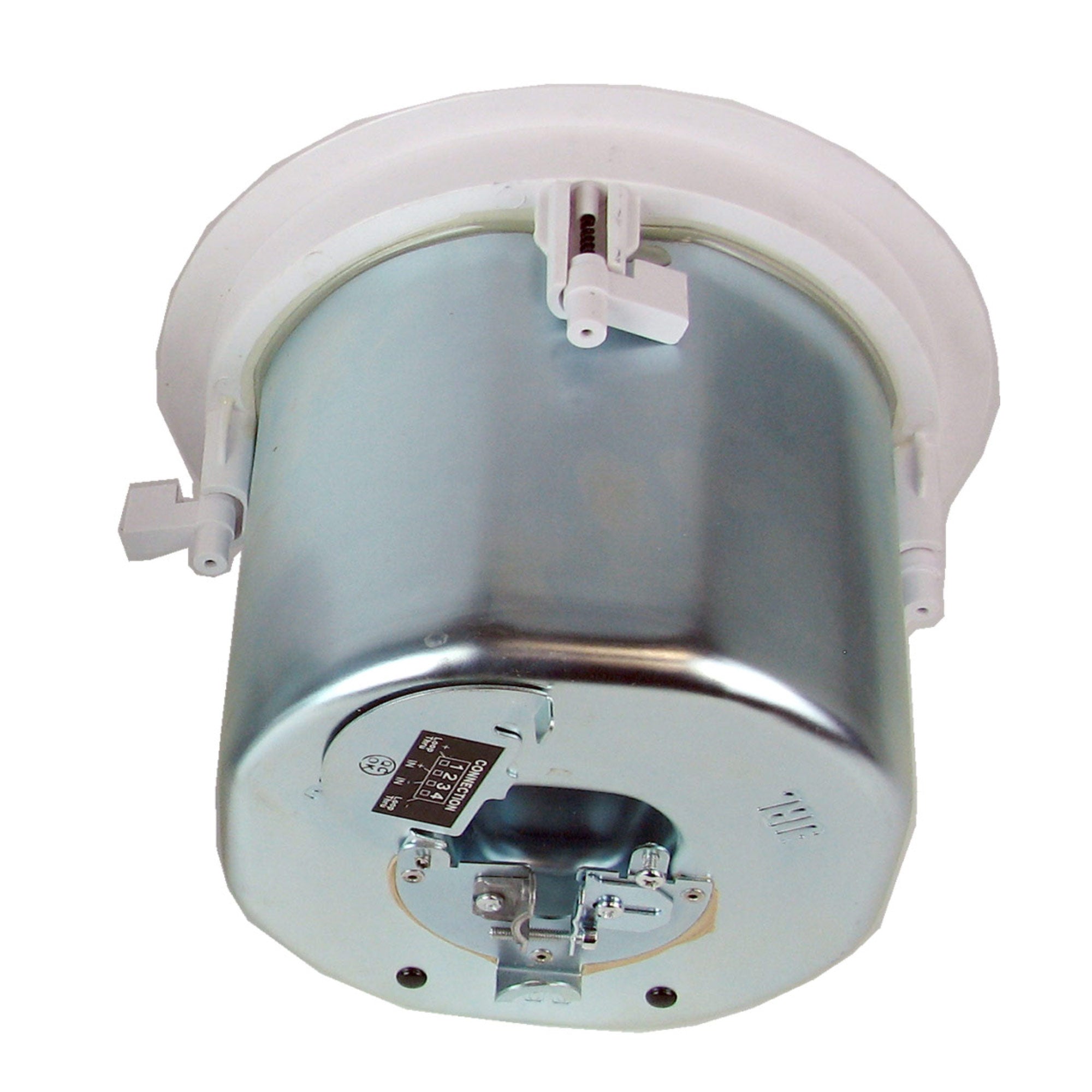

The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5 woofer and 3/4 titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system. Features: Invisiball mounting technology revolutionizes ease-of-installation with built-in hardware easily secured with a standard hex wrench from a front channel. 75 Hz to 20 kHz frequency range (-10 dB) 140 watts continuous program power capacity 89 dB sensitivity (1W/1m) 16 ohms nominal impedance 110 degree conical coverage (polar) Steel back-can with removable locking connector Control 26CT 70V taps: 60W, 30W, 15W, 7.5W Control 26CT 100V taps: 60W, 30W, 15W. Dimensions (height x diameter): 210 mm x 252 mm (8.3 in x 9.9 in)
| Active or Passive | Passive |
| Frequency Response | 75 Hz - 20 kHz(-10 dB) |
| Power Capacity | 150 Watts Continuous Program 75 Watts Continuous Pink Noise |
| Maximum Sound Pressure Level (SPL) | 107 dB SPL @ 1 m |
| Nominal Sensitivity | 89 dB SPL, 1W/1m |
| Impedance | 16 Ohms |
| Crossover | Not Specified by Manufacturer |
| Shielded | No |
| Low Frequency Driver | 6.5" Polypropylene-coated with 1" Voice Coil |
| High Frequency Driver | .75" Titanium-coated Polyester |
| Enclosure Material | Backcan: Formed Steel Baffle/Rim: UL94V-O Fire-rated Medium-impact Polystyrene |
| Input Connections | 2 x Removable Locking Inputs w/Screw-down Terminals 2 x Removable Locking Loop-thru Outputs w/Screw-down Terminals |
| Environmental | Humidity-resistant woofer with polyurethane-covered cone and butyl-rubber surround |
| Dimensions | 8.3 x 9.9" (210 x 252mm)(Height x Diameter) 7.5" (190mm)(Front of ceiling tile to rear of backcan) 8.75" (220mm)(Cutout Size) |
| Weight | 7.5 lb (3.4 kg) |
| Specialties | Wide 110 degree Coverage Humidity Resistant Woofer Cone and Surround 16 Ohhm Impedance, Loop-Thru for Parallel Connection |
The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5 woofer and 3/4 titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system. Features: Invisiball mounting technology revolutionizes ease-of-installation with built-in hardware easily secured with a standard hex wrench from a front channel. 75 Hz to 20 kHz frequency range (-10 dB) 140 watts continuous program power capacity 89 dB sensitivity (1W/1m) 16 ohms nominal impedance 110 degree conical coverage (polar) Steel back-can with removable locking connector Control 26CT 70V taps: 60W, 30W, 15W, 7.5W Control 26CT 100V taps: 60W, 30W, 15W. Dimensions (height x diameter): 210 mm x 252 mm (8.3 in x 9.9 in)
| Active or Passive | Passive |
| Frequency Response | 75 Hz - 20 kHz(-10 dB) |
| Power Capacity | 150 Watts Continuous Program 75 Watts Continuous Pink Noise |
| Maximum Sound Pressure Level (SPL) | 107 dB SPL @ 1 m |
| Nominal Sensitivity | 89 dB SPL, 1W/1m |
| Impedance | 16 Ohms |
| Crossover | Not Specified by Manufacturer |
| Shielded | No |
| Low Frequency Driver | 6.5" Polypropylene-coated with 1" Voice Coil |
| High Frequency Driver | .75" Titanium-coated Polyester |
| Enclosure Material | Backcan: Formed Steel Baffle/Rim: UL94V-O Fire-rated Medium-impact Polystyrene |
| Input Connections | 2 x Removable Locking Inputs w/Screw-down Terminals 2 x Removable Locking Loop-thru Outputs w/Screw-down Terminals |
| Environmental | Humidity-resistant woofer with polyurethane-covered cone and butyl-rubber surround |
| Dimensions | 8.3 x 9.9" (210 x 252mm)(Height x Diameter) 7.5" (190mm)(Front of ceiling tile to rear of backcan) 8.75" (220mm)(Cutout Size) |
| Weight | 7.5 lb (3.4 kg) |
| Specialties | Wide 110 degree Coverage Humidity Resistant Woofer Cone and Surround 16 Ohhm Impedance, Loop-Thru for Parallel Connection |
