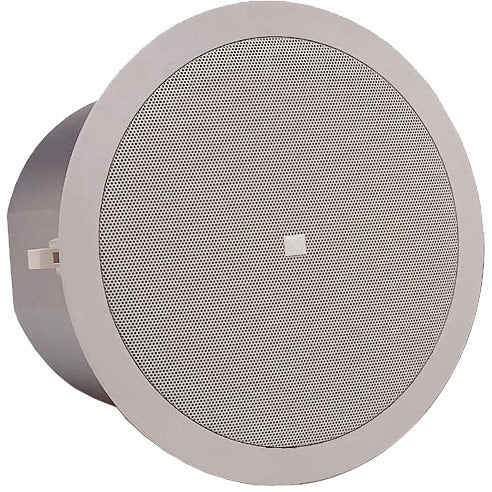

JBL Control 26C 6.5" Two Way Vented Ceiling Speaker
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

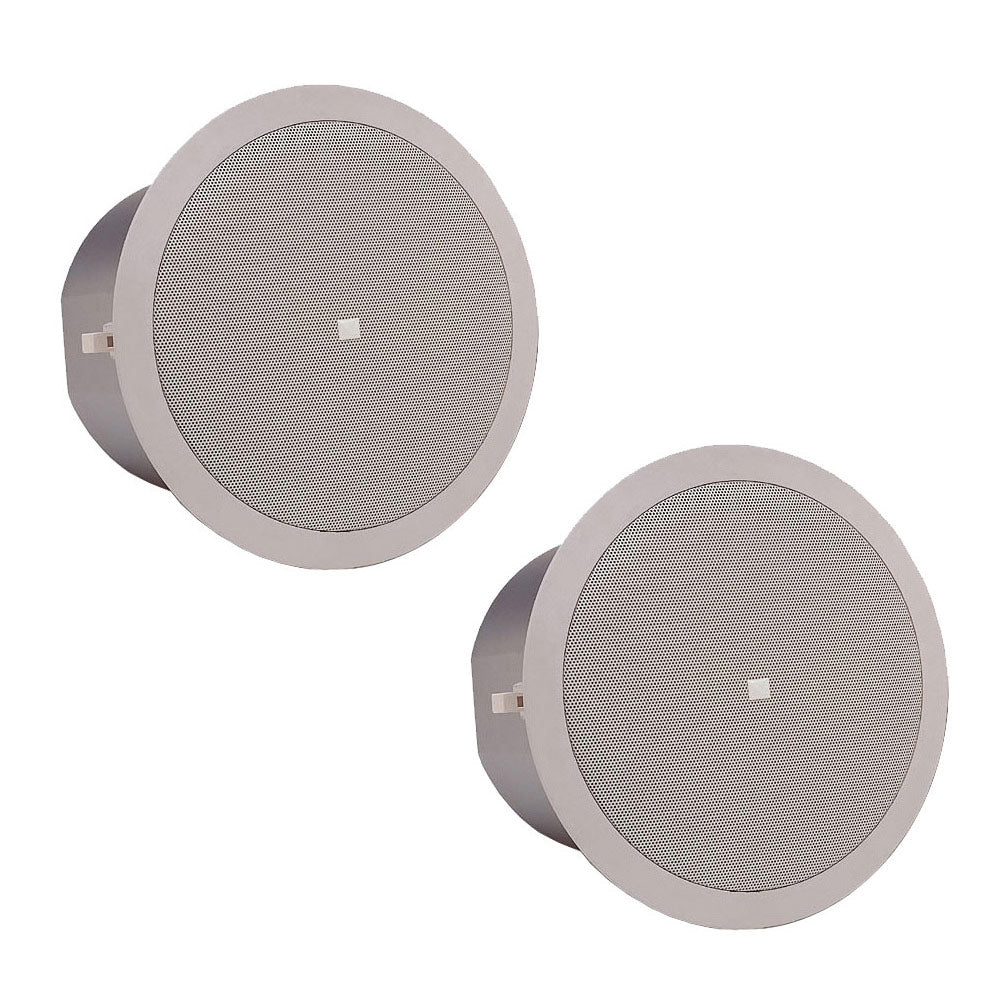

Priced individually, but sold in pairs.
The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5 woofer and 3/4 titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system. Features: Invisiball mounting technology revolutionizes ease-of-installation with built-in hardware easily secured with a standard hex wrench from a front channel. 75 Hz to 20 kHz frequency range (-10 dB) 140 watts continuous program power capacity 89 dB sensitivity (1W/1m) 16 ohms nominal impedance 110 degree conical coverage (polar) Steel back-can with removable locking connector Control 26CT 70V taps: 60W, 30W, 15W, 7.5W Control 26CT 100V taps: 60W, 30W, 15W. Dimensions (height x diameter): 210 mm x 252 mm (8.3 in x 9.9 in)
| Frequency Range | 75 Hz - 20 kHz |
| Power Capacity | 150 W Continuous Program Power; 75 W Continuous Pink Noise |
| Nominal Sensitivity | 89 dB, 1m/1 W |
| Nominal Coverage Angle | 110 deg. |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 KHz |
| Nominal Impedance | 16 ohms |
| Rated Maximum SPL | 107 dB SPL @ 1m (3.3 ft) |
| Low Frequency | 165 mm (6.5 in) |
| High Frequency | 19 mm (.75 in) titanium |
| Terminations | Screw locking barrier strip |
| Dimensions (H x Dia) | 210 mm x 252 mm (8.3 in x 9.9 in) |
| Net Weight (ea) | 2.7 kg (6 lbs) |
| Shipping Weight (pair) | 6.4 kg (15 lbs) |
Priced individually, but sold in pairs.
The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5 woofer and 3/4 titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system. Features: Invisiball mounting technology revolutionizes ease-of-installation with built-in hardware easily secured with a standard hex wrench from a front channel. 75 Hz to 20 kHz frequency range (-10 dB) 140 watts continuous program power capacity 89 dB sensitivity (1W/1m) 16 ohms nominal impedance 110 degree conical coverage (polar) Steel back-can with removable locking connector Control 26CT 70V taps: 60W, 30W, 15W, 7.5W Control 26CT 100V taps: 60W, 30W, 15W. Dimensions (height x diameter): 210 mm x 252 mm (8.3 in x 9.9 in)
| Frequency Range | 75 Hz - 20 kHz |
| Power Capacity | 150 W Continuous Program Power; 75 W Continuous Pink Noise |
| Nominal Sensitivity | 89 dB, 1m/1 W |
| Nominal Coverage Angle | 110 deg. |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 KHz |
| Nominal Impedance | 16 ohms |
| Rated Maximum SPL | 107 dB SPL @ 1m (3.3 ft) |
| Low Frequency | 165 mm (6.5 in) |
| High Frequency | 19 mm (.75 in) titanium |
| Terminations | Screw locking barrier strip |
| Dimensions (H x Dia) | 210 mm x 252 mm (8.3 in x 9.9 in) |
| Net Weight (ea) | 2.7 kg (6 lbs) |
| Shipping Weight (pair) | 6.4 kg (15 lbs) |
