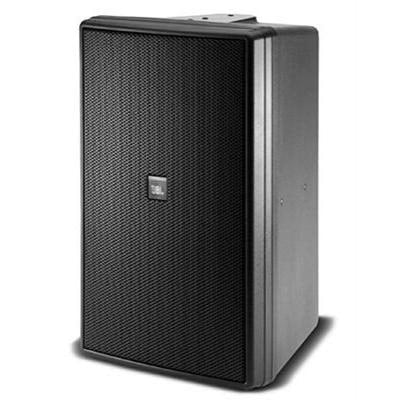

JBL Control 30-BK 3-Way Loudspeaker with 260mm LF - Black
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The JBL Control 30 is a high-output, 3-way indoor/outdoor surface mount installation speaker, with a 500-watt continuous program power handling capacity, extended MF and HF coverage for either horizontal or vertical placement, a 70V/100V transformer, and a durable, weather-resistant enclosure. JBL's proprietary Invisiball mounting system allows for quick, simplified, precise placement and positioning of the speaker.
Features:
- High output 3-way indoor/outdoor surface mount speaker with 500-watt continuous program power capacity and all-weather enclosure
- Durable 10 Fiberglass/Kevlar woofer cone, 1 tweeter with Titanium diaphragm
- 5 symmetrical mid-high frequency horn with anodized aluminum cone allows for horizontal or vertical speaker mounting
- Extended bandwidth, balanced frequency reproduction, 120 degree horizontal and 110 degree vertical HF coverage angles
- 150W transformer for 70V or 100V lines, 8 Ohm Thru/Bypass; 150W, 75W, 38W, 19W(70V only)transformer taps for 70/100V operation
- WeatherMax Mil Spec outdoor-capable design for enclosure, Thermoset composite-covered steel grill with WeatherMax foam backing; accepts wide variety of paint types to match surrounding decor
- Transparent, virtually inaudible SonicGuard overload protection
- Proprietary JBL Invisiball Mounting kit for simplified surface mount installation and positioning, sealed protective cover for speaker wire terminals
- 10 additional 6mm attachment mounts for ceiling or U-mount suspension
| Active or Passive | Passive |
| Frequency Response | 38 Hz - 17 kHz (-10dB) 40 Hz - 16 kHz (+/-3dB) |
| Power Capacity | 500 Watts continuous program power(100 hrs.) 250 Watts continuous pink noise(100 hrs.) |
| Maximum Sound Pressure Level (SPL) | 123dB @1m (Short Term) 117dB @1m (Long Term) |
| Nominal Sensitivity | 93dB/1W @1m |
| Impedance | 8 Ohms |
| Crossover | 3rd order Low Pass LF 2nd order High Pass/3rd order Low Pass MF 3rd order High Pass HF |
| Shielded | No |
| Low Frequency Driver | 10" Fiberglass/Kevlar w/2" Voice Coil 5" Anodized Aluminum Cone w/1" Voice Coil |
| High Frequency Driver | 1" Compression Diver w/pure Titanium Diaphragm |
| Enclosure Material | High Impact PolyStyrene(HIPS) w/10% glass fill 5mm internal foamed polyurethane secondary mold |
| Input Connections | 1 x Screwdown Terminal Strip |
| Environmental | IEC 529 IP X-5, exceeds Mil Spec 810 for humidity, salt spray, temperature and UV Passes Mil Std 202F for salt spray |
| Dimensions | 23.3 x 14.6 x 13.5" (593 x 372 x 345mm) |
| Weight | 42 lb (18.9 kg) |
| Specialties | 3-Way Indoor/Outdoor Speaker Invisiball Mounting Base 150W Transformer for 70V/100V Taps WeatherMax Multi-Layer Foam Grill Backing SonicGuard Overload Protection |
The JBL Control 30 is a high-output, 3-way indoor/outdoor surface mount installation speaker, with a 500-watt continuous program power handling capacity, extended MF and HF coverage for either horizontal or vertical placement, a 70V/100V transformer, and a durable, weather-resistant enclosure. JBL's proprietary Invisiball mounting system allows for quick, simplified, precise placement and positioning of the speaker.
Features:
- High output 3-way indoor/outdoor surface mount speaker with 500-watt continuous program power capacity and all-weather enclosure
- Durable 10 Fiberglass/Kevlar woofer cone, 1 tweeter with Titanium diaphragm
- 5 symmetrical mid-high frequency horn with anodized aluminum cone allows for horizontal or vertical speaker mounting
- Extended bandwidth, balanced frequency reproduction, 120 degree horizontal and 110 degree vertical HF coverage angles
- 150W transformer for 70V or 100V lines, 8 Ohm Thru/Bypass; 150W, 75W, 38W, 19W(70V only)transformer taps for 70/100V operation
- WeatherMax Mil Spec outdoor-capable design for enclosure, Thermoset composite-covered steel grill with WeatherMax foam backing; accepts wide variety of paint types to match surrounding decor
- Transparent, virtually inaudible SonicGuard overload protection
- Proprietary JBL Invisiball Mounting kit for simplified surface mount installation and positioning, sealed protective cover for speaker wire terminals
- 10 additional 6mm attachment mounts for ceiling or U-mount suspension
| Active or Passive | Passive |
| Frequency Response | 38 Hz - 17 kHz (-10dB) 40 Hz - 16 kHz (+/-3dB) |
| Power Capacity | 500 Watts continuous program power(100 hrs.) 250 Watts continuous pink noise(100 hrs.) |
| Maximum Sound Pressure Level (SPL) | 123dB @1m (Short Term) 117dB @1m (Long Term) |
| Nominal Sensitivity | 93dB/1W @1m |
| Impedance | 8 Ohms |
| Crossover | 3rd order Low Pass LF 2nd order High Pass/3rd order Low Pass MF 3rd order High Pass HF |
| Shielded | No |
| Low Frequency Driver | 10" Fiberglass/Kevlar w/2" Voice Coil 5" Anodized Aluminum Cone w/1" Voice Coil |
| High Frequency Driver | 1" Compression Diver w/pure Titanium Diaphragm |
| Enclosure Material | High Impact PolyStyrene(HIPS) w/10% glass fill 5mm internal foamed polyurethane secondary mold |
| Input Connections | 1 x Screwdown Terminal Strip |
| Environmental | IEC 529 IP X-5, exceeds Mil Spec 810 for humidity, salt spray, temperature and UV Passes Mil Std 202F for salt spray |
| Dimensions | 23.3 x 14.6 x 13.5" (593 x 372 x 345mm) |
| Weight | 42 lb (18.9 kg) |
| Specialties | 3-Way Indoor/Outdoor Speaker Invisiball Mounting Base 150W Transformer for 70V/100V Taps WeatherMax Multi-Layer Foam Grill Backing SonicGuard Overload Protection |
