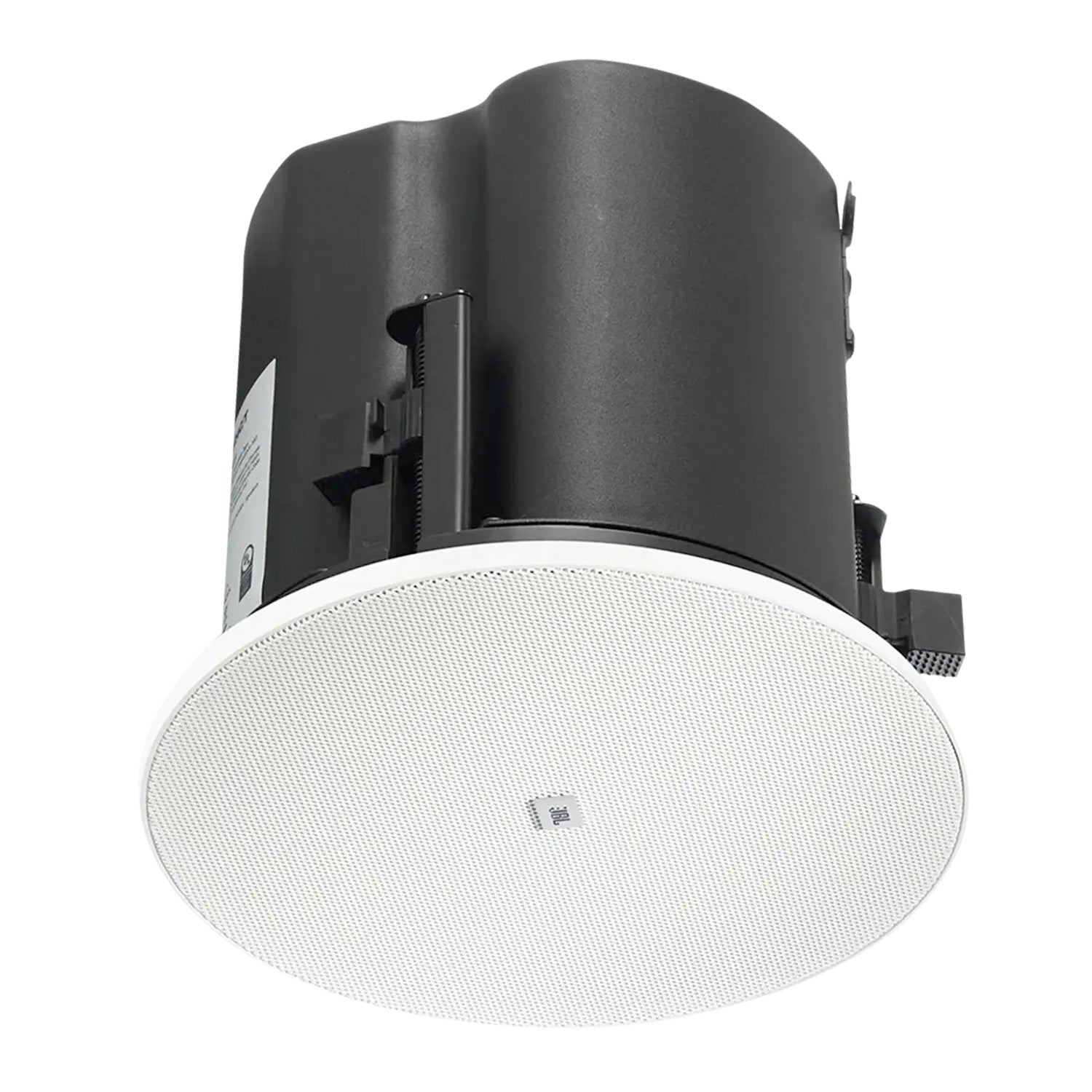

JBL Control 424C/T - 4-Inch CRBI-Equipped Two-Way Coaxial Ceiling Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually and sold in pairs.
The JBL Control 424C/T is a two-way coaxial ceiling loudspeaker, featuring a 4-inch woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 130° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 424C/T includes a transformer to support both 70V/100V and low impedance applications.
Features:
- Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- CRBI™ technology for consistent 130° coverage across the listening area
- Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
| Frequency Range (-10 dB) | 75 Hz Ð 18 kHz |
| Power Capacity | 120 W Continuous Program (2 hrs) 60 W (240 W Peak), Continuous Pink Noise (2 hrs) 40 W (160 W Peak) Continuous Pink Noise Power (100 hrs) |
| Sensitivity | 85 dB |
| Coverage Angle | 130¡ conical |
| Maximum SPL (1m) | 103 dB continuous pink noise (109 dB peak) |
| Nominal Impedance | 16 ohms |
| Transformer Taps | 70 V: 30 W, 15 W, 7.5 W / 3.7 W 100 V: 30 W, 15 W, 7.5 W |
| LF Driver | 100 mm (4 in) |
| HF Driver | 19 mm (0.75 in) |
| Dimensions | 182 mm (7.2 in) H x 196 mm (7.7 in) dia. 173 mm (6.8 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan). |
| Ceiling Cutout Size | 168 mm (6.6 in) |
| Safety Agency Rating | Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 / NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849. |
| Environmental | Exceeds Mil Spec 810H for humidity, salt spray, temperature / UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0¡C to 45¡C |
| Optional Accessories | JBL-MTC-424BG black (RAL9004) magnetic round grille JBL-MTC-424SG white (RAL9003) magnetic square grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket |
| Color | Stock grille is white (RAL9003), paintable. |
| Net Weight (each) | 2.8 kg (6.2 lbs) |
| Shipping Weight (pair packed in carton) | 10.5 kg (23.1 lbs) |
| SKU Numbers | JBL-C424C/T |
Priced individually and sold in pairs.
The JBL Control 424C/T is a two-way coaxial ceiling loudspeaker, featuring a 4-inch woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 130° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 424C/T includes a transformer to support both 70V/100V and low impedance applications.
Features:
- Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- CRBI™ technology for consistent 130° coverage across the listening area
- Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
| Frequency Range (-10 dB) | 75 Hz Ð 18 kHz |
| Power Capacity | 120 W Continuous Program (2 hrs) 60 W (240 W Peak), Continuous Pink Noise (2 hrs) 40 W (160 W Peak) Continuous Pink Noise Power (100 hrs) |
| Sensitivity | 85 dB |
| Coverage Angle | 130¡ conical |
| Maximum SPL (1m) | 103 dB continuous pink noise (109 dB peak) |
| Nominal Impedance | 16 ohms |
| Transformer Taps | 70 V: 30 W, 15 W, 7.5 W / 3.7 W 100 V: 30 W, 15 W, 7.5 W |
| LF Driver | 100 mm (4 in) |
| HF Driver | 19 mm (0.75 in) |
| Dimensions | 182 mm (7.2 in) H x 196 mm (7.7 in) dia. 173 mm (6.8 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan). |
| Ceiling Cutout Size | 168 mm (6.6 in) |
| Safety Agency Rating | Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 / NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849. |
| Environmental | Exceeds Mil Spec 810H for humidity, salt spray, temperature / UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0¡C to 45¡C |
| Optional Accessories | JBL-MTC-424BG black (RAL9004) magnetic round grille JBL-MTC-424SG white (RAL9003) magnetic square grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket |
| Color | Stock grille is white (RAL9003), paintable. |
| Net Weight (each) | 2.8 kg (6.2 lbs) |
| Shipping Weight (pair packed in carton) | 10.5 kg (23.1 lbs) |
| SKU Numbers | JBL-C424C/T |
