JBL Control 424LP - 4-Inch CRBI-Equipped Two-Way Coaxial Ceiling Loudspeaker with Low-Profile Enclosure (White)

  • Dale #:

    JBL-JBLC424LP
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Priced individually and sold in pairs. The JBL Control 424LP is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 130° of consistent, full, rich so... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Priced individually and sold in pairs.

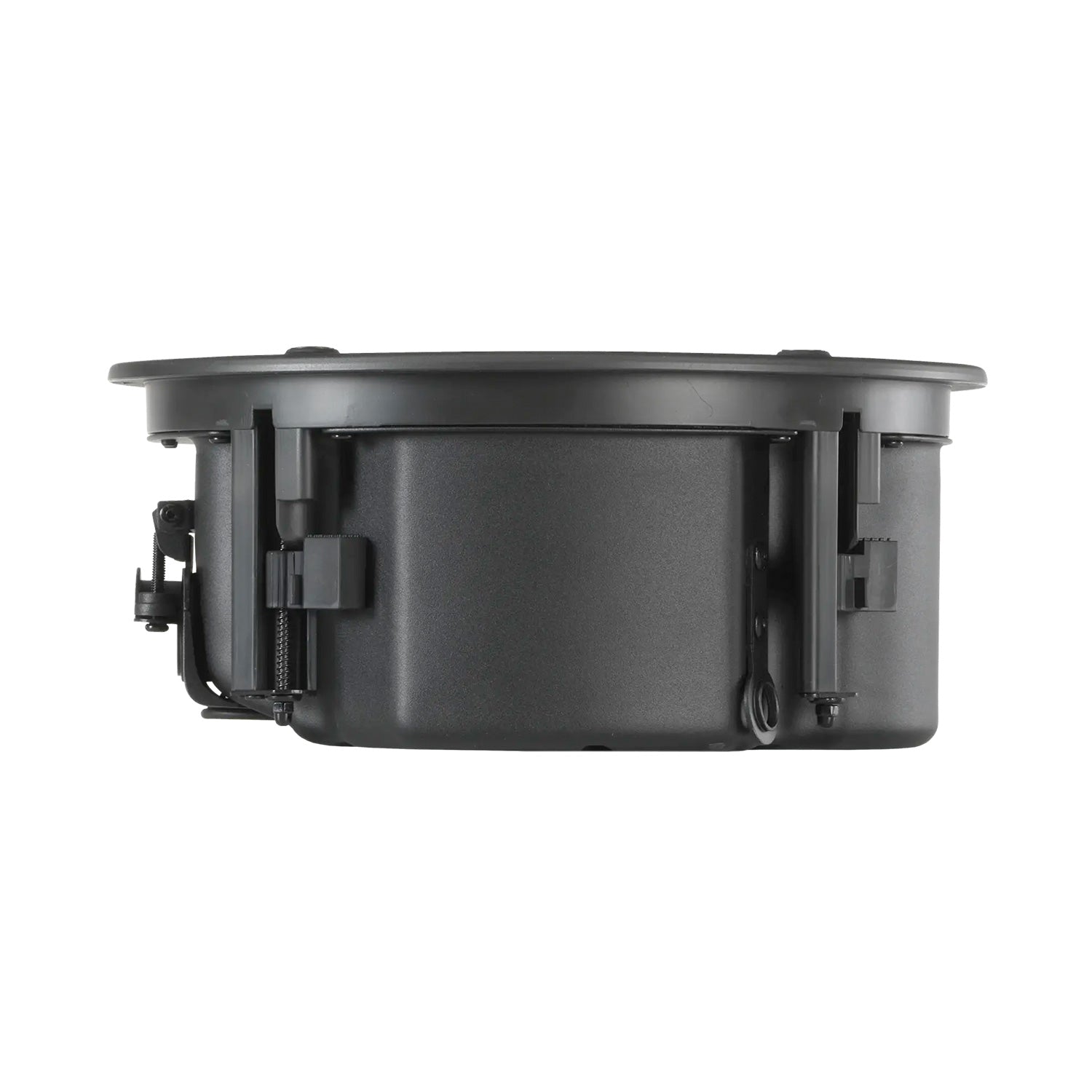

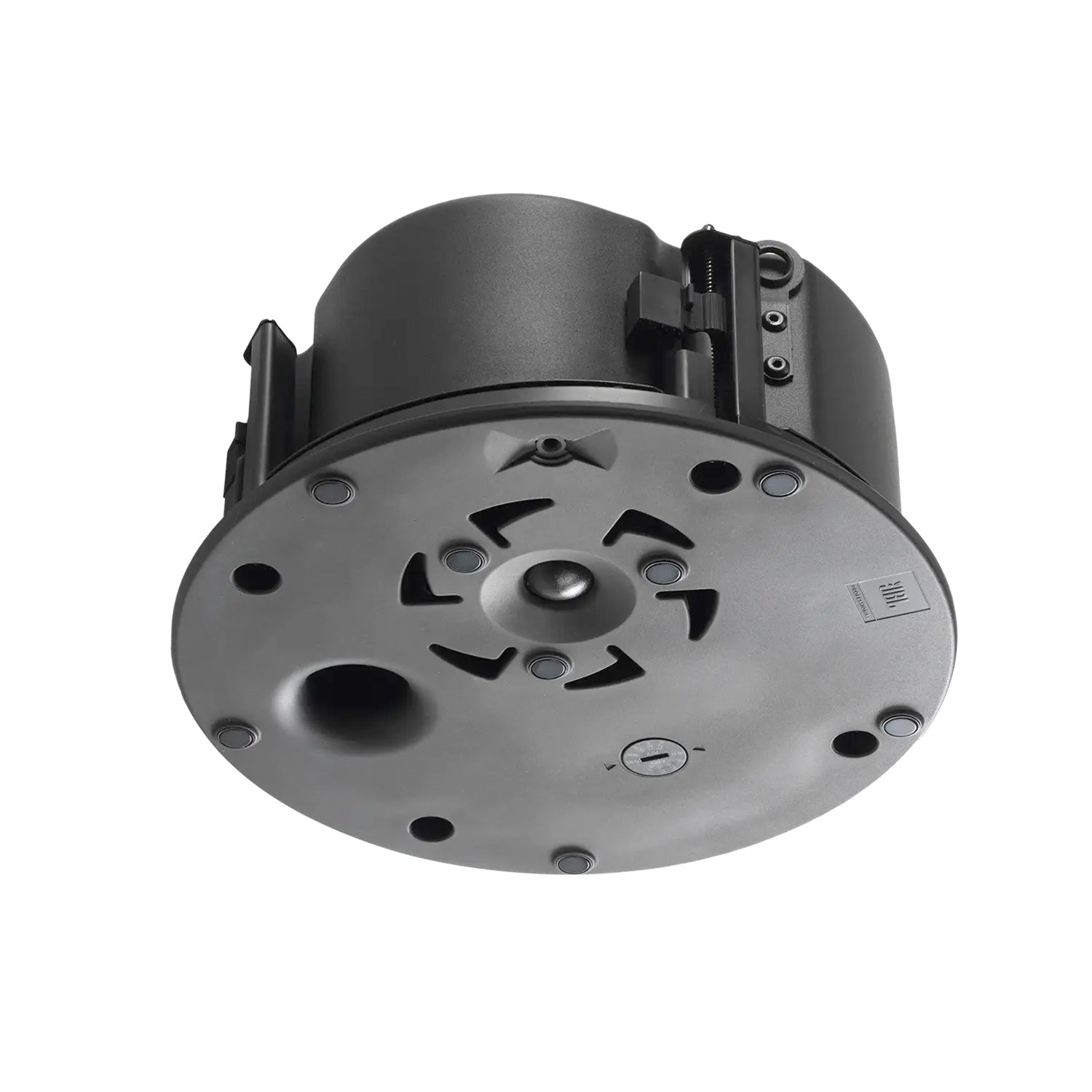

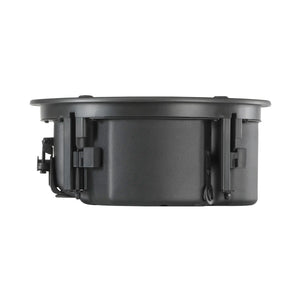

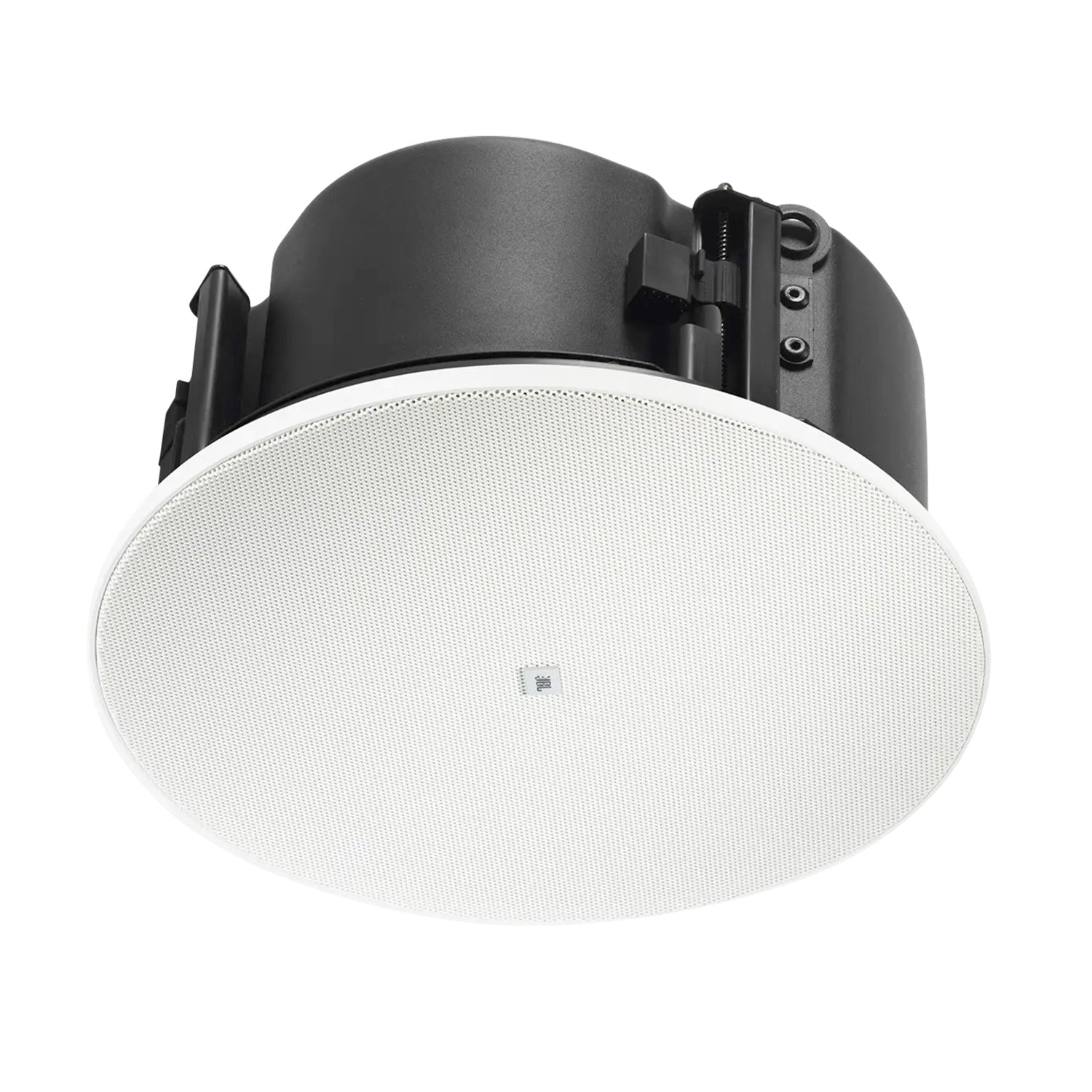

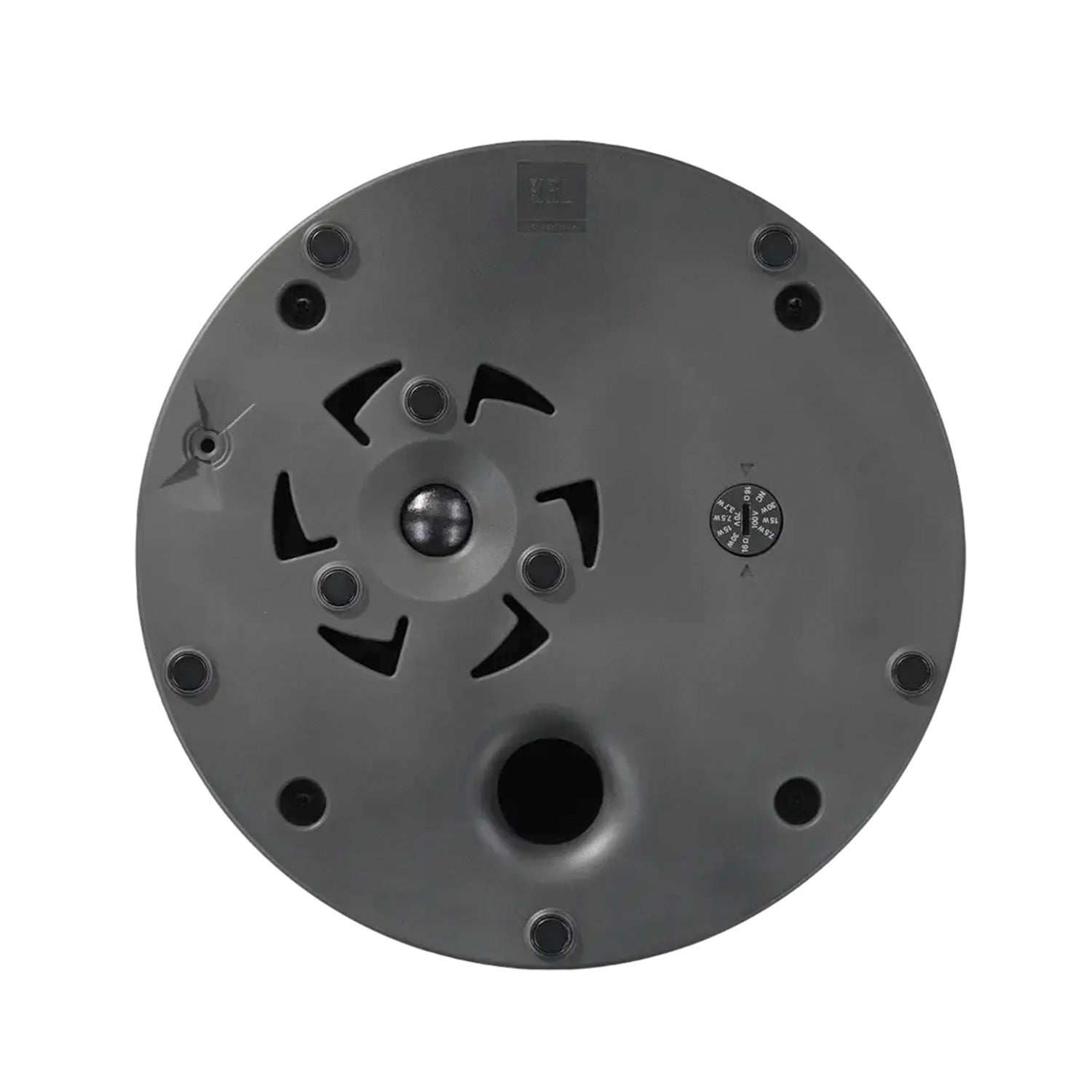

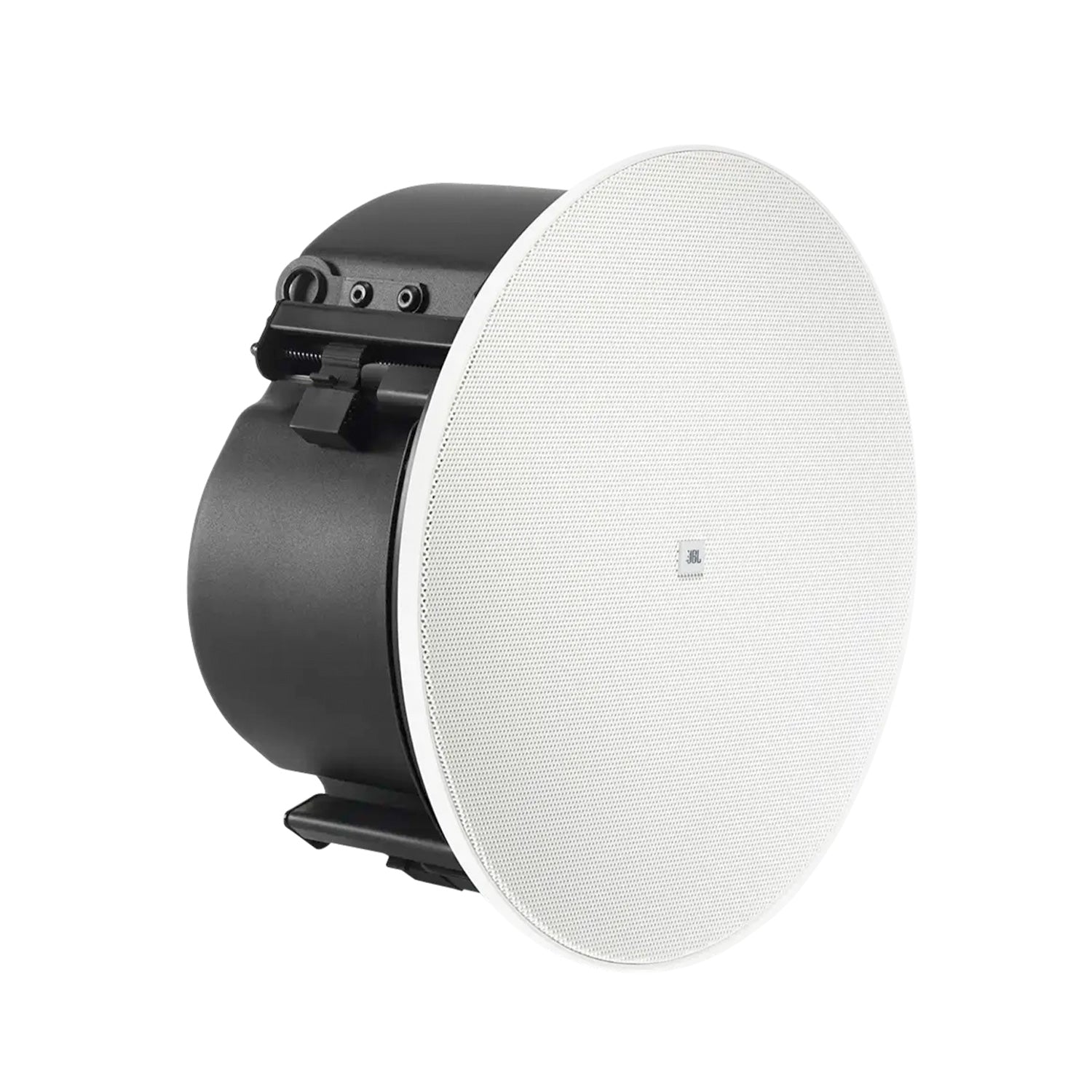

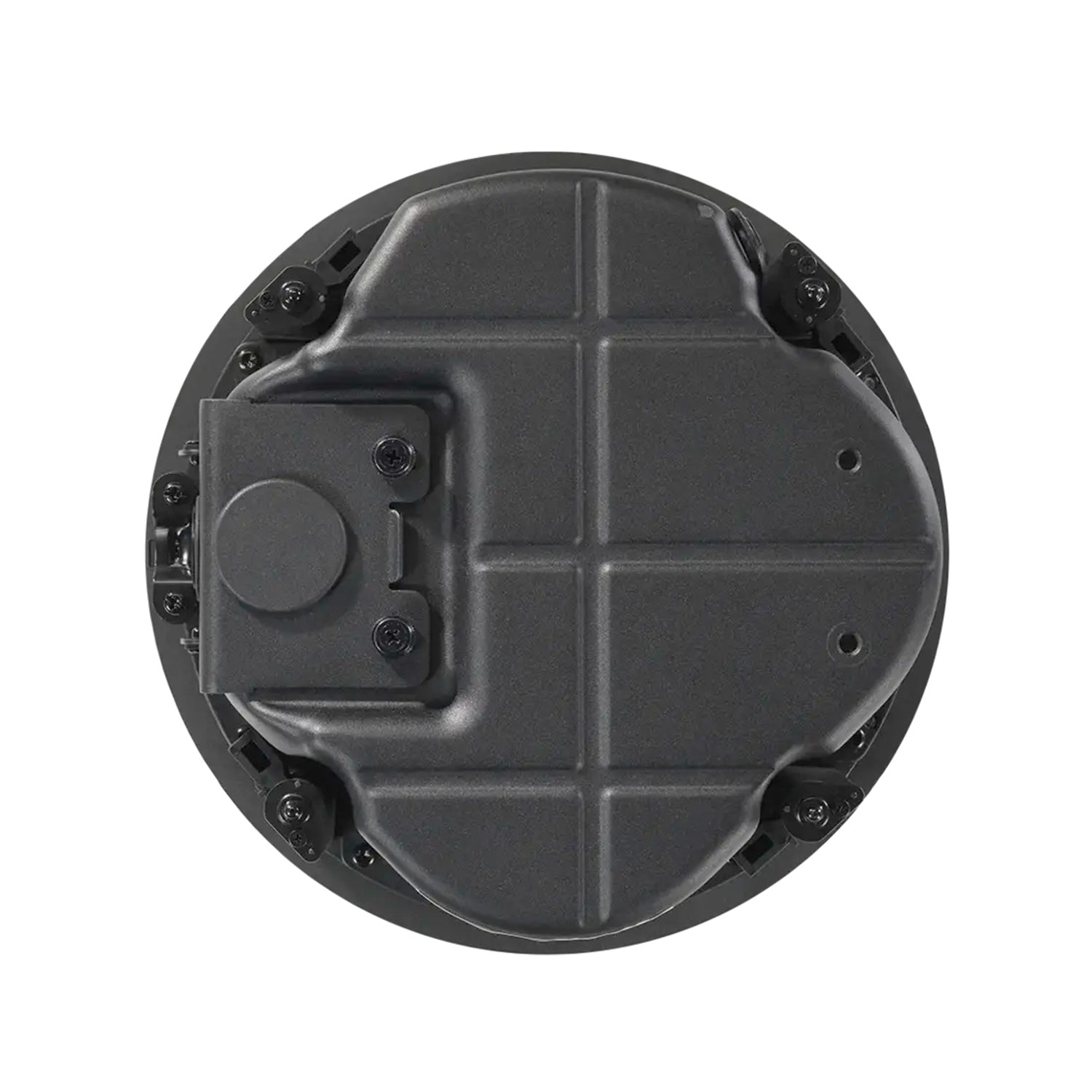

The JBL Control 424LP is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 130° of consistent, full, rich sound character that closely matches that of the Control 424C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 424LP includes a transformer to support both 70V/100V and low impedance applications.

Features:

  • Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter
  • Low-profile enclosure (under 100mm deep) for installing where ceiling plenum space is restricted
  • CRBI™ technology for consistent 130° coverage across the listening area
  • Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side exit cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated

More +

Product Specs

Frequency Range (-10 dB) 75 Hz – 18 kHz
Power Capacity 120 W Continuous Program (2 hrs) 60 W (240 W Peak), Continuous Pink Noise (2 hrs) 40 W (160 W Peak) Continuous Pink Noise Power (100 hrs)
Sensitivity 85 dB
Coverage Angle 130° conical
Maximum SPL (1m) 103 dB continuous pink noise (109 dB peak)
Nominal Impedance 16 ohms
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.7 W 100 V: 30 W, 15 W, 7.5 W
LF Driver 100 mm (4 in)
HF Driver 19 mm (0.75 in)
Dimensions 107 mm (4.2 in) H x 253 mm (9.9 in) dia. 98 mm (3.9 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan).
Ceiling Cutout Size 224 mm (8.8 in)
Safety Agency Rating Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 & NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849.
Environmental Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0°C to 45°C
Optional Accessories JBL-MTC-426BG black (RAL9004) magnetic round grille JBL-MTC-426SG white (RAL9003) magnetic square grille JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket
Color Stock grille is white (RAL9003), paintable.
Net Weight (each) 3.0 kg (6.7 lbs)
Shipping Weight (pair packed in carton) 10.9 kg (24 lbs)
SKU Numbers JBL-C424LP
