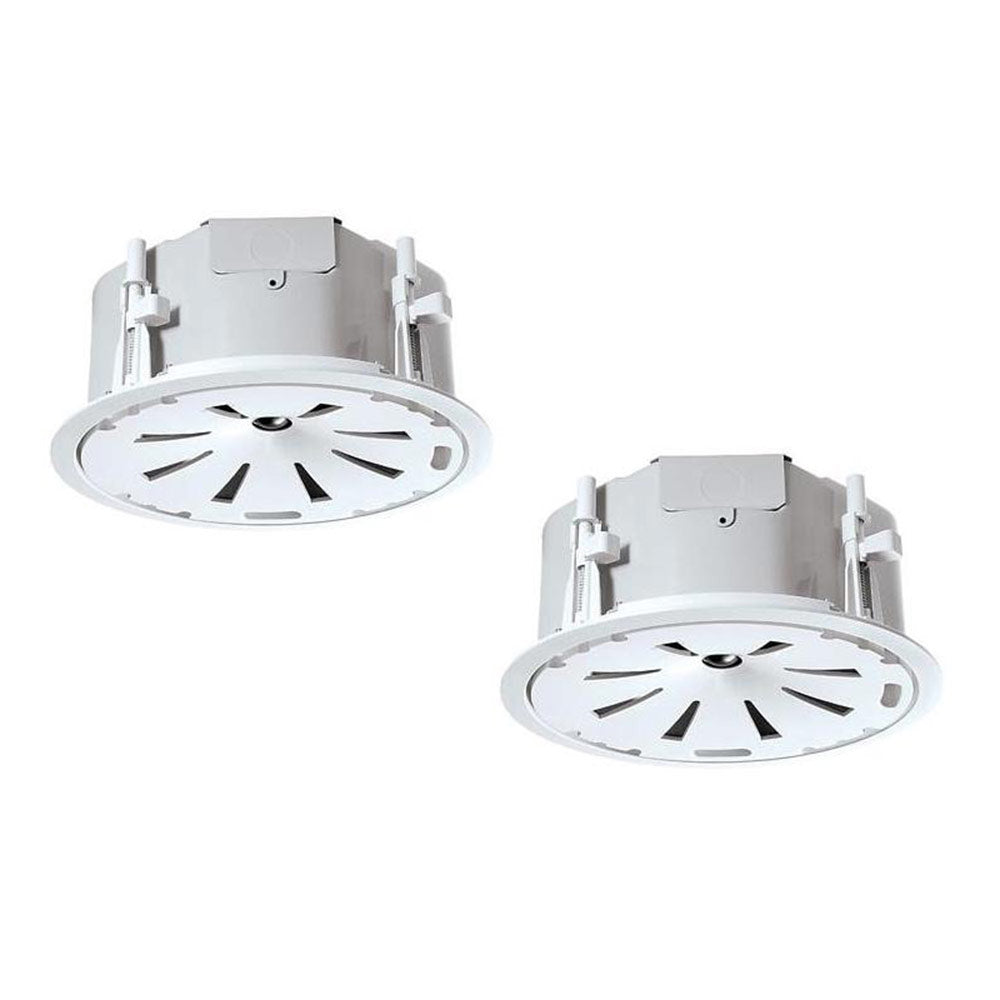

JBL Control 47LP Two-Way 6.5" Coaxial, Low Profile Ceiling Speaker
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Priced individually, but sold in pairs.
The Control 47LP from JBL is a professional-quality in-ceiling loudspeaker that offers high-quality sound with wide, consistent coverage. The speaker has a 6.5 woofer and a 1 tweeter to provide a wide frequency response. The slim backcan design provides easy installation and a discreet look, ideal for locations with limited above-ceiling clearance.
JBL's exclusive Radiation Boundary Integrator (RBI) technology provides consistent coverage of the listening area with a wide 120° pattern. The speaker can operate in 70/100V mode for use in distributed line systems, or in standard 8 ohm mode for use with a variety of sound systems.
Features:
- 6.5 woofer and 1 tweeter provide a wide frequency response
- Slim backcan design provides easy installation and a discreet look, ideal for locations with limited above-ceiling clearance
- Exclusive Radiation Boundary Integrator (RBI) technology provides consistent coverage of the listening area with a wide 120° pattern
- Operates in 70/100V mode for use in distributed line systems, or in standard 8 ohm mode for use with a variety of sound systems
| Type | Passive |
| Frequency Range | 68Hz - 20KHz |
| Power Capacity | 150W, Program 75W, Pink Noise |
| Maximum Sound Pressure Level (SPL) | 110dB Average, 116dB Peak |
| Sensitivity | 91dB |
| Impedance | æ8 Ohms (Bypass Mode) |
| Transformer Taps | 15, 30, and 60W (7.5W @ 70V Only) |
| Woofer | 6.5 (165mm) Polypropylene Cone with Butyl Rubber Surround, Copper-Clad Voice Coil, and Vented Aluminum Former |
| Tweeter | 1 (25mm) Soft Dome Tweeter, Ferrofluid-Cooled |
| Termination | 2 x Removable Locking 2-Pin Connectors with Screw-Down Terminals |
| Dimensions | (LxDiameter) 5.6 x 12 (142 x 305mm) |
| Weight | 9.5 lbs (4.3kg) |
Priced individually, but sold in pairs.
The Control 47LP from JBL is a professional-quality in-ceiling loudspeaker that offers high-quality sound with wide, consistent coverage. The speaker has a 6.5 woofer and a 1 tweeter to provide a wide frequency response. The slim backcan design provides easy installation and a discreet look, ideal for locations with limited above-ceiling clearance.
JBL's exclusive Radiation Boundary Integrator (RBI) technology provides consistent coverage of the listening area with a wide 120° pattern. The speaker can operate in 70/100V mode for use in distributed line systems, or in standard 8 ohm mode for use with a variety of sound systems.
Features:
- 6.5 woofer and 1 tweeter provide a wide frequency response
- Slim backcan design provides easy installation and a discreet look, ideal for locations with limited above-ceiling clearance
- Exclusive Radiation Boundary Integrator (RBI) technology provides consistent coverage of the listening area with a wide 120° pattern
- Operates in 70/100V mode for use in distributed line systems, or in standard 8 ohm mode for use with a variety of sound systems
| Type | Passive |
| Frequency Range | 68Hz - 20KHz |
| Power Capacity | 150W, Program 75W, Pink Noise |
| Maximum Sound Pressure Level (SPL) | 110dB Average, 116dB Peak |
| Sensitivity | 91dB |
| Impedance | æ8 Ohms (Bypass Mode) |
| Transformer Taps | 15, 30, and 60W (7.5W @ 70V Only) |
| Woofer | 6.5 (165mm) Polypropylene Cone with Butyl Rubber Surround, Copper-Clad Voice Coil, and Vented Aluminum Former |
| Tweeter | 1 (25mm) Soft Dome Tweeter, Ferrofluid-Cooled |
| Termination | 2 x Removable Locking 2-Pin Connectors with Screw-Down Terminals |
| Dimensions | (LxDiameter) 5.6 x 12 (142 x 305mm) |
| Weight | 9.5 lbs (4.3kg) |
