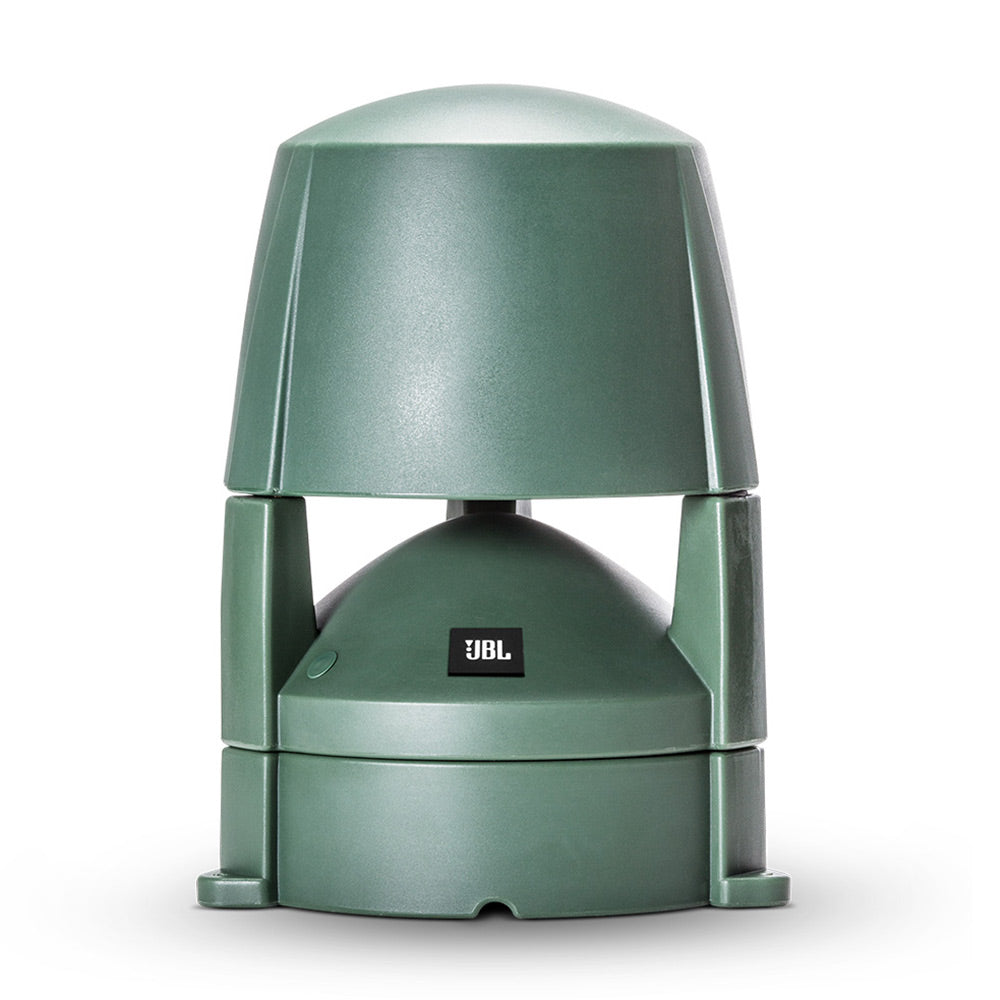

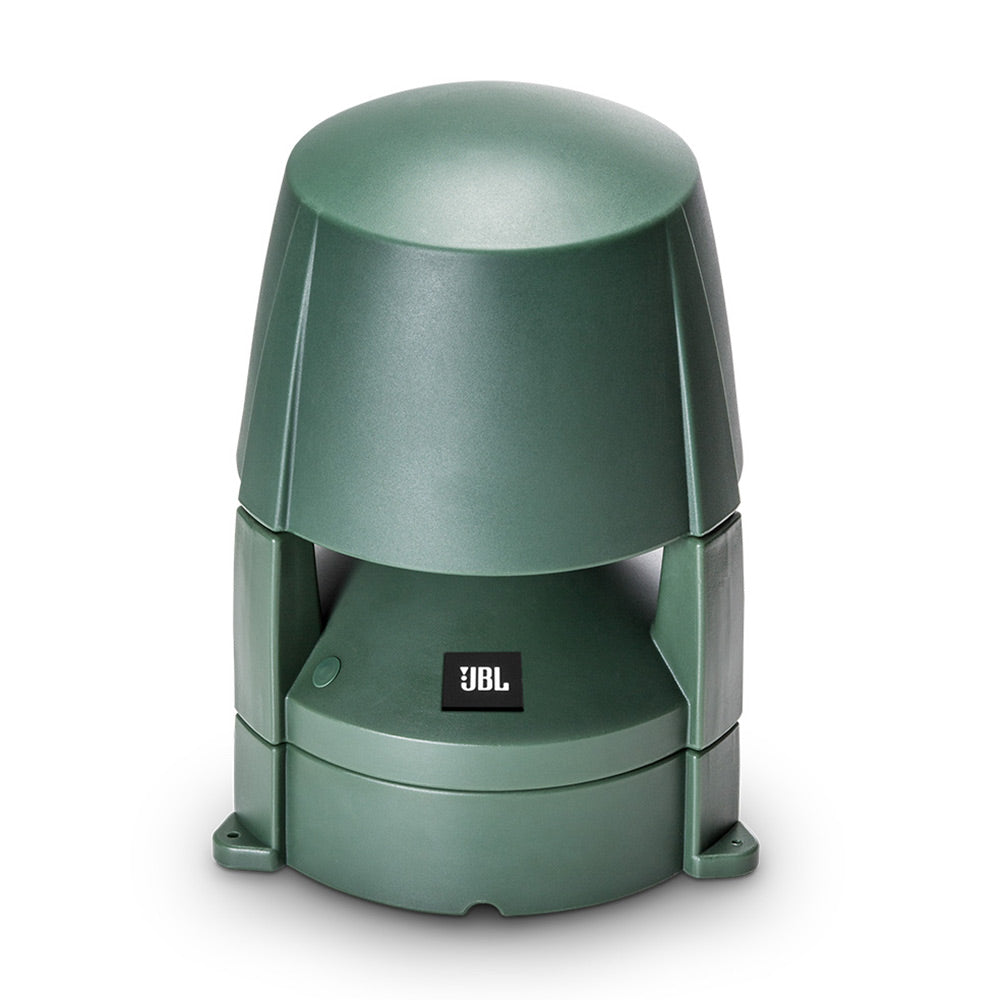

JBL Control 85M 2-Way 5.25" Coaxial Mushroom Landscape Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.
Features:
- Components:
51/4" highly weather-resistant driver
3/4" soft-dome highly weather-resistant tweeter - 80W Pink Noise Power Handling (160W program) in direct 8 ohm setting, plus built-in 30W 70V/100V multi-tap transformer
- Tough polyethylene highly weather resistant enclosure
- Fully isolated center chamber for wiring protection
- High fidelity sound character with broad frequency range of 55Hz - 18kHz
| Frequency Range (-10dB) | 55 Hz Ð 18 kHz |
| Power Capacity (at Low-Z) | 160 Watts Continuous Program Power 80 watts Continuous Pink Noise |
| Transformer Taps | 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8W @ 70V only) |
| Frequency Response (±3 dB) | 65Hz - 16 kHz |
| Maximum Input Voltage | 23.3 V |
| Sensitivity | 86 dB, 1W @ 1m (ave. 80Hz - 16kHz) |
| Nominal Coverage Angle | 360¡ horizontal, 160¡ vertical (primary listening 10¡ to 50¡ up from ground). |
| Directivity (Q) | 2.2 |
| Directivity Index (DI) | 3.4 dB |
| Maximum SPL | 105 dB @ 1m |
| Nominal Impedance | 8½ (at 8½ setting) |
| Insertion Loss | <1.0 dB at any tap setting |
| Thru Setting | 8½ nominal |
| Crossover Type | 2nd Order LPF on LF and 2nd Order HPF on HF |
| Recommended Protective High-Pass | 65 Hz for 8½ operation, 24 dB/octÊ 60 Hz for 30W tap, 24 dB/octÊ 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct |
| Low Frequency Driver | 135 mm (5.25 in) diameter LF driver, Kaptonª former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround. |
| High Frequency | 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome. |
| Enclosure Material | LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated. |
| Grille | Powder coated stainless steel. |
| Environmental | IP-55 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature / UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated. |
| Agency Ratings | UL1480, Transformer UL Recognized per UL1876, ROHS compliant. |
| Terminals | Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section). |

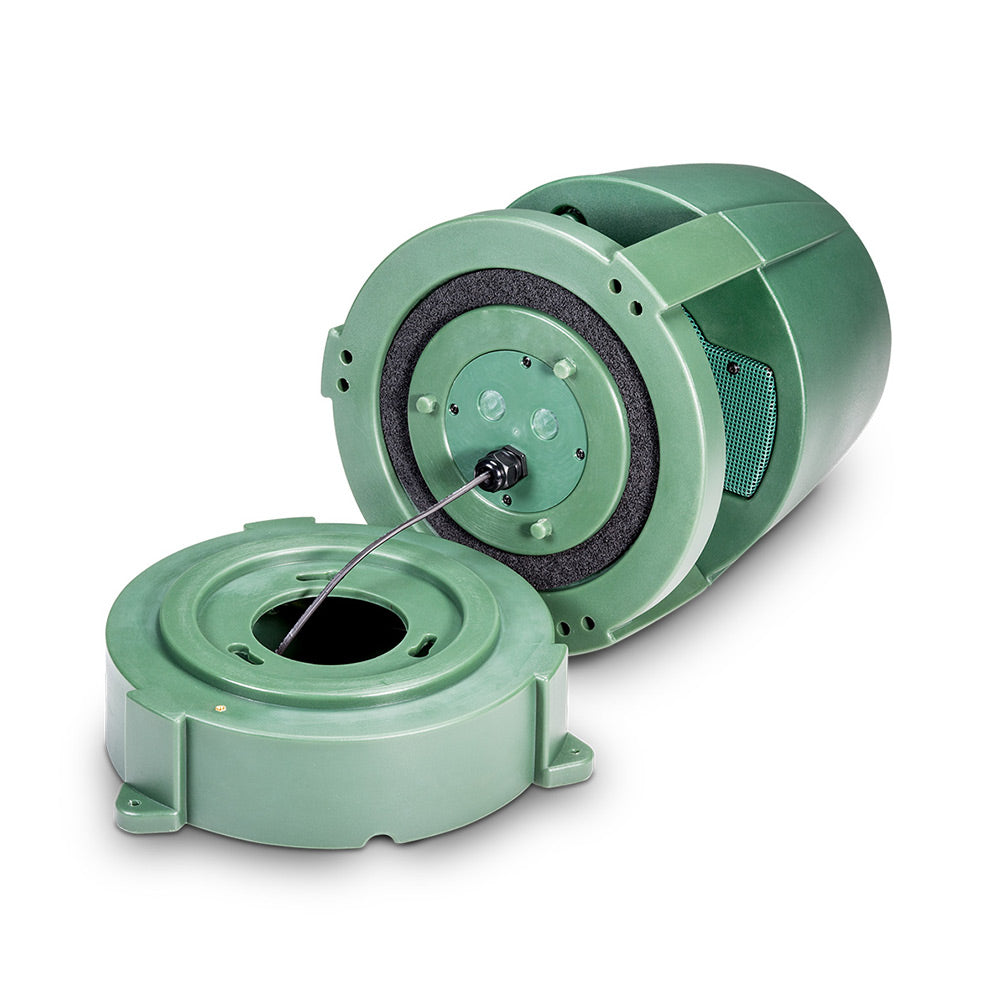

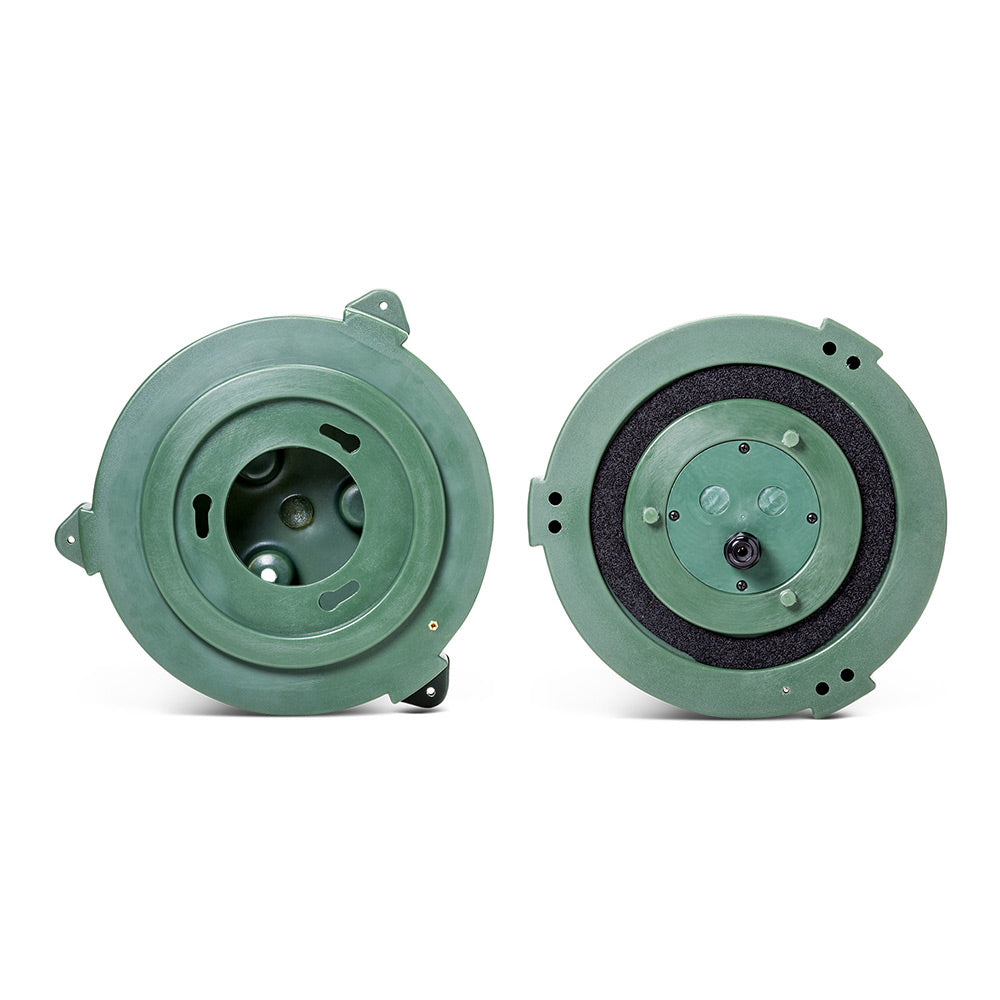

| Wiring | Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS). |
| Colors | Hunter Green, RAL6018 |
| Dimensions (H x W x D) | 432 x 291 x 291mm (17 x 11.5 x 11.5 in.) |
| Net Weight | 5.5 kg (12 lb) |
| Shipping Weight | 7.3 kg (16 lb) |
| Included Accessories | (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver |
| Installer-Supplied Required Tools | 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure. |
Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.
Features:
- Components:
51/4" highly weather-resistant driver
3/4" soft-dome highly weather-resistant tweeter - 80W Pink Noise Power Handling (160W program) in direct 8 ohm setting, plus built-in 30W 70V/100V multi-tap transformer
- Tough polyethylene highly weather resistant enclosure
- Fully isolated center chamber for wiring protection
- High fidelity sound character with broad frequency range of 55Hz - 18kHz
| Frequency Range (-10dB) | 55 Hz Ð 18 kHz |
| Power Capacity (at Low-Z) | 160 Watts Continuous Program Power 80 watts Continuous Pink Noise |
| Transformer Taps | 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8W @ 70V only) |
| Frequency Response (±3 dB) | 65Hz - 16 kHz |
| Maximum Input Voltage | 23.3 V |
| Sensitivity | 86 dB, 1W @ 1m (ave. 80Hz - 16kHz) |
| Nominal Coverage Angle | 360¡ horizontal, 160¡ vertical (primary listening 10¡ to 50¡ up from ground). |
| Directivity (Q) | 2.2 |
| Directivity Index (DI) | 3.4 dB |
| Maximum SPL | 105 dB @ 1m |
| Nominal Impedance | 8½ (at 8½ setting) |
| Insertion Loss | <1.0 dB at any tap setting |
| Thru Setting | 8½ nominal |
| Crossover Type | 2nd Order LPF on LF and 2nd Order HPF on HF |
| Recommended Protective High-Pass | 65 Hz for 8½ operation, 24 dB/octÊ 60 Hz for 30W tap, 24 dB/octÊ 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct |
| Low Frequency Driver | 135 mm (5.25 in) diameter LF driver, Kaptonª former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround. |
| High Frequency | 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome. |
| Enclosure Material | LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated. |
| Grille | Powder coated stainless steel. |
| Environmental | IP-55 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature / UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated. |
| Agency Ratings | UL1480, Transformer UL Recognized per UL1876, ROHS compliant. |
| Terminals | Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section). |
| Wiring | Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS). |
| Colors | Hunter Green, RAL6018 |
| Dimensions (H x W x D) | 432 x 291 x 291mm (17 x 11.5 x 11.5 in.) |
| Net Weight | 5.5 kg (12 lb) |
| Shipping Weight | 7.3 kg (16 lb) |
| Included Accessories | (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver |
| Installer-Supplied Required Tools | 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure. |
