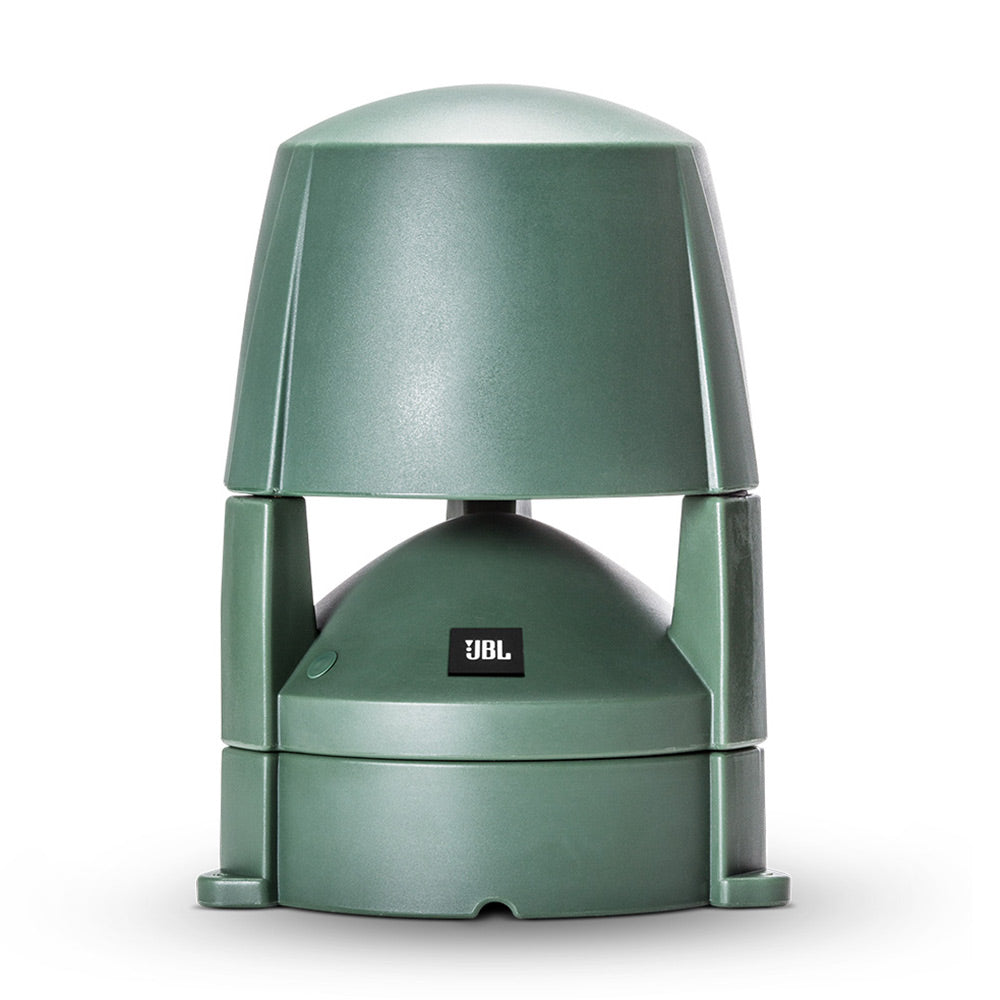

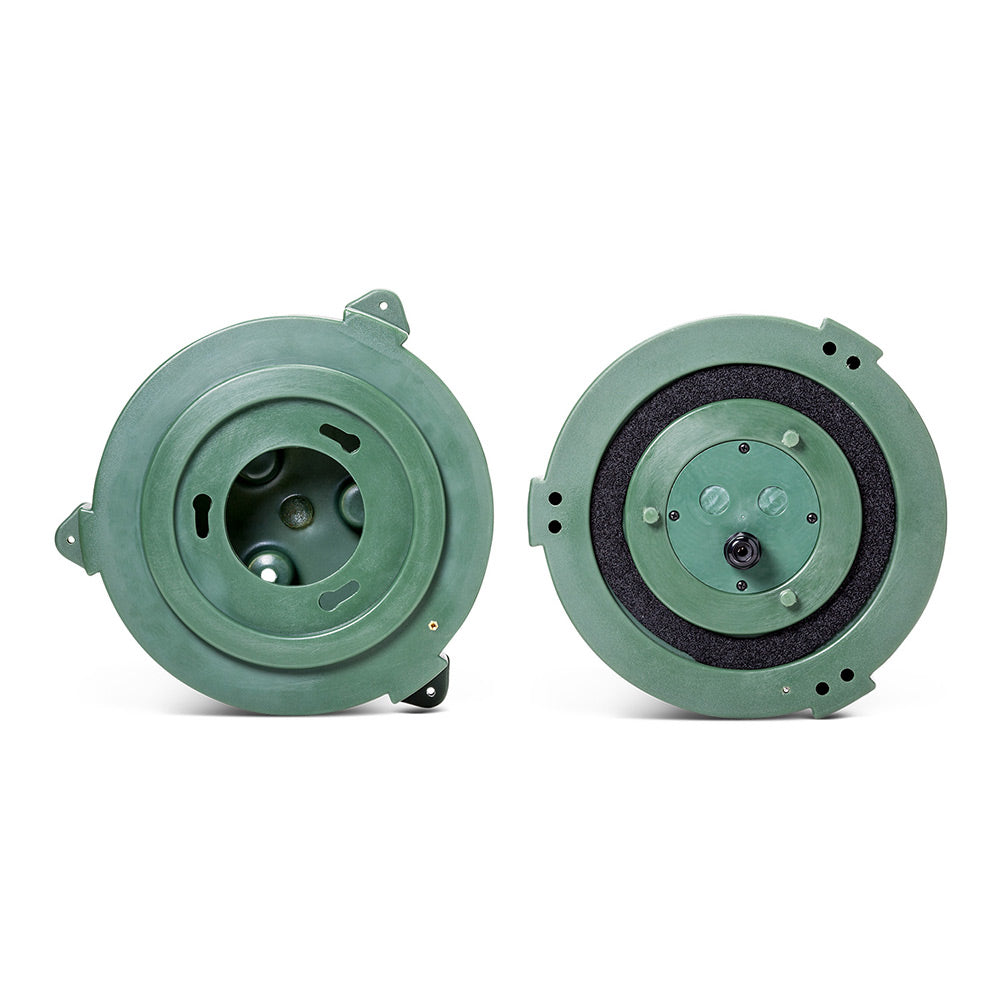

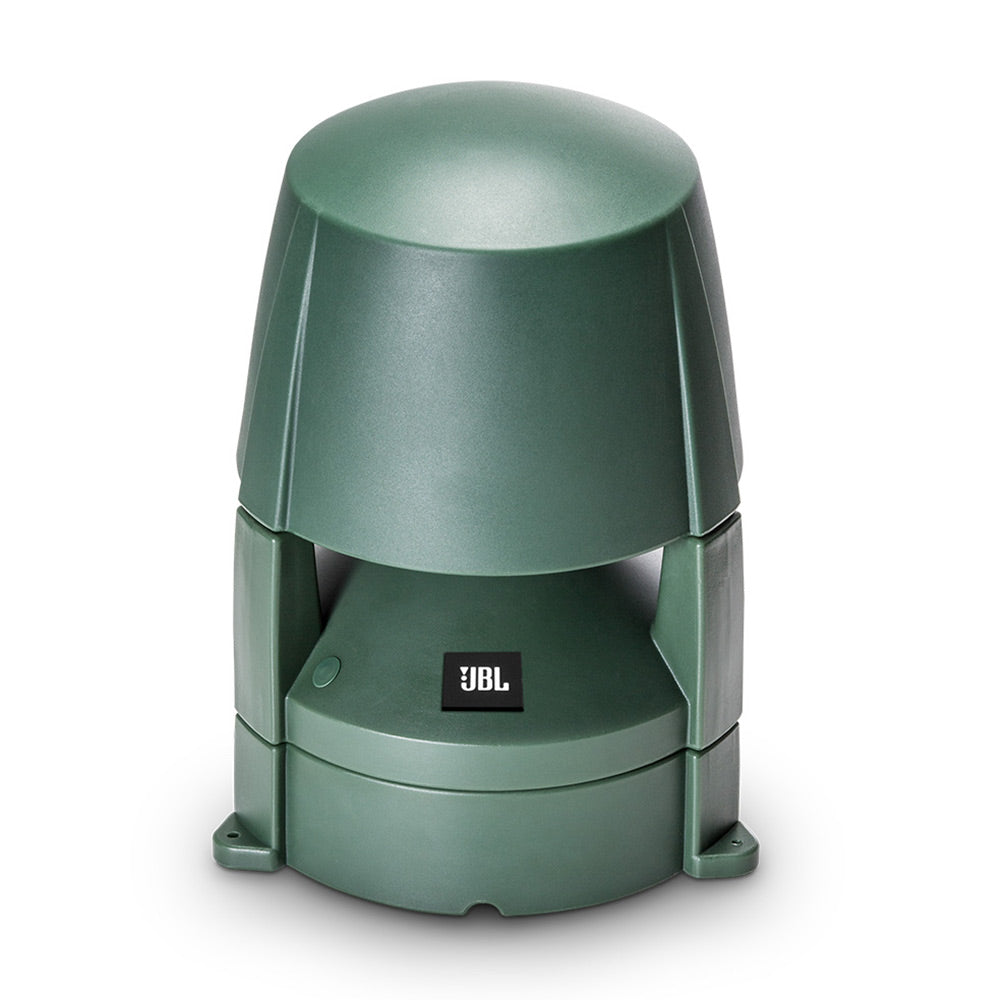

JBL Control 85M 2-Way 5.25" Coaxial Mushroom Landscape Speaker



  • Dale #:

    JBL-CONTROL85M

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications i... Read More

Retail Price: $319.75 Our Price: $257.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.

Features:

  • Components:
    51/4" highly weather-resistant driver
    3/4" soft-dome highly weather-resistant tweeter
  • 80W Pink Noise Power Handling (160W program) in direct 8 ohm setting, plus built-in 30W 70V/100V multi-tap transformer
  • Tough polyethylene highly weather resistant enclosure
  • Fully isolated center chamber for wiring protection
  • High fidelity sound character with broad frequency range of 55Hz - 18kHz

More +

Product Specs

Frequency Range (-10dB) 55 Hz – 18 kHz
Power Capacity (at Low-Z) 160 Watts Continuous Program Power
80 watts Continuous Pink Noise
Transformer Taps 30 W, 15 W, 7.5 W @ 70V or 100V
(plus 3.8W @ 70V only)
Frequency Response (±3 dB) 65Hz - 16 kHz
Maximum Input Voltage 23.3 V
Sensitivity 86 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Nominal Coverage Angle 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground).
Directivity (Q) 2.2
Directivity Index (DI) 3.4 dB
Maximum SPL 105 dB @ 1m
Nominal Impedance 8Ω (at 8Ω setting)
Insertion Loss <1.0 dB at any tap setting
Thru Setting 8Ω nominal
Crossover Type 2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass 65 Hz for 8Ω operation, 24 dB/oct
60 Hz for 30W tap, 24 dB/oct
50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct
Low Frequency Driver 135 mm (5.25 in) diameter LF driver, Kapton™ former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround.
High Frequency 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure Material LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille Powder coated stainless steel.
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Agency Ratings UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Terminals Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section).

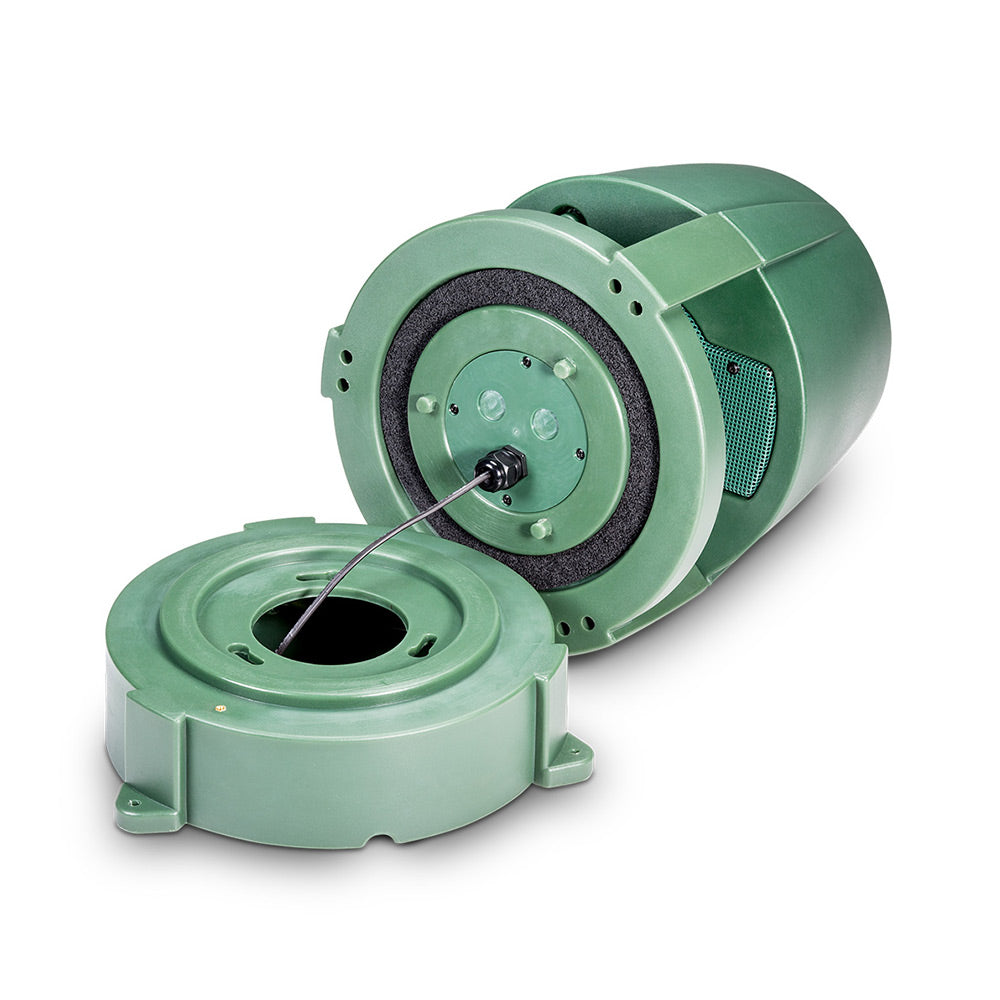

Wiring Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS).
Colors Hunter Green, RAL6018
Dimensions (H x W x D) 432 x 291 x 291mm (17 x 11.5 x 11.5 in.)
Net Weight 5.5 kg (12 lb)
Shipping Weight 7.3 kg (16 lb)
Included Accessories (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
