JBL CST2120 2 Channel Transformer Kit for CSA2120 Amplifier

  • Dale #:

    JBL-CST2120
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The rack-mountable JBL Commercial CST-2120 transformer module provides impedance and voltage matching for the CSA-2120 amplifier to drive 70V and 100V distributed speaker systemsFeatures Providing two channels for constant voltage operation 70V/100V Outputs Rack-mountable with CSA2120 Detachable ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

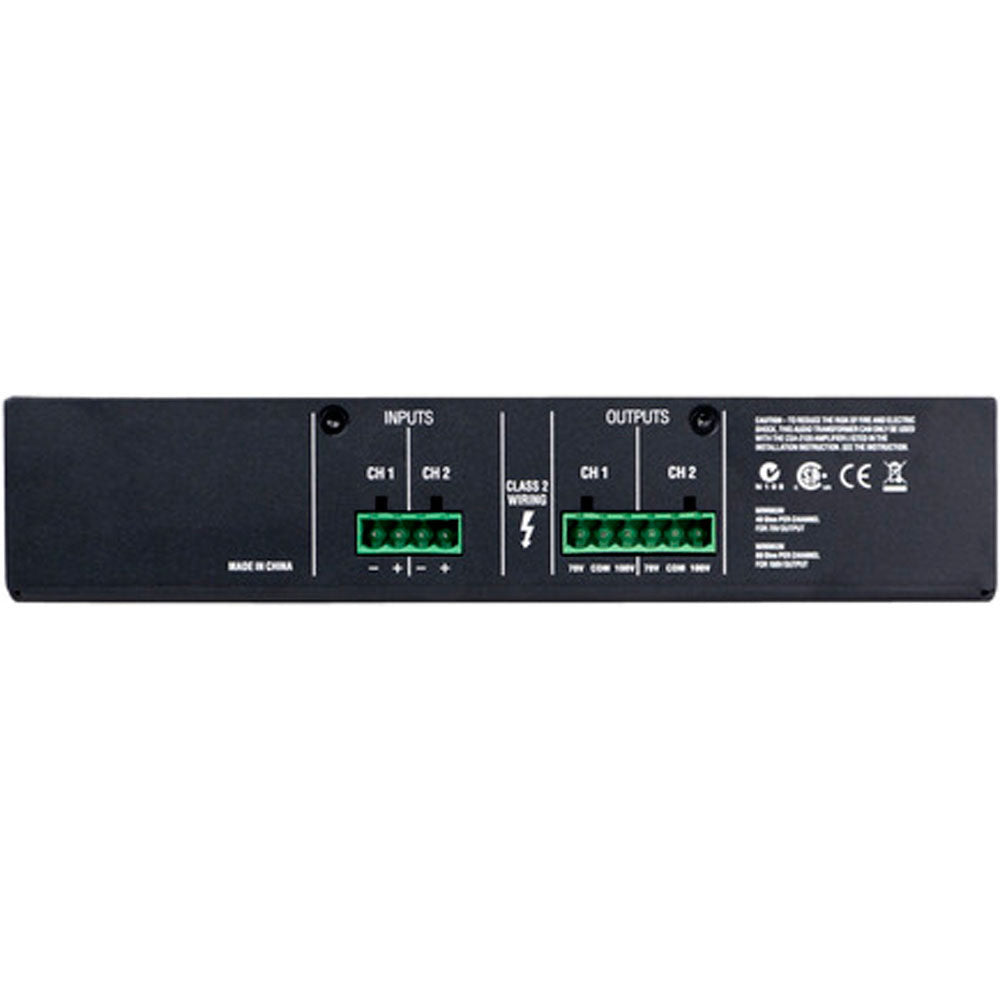

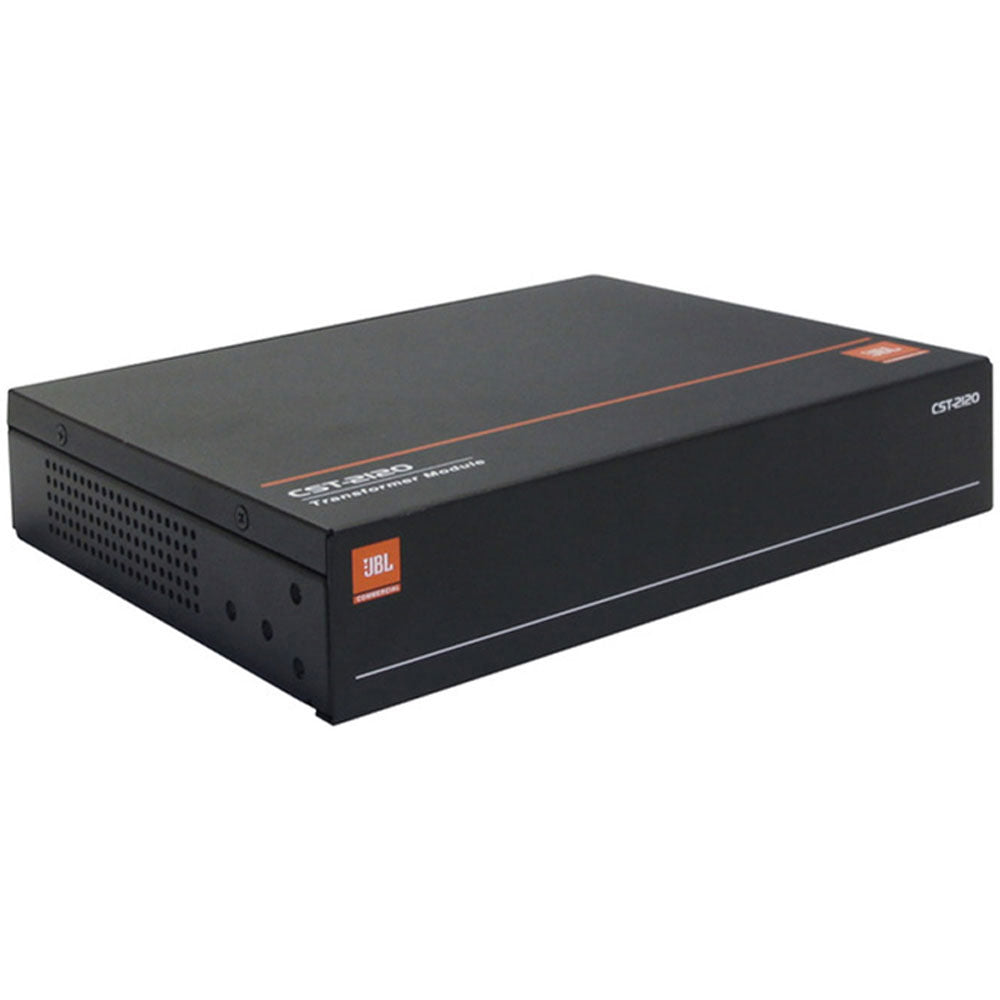

The rack-mountable JBL Commercial CST-2120 transformer module provides impedance and voltage matching for the CSA-2120 amplifier to drive 70V and 100V distributed speaker systems

Features

  • Providing two channels for constant voltage operation
  • 70V/100V Outputs
  • Rack-mountable with CSA2120
  • Detachable block input and output connectors

More +

Product Specs

Max Input Power120W/Ch
Max Input Voltage32Vrms
Insertion Loss Less than1dB
Frequency Response+/-1 dB @ 70Hz - 15kHz
Dimensions8.2" x 1.7" x 7" (209 mm x 44 mm x 178 mm)
Net Weight 2.1 Kg (4.6 lbs)
Gross Weight2.4 Kg (5.3 lbs)

More +
