Description
The JBL PRX835W is a full-range speaker designed for main system applications. Featuring a 15" woofer, 6.5" midrange transducer, and 1.5" compression driver powered by a 1500-watt class-D amplifier, PRX835W delivers incredible volume in a lightweight and compact form factor. Features: Built-in W... Read MoreRetail Price: $2,005.64 Our Price: $1,609.00
Shipping Charges Apply
Suggested Accessories
Description

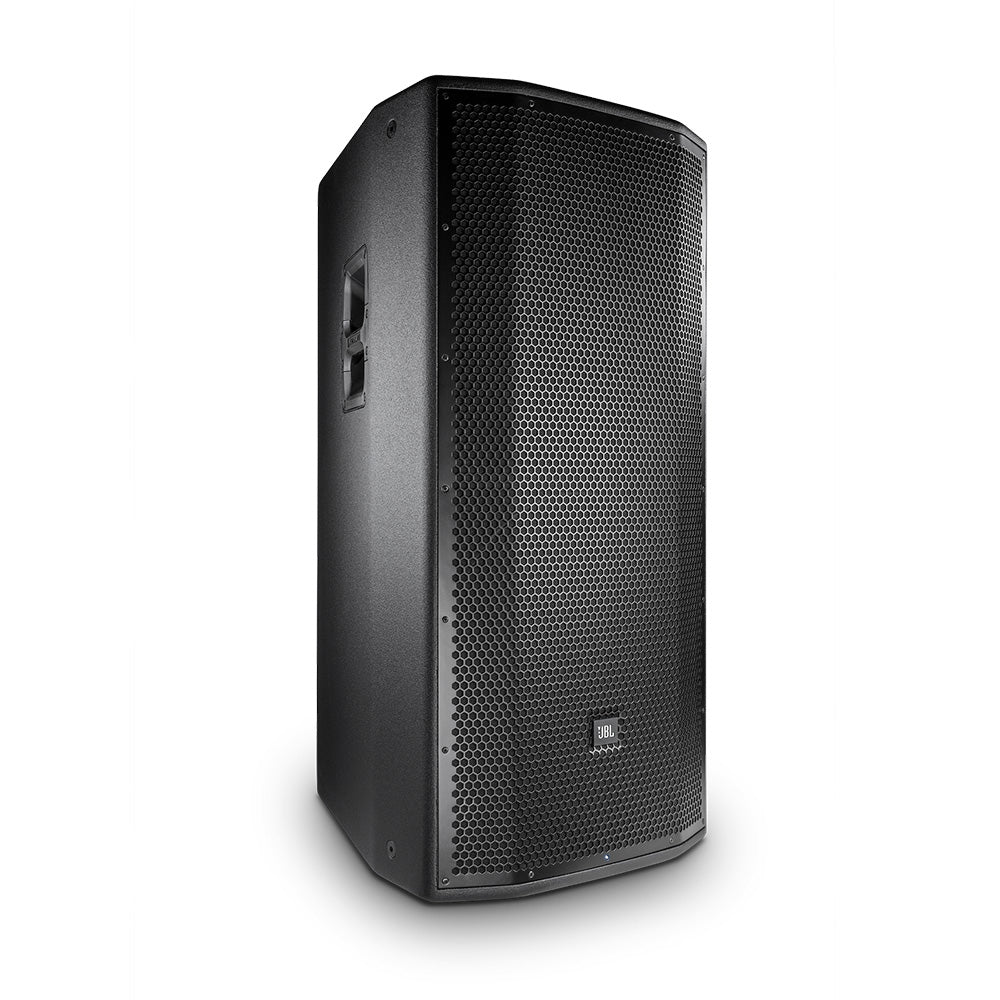

The JBL PRX835W is a full-range speaker designed for main system applications. Featuring a 15" woofer, 6.5" midrange transducer, and 1.5" compression driver powered by a 1500-watt class-D amplifier, PRX835W delivers incredible volume in a lightweight and compact form factor.
Features:
Applications:
More +
Product Specs
System Type | Self Powered 15”, three-way, bass-reflex |
Maximum SPL Output | 138 dB peak |
Frequency Range (-10 dB): | Normal: 41 Hz – 20 kHz Boost: 41 Hz – 20 kHz |
Frequency Response (±3 dB) | Normal: 50 Hz – 18.25k Boost: 48 Hz - 20k |

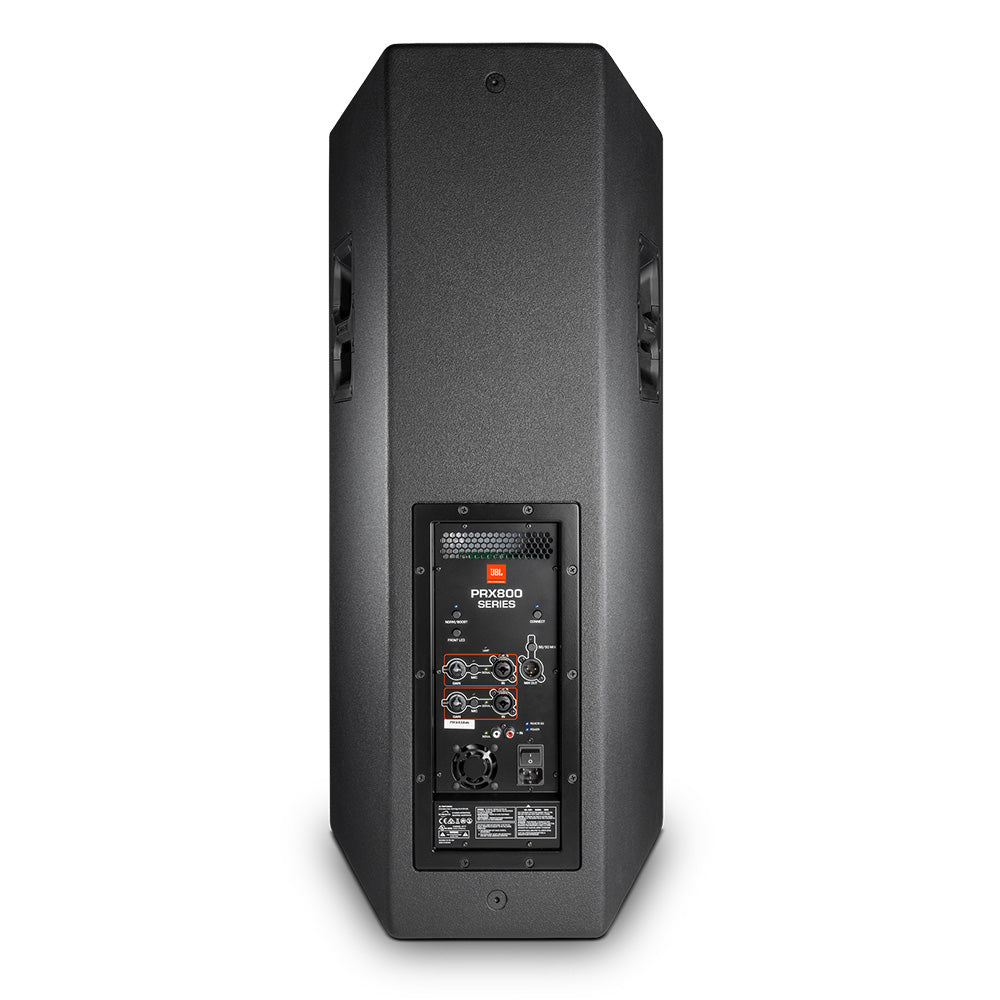

Input Connectors | 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input |
Input Impedance | 20K Ohms (balanced), 10K Ohms (unbalanced) |
Signal Indicators | Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio. |
EQ | User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application. |
Dynamic Control (Input) | dbx Type IV™ limiter circuit |
Crossover Frequency | 580 Hz, 2.1 kHz |
Design | Highly efficient Class-D amplifier |
Power Rating | 1500W (750W x 2) |
AC Power Input | 100V - 240V ~ 50/60 Hz |

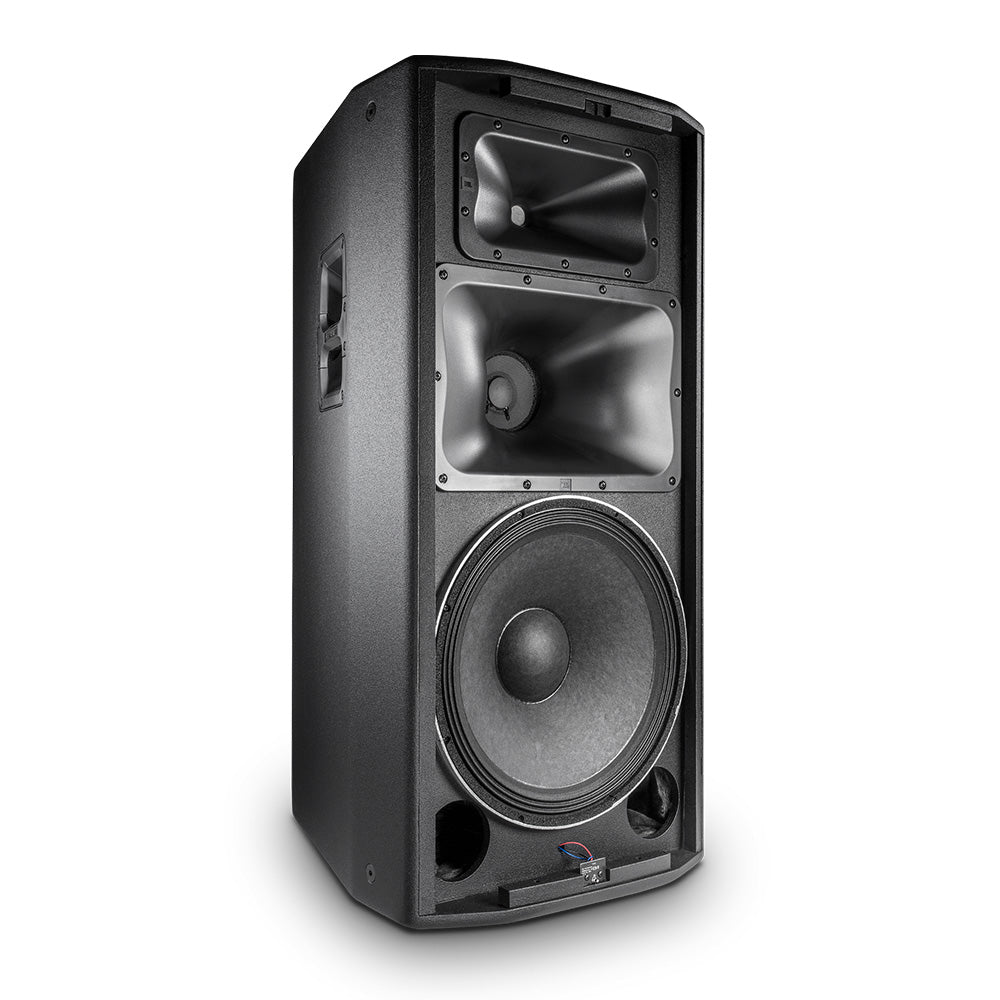

LF Driver | 1 x JBL 275G 380 mm (15 in) woofer |
MF Driver | 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer |
HF Driver | 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver |
Coverage Pattern | 90° x 50° nominal |
Directivity Index (DI) | 10.5 dB |
Directivity Factor (Q) | 11.2 |
Enclosure | Trapezoidal, 18 mm, plywood |
Suspension / Mounting | 12 x M10 Suspension Points |
Transport | 2 x integrated handles with injection molded backing cup |
Finish | Obsidian DuraFlex™ finish |
Grille | Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. |
Dimensions (H x W x D) | 938 mm x 446 mm x 539 mm (36.9 in x 17.5 in x 21.2 in) |
Net Weight | 34.9 kg (77.0 lb) |
Gross Weight | 38.6 kg (85.0 lb) |
