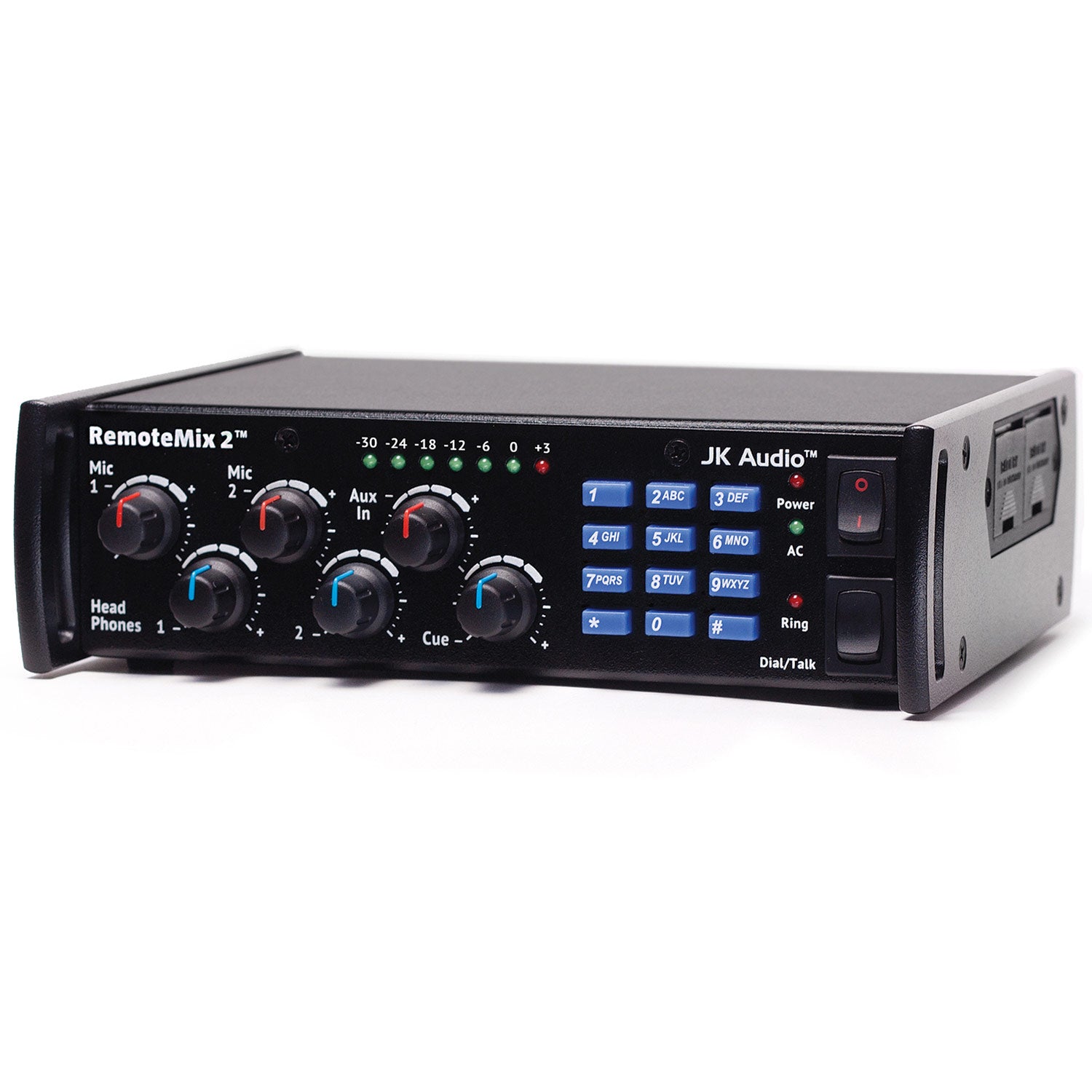

JK Audio RemoteMix 2 Broadcast Field Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
RemoteMix 2 is a two-channel field mixer / headphone amplifier built for the remote broadcast environment. More than just a field mixer, RemoteMix 2 provides a communications interface for remote broadcast, IFB, or a backup audio path. The integrated headphone amplifier provides sidetone to monitor all inputs plus an external feed. RemoteMix 2 features a phone line hybrid with keypad along with a wired notebook/cell phone headset interface. All sections are designed to work together, saving setup time and wiring in the field.
Features:
- Two XLR mic jacks
- Two 1/4" headphone jacks with individual level controls.
- XLR Line Out
- 3.5 mm Send and Receive jacks
- LED VU Meter
- Phone line hybrid with DTMF keypad
- Wired phone headset interface (2.5 & 3.5 mm interfaces)
- HD Voice Compatible
- Dual 9 volt batteries
- 100-240 VAC External AC Supply
- Made in USA
| Inputs | |
| Microphones (2) | Female XLR Mics: 2k ohms (-25 dBu nom) Channel 2 has -40 dB Mic/Line pad switch = +16 dBu max. 50k ohms. |
| Line Input | 1/8Ó (3.5mm) Stereo Line: 20k ohms -10 dBu nom. |
| Headphone Cue In: | 1/4Ó, 20k ohms -10 dBu nom. |
| Outputs | |
| Balanced Out | Male XLR +16 dBu max, 20 Hz - 20 kHz, +/- 1dB |
| Line Out | 1/8Ó (3.5mm) Stereo: 100 ohms, -10 dBu nom |
| Headphone | 1/4Ó Stereo: 8 ohms / 1/3 watt per channel |
| Phone Line | |
| Connector | RJ11C |
| Isolation | 3750 VAC |
| Ringer | 0.5B REN |
| Wireless phone | 1 meter cable with 3 conductor 2.5 mm plug, 1 meter cable with 4 conductor 3.5 mm plug |
| Power | 100-240 VAC, 50-60Hz or Two 9 VDC batteries |
| Size | 7.75Ó x 6.5Ó x 2.3Ó |
| Weight | 2.1 lbs (960 g) |
RemoteMix 2 is a two-channel field mixer / headphone amplifier built for the remote broadcast environment. More than just a field mixer, RemoteMix 2 provides a communications interface for remote broadcast, IFB, or a backup audio path. The integrated headphone amplifier provides sidetone to monitor all inputs plus an external feed. RemoteMix 2 features a phone line hybrid with keypad along with a wired notebook/cell phone headset interface. All sections are designed to work together, saving setup time and wiring in the field.
Features:
- Two XLR mic jacks
- Two 1/4" headphone jacks with individual level controls.
- XLR Line Out
- 3.5 mm Send and Receive jacks
- LED VU Meter
- Phone line hybrid with DTMF keypad
- Wired phone headset interface (2.5 & 3.5 mm interfaces)
- HD Voice Compatible
- Dual 9 volt batteries
- 100-240 VAC External AC Supply
- Made in USA
| Inputs | |
| Microphones (2) | Female XLR Mics: 2k ohms (-25 dBu nom) Channel 2 has -40 dB Mic/Line pad switch = +16 dBu max. 50k ohms. |
| Line Input | 1/8Ó (3.5mm) Stereo Line: 20k ohms -10 dBu nom. |
| Headphone Cue In: | 1/4Ó, 20k ohms -10 dBu nom. |
| Outputs | |
| Balanced Out | Male XLR +16 dBu max, 20 Hz - 20 kHz, +/- 1dB |
| Line Out | 1/8Ó (3.5mm) Stereo: 100 ohms, -10 dBu nom |
| Headphone | 1/4Ó Stereo: 8 ohms / 1/3 watt per channel |
| Phone Line | |
| Connector | RJ11C |
| Isolation | 3750 VAC |
| Ringer | 0.5B REN |
| Wireless phone | 1 meter cable with 3 conductor 2.5 mm plug, 1 meter cable with 4 conductor 3.5 mm plug |
| Power | 100-240 VAC, 50-60Hz or Two 9 VDC batteries |
| Size | 7.75Ó x 6.5Ó x 2.3Ó |
| Weight | 2.1 lbs (960 g) |
