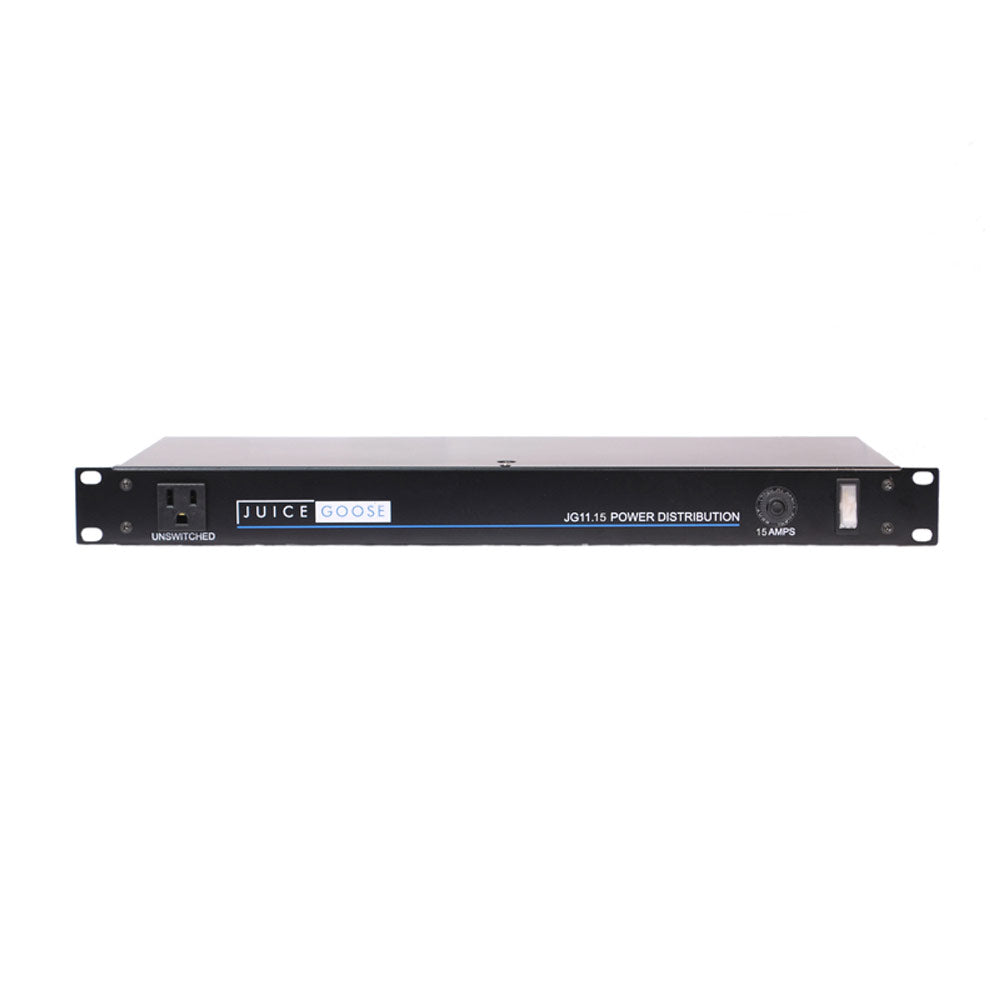

Juice Goose JG 11-15A 15-Amp 11-Outlet Power Conditioner
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Fifteen Amp Connectivity with More Outlets: The 15 amp rating allows this unit to be plugged in anywhere. While it has less capacity than the stronger JG 11-20A, in many ways this unit is more versatile.
This very economical package has 11 AC receptacles with one unswitched on each the front and back. In addition, the JG 11-15A has a front mounted circuit breaker and a 15 foot long power cord to use in difficult to reach applications.
The JG Series family of power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.
The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.
| INPUT VOLTAGE | 120vac, 60 Hz |
| TECHNICAL CURRENT CAPACITY | 12 Amps |
| CURRENT OVERLOAD PROTECTION | 15 Amps |
| DIMENSIONS (inches) | 1.75H x 19W x 7D |
| WEIGHT (lbs) | 6.0 |
| POWER CORD | 15 Amps, 15 foot 16/3 SJT with NEMA 5-15P Plug |
| POWER OUTPUT RECEPTACLES | Nine NEMA 5-15 (back), one NEMA 5-15 (front) |
| AC LINE FILTRATION | Line Capacitor (Line / Neutral) |
| VOLTAGE SPIKE PROTECTION | Metal Oxide Varistor (Line / Neutral) |
| WARRANTY | Three years |
Fifteen Amp Connectivity with More Outlets: The 15 amp rating allows this unit to be plugged in anywhere. While it has less capacity than the stronger JG 11-20A, in many ways this unit is more versatile.
This very economical package has 11 AC receptacles with one unswitched on each the front and back. In addition, the JG 11-15A has a front mounted circuit breaker and a 15 foot long power cord to use in difficult to reach applications.
The JG Series family of power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.
The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.
| INPUT VOLTAGE | 120vac, 60 Hz |
| TECHNICAL CURRENT CAPACITY | 12 Amps |
| CURRENT OVERLOAD PROTECTION | 15 Amps |
| DIMENSIONS (inches) | 1.75H x 19W x 7D |
| WEIGHT (lbs) | 6.0 |
| POWER CORD | 15 Amps, 15 foot 16/3 SJT with NEMA 5-15P Plug |
| POWER OUTPUT RECEPTACLES | Nine NEMA 5-15 (back), one NEMA 5-15 (front) |
| AC LINE FILTRATION | Line Capacitor (Line / Neutral) |
| VOLTAGE SPIKE PROTECTION | Metal Oxide Varistor (Line / Neutral) |
| WARRANTY | Three years |
