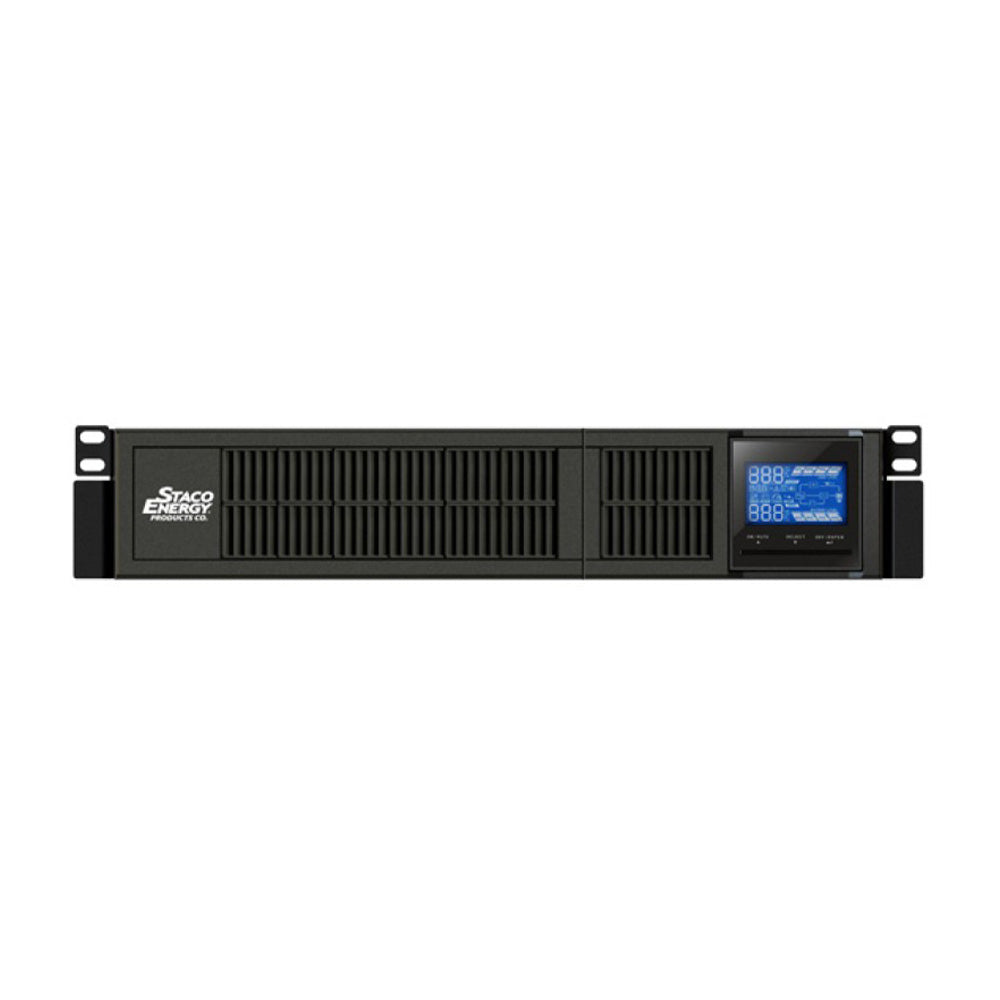

Juice Goose SCV-15001 Online Double Conversion UPS Backup System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Advanced processor circuitry has an output power factor of 0.90 to provide higher performance and efficiency to critical applications. High efficiency circuitry converts 90% of available current (amps) into real work (watts), reducing equipment and operating costs.
True double conversion UPS architecture completely buffers connected loads from incoming disturbances on AC line and neutral. This design also provides unconditional voltage stability regardless of problems on the local utility grid.
Easy to read LCD display provides real-time indication of all major system parameters and status, including load and battery levels and fault signals. Communications options allow remote monitoring and management.
Run time can be increased by attaching optional external batteries. Batteries can be replaced without shutting down the UPS. All unit ship with NetAgent9 management software as well as floor stand and rack mounting hardware.
| Rating VA | 1,500 |
| Capacity Watts | 1,350 |
| INPUT | |
| Rated Volts | 100 VAC - 120 VAC |
| Low Voltage Transfer At Load Percentage | 80VAC@80% - 100%, 70VAC@70% - 80%, 60VAC@60%-70%, 55VAC 60% |
| Re-Transfer | 85VAC@80% - 100%, 75VAC@70% - 80%, 65VAC@60%-70%, 60VAC 60% |
| High Transfer | 150VAC +/- 5% |
| Frequency Range | 50Hz - 60Hz |
| Power Factor | ³ 0.99 @ Rated Voltage |
| OUTPUT | |
| Output Voltage (VAC) | 100, 110, 115, 120 Load capacity rating is reduced at lower voltages |
| AC Voltage Regulation | + / - 1% |
| Frequency Range | 47 - 53 Hz or 57 - 63 Hz (synchronized range) |
| Frequency Range | 50Hz or 60Hz +/- 0.5% (battery mode) |
| Current Crest Ratio (CF) | Maximum 5:1 |
| Harmonic Distortion (THDU) | ² 2% (linear load) 8% Maximum (battery mode before shutdown) |
| Transfer Time AC to DC | No transfer |
| Transfer Time Inverter to Bypass | 4 ms (typical) |
| Waveform (Battery Mode) | Pure Sine Wave |
| BATTERY | |
| Battery Type | (3) 12V/9Ah |
| Run Time (Full Load, Minutes) | 4 |
| Recharging Voltage (+/- 1%) | 41.1VDC |
| Recharging Current (Max, Amps) | 4 |
| Typical Recharge Time | 4 hours recover to 90% of capacity |
| Typical Service Life | 3 to 5 Years |
| LCD DISPLAY | |
| Status | Load level 0-25%, 26-50%, 51-75%, 76-100%; Low Battery/Battery Good, Programmable Management Outlets, UPS On Line, Frequency Converter, Bypass, Alarm Disabled, Battery Charger |
| Readings | Input and Output Voltage and Frequency, Battery Backup Time, Fault Indicator, Battery Voltage, Current Overload, Output Current Short Circuit |
| Control Select Buttons | Enter / UPS Off, Change Display Message, Mode Setting, Navigation Key, Mute / UPS On, Select Display |
| AUDIBLE AND VISUAL ALARMS | |
| Warning Indicators | Low Battery, Current Overload, Battery Not Connected, Overcharge, External Wiring Fault, EPO Enabled, Over Temperature, Charger Failure, Battery Fault, Bypass Out of Voltage Range, Bypass Frequency Fault |
| PHYSICAL | |
| Dimensions (H x W x D) | 3.39Ó x17.24Ó x 20.38Ó |
| Weight | 42 lbs |
| ENVIRONMENT | |
| Operating Temperature | 32 F to 104 F |
| Storage Temperature | -13 F to 104 F |
| Humidity | 20 to 90% RH (non-condensing) |
| Noise Output | Less than 50 dBA @ 1 meter |
| COMMUNICATION | |
| Standard Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC |
| Optional SNMP Network Card | SNMP software and browser |
| Optional MODBUS Card | Communications from MODBUS |
| Optional AS400 Card | With DB9 or 9 Pin Connector |
