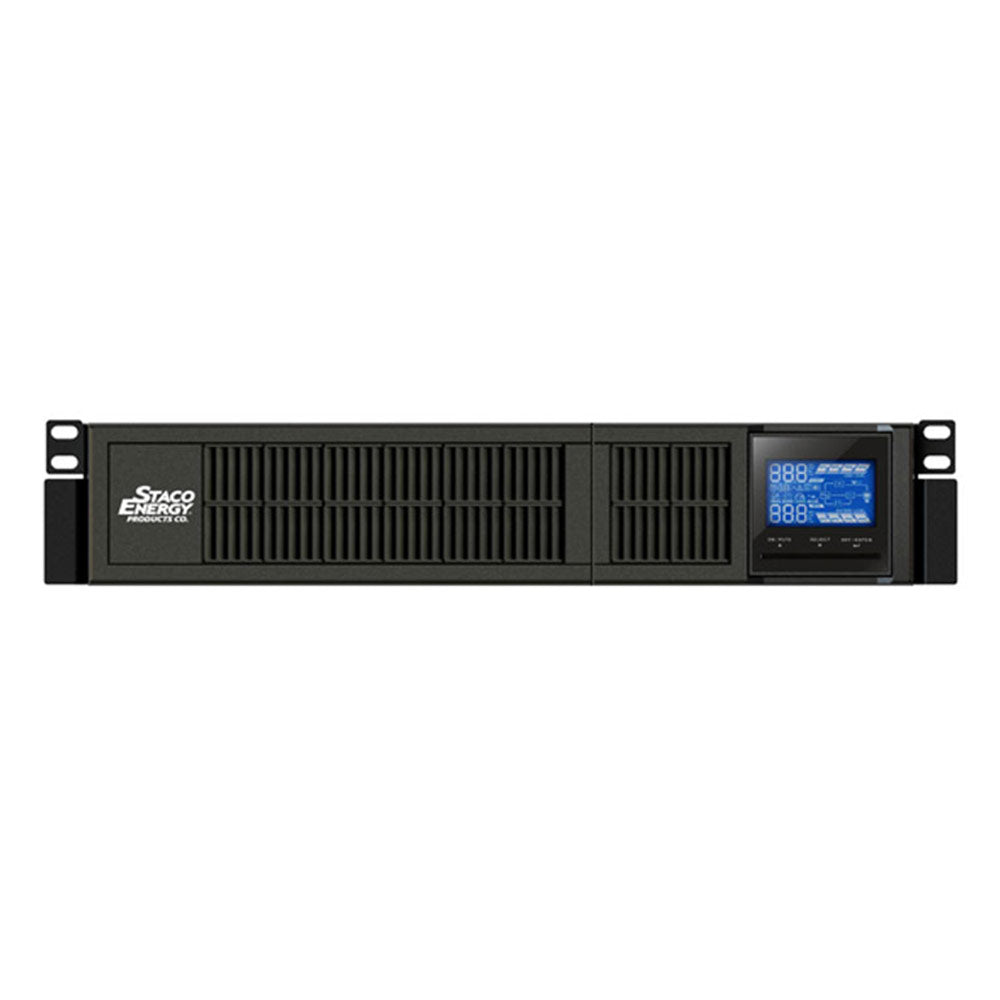

Juice Goose SCV-20001 Online Double Conversion UPS Backup System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Advanced processor circuitry has an output power factor of 0.90 to provide higher performance and efficiency to critical applications. High efficiency circuitry converts 90% of available current (amps) into real work (watts), reducing equipment and operating costs.
True double conversion UPS architecture completely buffers connected loads from incoming disturbances on AC line and neutral. This design also provides unconditional voltage stability regardless of problems on the local utility grid.
Easy to read LCD display provides real-time indication of all major system parameters and status, including load and battery levels and fault signals. Communications options allow remote monitoring and management.
Run time can be increased by attaching optional external batteries. Batteries can be replaced without shutting down the UPS. All unit ship with NetAgent9 management software as well as floor stand and rack mounting hardware.
| Capacity VA / Watts | 2000 VA 1800 W |
| INPUT Capacity |
|
| Rated Volts | 100VAC-120VAC |
| Low Transfer | Low Voltage 80 VAC/70 VAC/60 VAC/55 VAC ± 5 % (based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0) |
| Re-Transfer | Low Voltage Re-Transfer 85 VAC/75 VAC/65 VAC/60 VAC ± 5 % |
| High Transfer | High Voltage 150 VAC ± 5 % |
| Re-Transfer | High Voltage Re-Transfer 142 VAC ± 5 % |
| Frequency Range | 50Hz/ 60Hz |
| Power Factor | >0.99 @nominal voltage |
| OUTPUT | |
| Output Voltage | 100*/110*/115*/120VAC |
| AC Voltage Regulation | ± 1% |
| Frequency Range | 47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range) |
| Frequency Range | 50Hz ± 0.5% or 60Hz ± 0.5% (Bat. Mode) |
| Current Crest Ratio (CF) | 5:1 (max.) |
| Harmonic Distortion | (THDU) < 2% (Linear load) 8% max (Battery mode before shut down) |
| Transfer Time | AC to DC Zero Inv. to Bypass 4 ms (Typical) |
| Waveform (Battery Mode) | Pure Sinewave |
| EFFICIENCY | |
| AC Mode | 88% (typical), 90% (peak) |
| Battery Mode | 85% (typical), 88% (peak) |
| BATTERY (NON-LB MODELS) | |
| Battery Type | (4) 12V/9Ah |
| Battery Time (Full Load) | 2.7 |
| Typical Recharge Time | 4 hours recover to 90% capacity (for Non-LB models only) |
| Charging Current (max.) | 1 Amp |
| Charging Voltage | 54.7 VDC ± 1% |
| LCD DISPLAY | |
| Status | Load level 0-25%, 26-50%, 51-75% and 76-100%, Low Battery and Battery Good, Programmable Management Outlets working, UPS On-Line, UPS in Frequency Converter Mode, UPS On Bypass, Alarm Disabled Indicator and Battery Charger Working. |
| Readings | Input Voltage and Frequency, Output Voltage and Frequency, Battery Backup Time (hours/minutes), Fault Indicator, Battery Voltage, Overload, and/or UPS Output is short circuited. |
| Control/Select Buttons | Off/Enter - Turn UPS Off, Switch LCD Message, Mode Settings, Navigation Key, On/Mute + Select Button to switch to Bypass Mode. |
| AUDIBLE / VISUAL ALARMS | Warning Indicators Low battery, Overload, Battery Not Connected, Overcharge, Site Wiring Fault, EPO Enabled, Over Temperature, Charger Failure, Battery Fault, Bypass Out of Range and Bypass Frequency Unstable |
| PHYSICAL WEIGHT / DIMENSIONS H" x W" x D" / [mm] | |
| Rack Mount | 3.39" x 17.24" x 20.38" (2U) [86.2 x 438.0 x 517.5] |
| Tower | 17.24" x 3.39" x 20.38" (2U) [438.0 x 86.2 x 517.5] |
| Net Weight lbs. / (kg) | 47 / (21) |
| ENVIRONMENT (Electronics) | |
| Operating | 32¡F (0¡C) to 104¡F (40¡C) |
| Humidity | 20-90 % RH (non-condensing) |
| Storage | -13¡F (-25¡C) to 104¡F (40¡C) BATTERIES (REFRESH Charge @ 3 months) |
| Noise Level | Less than 50dBA @ 1 Meter |
| MANAGEMENT / COMMUNICATION | |
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC |
| Optional SNMP Card | Power management from SNMP manager and web browser |
| Optional MODBUS Card | Communications from MODBUS |
| Optional AS400 Card | With DB9 or 9 Pin Connector |
| AGENCY | |
| Listing | UL1778/cUL |
