Description

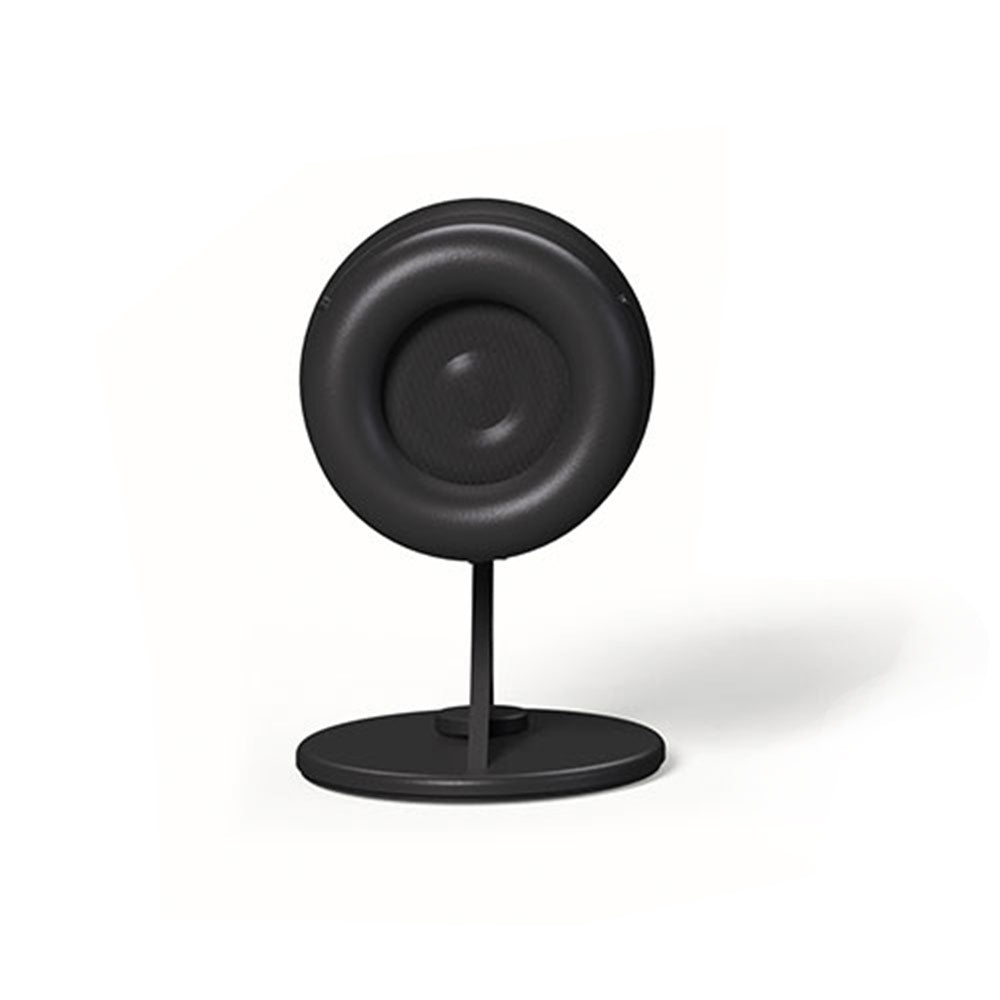

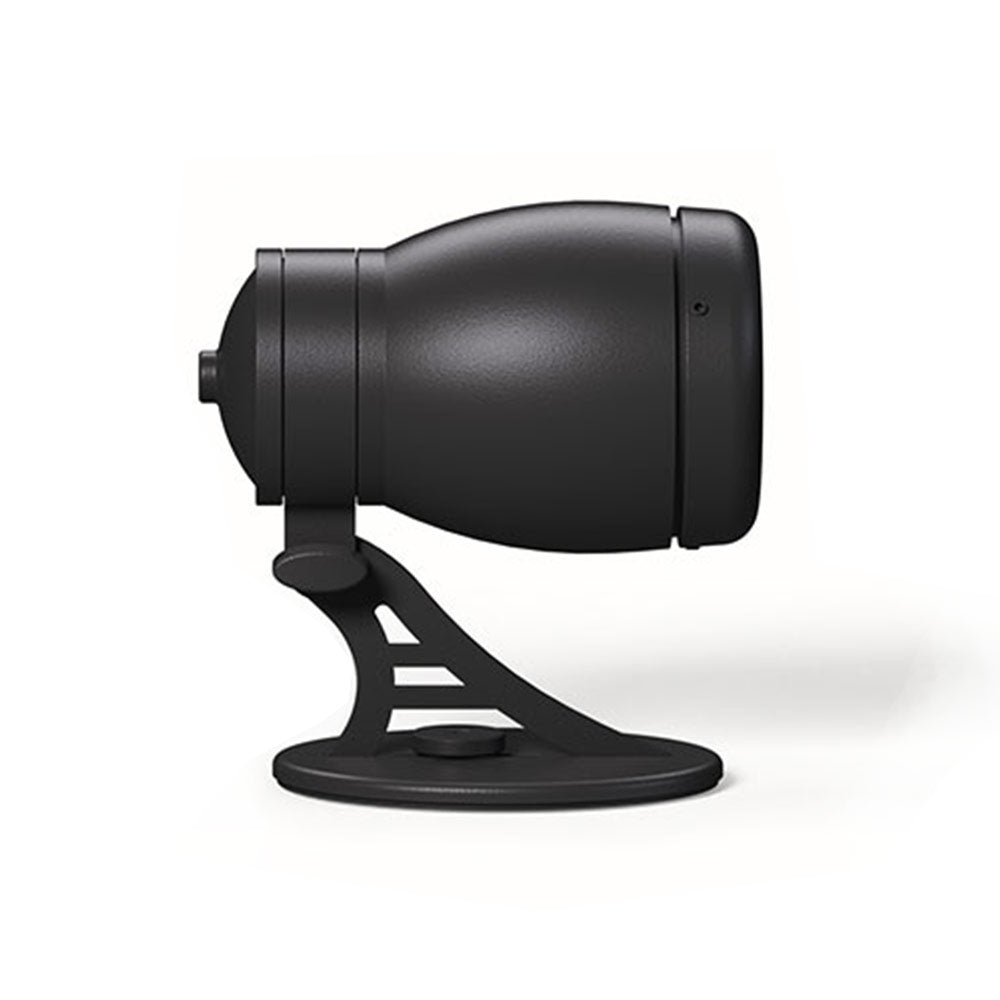

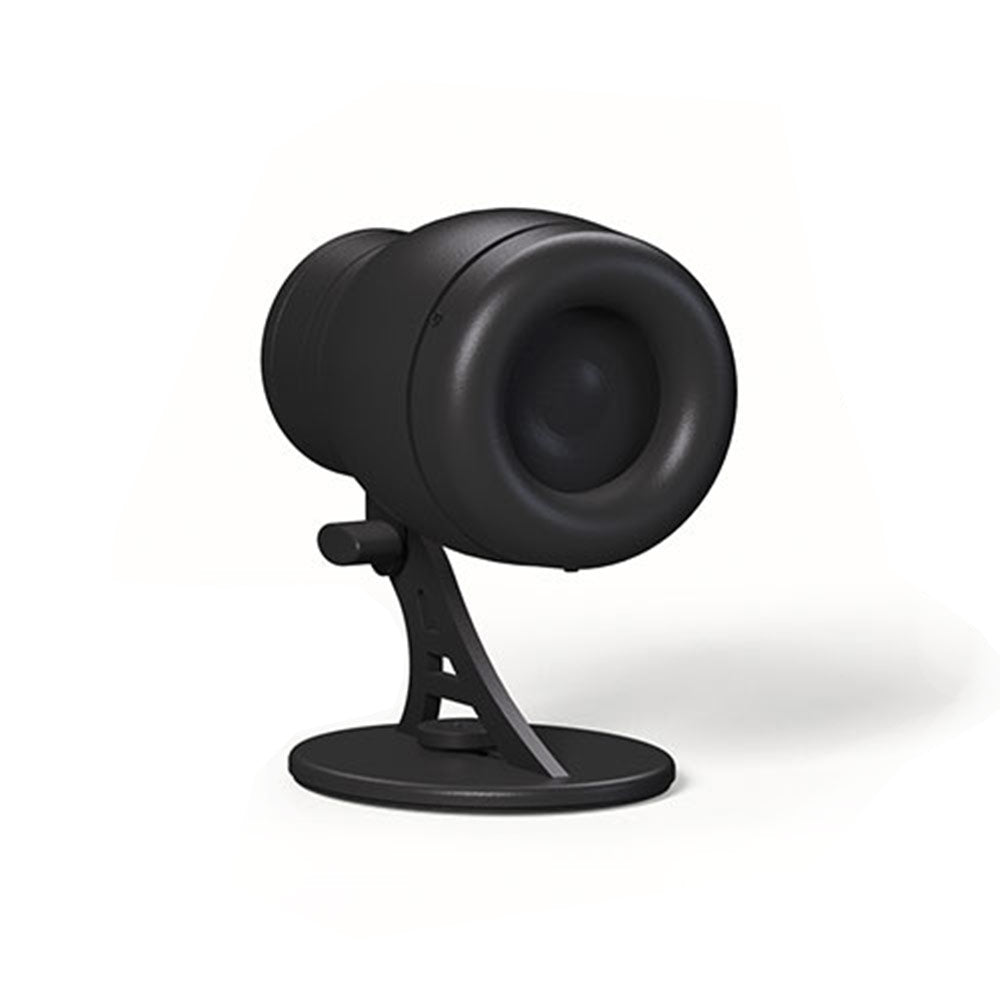

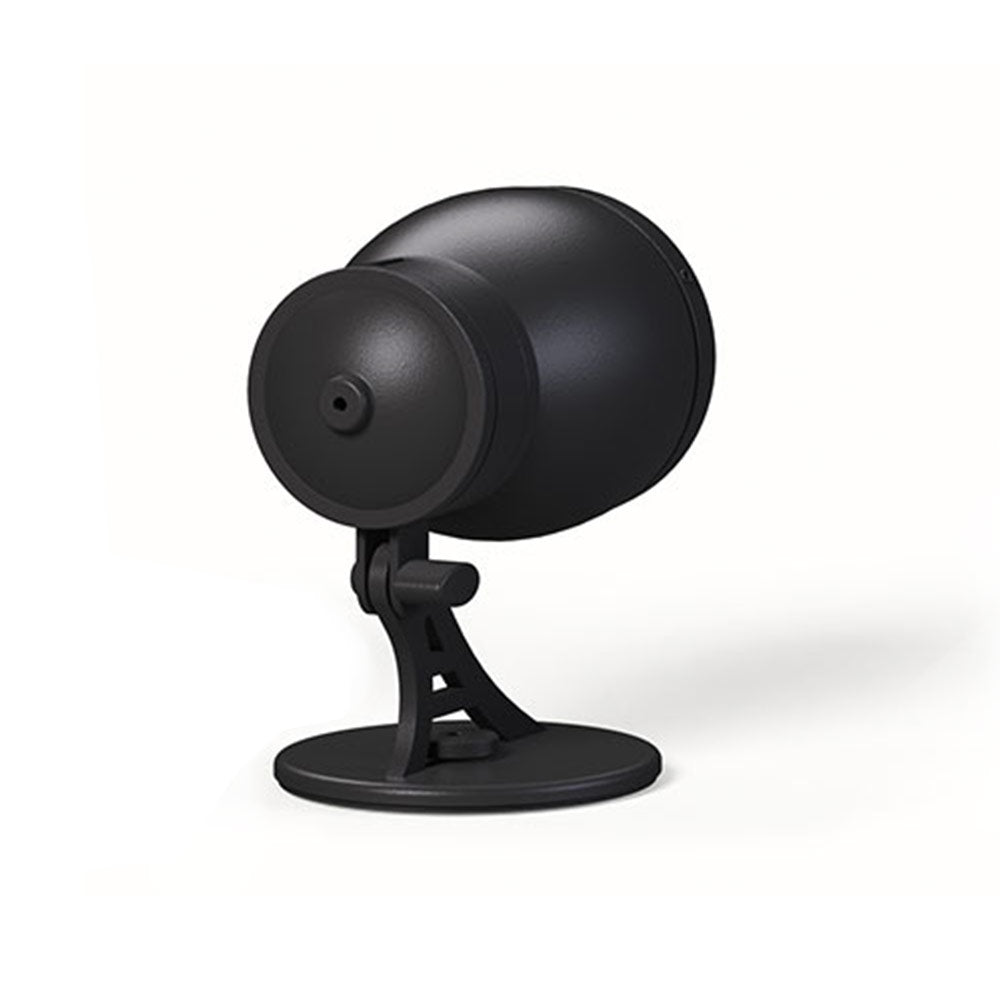

The Tornado series is a miniature sound source designed for high-quality distributed systems. Housed in a compact aluminum enclosure, the Tornado is suitable for space sensitive and architectural design installations. The Tornado is a turnkey loudspeaker solution: designed as passive speakers that can be easily converted into selfpowered devices by inserting the KA1-T2 12V/24V amplifier module. Tornados have a proprietary 2" high-efficiency drive unit with a neodymium magnet structure and a suspension engineered for maximum linear excursion and minimum residual transducer interference. The cone transducer delivers an impressive maximum peak SPL of 107 dB, and has a wide operating frequency range from 150 Hz to 18 kHz with very low distortion. With its ability to effortlessly reproduce both speech and music, it makes an excellent choice for fixed applications such as theatre, museum displays, restaurants, portable systems for corporate AV presentations, department stores, and in hidden locations such as chancel steps in houses of worship. The KT2 and KT2W models come with a wall bracket for fixed installations or surface applications while the KT2C and KT2CW come with a ceiling brackets for ceiling mounts. All Tornado components are designed by the K-array R&D department and custom made under the K-array quality control system. Designed as passive speaker, the Tornados can be easily converted into a self-powered device by inserting the KA1-T2H 12V/24V amplifier module.
Features:
- Visually Discrete
- Weather Resistent
- Electronically Protected
- Selectable Impedence
Frequent Applications:
- Cafes, Bistros & Restaurants
- Transportion Facilities
- Hotels
- Museums
- Retail
- Auditoriums, Education & Government
- Theme Parks
- Broadcast & Studios
ACOUSTICS | |
Power Handling | 18 W (AES) |
Impedance | 8½ - 32½ (settable) 70V version available upon request (KT2-HV) |
Frequency range (-10 dB) | 150 - 18 kHz (1) |
Maximum SPL | 101 dB (cont.) - 107 dB (peak) (2) |
COVERAGE | |
Horizontal | 90¡ |
Vertical | 90¡ |
CROSSOVER | |
Type | External Crossover required |
Frequency | 150Hz 24dB/Oct minimum required |
TRANSDUCERS | |
Full range | 2" neodymiun magnet woofer with 2 voice coils of 0.8" |
Impedance | 2 x 16 ½ |
POWER AUDIO INPUT | |
Connectors | 4-pin Phoenix connector |
Connector | VoiceCoil A=1+ 1- VoiceCoil B=2+ 2- |
CERTIFICATIONS | |
IP | 54 |
EVAC | EN54-24 |
PHYSICAL OVERVIEW | |
Dimensions | 7.4 x 12.1 x 11.7 cm (2.93"x 4.76"x 4.62")(3) KT2 12,5 x 12,5 x 11,9 cm (4.92"x 4.92"x 4.68")(3) KT2C |
Weight | 0.6 Kg (1.32 lb) |
Notes for data:
- With dedicated preset
- Measured @ 8m then scaled @ 1m
- (W x H x D)
