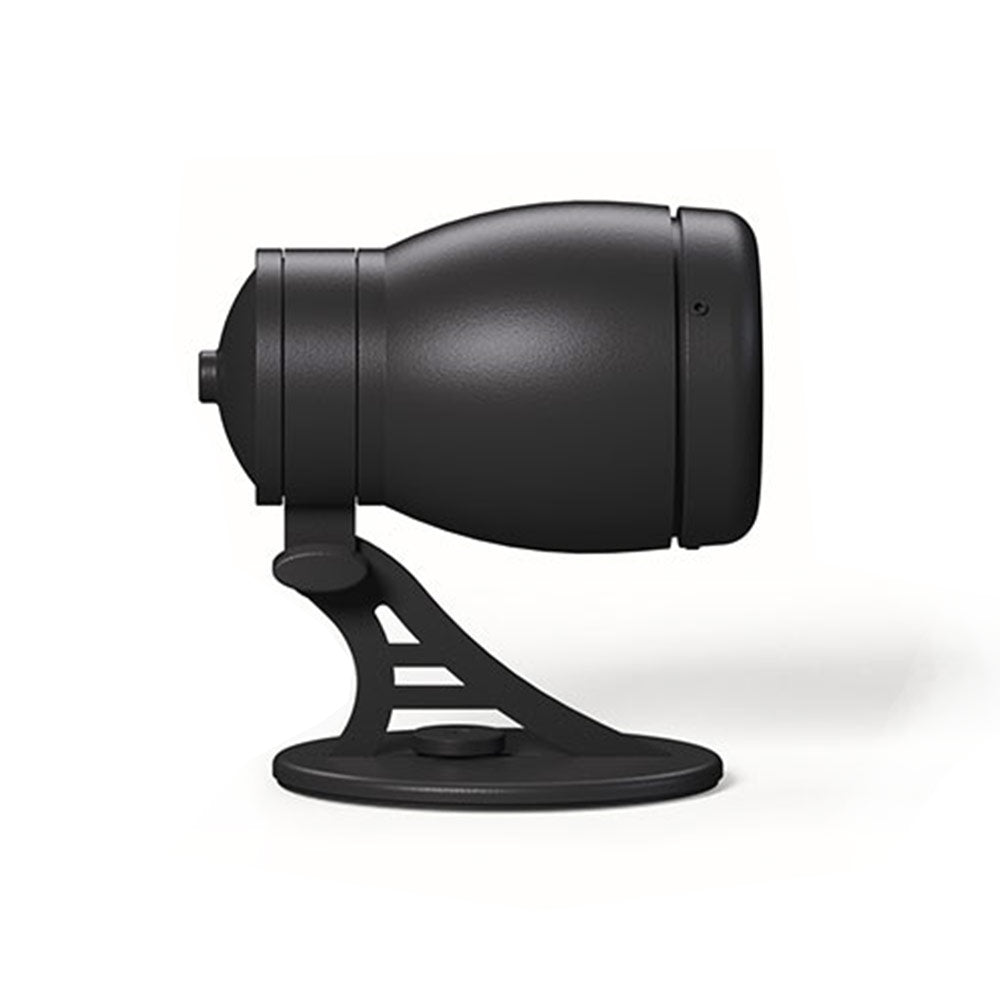

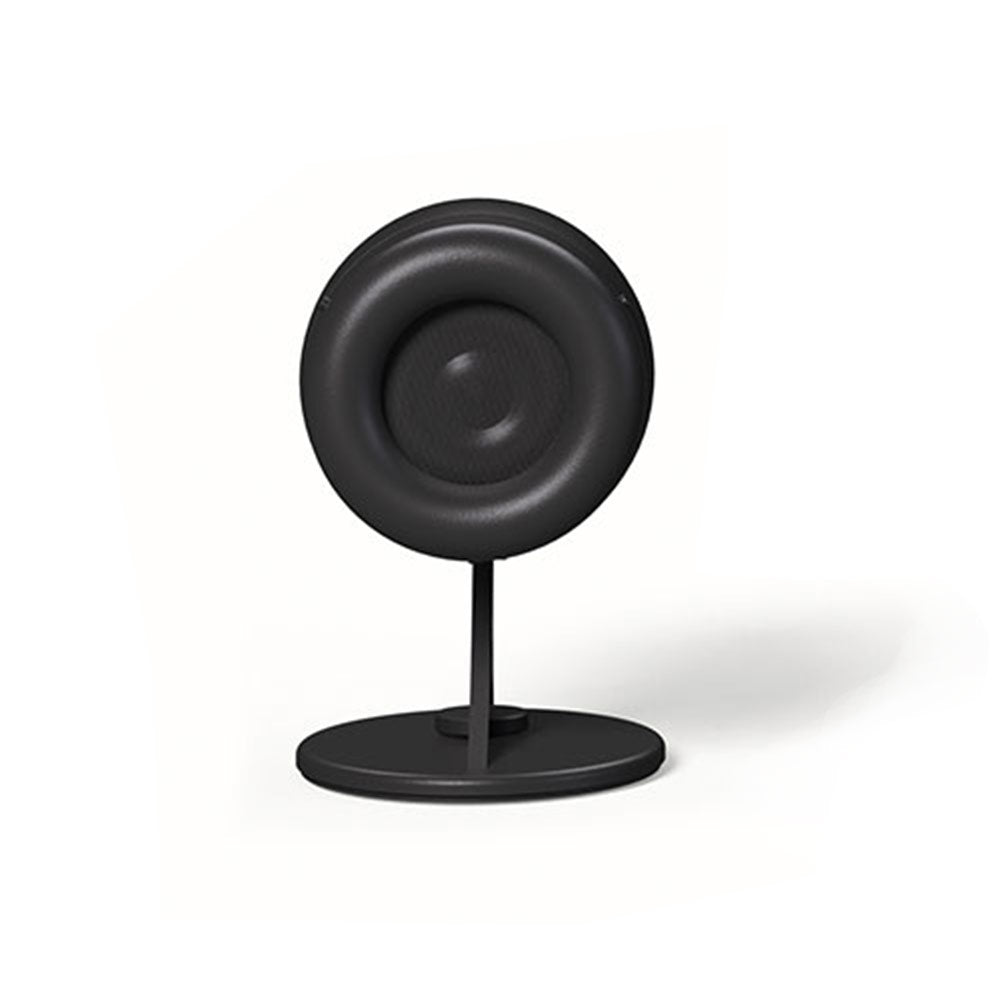

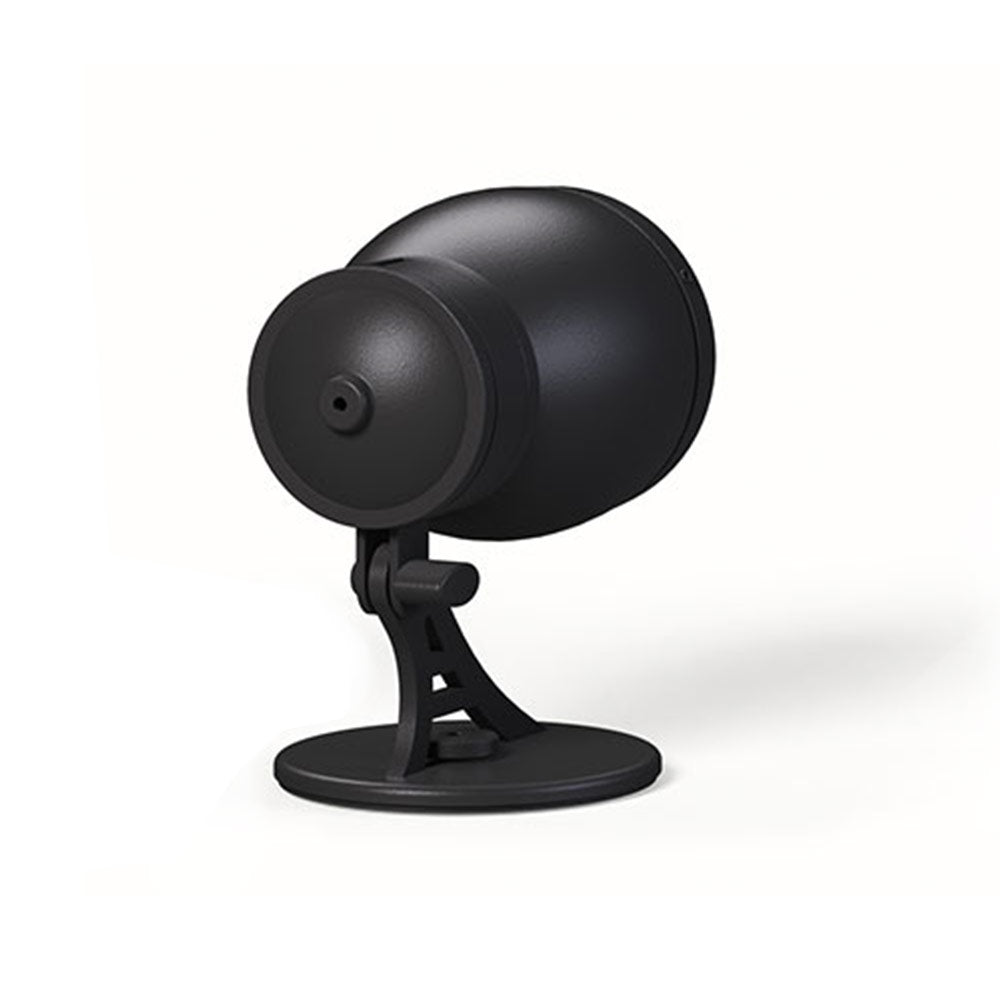

K-Array Tornado-KT2 2" Surface Mount Point Source Loudspeaker (Black)

  • Dale #:

    KARR-KT2
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Tornado series is a miniature sound source designed for high-quality distributed systems. Housed in a compact aluminum enclosure, the Tornado is suitable for space sensitive and architectural design installations. The Tornado is a turnkey loudspeaker solution: designed as passive speakers tha... Read More

Contact us

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Tornado series is a miniature sound source designed for high-quality distributed systems. Housed in a compact aluminum enclosure, the Tornado is suitable for space sensitive and architectural design installations. The Tornado is a turnkey loudspeaker solution: designed as passive speakers that can be easily converted into selfpowered devices by inserting the KA1-T2 12V/24V amplifier module. Tornados have a proprietary 2" high-efficiency drive unit with a neodymium magnet structure and a suspension engineered for maximum linear excursion and minimum residual transducer interference. The cone transducer delivers an impressive maximum peak SPL of 107 dB, and has a wide operating frequency range from 150 Hz to 18 kHz with very low distortion. With its ability to effortlessly reproduce both speech and music, it makes an excellent choice for fixed applications such as theatre, museum displays, restaurants, portable systems for corporate AV presentations, department stores, and in hidden locations such as chancel steps in houses of worship. The KT2 and KT2W models come with a wall bracket for fixed installations or surface applications while the KT2C and KT2CW come with a ceiling brackets for ceiling mounts. All Tornado components are designed by the K-array R&D department and custom made under the K-array quality control system. Designed as passive speaker, the Tornados can be easily converted into a self-powered device by inserting the KA1-T2H 12V/24V amplifier module.

Features:

  • Visually Discrete
  • Weather Resistent
  • Electronically Protected
  • Selectable Impedence

Frequent Applications:

  • Cafes, Bistros & Restaurants
  • Transportion Facilities
  • Hotels
  • Museums
  • Retail
  • Auditoriums, Education & Government
  • Theme Parks
  • Broadcast & Studios

More +

Product Specs

ACOUSTICS
Power Handling18 W (AES)
Impedance8Ω - 32Ω (settable)
70V version available upon request (KT2-HV)
Frequency range (-10 dB)150 - 18 kHz (1)
Maximum SPL101 dB (cont.) - 107 dB (peak) (2)
COVERAGE
Horizontal90°
Vertical90°
CROSSOVER
TypeExternal Crossover required
Frequency150Hz 24dB/Oct minimum required
TRANSDUCERS
Full range2" neodymiun magnet woofer with 2 voice coils of 0.8"
Impedance2 x 16 Ω
POWER AUDIO INPUT
Connectors4-pin Phoenix connector
ConnectorVoiceCoil A=1+ 1- VoiceCoil B=2+ 2-
CERTIFICATIONS
IP54
EVACEN54-24
PHYSICAL OVERVIEW
Dimensions7.4 x 12.1 x 11.7 cm (2.93"x 4.76"x 4.62")(3) KT2 12,5 x 12,5 x 11,9 cm (4.92"x 4.92"x 4.68")(3) KT2C
Weight0.6 Kg (1.32 lb)

Notes for data:

  1. With dedicated preset
  2. Measured @ 8m then scaled @ 1m
  3. (W x H x D)
