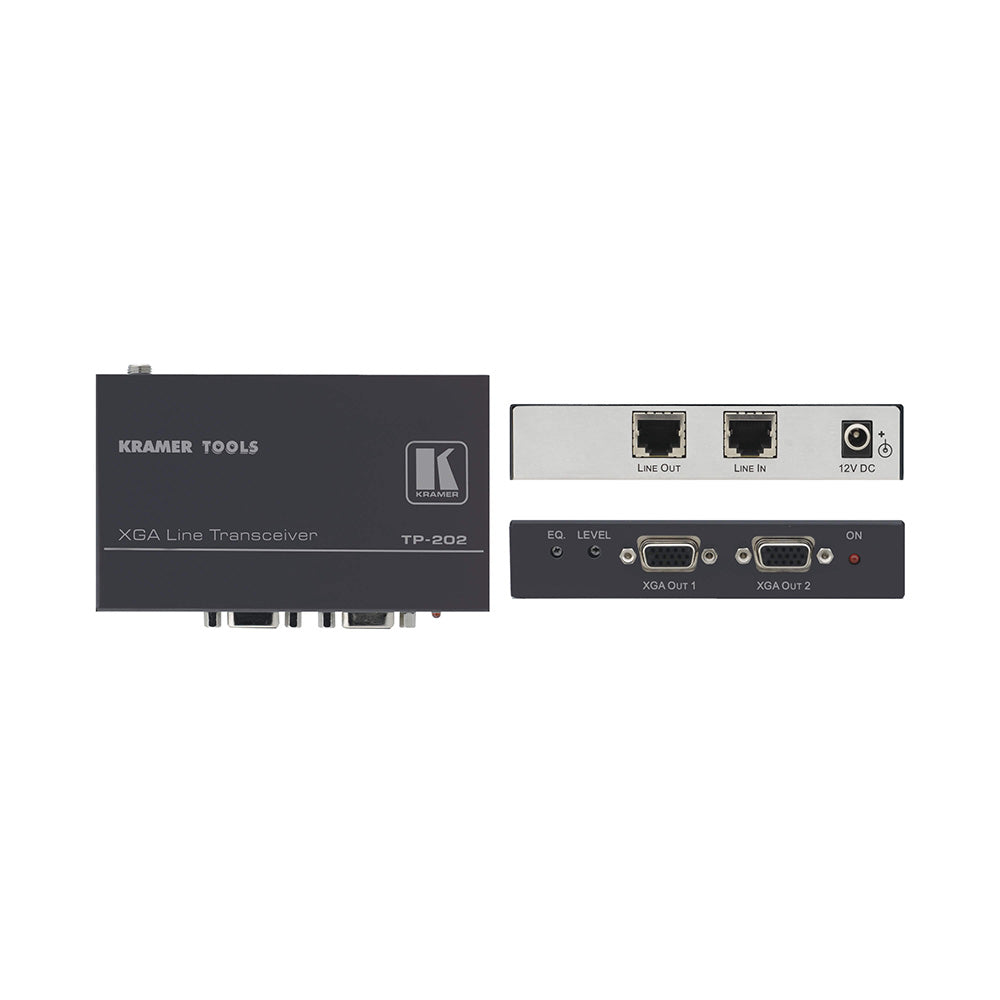

Kramer TP-202 Computer Graphics Video over Twisted Pair Transceiver
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The TP-202 is a twisted pair branching receiver for computer graphics video signals with resolutions up to and exceeding UXGA or HDTV signals. It takes a twisted pair signal and converts it into a computer graphics or HDTV signal available on two 15-pin HD outputs, and simultaneously re-transmits the original twisted pair signal to another compatible receiver.
Features:
- HDTV Compatible.
- Max. Resolution — WUXGA & 1080p.
- Long System Range — More than 100m (300ft).
- Expandable — Cascades up to 6 units.
- Cable — For standalone, use UTP (unshielded twisted pair) cable such as CAT 5.
- Sync Polarity Settings — H & V switches for improved display compatibility.
- Level (Gain) and EQ (Peaking) Controls — Recessed to prevent unintentional adjustment.
- Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
| INPUT | 1 twisted pair on an RJÐ45 connector |
| OUTPUTS | 1 twisted pair on an RJÐ45 connector, 2 UXGA on 15Ðpin HD (F) connectors |
| DIFF. GAIN (PAIR) | 2.8% |
| K-FACTOR | 0.1% |
| MAX. RESOLUTION | WUXGA / 1080p |
| CONTROLS | Level: Ñ 9.6dB to +2.3dB Equalization: 0dB to 36.3dB @50MHz |
| POWER CONSUMPTION | 12V DC, 525mA maximum current |
| INCLUDED ACCESSORIES | Power supply |
| OPTIONS | RKÐ3T 19" rack adapter |
| PRODUCT DIMENSION | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H |
| PRODUCT WEIGHT | 0.2kg (0.4lbs) approx |
| SHIPPING DIMENSION | 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H |
| SHIPPING WEIGHT | 0.5kg (1.1lbs) approx |
The TP-202 is a twisted pair branching receiver for computer graphics video signals with resolutions up to and exceeding UXGA or HDTV signals. It takes a twisted pair signal and converts it into a computer graphics or HDTV signal available on two 15-pin HD outputs, and simultaneously re-transmits the original twisted pair signal to another compatible receiver.
Features:
- HDTV Compatible.
- Max. Resolution — WUXGA & 1080p.
- Long System Range — More than 100m (300ft).
- Expandable — Cascades up to 6 units.
- Cable — For standalone, use UTP (unshielded twisted pair) cable such as CAT 5.
- Sync Polarity Settings — H & V switches for improved display compatibility.
- Level (Gain) and EQ (Peaking) Controls — Recessed to prevent unintentional adjustment.
- Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
| INPUT | 1 twisted pair on an RJÐ45 connector |
| OUTPUTS | 1 twisted pair on an RJÐ45 connector, 2 UXGA on 15Ðpin HD (F) connectors |
| DIFF. GAIN (PAIR) | 2.8% |
| K-FACTOR | 0.1% |
| MAX. RESOLUTION | WUXGA / 1080p |
| CONTROLS | Level: Ñ 9.6dB to +2.3dB Equalization: 0dB to 36.3dB @50MHz |
| POWER CONSUMPTION | 12V DC, 525mA maximum current |
| INCLUDED ACCESSORIES | Power supply |
| OPTIONS | RKÐ3T 19" rack adapter |
| PRODUCT DIMENSION | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H |
| PRODUCT WEIGHT | 0.2kg (0.4lbs) approx |
| SHIPPING DIMENSION | 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H |
| SHIPPING WEIGHT | 0.5kg (1.1lbs) approx |
