LD Systems CURV 500 I SUB 10" Installation Subwoofer 200 W (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

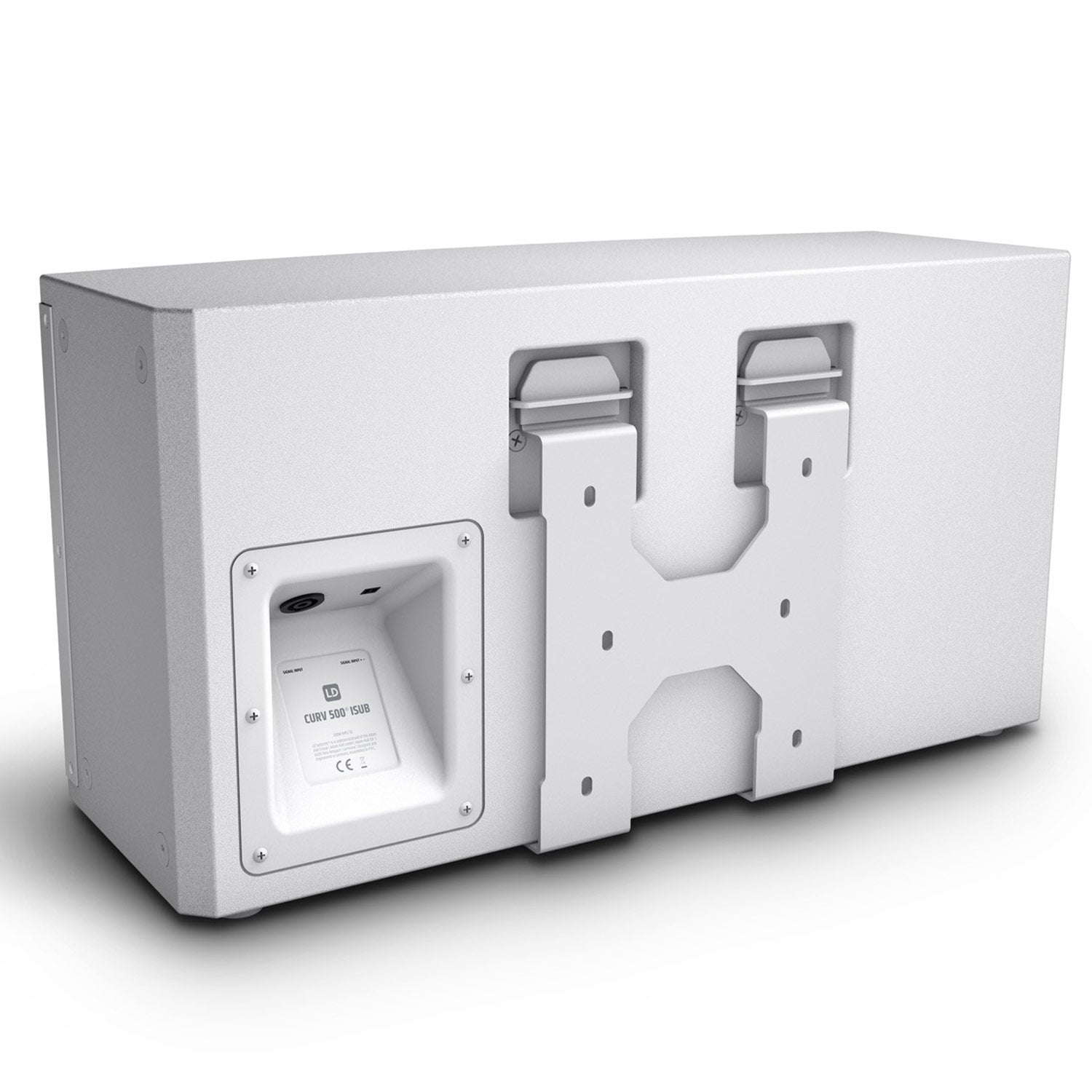

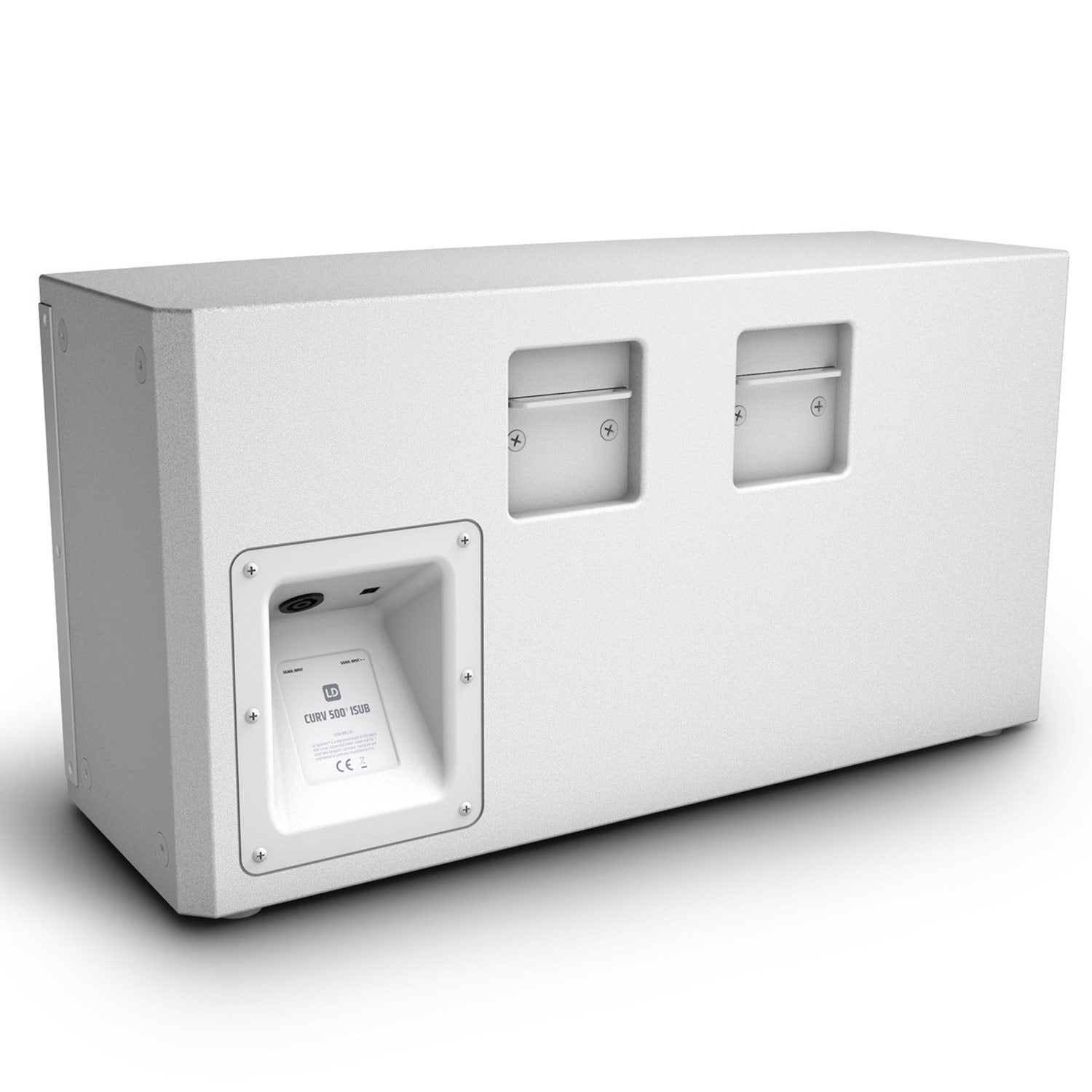

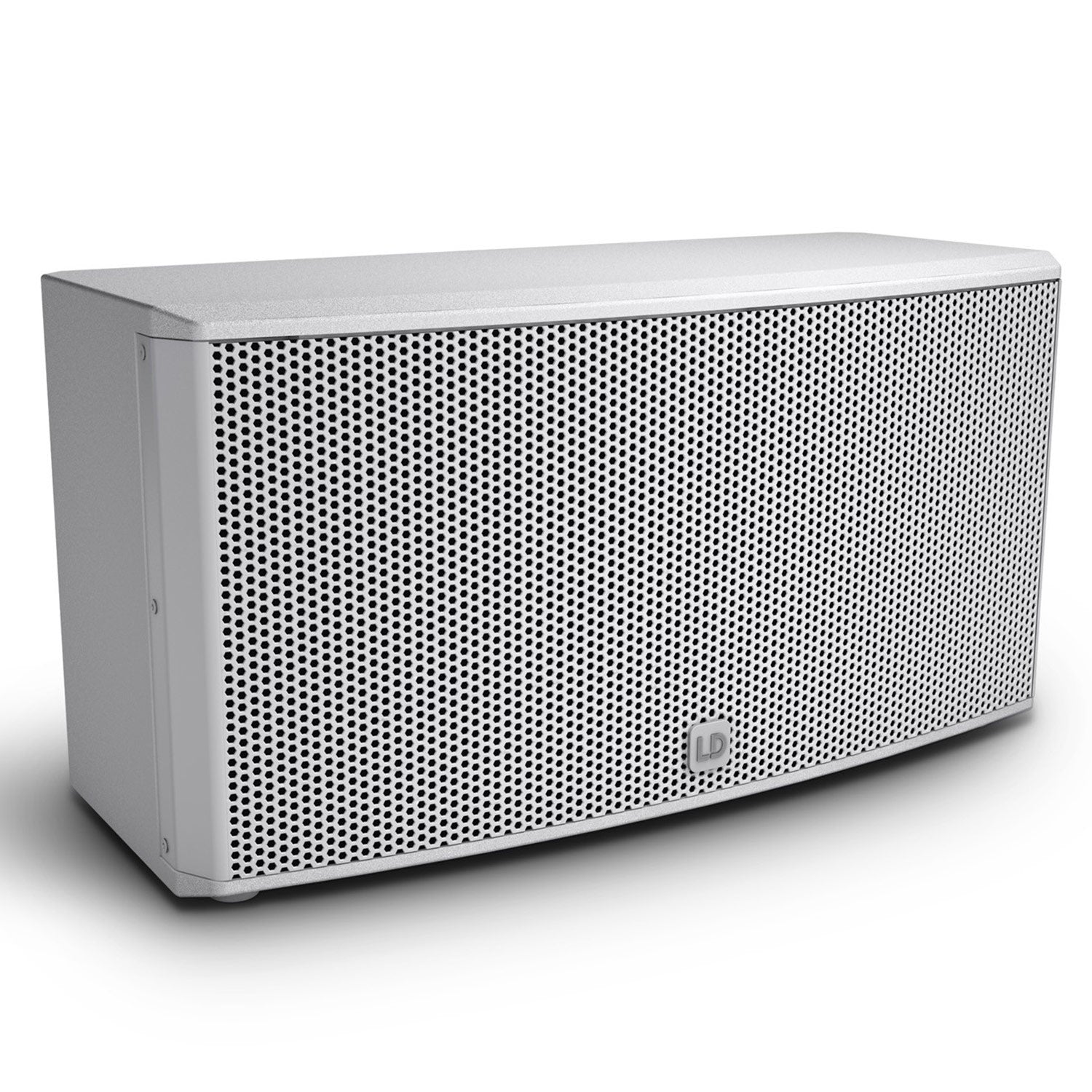

Purpose-designed for CURV 500® installations the iSUB is a compact, shallow-depth bass reflex subwoofer loaded with a custom 10" transducer. It features a 47 - 150 Hz frequency response for tight, dynamic low frequency reproduction with punch and definition and 200 watts RMS power handling. Finished in black or white textured paint the elegant cabinet with steel grille provides terminal block and speakON-compatible input connectors plus eight M8 suspension points. The iSUB comes with a low- profile wall and ceiling mounting bracket and a set of rubber feet.
Features:
- 10" bass reflex construction
- Purpose-designed for CURV 500® installations
- Shallow-depth enclosure
- 200 watts RMS power handling
- 47 - 150 Hz frequency response
- Available in black or white textured paint finish

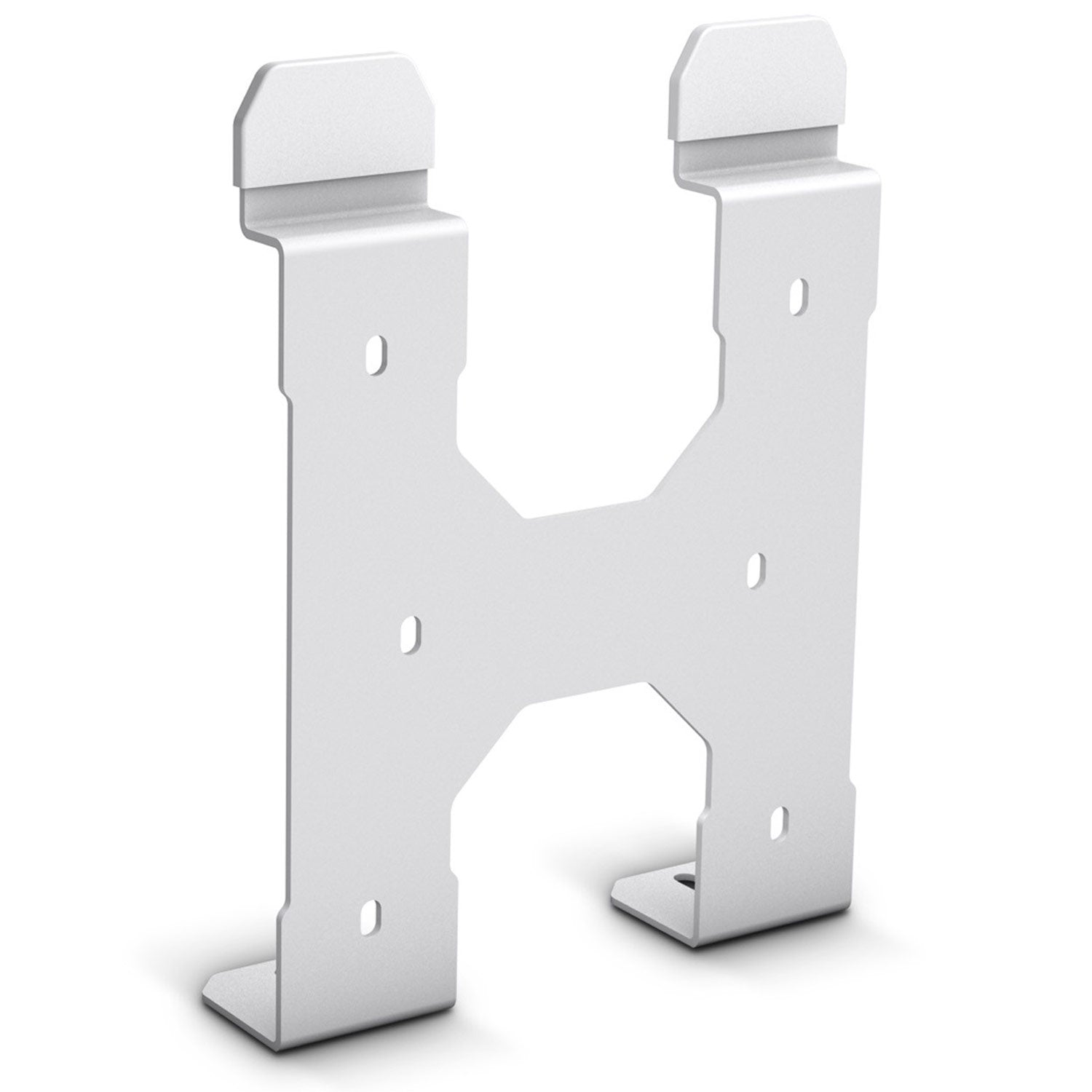

- Includes low-profile wall and ceiling mounting bracket
| Product type | PA subwoofer |
| Type | Passive |
| Low/mid driver dimensions | 10" |
| Load rating (RMS) | 200 W |
| Frequency response | 47 - 150 Hz |
| Impedance | 3 Ohm(s) |
| Loudspeaker inputs | 2 |

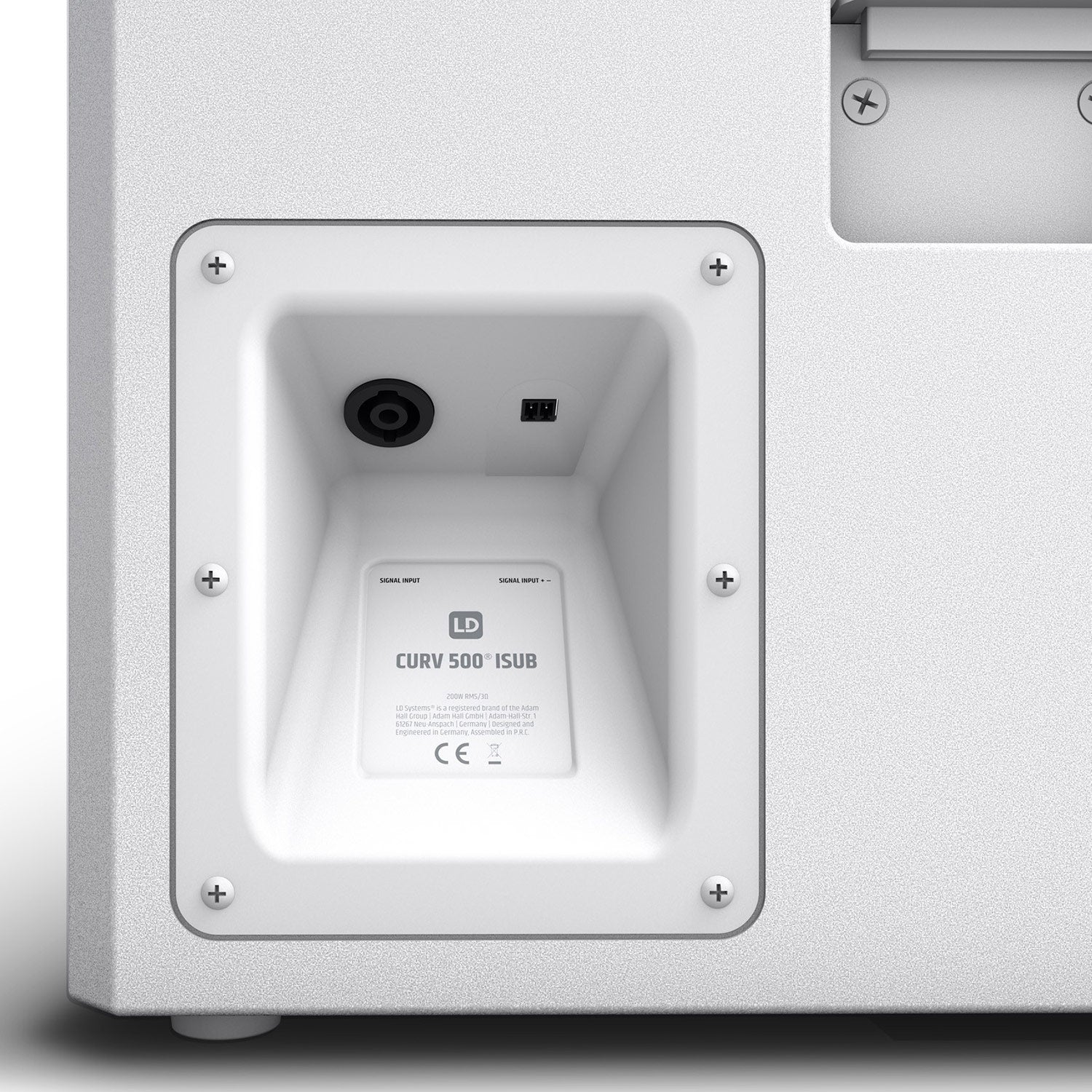

| Speaker input connections | Speakon compatible |
| Speakers per amplifier channel (DSP44/45K) | 2 |
| Cabinet material | 15 mm MDF |
| Cabinet surface | texture paint |
| Cabinet colour | White |
| Cabinet construction | Bass Reflex |
| Width | 610 mm |
| Height | 310 mm |
| Depth | 230 mm |
| Weight | 14,5 kg |
Purpose-designed for CURV 500® installations the iSUB is a compact, shallow-depth bass reflex subwoofer loaded with a custom 10" transducer. It features a 47 - 150 Hz frequency response for tight, dynamic low frequency reproduction with punch and definition and 200 watts RMS power handling. Finished in black or white textured paint the elegant cabinet with steel grille provides terminal block and speakON-compatible input connectors plus eight M8 suspension points. The iSUB comes with a low- profile wall and ceiling mounting bracket and a set of rubber feet.
Features:
- 10" bass reflex construction
- Purpose-designed for CURV 500® installations
- Shallow-depth enclosure
- 200 watts RMS power handling
- 47 - 150 Hz frequency response
- Available in black or white textured paint finish
- Includes low-profile wall and ceiling mounting bracket
| Product type | PA subwoofer |
| Type | Passive |
| Low/mid driver dimensions | 10" |
| Load rating (RMS) | 200 W |
| Frequency response | 47 - 150 Hz |
| Impedance | 3 Ohm(s) |
| Loudspeaker inputs | 2 |
| Speaker input connections | Speakon compatible |
| Speakers per amplifier channel (DSP44/45K) | 2 |
| Cabinet material | 15 mm MDF |
| Cabinet surface | texture paint |
| Cabinet colour | White |
| Cabinet construction | Bass Reflex |
| Width | 610 mm |
| Height | 310 mm |
| Depth | 230 mm |
| Weight | 14,5 kg |
