Skeletal design remote antenna with onboard amplifier ideal for long cable runs, phantom powered from Venue, UMC16 or Bias T. The ALP Series antennas are a Log Periodic Dipole Array (LPDA) design that provides a useful directional pattern over a broad frequency bandwidth. Many "gain antennas" (t... Read MoreRetail Price: $912.00 Our Price: $758.00
Free Shipping (Continental US)
Suggested Accessories
Description

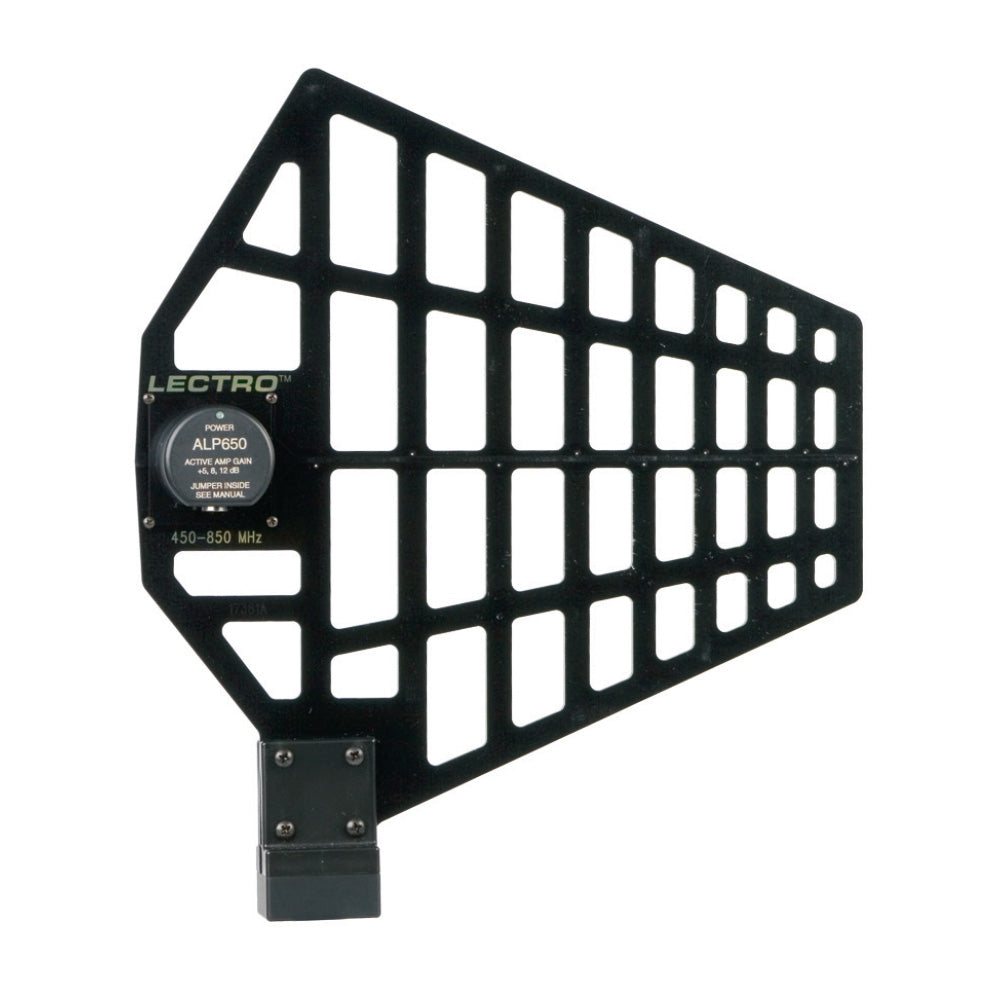

Skeletal design remote antenna with onboard amplifier ideal for long cable runs, phantom powered from Venue, UMC16 or Bias T. The ALP Series antennas are a Log Periodic Dipole Array (LPDA) design that provides a useful directional pattern over a broad frequency bandwidth.
Many "gain antennas" (those designs with a directional pattern) are limited in bandwidth, making them awkward for use in multi-channel wireless systems and with frequency agile wireless systems. With VSWR below 2:1 from 450 to 862 MHz, the broad bandwidth of the ALP Series covers a broad section of the band used for Lectrosonics wireless microphone and IFB systems, yet still provides the directional pattern needed to cover long distances.
All ALP Series antennas are constructed of 1/8" FR4 fiberglass circuit board material and are extremely rugged. The ALP620 and ALP650 Series antennas include a protective cover over the BNC connector, making them suited for field production, while the more economical ALP500 is better suited for indoor installation. The perforated body of the ALP620 makes it resistant to wind loading outdoors. The ALP650 models are "receive only" models, featuring a built-in amplifier with adjustable gain for use with long coaxial cable runs and/or RF splitters.
The antennas can be mounted horizontally or vertically by removing four screws and repositioning the mounting block. This helps to position the antenna away from nearby reflective surfaces to preserve more of the natural pattern of the LPDA design.
The mounting block on all ALP Series antennas can accept three common sizes of threads:
More +
Product Specs
Pattern Gain | +7dBi (isotropic) +4dBd (over dipole |
Passband | ALP650L/E (RoHS compliant) 470.000 - 700.000 MHz ALP650M/E (RoHS compliant) 537.000 - 770.000 MHz ALP650H/E (RoHS compliant) 640.000 - 870 .000 MHz |
RF Gain | +12 dB with 0dB attenuator +8 dB with 4dB attenuator +5 dB with 7dB attenuator |
Third Order Intercept | +27 dBm @ input (+41 dBm output) |
Weight | 12 oz. (all versions) |
Power Requirements | 8V to 16V DC at the input jack; auto reset poly fuse protection circuit; constant power switching supply ¥ 8V DC (125 to 145 mA) ¥ 12V DC (83 to 106 mA) ¥ 14.4V DC (69 to 89 mA) ¥ 16V DC (60 to 80 mA) |
Phantom Powering | DC voltage supplied via coaxial cable by UMC16B, VRM input jack or BIAS-T power inserter (70 to 80 mA) |
Power Consumption | 1.2 Watt nominal (switching regulator) |
