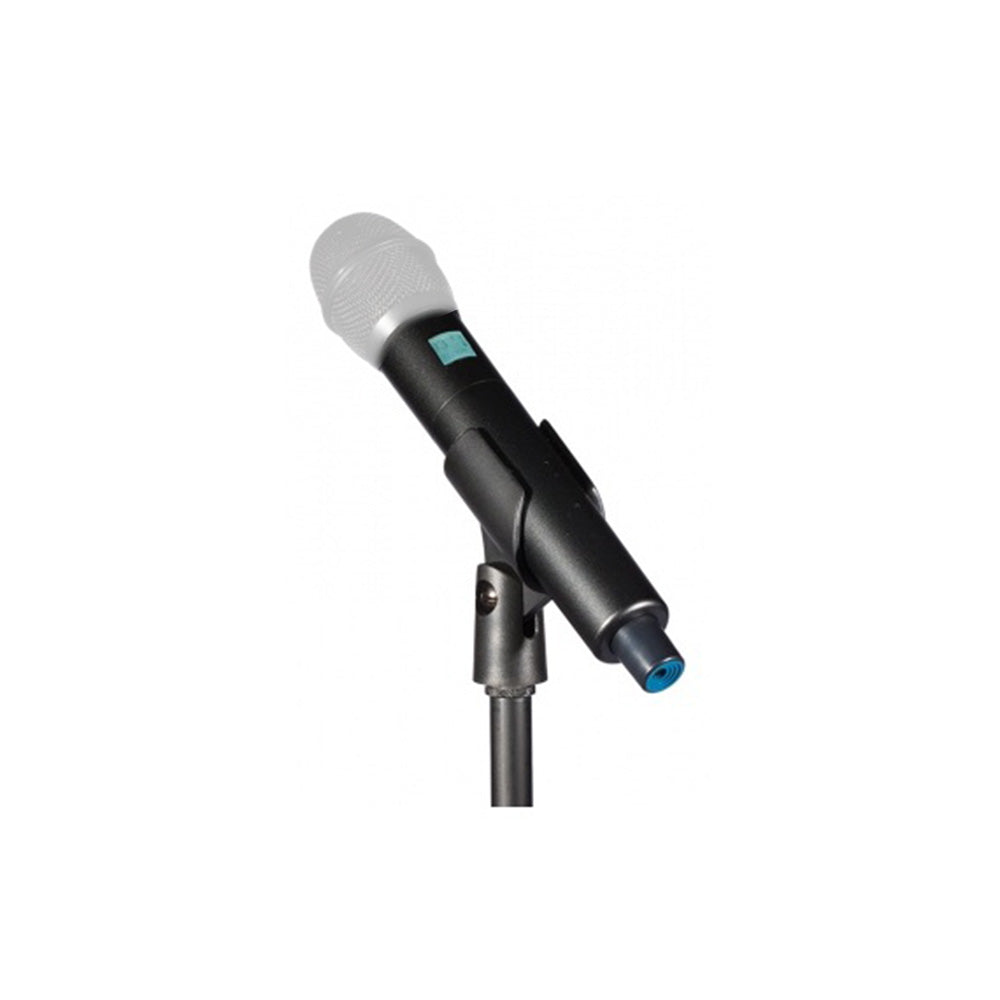

Lectrosonics HHa - Wireless Handheld Transmitter (Block E07-941 / 941-960 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The HHa Digital Hybrid Wireless handheld transmitter represents an elegant solution for a variety of wireless microphone applications including live performance, broadcast, AV rental and houses of worship. The HHa incorporates many advanced features to provide highquality speech and vocal reinforcement. Along with providing peerless audio quality with wide frequency response and dynamic range in native 400 Series mode, the technology used in the HHa includes compatibility modes for Lectrosonics 200 Series, 100 Series and IFB receivers, and some systems from other top manufacturers. (Contact Lectrosonics for details.)
Features:
- 76 MHz tuning range in 100 kHz or 25 kHz steps for up to 3072 frequencies (bands A1, B1, C1, 941)
- 941 band offers 695 frequencies over 19 MHz tuning range with 25 kHz steps
- Digital Hybrid Wireless¨ Technology
- Standard thread-on capsules
- Membrane switch and LCD interface
- AA battery power
- Selectable RF power at 50 and 100 mW
- Talkback feature
- IR (Infrared) Port for fast setup
- Capsule sold separately
| Operating Frequencies (MHz) | Band A1: 470.100 - 537.575 Band B1: 537.600 - 614.375 Band C1: 614.400 - 691.175 |
| Frequency selection steps | Selectable; 100 kHz or 25 kHz |
| RF Power output | Selectable at 50 or 100 mW |
| Pilot tone | 25 to 32 kHz frequency (400 Series only); 5 kHz deviation |
| Frequency stability | ± 0.002% |
| Deviation | ± 75 kHz (max) |
| Spurious radiation | 90 dB below carrier |
| Operating temperature range | -20Á C to +50Á C |
| Input compressor | Dual envelope compressor,>30 dB range |
| Gain control range | 45 dB; semi-log menu-driven control; 1 dB steps |
| Modulation indicators | Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation, LCD bar-graph indicator |
| Frequency response | 40 Hz to 20 kHz (+/- 1dB) |
| Low frequency roll-off | -3 dB @35, 50 and 70 Hz; selectable; 36 dB/octave |
| Controls | |
| External | Programmable mute/talkback button |
| Battery compartment | Power, mute disable, menu/select, back and up/down arrow buttons for menu selection and settings. |
| Battery | 2x AA with polarity protection and battery ejector |
| Battery life | At 100mW 5.5 hours (Duracell Quantum alkaline) (The HH transmits battery status to Lectrosonics Digital Hybrid Wireless¬ receivers.) |
| Capsule Interface | 1.25" opening and 28 thread pitch Power available 5V, 25 mA max Input impedance 1000 Ohms |
| Weight | 12.1 oz. with batteries and HHC capsule |
| Dimensions | 9.5" long x 1.97" diameter at largest point |
| Emission Designator | 180KF3E |
Specifications subject to change without notice.
