Description

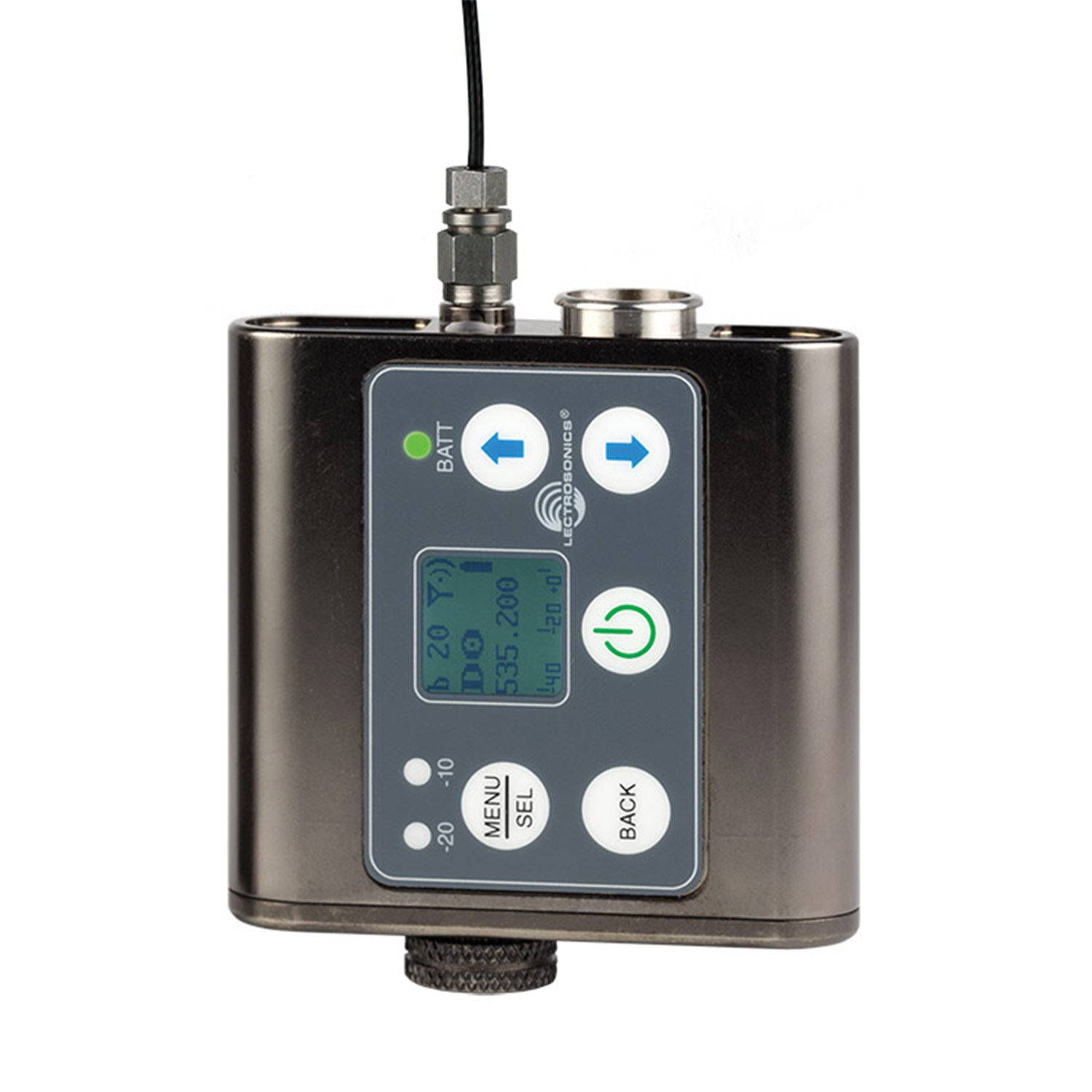

To meet the demand for both extended operating range and extended battery life, the "WB" series SM transmitters offer selectable output power of 25, 50 and 100 mW. With higher power output, the operating range is improved at the expense of battery life. When range is not an issue, a lower power l... Read MoreRetail Price: $2,522.00 Our Price: $1,869.00
Free Shipping (Continental US)
Suggested Accessories
Description
To meet the demand for both extended operating range and extended battery life, the "WB" series SM transmitters offer selectable output power of 25, 50 and 100 mW. With higher power output, the operating range is improved at the expense of battery life. When range is not an issue, a lower power level can be used to extend the battery life.
Features:
The transmitters offer hands free setup and adjustment using audible tones. They can be put to sleep to conserve battery power during setup while buried inside costuming, then awakened for normal operation when the production begins. Other features include input gain adjustment in 1 dB increments over a 44 dB range and adjustable low frequency audio roll-off for 3 dB down points at 35, 50, 70, 100, 120 or 150 Hz to control subsonic and very low frequency audio content
The DSP-based design works with all Digital Hybrid receivers, and is backward compatible for use with Lectrosonics 200 and 100 Series, IFB receivers and some analog receivers from other manufacturers in addition to its native Digital Hybrid Wireless¨ operating mode.
More +
Product Specs
Operating Frequencies | Band A1: 470.100 - 537.575 Band B1: 537.600 - 614.375 (608.000 to 614.000 excluded) Band C1: 614.400 - 691.175* *Not available in USA and Canada NOTE: ItÕs the userÕs responsibility to select the approved frequencies for region where the transmitter is operating | ||||||||||||
Channel Spacing | Selectable; 25 or 100 kHz | ||||||||||||
RF Power output | Switchable; 25, 50 or 100 mW | ||||||||||||
Compatibility Modes | Digital Hybrid Wireless¨ (NU Hbr), 200 Series, 100 Series, Mode 3, Mode 6, IFB | ||||||||||||
Pilot tone (Digital Hybrid Mode) | 25 to 32 kHz; 5 kHz deviation | ||||||||||||
Frequency stability | ± 0.002% | ||||||||||||
Deviation | ± 75 kHz max. (Digital Hybrid Mode) | ||||||||||||
Spurious radiation | Compliant with ETSI EN 300 422-1 | ||||||||||||
Equivalent input noise | -125 dBV, A-weighted | ||||||||||||
Input level | |||||||||||||
ÊÊÊÊ If set for dynamic mic | 0.5 mV to 50 mV before limiting Greater than 1 V with limiting | ||||||||||||
ÊÊÊÊ If set for electret lavaliere mic | 1.7 uA to 170 uA before limiting Greater than 5000 uA (5 mA) with limiting | ||||||||||||
ÊÊÊÊ Line level input | 17 mV to 1.7 V before limiting Greater than 50 V with limiting | ||||||||||||
Input impedance | |||||||||||||
ÊÊÊÊ Dynamic mic | 300 Ohms | ||||||||||||
ÊÊÊÊ Electret lavaliere | Input is virtual ground with servo adjusted constant current bias | ||||||||||||
ÊÊÊÊ Line level | 2.7 k ohms | ||||||||||||
Input limiter | Soft limiter, 30 dB range | ||||||||||||
Bias voltages | Fixed 5 V at up to 5 mA Selectable 2 V or 4 V servo bias for any electret lavaliere | ||||||||||||
Gain control range | 44 dB; panel mounted membrane switches | ||||||||||||
Modulation indicators | Dual bicolor LEDs indicate modulation -20, -10, 0, +10 dB referenced to full modulation | ||||||||||||
Controls | Control panel w/ LCD and 4 membrane switches | ||||||||||||
Low frequency roll-off | Adjustable from 35 to 150 Hz | ||||||||||||
Audio Frequency Response | 35 Hz to 20 kHz, +/-1 dB | ||||||||||||
Signal to Noise Ratio (dB): (overall system, 400 Series mode) |
| ||||||||||||
(Note: the dual envelope "soft" limiter provides exceptionally good handling of transients using variable attack and release time constants. The gradual onset of limiting in the design begins below full modulation, which reduces the measured figure for SNR without limiting by 4.5 dB) | |||||||||||||
Total Harmonic Distortion | 0.2% typical (400 Series mode) | ||||||||||||
Audio Input Jack | Switchcraft 5-pin locking (TA5F) | ||||||||||||
Antenna | Flexible, unbreakable steel cable | ||||||||||||
Battery | AA lithium, disposable | ||||||||||||
Battery Life w/ Lithium AA | SMDWB 50 mW (2 AA): 11.6 hrs SMDWB 100 mW (2 AA): 11.2 hrs | ||||||||||||
Weight (w/ litium batteries) | SMDWB: 4.0 oz. (113.40 grams) | ||||||||||||
Overall Dimensions (without microphone) | SMDWB: 2.366 x 2.475 x 0.642 inches 60.096 x 62.865 x 16.307 mm | ||||||||||||
Emission Designator | 180KF3E | ||||||||||||
Recorder | |||||||||||||
Storage media | microSDHC memory card | ||||||||||||
File format | .wav files (BWF) | ||||||||||||
A/D converter | 24-bit | ||||||||||||
Sampling rate | 44.1 kHz | ||||||||||||
Recording modes/Bit rate | HD mono mode: 24 bit - 144 kbytes/s ÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊ 32 bit - 192 kbytes/s Split gain mode:Ê 24 bit - 288 kbytes/s ÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊ 32 bit - 384 kbytes/s | ||||||||||||
Input | |||||||||||||
ÊÊÊÊ Type | Analog mic/line level compatible; servo bias preamp for 2V and 4V lavaliere microphones | ||||||||||||
ÊÊÊÊ Input level | Dynamic mic: 0.5 mV to 50 mV Electret mic: Nominal 2 mV to 300 mV Line level: 17 mV to 1.7 V | ||||||||||||
ÊÊÊÊ Input connector | TA5M 5-pin male | ||||||||||||
Audio Performance | |||||||||||||
ÊÊÊÊ Frequency response | 20 Hz to 20 kHz; +0.5/-1.5 dB | ||||||||||||
ÊÊÊÊ Dynamic range | 110 dB (A), before limiting | ||||||||||||
ÊÊÊÊ Distortion | < 0.035% | ||||||||||||
Operating temperature range | |||||||||||||
ÊÊÊÊ Celsius | -20 to 50 | ||||||||||||
ÊÊÊÊ Fahrenheit | -5 to 122 |
Specifications subject to change without notice
