Description
The UMC16B multi-coupler combines ceramic filtering with low noise, high intercept point RF distribution to provide outstanding performance and flexibility. Up to eight diversity receivers or up to 16 non-diversity receivers can be utilized in up to a 230 MHz passband.The UMC16B can be powered fr... Read MoreRetail Price: $2,200.00 Our Price: $1,591.00
Free Shipping (Continental US)
Suggested Accessories
Description

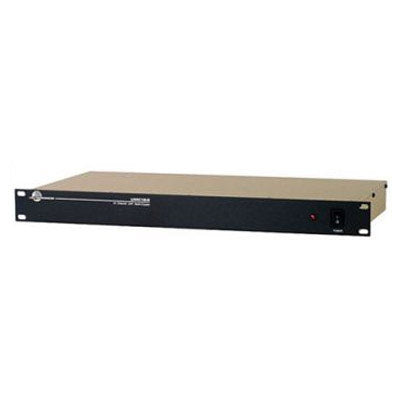

The UMC16B multi-coupler combines ceramic filtering with low noise, high intercept point RF distribution to provide outstanding performance and flexibility. Up to eight diversity receivers or up to 16 non-diversity receivers can be utilized in up to a 230 MHz passband.
The UMC16B can be powered from an external supply, 12 to 18 VDC for mobile applications, or from 90 to 240 VAC for installations using the regulated power supply furnished with the unit. A locking connector on the rear panel secures the power connection.
A 50 MHz passband version is available on a build-to-order basis. Allow several weeks for delivery.
Included Accessories:
More +
Product Specs
Type | Active RF distribution system with ceramic filtering |
Inputs | Two 50 Ohm BNC jack on rear panel |
Third order intercept | +27dBm at input |
Outputs | Type: 16 BNC jacks on rear panel. Eight jacks per antenna. Isolation: 20 dB min, any output to any output Any output can be open, shorted, or terminated without affecting other outputs. |
Splitter type | Wilkinson 1/4 wave strip-line |
Filter passband | UMC16B: 537 to 768 MHz (blocks 21 to 29) UMC16BL: 470 to 692 MHz (blocks 470 to 26) UMC16B-A1B1: 470 to 615 MHz (bands A1, B1) UMC16B-941: 941 to 960 MHz (block 941) |
Input/Output RF gain | 0 dB nominal |
In-Band Ripple | +/-2 dB |
Temperature Range | -20C to +50C |
Power Requirements | 10 to18 VDC; overload protection provided by internal auto resetting poly fuse |
Power consumption | Nominally 500 mA at 15V DC |
Dimensions | 19 x 7.1 x 1.75 inches (487 x 180 x 45 mm) |
Weight | 3.2 lbs.; 1.45 kg. |
