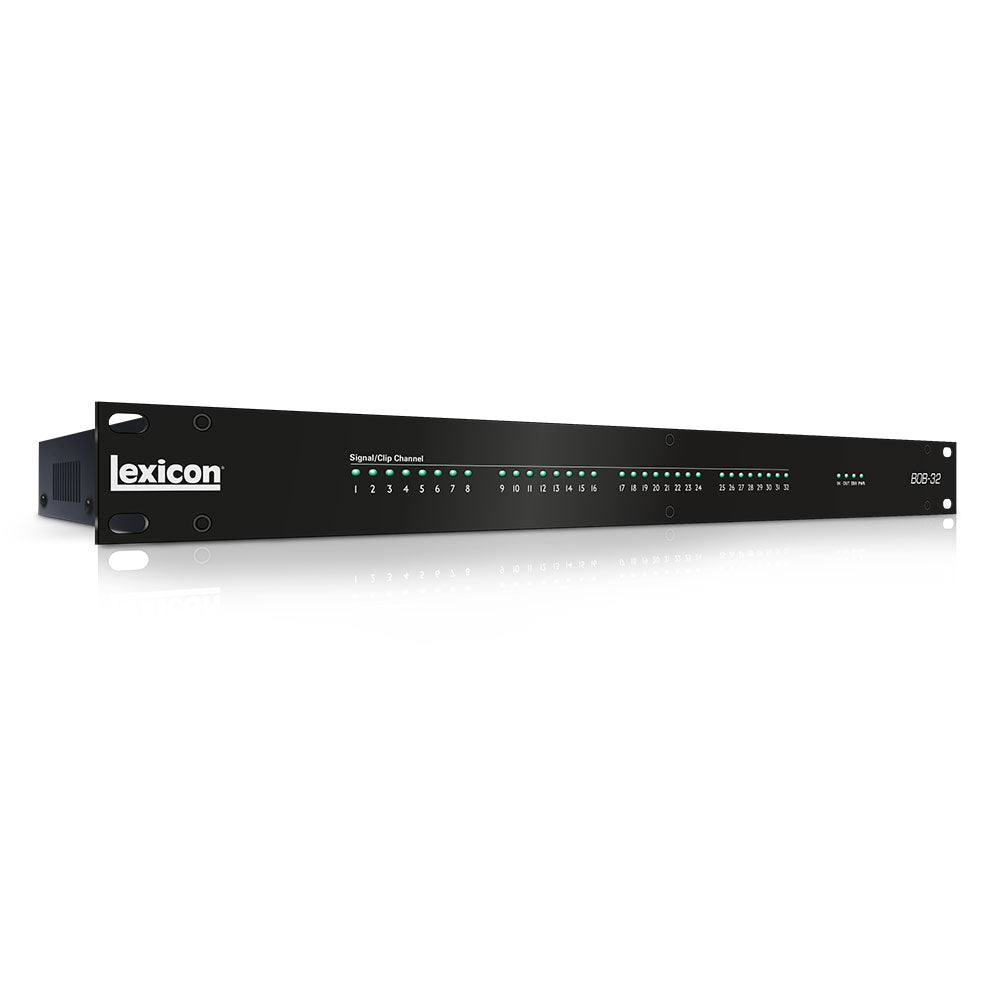

Lexicon BOB-32 Break Out Box for BLU-Link Systems
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Lexicon BOB-32 breakout box converts up to 32 channels of the BLU link digital audio bus to analog audio. This device is ideal for use with Lexicon's QuantumLogic™ Immersion processor (QLI-32). The BOB's outputs are easily configured by six DIP switches located on the rear of the device. This simple configuration allows selection of 32 consecutive channels from the 256 channels available on the BLU link. Signal present and power status are clearly displayed by front panel LED indicators.
Features:
- 32 analog audio outputs
- 4 DB-25F connectors
- DIP switches for channel range selection
- 256 channels at 48k sampling rate or 128 channels at 96k sampling rate
- Clear front panel LED indication
- Single rack space chassis
- Covered by 3-year warranty
| Analog Outputs | 4 DB-25F Connectors |
| Maximum Output Level | +19dBu |
| Frequency Response | 20Hz - 20kHz (+0.5dB/-1dB) |
| THD | < 0.01% 20Hz to 20kHz, +10dBu output |
| Dynamic Range | 108dB typical, 22Hz - 22kHz unweighted |
| Crosstalk | < -75dB |
| D/A Latency | 28/Fs (0.58ms @ 48K, 0.29ms @ 96K) |
| Connectors | 2 x RJ45 Ethernet |
| Max Cable Length | 100m/300ft on Category 5e cable |
| Max # of Nodes | 60 |
| Latency per Node | 4/Fs (0.08ms @ 48K, 0.04ms @ 96K) |
| Required AC Mains (+/- 10%) | 100Vrms - 240Vrms, 50/60Hz |
| BTU | 170 BTU/hour |
| Dimensions (H x W x D) | 1.75" (45 mm) x 19" (483 mm) x 7.75" (197 mm) |
| Weight | 5.13 lbs (2.33 kgs) |
