Description
The LA-126 Antenna Kit for Rack Mount works in conjuntction with the LA-326 Rack Mount Kit to adapt it for use as an antenna mount. The kit includes a 90-degree helical antenna, and can be used to build your own antenna setup specific to your installation needs. The LA-126 is compatible with both the LT-800 Stationary Transmitter and the LR-100 Stationary Receiver, offering excellent coverage and range for either device.
Features:
- Combines with rack mount kit to create a customer antenna and mount
- Easy to install
- Ideal for stationary transmitter or stationary receiver use
- Provides transmission range up to 198m (650 ft.)

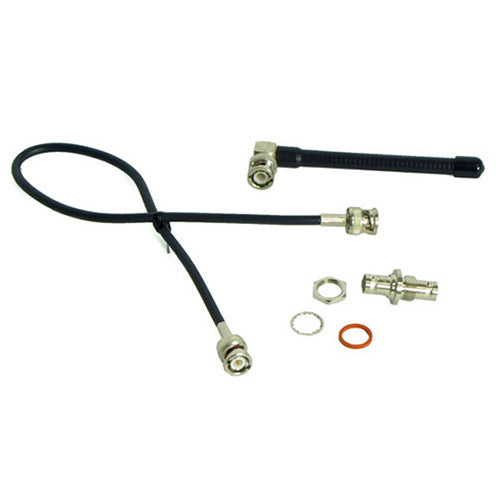

Includes:
- One (1) LA-124 90° Helical Antenna (216 MHz)
- One (1) 18 in. BNC to BNC Cable
- One (1) BNC feed-through Connector
- One (1) Manual
Connectors | BNC |
Frequency Range | 216.025 - 216.9875 MHz |
Number of Channels | 57 (19 wide, 38 narrow) |
Color | Dark Grey |
Shipping Weight | 1 lbs. (0.5 kg) |
Diameter | 0.44 in. (1.10 cm) |
Cable Length | 18 in. (46 cm) |
Weight | 3.7 oz. (105 g) |
The LA-126 Antenna Kit for Rack Mount works in conjuntction with the LA-326 Rack Mount Kit to adapt it for use as an antenna mount. The kit includes a 90-degree helical antenna, and can be used to build your own antenna setup specific to your installation needs. The LA-126 is compatible with both the LT-800 Stationary Transmitter and the LR-100 Stationary Receiver, offering excellent coverage and range for either device.
Features:
- Combines with rack mount kit to create a customer antenna and mount
- Easy to install
- Ideal for stationary transmitter or stationary receiver use
- Provides transmission range up to 198m (650 ft.)
Includes:
- One (1) LA-124 90° Helical Antenna (216 MHz)
- One (1) 18 in. BNC to BNC Cable
- One (1) BNC feed-through Connector
- One (1) Manual
Connectors | BNC |
Frequency Range | 216.025 - 216.9875 MHz |
Number of Channels | 57 (19 wide, 38 narrow) |
Color | Dark Grey |
Shipping Weight | 1 lbs. (0.5 kg) |
Diameter | 0.44 in. (1.10 cm) |
Cable Length | 18 in. (46 cm) |
Weight | 3.7 oz. (105 g) |
