Description

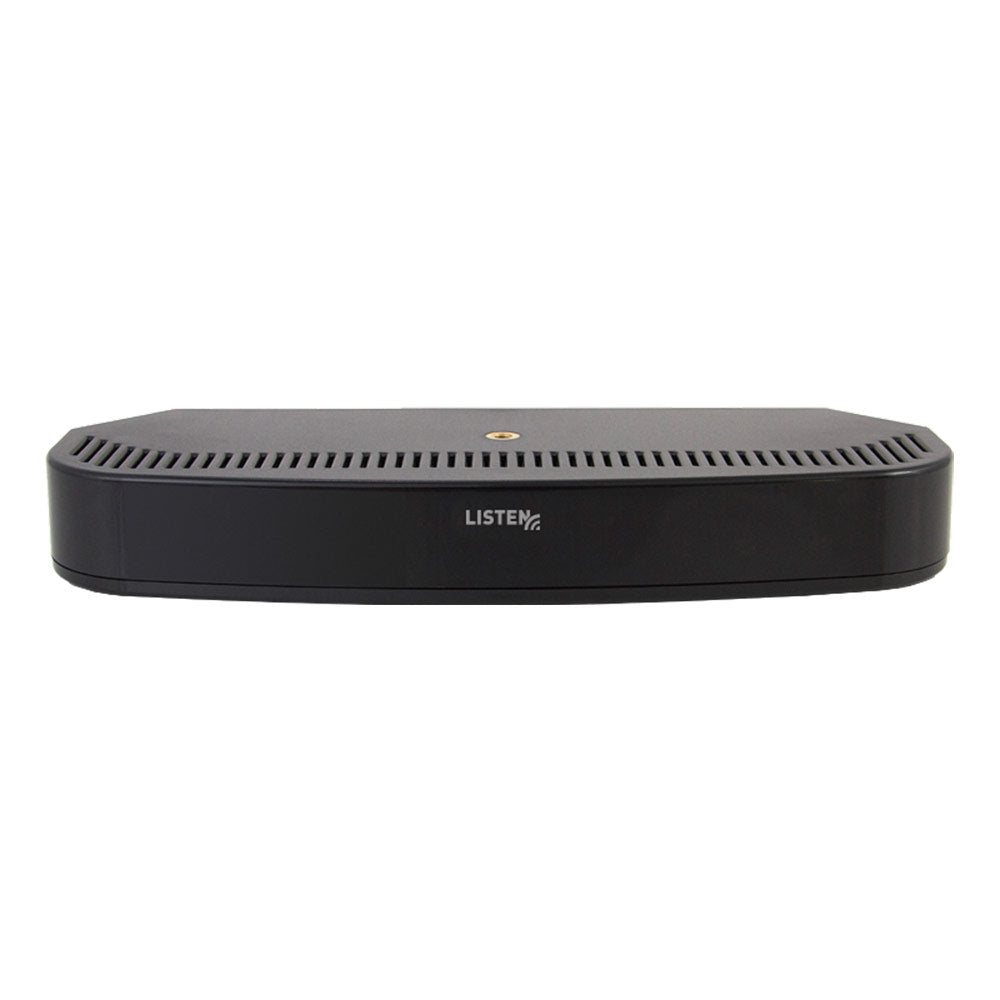

The LA-141 Expansion Radiator (Pat. 9,712,246) from Listen Technologies expands on the functionality and coverage area of the LT-84 Infrared Transmitter/Radiator combo system, giving users and clients an uninterrupted, high-performance listening experience.
Up to four (4) LA-141 Expansion Radiators can be added to the LT-84 system, providing additional coverage up to 2,787 m2 (30,000 ft2) with LR-4200-IR/LR-5200-IR receivers or 697 m2 (7,500 ft2) with LR-42/LR-44 receivers in single-channel mode. A single CAT-5e cable provides both power and signal to the radiators, and the included mounting hardware and single-cable design make installation and setup a breeze.
Features:
- The only product of its kind that provides complete, gap-less coverage in small- to mid-size spaces
- Up to four radiators can be added to the LT-84 system providing additional coverage up to 2,787 m2 (30,000 ft2)
- Single-cable CAT-5e provides power and audio signal for ease of setup
- Simple installation with the included mounting hardware
Includes:
- One (1) LA-141 ListenIR Expansion Radiator
- One (1) 25 ft. (7.6 m) CAT-5e Cable
- One (1) LA-344 Flexible Mounting Hardware
- One (1) Quick Start Guide
Audio | |
System Distortion | < 2% (THD) System Specification (wireless end-to-end with LR-44) |
System Signal to Noise Ratio (A-Weighted) | > 60 dB (SNR) System Specification (wireless end-to-end with LR-44) |
System Frequency Response | 63 Hz - 15 kHz (+/- 3 dB) System Specification (wireless end-to-end with LR-44) |
Controls | |
Indicator Lights On/Off Switch | Two (2) position switch - Indicator Lights OFF, Indicator Lights ON |
Delay Compensation | Four (4) position rotary switch setting (0, 1, 2, 3) |
Indicators | |
RJ-45 Amber LED | Solid Amber indicates carrier is present and IR is being transmitted |
RJ-45 Green LED | Solid Green indicates power is applied to unit |
RF | |
Carrier Frequencies | 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz |
Number of Channels | Two (2) channels |
Power Save Mode | Carrier will shut off when no audio is present for 15 minutes on both channels to preserve radiator life. |
Expansion Link Output | One (1) RJ-45 connector - Provides RF Signal and Power to one additional LA-141.CAT-5e cable 24 AWG, 100 ft. (30 m) maximum cable length, two (2) LA-141s per daisy chain (total daisy chain cannot extend beyond two expansion radiators) |
Expansion Link Input | One (1) RJ-45 connector - Receives RF Signal and Power from LT-84 |
IR | |
Coverage Area | 30,000 ft_ (2787 m_) single channel with LR-4200-IR/LR-5200-IR receivers or 7,500 ft_ (697 m_) single channel with LR-42/LR-44 receivers |
IR Emitter Power | 1.49 W |
Power | |
Power Supply | 12 VDC, Provided via LT-84 Expansion Link Output RJ-45s |
Current Draw | 600 mA per LA-141, maximum of two (2) LA-141s daisy chained with CAT-5e cable 24 AWG 100 ft. (30 m) to each LT-84 Expansion Link Output |
Physical | |
Color | Black with White Silk Screening |
Shipping Weight | 3.0 lbs. (1.4 kg) |
Mounting | Can be mounted on a wall, ceiling, or table with provided hardware (screws and hollow wall anchors not provided). Optional LA-347 Wall Box Mounting Plate is available for mounting to a standard single gang electrical box. |
Dimensions (H x W x D) | 1.5 x 10.7 x 4.1 in. (3.81 x 27.2 x 10.5 cm) |
Unit Weight | 0.6 lbs. (0.3 kg) |
Temperature - Operation | 14 ¡F (-10 ¡C) to +104 ¡F (40 ¡C) |
Temperature - Storage | -4 ¡F (-20 ¡C) to +122 ¡F (50 ¡C) |
Relative Humidity | 0 to 95% relative humidity, non-condensing |
Standards Compliance | FCC Part 15, ICS-03, CE, UL, CUL, C-Tick, CCC, PSE, KC, GS, RoHS, WEEE |
The LA-141 Expansion Radiator (Pat. 9,712,246) from Listen Technologies expands on the functionality and coverage area of the LT-84 Infrared Transmitter/Radiator combo system, giving users and clients an uninterrupted, high-performance listening experience.
Up to four (4) LA-141 Expansion Radiators can be added to the LT-84 system, providing additional coverage up to 2,787 m2 (30,000 ft2) with LR-4200-IR/LR-5200-IR receivers or 697 m2 (7,500 ft2) with LR-42/LR-44 receivers in single-channel mode. A single CAT-5e cable provides both power and signal to the radiators, and the included mounting hardware and single-cable design make installation and setup a breeze.
Features:
- The only product of its kind that provides complete, gap-less coverage in small- to mid-size spaces
- Up to four radiators can be added to the LT-84 system providing additional coverage up to 2,787 m2 (30,000 ft2)
- Single-cable CAT-5e provides power and audio signal for ease of setup
- Simple installation with the included mounting hardware
Includes:
- One (1) LA-141 ListenIR Expansion Radiator
- One (1) 25 ft. (7.6 m) CAT-5e Cable
- One (1) LA-344 Flexible Mounting Hardware
- One (1) Quick Start Guide
Audio | |
System Distortion | < 2% (THD) System Specification (wireless end-to-end with LR-44) |
System Signal to Noise Ratio (A-Weighted) | > 60 dB (SNR) System Specification (wireless end-to-end with LR-44) |
System Frequency Response | 63 Hz - 15 kHz (+/- 3 dB) System Specification (wireless end-to-end with LR-44) |
Controls | |
Indicator Lights On/Off Switch | Two (2) position switch - Indicator Lights OFF, Indicator Lights ON |
Delay Compensation | Four (4) position rotary switch setting (0, 1, 2, 3) |
Indicators | |
RJ-45 Amber LED | Solid Amber indicates carrier is present and IR is being transmitted |
RJ-45 Green LED | Solid Green indicates power is applied to unit |
RF | |
Carrier Frequencies | 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz |
Number of Channels | Two (2) channels |
Power Save Mode | Carrier will shut off when no audio is present for 15 minutes on both channels to preserve radiator life. |
Expansion Link Output | One (1) RJ-45 connector - Provides RF Signal and Power to one additional LA-141.CAT-5e cable 24 AWG, 100 ft. (30 m) maximum cable length, two (2) LA-141s per daisy chain (total daisy chain cannot extend beyond two expansion radiators) |
Expansion Link Input | One (1) RJ-45 connector - Receives RF Signal and Power from LT-84 |
IR | |
Coverage Area | 30,000 ft_ (2787 m_) single channel with LR-4200-IR/LR-5200-IR receivers or 7,500 ft_ (697 m_) single channel with LR-42/LR-44 receivers |
IR Emitter Power | 1.49 W |
Power | |
Power Supply | 12 VDC, Provided via LT-84 Expansion Link Output RJ-45s |
Current Draw | 600 mA per LA-141, maximum of two (2) LA-141s daisy chained with CAT-5e cable 24 AWG 100 ft. (30 m) to each LT-84 Expansion Link Output |
Physical | |
Color | Black with White Silk Screening |
Shipping Weight | 3.0 lbs. (1.4 kg) |
Mounting | Can be mounted on a wall, ceiling, or table with provided hardware (screws and hollow wall anchors not provided). Optional LA-347 Wall Box Mounting Plate is available for mounting to a standard single gang electrical box. |
Dimensions (H x W x D) | 1.5 x 10.7 x 4.1 in. (3.81 x 27.2 x 10.5 cm) |
Unit Weight | 0.6 lbs. (0.3 kg) |
Temperature - Operation | 14 ¡F (-10 ¡C) to +104 ¡F (40 ¡C) |
Temperature - Storage | -4 ¡F (-20 ¡C) to +122 ¡F (50 ¡C) |
Relative Humidity | 0 to 95% relative humidity, non-condensing |
Standards Compliance | FCC Part 15, ICS-03, CE, UL, CUL, C-Tick, CCC, PSE, KC, GS, RoHS, WEEE |
