Listen Technologies LKS-3 ListenTALK Collabor-8 Assistive Listening System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Listen Technologies LKS-3 ListenTALK Collabor-8 Assistive Listening System
Sale price$5,407.00
Regular price$6,062.00
Description
Perfect for setups where multiple team leaders or representatives have to be in communication with the entire team, the LKS-3 Listen Talk System includes all the equipment needed to meet those needs immediately. The LKS-3 includes eight (8) ListenTALK transceivers (with Leader Clips), eight (8) Headset-2s, and one (1) LA-481 Docking Station Case for convenient storage and transportation of all components. Meet the needs of your larger team or prepare for growing needs with the complete and expandable ListenTALK System 3.
Features:
- Full-featured ListenTALK system Includes eight (8) headsets and (8) transceivers for full-team communications
- Docking Station Case also included for convenient storage and transportation of all equipment
- Ideal for larger teams and designed for immediate functionality

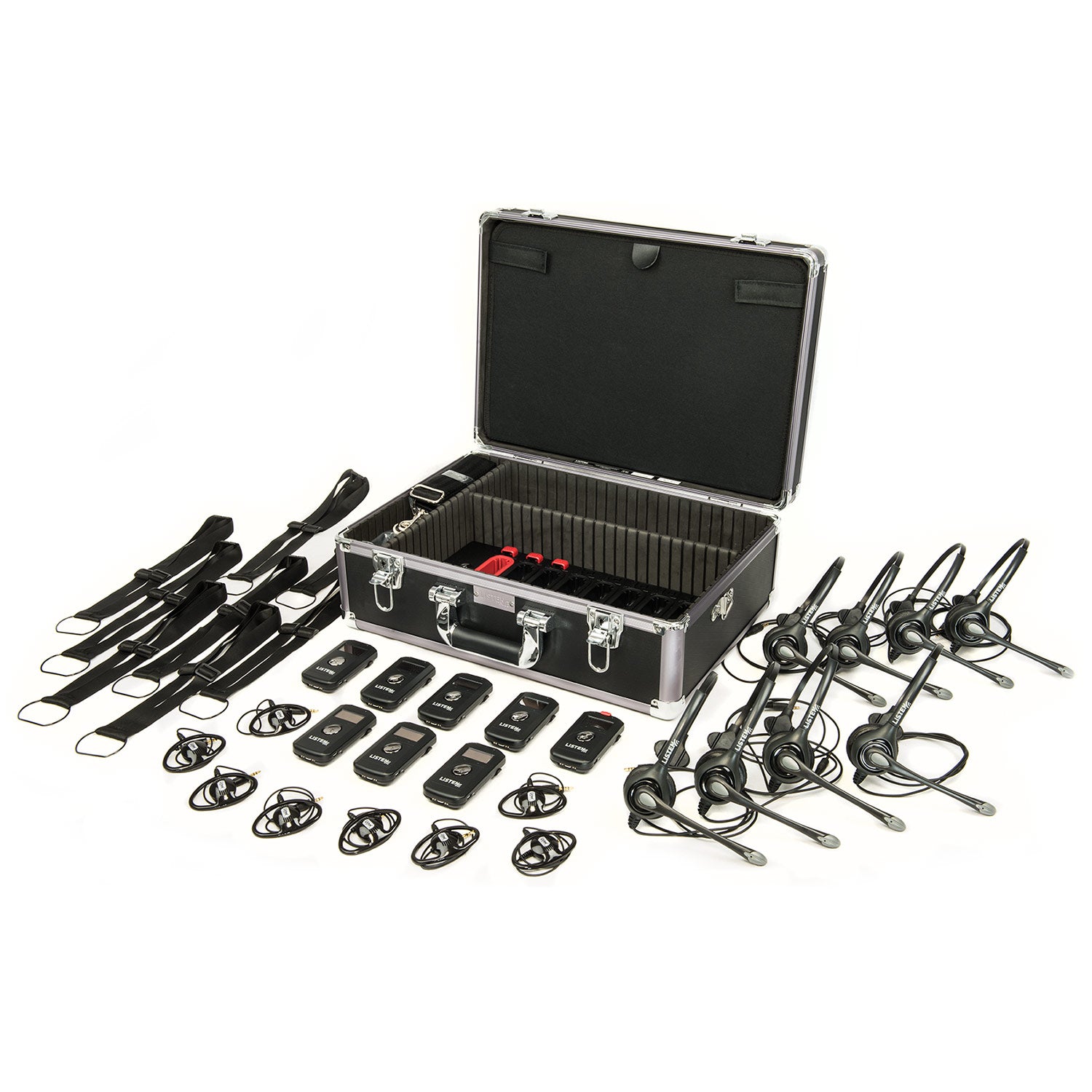

System Contains:
- Eight (8) LK-1 ListenTALK One w/Leader Clips
- Eight (8) LA-452 Headset 2
- One (1) LA-481 Docking Station Case 16
| Physical | |
| Dimensions (H x W x D) with Belt Clip | 10 x 5.4 x 2.4 cm (3.93 x 2.13 W x 0.93 in.) |
| Unit Dimensions (H x W x D) | 10 x 5.4 x 1.6 cm (3.93 x 2.13 W x 0.63 in.) |
| Unit Weight | 79 g (2.79 oz.) |
| Shipping Weight | 206 g (7.20 oz) with 454 g (1.0 lbs.) minimum |
| Enclosure material | PC ABS Plastic |
| Color | Black, Chrome Buttons |
| Indicators | Display- 64 x 128 OLED, Variable brightness LED- RED/White multifunction (Mute, Charge Status) |
| User Controls | Volume up, Volume Down, Talk, Power/Status, Talk Modes, Pairing |
| Programming | Via software and USB port on unit or via software and USB port on Docking Station |
| Connections | Headset- 3.5mm TRRS, CTIA complaint USB- Micro USB, Control and Charging Charger- 4 Contact, Control and Charging |
| Audio | |
| Headphone Output | Speaker Load- 16 - 32 ohm load Max Output Power- 67 mW, 16 ohm load, Threshold of Clipping Side Tone- Adjustable |
| Microphone Input | Compatibility- Electret, external bias Bias- 3 volt, 2 mA Current Maximum Sensitivity Requirement -28 to - 50 dBV/Pa |
| Internal Microphone | Switching- Auto detect on jack insertion or Manual Maximum Input Level- 109 DBSPL Gain- Adjustable, 30 dB range |
| System | Frequency Response- 40 Hz to 15 kHz +/- 3dB, 22kHz low pass filter SNR- 70 dB, A- weighted, Threshold of Clipping THD- 0.5% @ 1kHz, 22kHz low pass enabled |
| Radio | |
| Operating Frequency | 1920 to 1930 MHz - North America 1880 to 1900 MHz - Europe, Australia |
| Average Power | 4 mW - North America 10 mW - Europe, Australia |
| Typical Range | Indoor 100 m, Outdoor 200 m, depending upon conditions - North America Indoor 150 m, Outdoor 300 m, depending upon conditions - Europe, Australia |
| Modulation | GFSK - FHSS TDD/TDMA/DCA |
| Security | Subscription- 40 bit (Pin Free) Authentication- 32 bit Encryption- 64 bit |
| NFC Frequency (Near Field Communications) | 13.56 MHz |
| Power and Battery Management | |
| Battery Type | Lithium Ð ion, rechargeable non-proprietary removable, 1200 mAh Optional- 3 AAA Battery Compartment |
| Typical Operating Time | Li-ion- Participant- 12 Hours AAA Ð Participant Mode Ð 7 Hours Li-ion Ð Leader Mode Ð 7 hours AAA Ð Leader Mode Ð 4 hours |
| Typical Charge time | 4 Hours |
| Power Save Modes | Power down on loss of signal Power down on disconnection of headset (1 min) Power down on charging |
| Environmental | |
| Temperature | Operation- -10 ¡C (14 ¡F) to 40 ¡C (+104 ¡F) Storage- -20 ¡C (-4 ¡F) to 50 ¡C (+122 ¡F) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Compliance | |
| Standards | Pending (FCC part 15, ICS-03, CE, RCM, RoHS, WEEE) |
Perfect for setups where multiple team leaders or representatives have to be in communication with the entire team, the LKS-3 Listen Talk System includes all the equipment needed to meet those needs immediately. The LKS-3 includes eight (8) ListenTALK transceivers (with Leader Clips), eight (8) Headset-2s, and one (1) LA-481 Docking Station Case for convenient storage and transportation of all components. Meet the needs of your larger team or prepare for growing needs with the complete and expandable ListenTALK System 3.
Features:
- Full-featured ListenTALK system Includes eight (8) headsets and (8) transceivers for full-team communications
- Docking Station Case also included for convenient storage and transportation of all equipment
- Ideal for larger teams and designed for immediate functionality
System Contains:
- Eight (8) LK-1 ListenTALK One w/Leader Clips
- Eight (8) LA-452 Headset 2
- One (1) LA-481 Docking Station Case 16
| Physical | |
| Dimensions (H x W x D) with Belt Clip | 10 x 5.4 x 2.4 cm (3.93 x 2.13 W x 0.93 in.) |
| Unit Dimensions (H x W x D) | 10 x 5.4 x 1.6 cm (3.93 x 2.13 W x 0.63 in.) |
| Unit Weight | 79 g (2.79 oz.) |
| Shipping Weight | 206 g (7.20 oz) with 454 g (1.0 lbs.) minimum |
| Enclosure material | PC ABS Plastic |
| Color | Black, Chrome Buttons |
| Indicators | Display- 64 x 128 OLED, Variable brightness LED- RED/White multifunction (Mute, Charge Status) |
| User Controls | Volume up, Volume Down, Talk, Power/Status, Talk Modes, Pairing |
| Programming | Via software and USB port on unit or via software and USB port on Docking Station |
| Connections | Headset- 3.5mm TRRS, CTIA complaint USB- Micro USB, Control and Charging Charger- 4 Contact, Control and Charging |
| Audio | |
| Headphone Output | Speaker Load- 16 - 32 ohm load Max Output Power- 67 mW, 16 ohm load, Threshold of Clipping Side Tone- Adjustable |
| Microphone Input | Compatibility- Electret, external bias Bias- 3 volt, 2 mA Current Maximum Sensitivity Requirement -28 to - 50 dBV/Pa |
| Internal Microphone | Switching- Auto detect on jack insertion or Manual Maximum Input Level- 109 DBSPL Gain- Adjustable, 30 dB range |
| System | Frequency Response- 40 Hz to 15 kHz +/- 3dB, 22kHz low pass filter SNR- 70 dB, A- weighted, Threshold of Clipping THD- 0.5% @ 1kHz, 22kHz low pass enabled |
| Radio | |
| Operating Frequency | 1920 to 1930 MHz - North America 1880 to 1900 MHz - Europe, Australia |
| Average Power | 4 mW - North America 10 mW - Europe, Australia |
| Typical Range | Indoor 100 m, Outdoor 200 m, depending upon conditions - North America Indoor 150 m, Outdoor 300 m, depending upon conditions - Europe, Australia |
| Modulation | GFSK - FHSS TDD/TDMA/DCA |
| Security | Subscription- 40 bit (Pin Free) Authentication- 32 bit Encryption- 64 bit |
| NFC Frequency (Near Field Communications) | 13.56 MHz |
| Power and Battery Management | |
| Battery Type | Lithium Ð ion, rechargeable non-proprietary removable, 1200 mAh Optional- 3 AAA Battery Compartment |
| Typical Operating Time | Li-ion- Participant- 12 Hours AAA Ð Participant Mode Ð 7 Hours Li-ion Ð Leader Mode Ð 7 hours AAA Ð Leader Mode Ð 4 hours |
| Typical Charge time | 4 Hours |
| Power Save Modes | Power down on loss of signal Power down on disconnection of headset (1 min) Power down on charging |
| Environmental | |
| Temperature | Operation- -10 ¡C (14 ¡F) to 40 ¡C (+104 ¡F) Storage- -20 ¡C (-4 ¡F) to 50 ¡C (+122 ¡F) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Compliance | |
| Standards | Pending (FCC part 15, ICS-03, CE, RCM, RoHS, WEEE) |
