Description

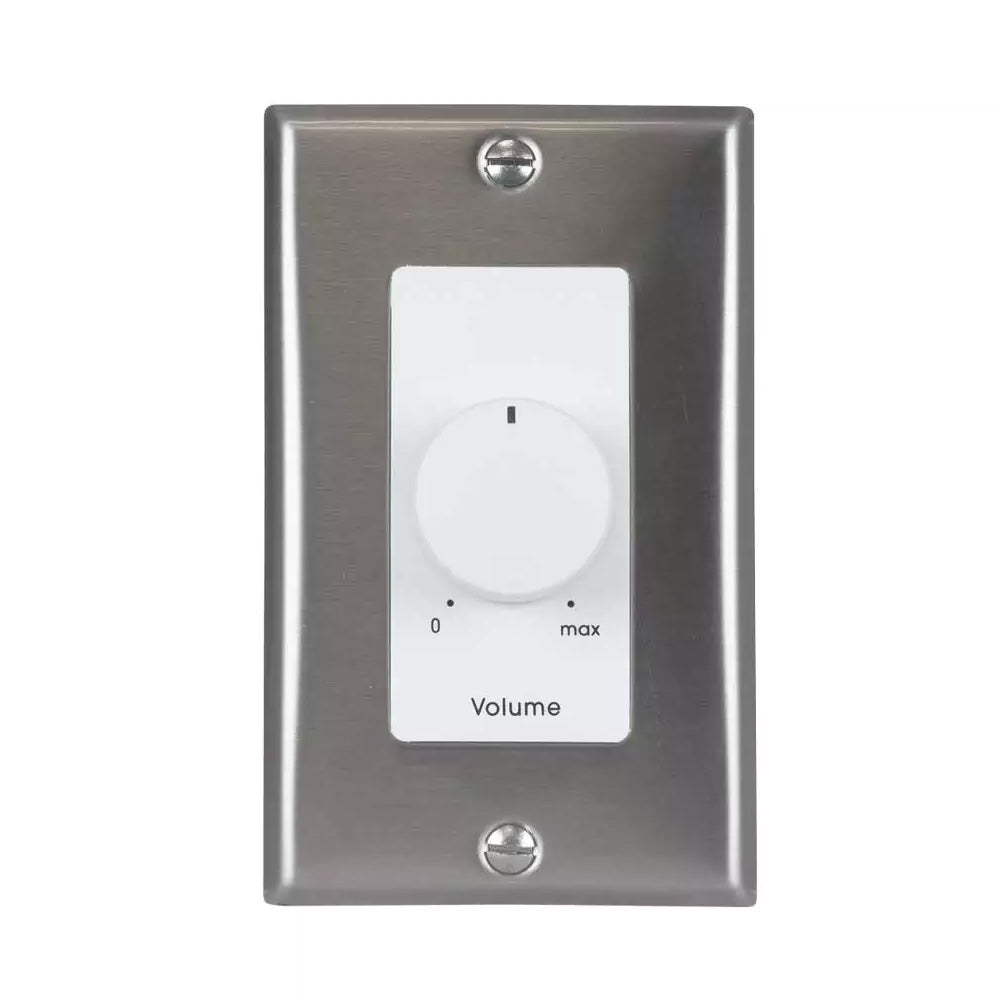

Linear taper potentiometer control (10k ohm) for single-point remote level adjustment of voltage controlled amplifiers (VCA) is designed to interface directly with three-wire, 0 to 10 volt control inputs that are typical on most VCAs. The 10k ohm potentiometer allows the amplifier’s control voltage to be set or adjusted from a single remote location.
Features:
- 10k ohm linear taper potentiometer control
- 1/2W power rating
- Provides level adjustment of voltage controlled amplifiers from a single remote location.
- Phoenix-style removable screw termination strips for prewire with capacity for 14-gauge wire.
- Continuous attenuation rotary control with stops at 0 and max., plus incremental detents for precision feel.
- Made in the U.S.A. with global components
- Includes:
– Stainless steel one-gang decorator style wall plate (2.75" W x 4.5" H)
– Control assembly (1" W x 1.75" H x 1.25" D) mounted to white decorator-style subplate
– Rotary knob
Power Rating | 1/2W |
Resistance | 10k ohm |
Continuous attenuation | stops at 0/max |
Level Indicators | Incremental detents for precision feel |
Use With | VCA control or audio circuit |
Activation | Rotary knob |
Termination | Phoenix-style |
Wire Capacity | 14-gauge |
Wall Plate | 1-gang decorator style |
Finish | Stainless Steel / White |
Size | Fits standard E.O. box (2.125 in. min. depth) |
Linear taper potentiometer control (10k ohm) for single-point remote level adjustment of voltage controlled amplifiers (VCA) is designed to interface directly with three-wire, 0 to 10 volt control inputs that are typical on most VCAs. The 10k ohm potentiometer allows the amplifier’s control voltage to be set or adjusted from a single remote location.
Features:
- 10k ohm linear taper potentiometer control
- 1/2W power rating
- Provides level adjustment of voltage controlled amplifiers from a single remote location.
- Phoenix-style removable screw termination strips for prewire with capacity for 14-gauge wire.
- Continuous attenuation rotary control with stops at 0 and max., plus incremental detents for precision feel.
- Made in the U.S.A. with global components
- Includes:
– Stainless steel one-gang decorator style wall plate (2.75" W x 4.5" H)
– Control assembly (1" W x 1.75" H x 1.25" D) mounted to white decorator-style subplate
– Rotary knob
Power Rating | 1/2W |
Resistance | 10k ohm |
Continuous attenuation | stops at 0/max |
Level Indicators | Incremental detents for precision feel |
Use With | VCA control or audio circuit |
Activation | Rotary knob |
Termination | Phoenix-style |
Wire Capacity | 14-gauge |
Wall Plate | 1-gang decorator style |
Finish | Stainless Steel / White |
Size | Fits standard E.O. box (2.125 in. min. depth) |
