Description

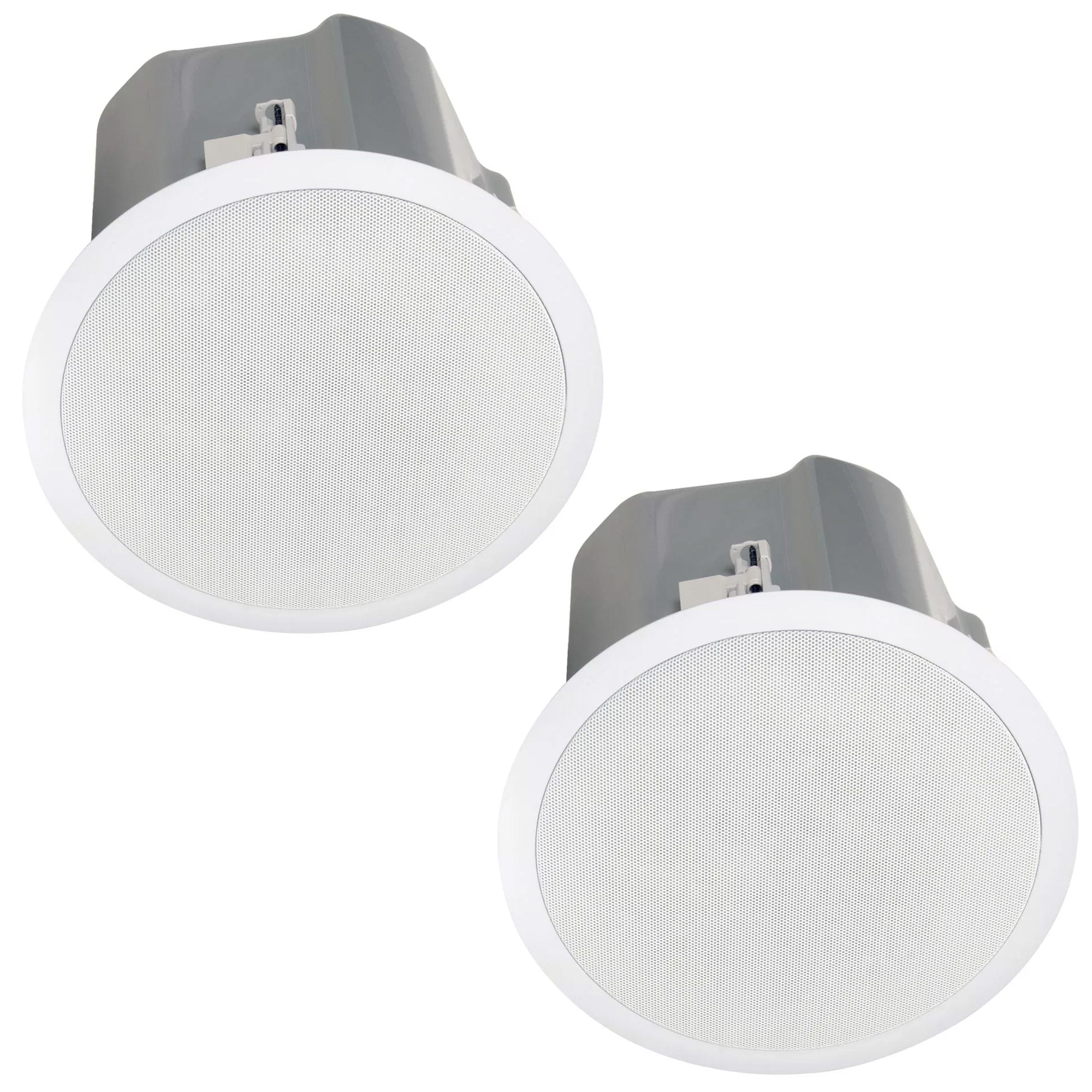

Priced individually, but sold in pairs.

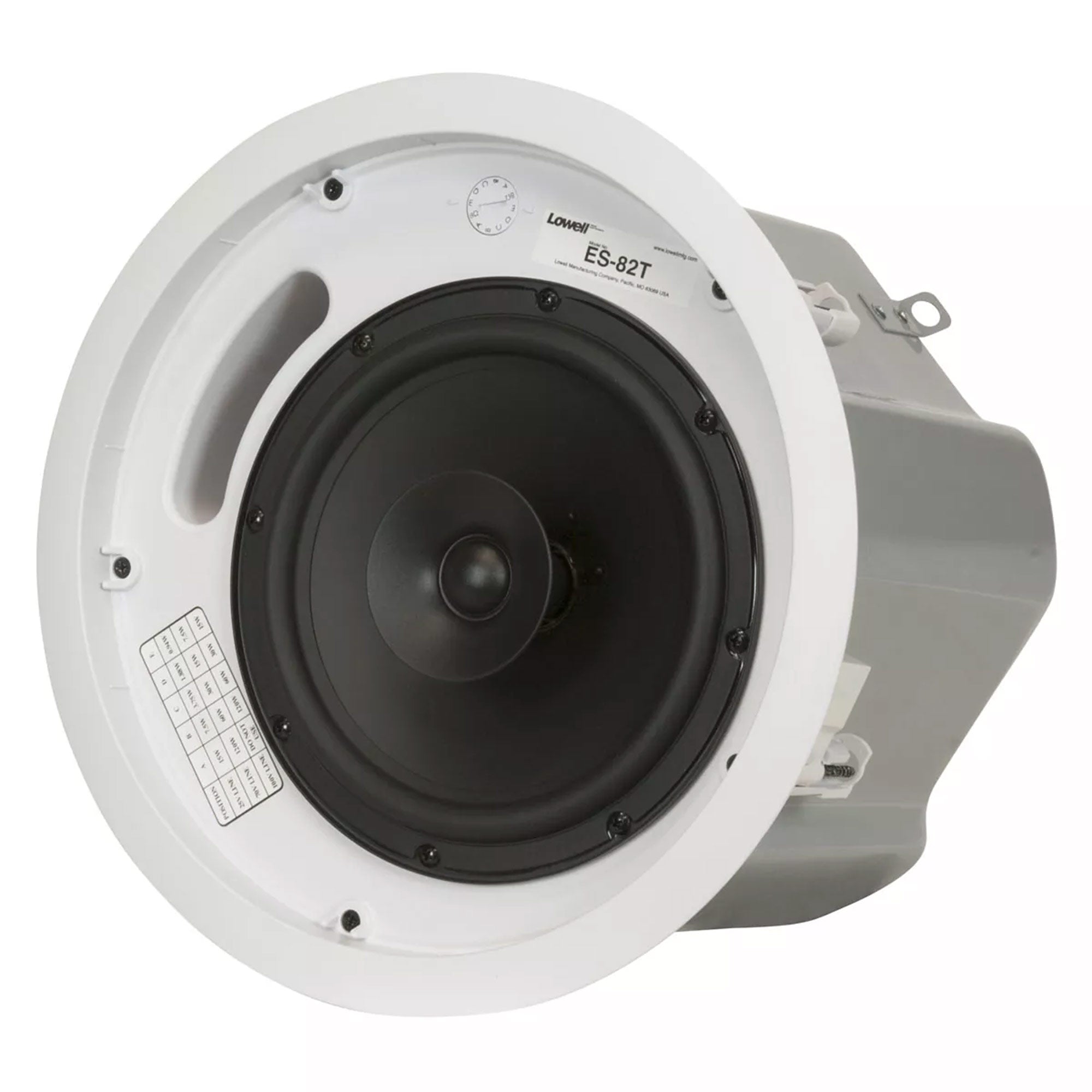

Model ES-82T produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, institutional, and residential applications. The self-contained in-ceiling or in-wall speaker system with 8" coaxial driver has a high-frequency horn-loaded silk dome tweeter that provides the kind of crisp, high-frequency response expected from high quality coaxial speakers. The ported enclosure is tuned for extended low-frequency response, while the speaker's wide dispersion can actually reduce the number of speakers required to produce even coverage in distributed speaker systems.
Features:
- Driver: 8" 120W coaxial driver
- Transformer: 120W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems, and 4 ohm (UL minimum) transformer bypass position.
- Enclosure:

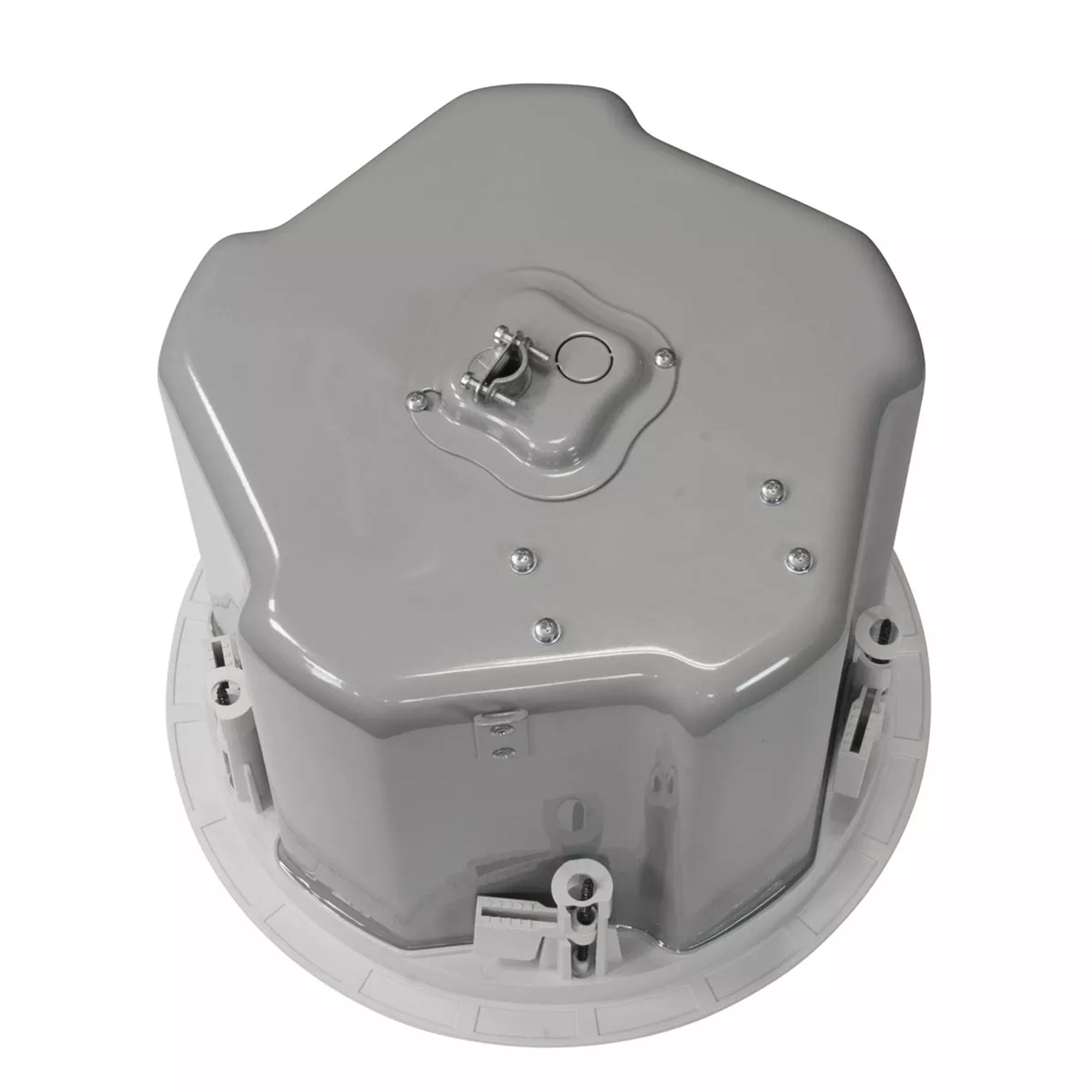

- Factory-mounted enclosure ships attached to the driver (non-removable).
- Durable 20 gauge steel, painted grey.
- Ported enclosure is tuned for extended bass response
- Built-in reversible mounting dogs aid fast installation, while allowing the speaker to be mounted in drywall, wood, tile or almost any type of ceiling with thickness up to 3.4" (86.4mm)
- Removable (4 pin) Phoenix-style connector with 2 terminals for input to speaker and 2 parallel terminals for output to next speaker in string.
- Internal volume = 900 cu.in. - Baffle: Low-profile front baffle formed from UV-rated high impact plastic.
- Grille: Fine mesh press-fit grille (white) includes scrim and pull tool.
- Installation Aids: (included)

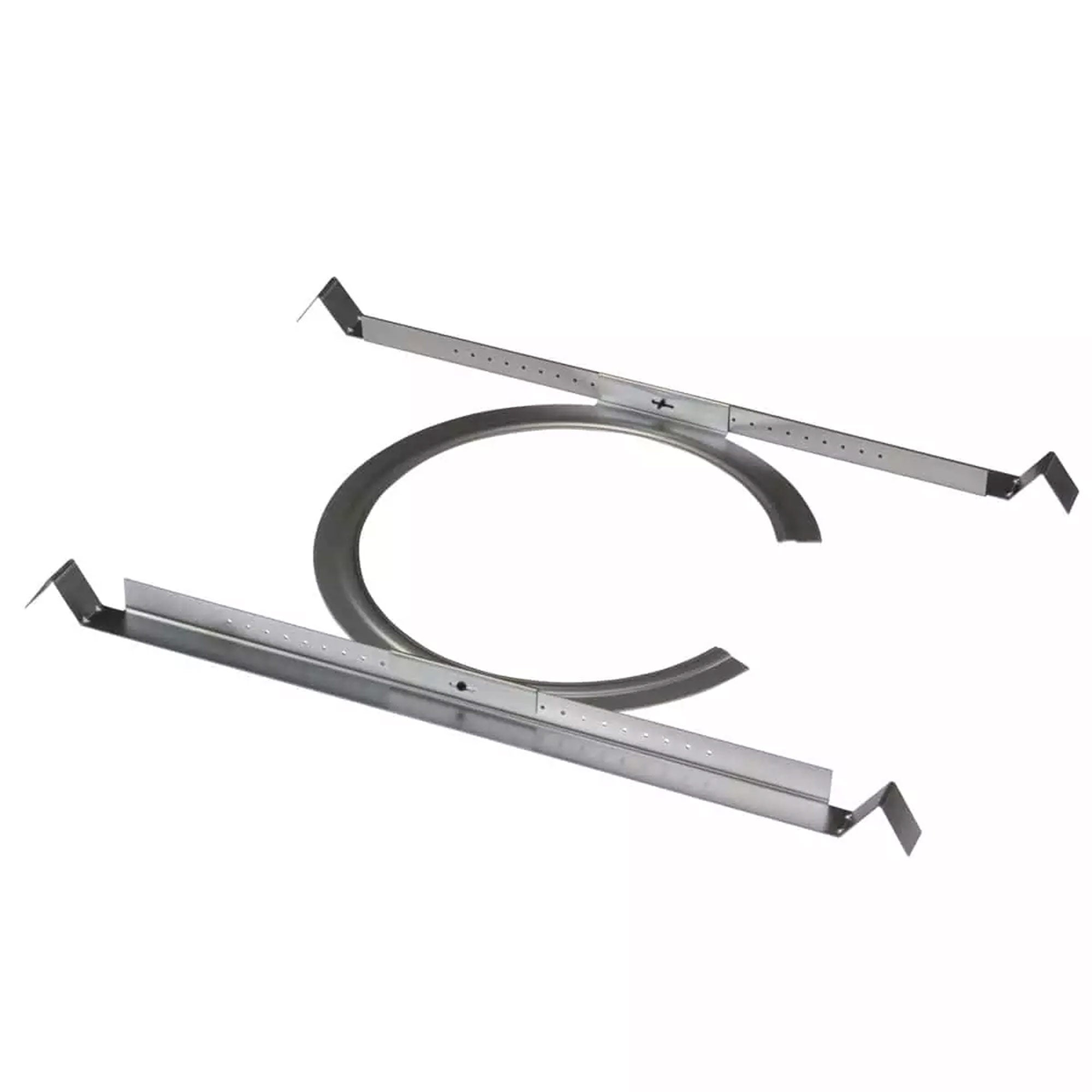

- C-Ring: Reinforces the edge of drywall ceiling cut-outs and works with the support rails to uphold the weight of the speaker assembly.
- Support Rails (2): Rails are used with the C-ring to uphold the weight of the speaker assembly and help prevent sagging tiles when the speaker is installed in a lay-in tile ceiling.
- Template: Cardboard template is used to properly mark cut-outs for mounting holes.
- Paint Shield: Plastic shield fits over the driver to protect it if the baffle is to be painted.
Contains:
- 8 inch 120W coaxial driver
- 120W transformer
- Metal enclosure (attached)
- Press-fit grille, scrim, pull-tool
- C-ring with support rails
- Cardboard template for cut-outs
- Paint shield for driver
Power Handling | 120W RMS (at 8 ohms) measured per EIA Standard RS-426B |
Sensitivity | 90.0 dB log average SPL (at 8 ohms) @ 1W/1M over the frequency response range, measured in half-space |
Maximum SPL | 110.8 dB (calculated based on power rating and measured 8 ohm sensitivity) |
Impedance | 8 ohms (nominal), 4.6 ohms @14 kHz (min.) |
Frequency Response | 64Hz-20kHZ ±6dB |
Conical Dispersion Angle | 105ž conical @ 2kHz octave (-6dB) |
Crossover Frequency | 1.8kHz |
Transformer Taps | 100V (120, 60, 30, 15W); 70V (120, 60, 30, 15, 7.5W); 25V (15, 7.5, 3.75, 1.88, 0.94W) |
Woofer Cone | Coated paper cone |
Surround | Rubber |
Woofer Magnet Weight | 19.2 oz. (544.7g) |
Woofer Voice Coil Dia. | 1.2" (30.55mm) |
Tweeter Cone | Silk dome |
Tweeter Magnet Weight | 0.45 oz. (12.8g) |
Tweeter Voice Coil Dia. | 1" (25.4mm) |
Input Terminals | 4-conductor removable Phoenix-style connector |
Net Weight (speaker / grille) | 14.6 lbs. (6.6kg) |
Shipping Weight (pair) | 43.7 lbs. (19.8kg) |
C-ring | One included with each speaker |
Tile Support Rails | Two included with each speaker |
Rough-in Bridge | Optional rough-in bridge for new construction-drywall or plaster ceiling-before the finished ceiling is installed. Order separately. |
