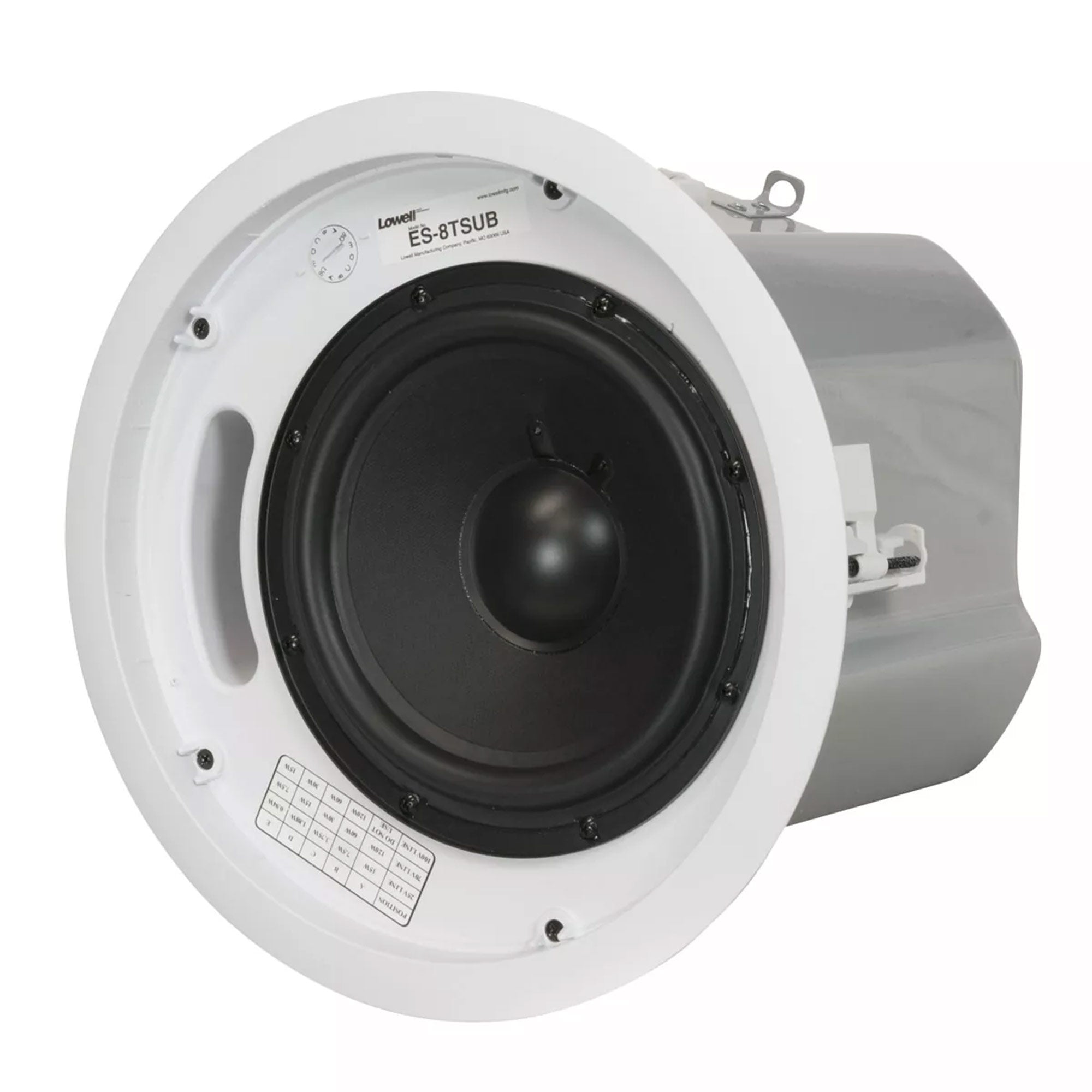

Lowell ES-8TSUB - 8-Inch In-Ceiling Subwoofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The ES-8TSUB produces extended low-frequency response for music, making it ideal for retail, commercial, industrial, institutional, and residential applications when used in combination with other ES Series loudspeakers. The self-contained recessed speaker system with 8 inch (203mm) driver has a ported enclosure tuned for extended low frequency response. Spacing is typically twice the center-to-center spacing as the accompanying ES Series speakers.
Features:
- Driver: 8" 120W subwoofer driver
- Transformer: 120W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems, and 8 ohm transformer bypass position.

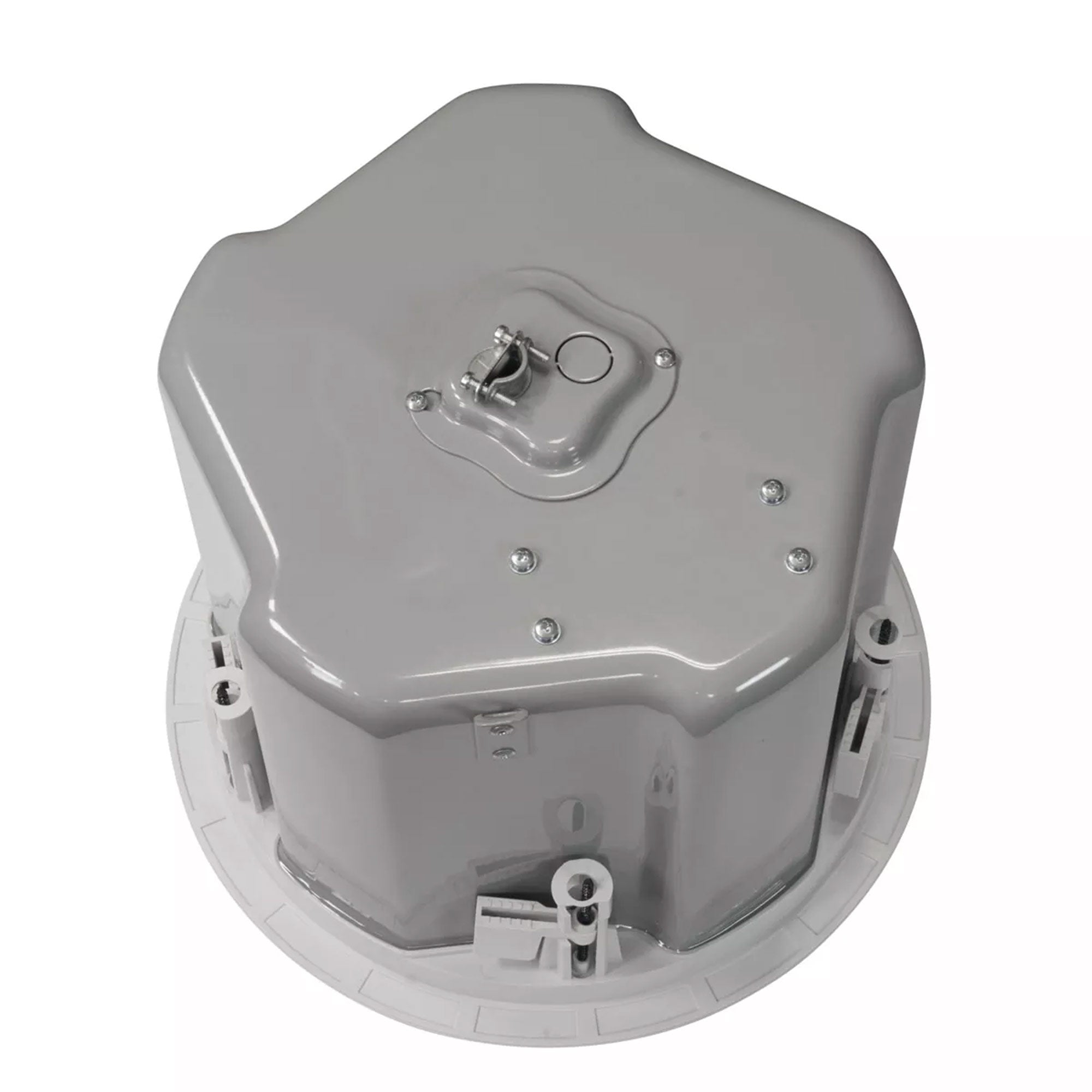

- Enclosure:
- Factory-mounted enclosure ships attached to the driver (non-removable).
- Durable 20 gauge steel, painted grey.
- Ported enclosure is tuned for extended bass response
- Built-in reversible mounting dogs aid fast installation, while allowing the speaker to be mounted in drywall, wood, tile or almost any type of ceiling with thickness up to 3.4" (86.4mm)
- Removable (4 pin) Phoenix-style connector with 2 terminals for input to speaker and 2 parallel terminals for output to next speaker in string.
- Internal volume = 900 cu.in. - Baffle: Low-profile front baffle formed from UV-rated high impact plastic.

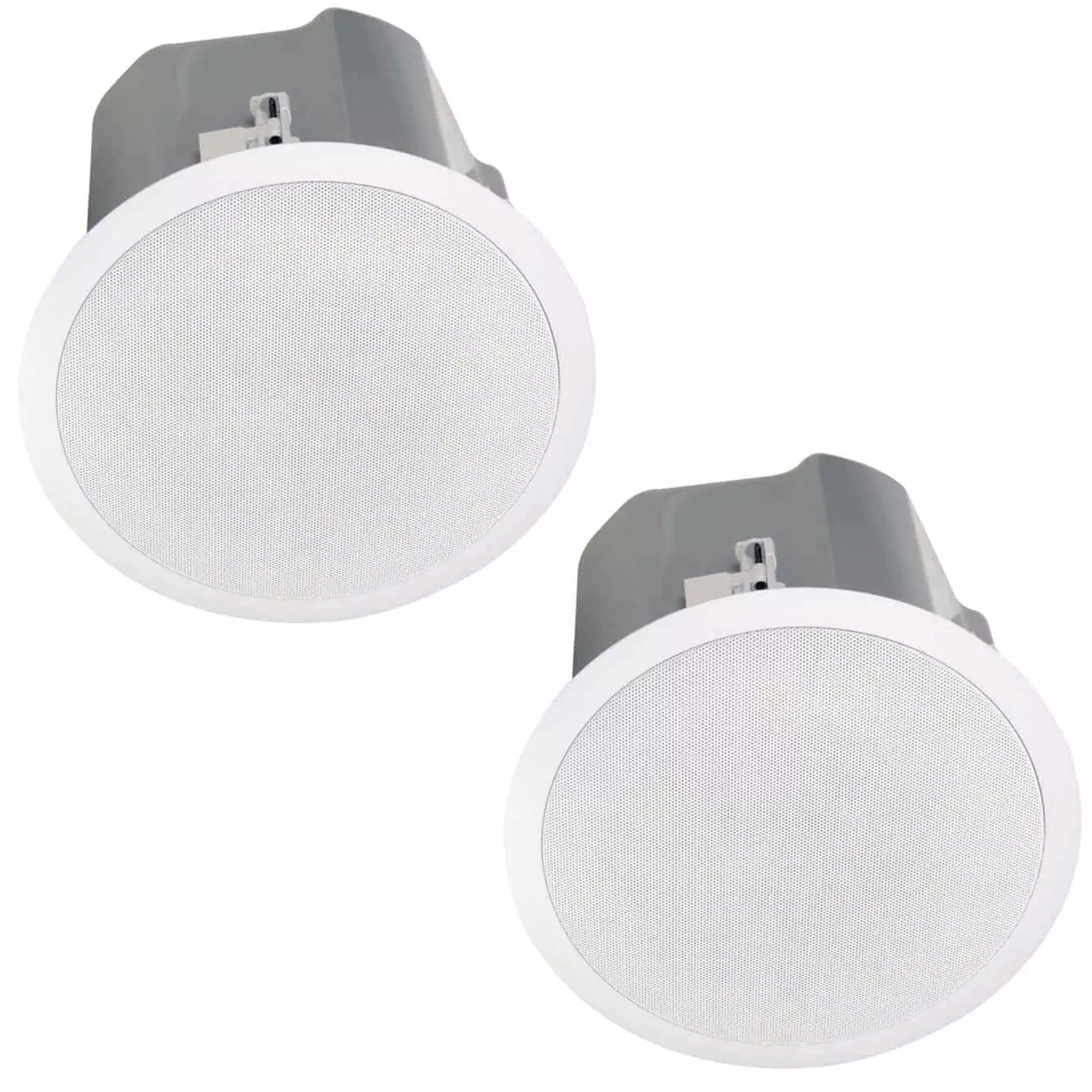

- Grille: Fine mesh press-fit grille (white) includes scrim and pull tool.
- Installation Aids: (included)

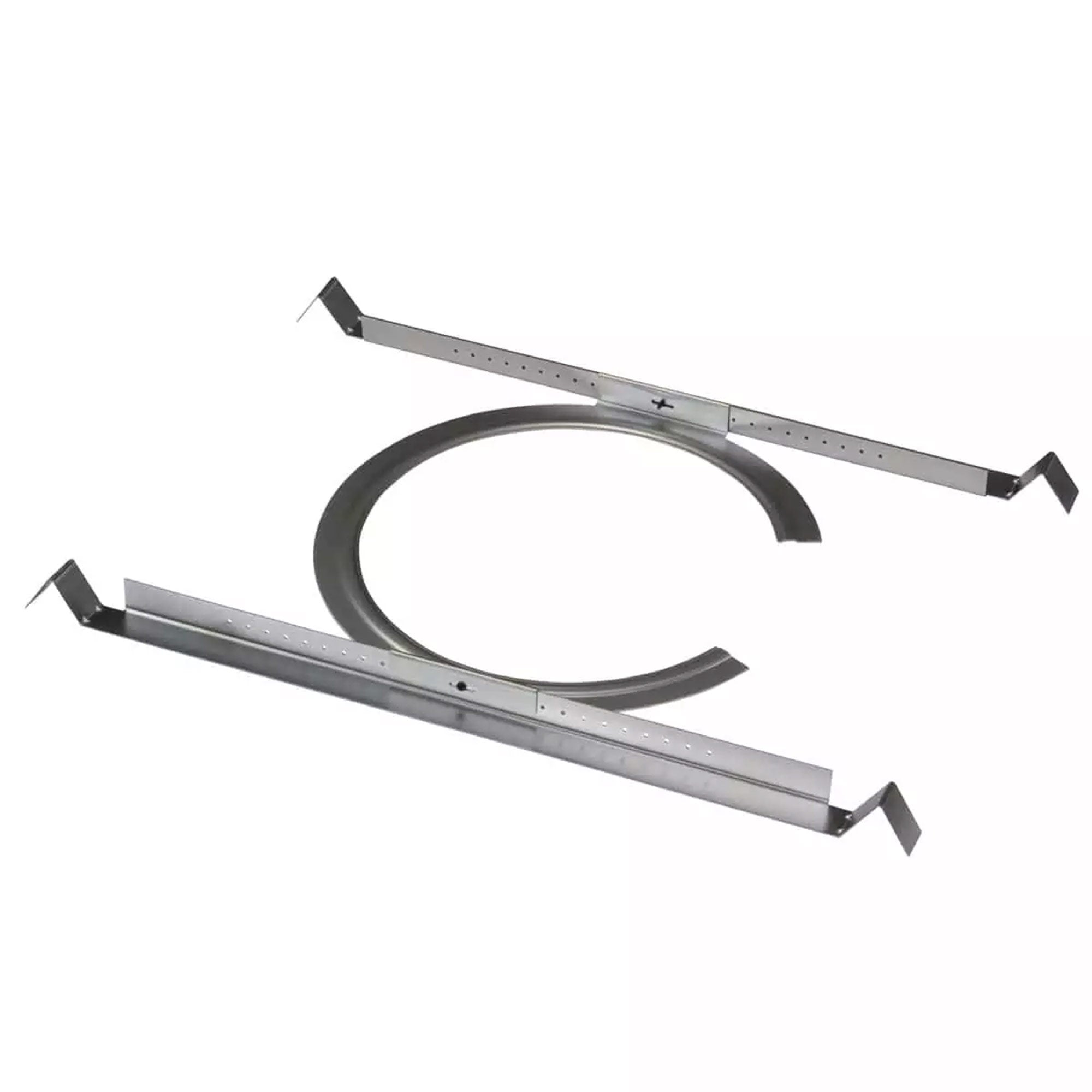

- C-Ring: Reinforces the edge of drywall ceiling cut-outs and works with the support rails to uphold the weight of the speaker assembly.
- Support Rails (2): Rails are used with the C-ring to uphold the weight of the speaker assembly and help prevent sagging tiles when the speaker is installed in a lay-in tile ceiling.
- Template: Cardboard template is used to properly mark cut-outs for mounting holes.
- Paint Shield: Plastic shield fits over the driver to protect it if the baffle is to be painted.
Contains:
- 8 inch subwoofer
- 120W transformer
- Metal enclosure (attached)
- Press-fit grille, scrim, pull-tool
- C-ring with support rails
- Cardboard template for cut-outs
- Paint shield for driver
| Power Handling | 120W RMS (at 8 ohms) measured per EIA Standard RS-426B |
| Sensitivity | 90.2 dB log average SPL (at 8 ohms) @ 1W/1M over the frequency response range, measured in half-space. |
| Maximum SPL | 111.0 dB (calculated based on power rating and measured 8 ohm sensitivity). |
| Impedance | 8 ohms (nominal) |
| Frequency Response | 57Hz-138HZ ±6dB |
| Dispersion Angle | Omni-directional |
| Low Pass Filter | 250Hz, 2nd order, 12dB per octave |
| Transformer Taps | 100V (120, 60, 30, 15W); 70V (120, 60, 30, 15, 7.5W); 25V (15, 7.5, 3.75, 1.88, 0.94W) |
| Woofer Cone | Coated paper cone |
| Surround | Rubber |
| Woofer Magnet Weight | 29.2oz. (828g) |
| Woofer Voice Coil Dia. | 1.5" (38mm) |
| Input Terminals | 4-conductor removable Phoenix-style connector |
| Net Weight (speaker / grille) | 16.6 lbs. (7.53kg) |
| Shipping Weight (pair) | 47.7 lbs. (21.6kg) |
| C-ring | One included with each speaker |
| Tile Support Rails | Two included with each speaker |
| Rough-in Bridge | Optional rough-in bridge for new construction-drywall or plaster ceiling-before the finished ceiling is installed. Order separately. |
