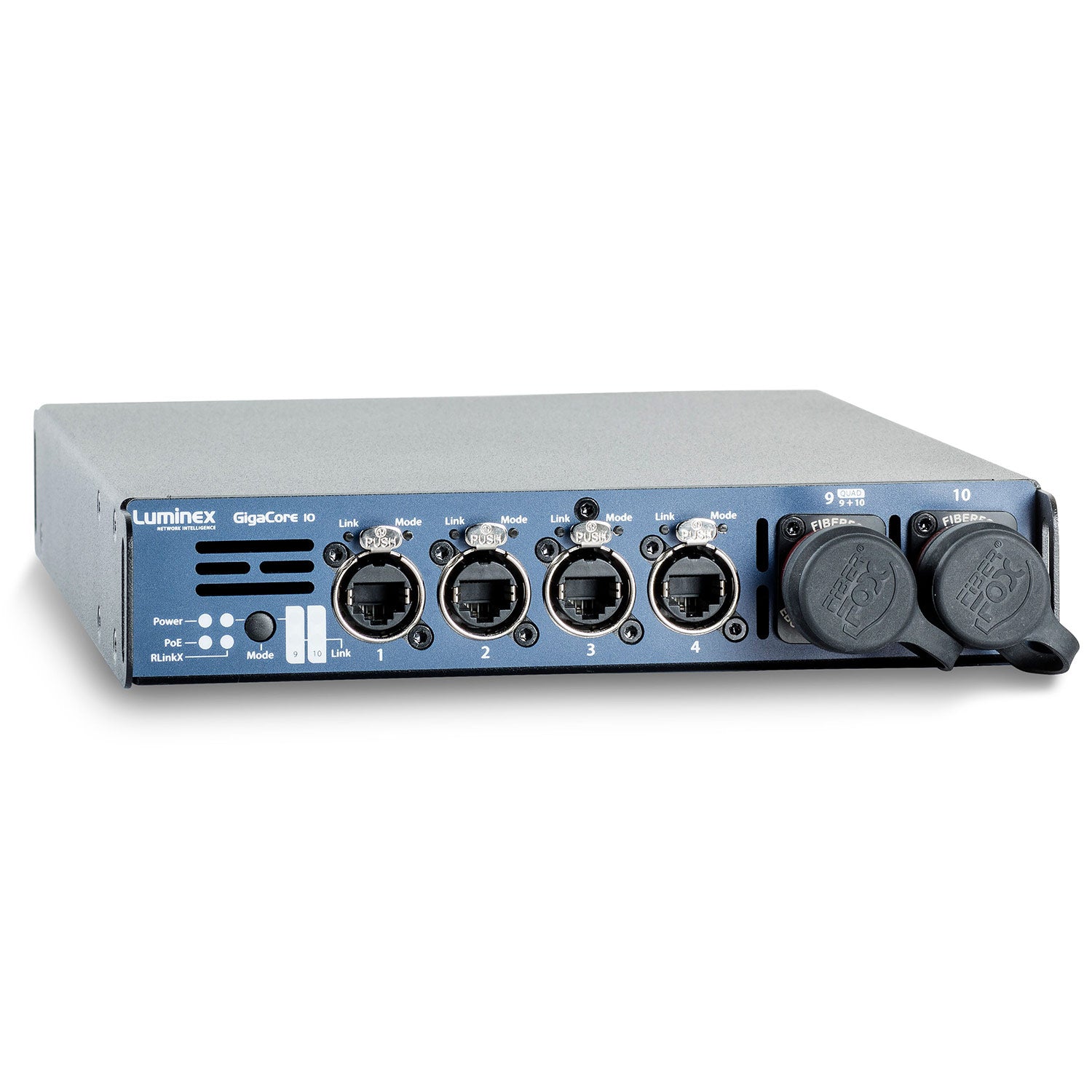

Luminex GigaCore 10 - Audio Network Switch (8 x EtherCON / 4-Channel Neutrik QUAD Multi-Mode / PoE Plus)


  • Dale #:

    LUMX-LU0100058POENQM
  • Availability:

    Not in Stock - Reserve Yours
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

8 x Neutrik EtherCON connectors, 4-Channel Neutrik QUAD multi-mode fiber, PoE+ onboard. Discover network flexibility in its true nature. The unit can be mounted in a truss, on a wall or in a rack, which makes it suitable for many applications. And with the easy group function, it’s a piece of ca... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

8 x Neutrik EtherCON connectors, 4-Channel Neutrik QUAD multi-mode fiber, PoE+ onboard.

Discover network flexibility in its true nature. The unit can be mounted in a truss, on a wall or in a rack, which makes it suitable for many applications. And with the easy group function, it’s a piece of cake to modify groups, change port settings or add devices to the network, without having to reprogram the entire system.

Features:

  • Tailored for AV industry
    Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
  • Easy set-up with intuitive web interface
    Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).
  • RGB LED indication
    Quickly identify groups, PoE+ status and redundancy settings through the front panel’s coloured LEDs.
  • Link Aggregation
    Aggregate several Inter-Switch Links (ISL) into one virtual link to increase bandwidth between switches.
  • Ultimate link redundancy
    RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.
  • PoE+ (optional)
    Deliver up to 130W over Ethernet to power up fixtures, nodes, cameras, intercom systems and other devices.


The GigaCore’s plug-and-play technology is a real time-saver for all AV professionals. The fully pre-configured Ethernet switch has an easy group function with RGB LED indicators, that is easily configured through an intuitive web interface. You can set-up one solid converged network for lighting, audio and video in just minutes without bandwidth issues.

With its robust housing and rugged connectors, the GigaCore 10 is sure to become the all-time favourite switch for touring and live events. The software is validated against all common protocols in the AV industry and will flawlessly work with almost every fixture you connect to the network. For ultimate reliability, two units can be combined in a 1U rack space and operate in a primary/secondary mode.

Araneo to manage and monitor the complete system
All GigaCore switches can be managed with a single network-wide tool: Araneo. Araneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore. Monitor your network with confidence and act before the show gets interrupted! In the Offline mode, Araneo lets you plan in advance the complete network topology and all Gigacore settings. Reducing network commissioning time to a mere click of a button.

More +

Product Specs

Most suitable applications Touring and live events
RLinkX (Link redundancy) Yes
Groups (VLAN segmentation) Yes
MultiLinkX (Link aggregation) Yes
Profile manager Yes
Memory 4Mb
MAC address table 8192 Entries
Address learning / Aging Self learning, Auto aging
Switching throughput 22Gbps
Jumbo frames MTU up to 9600
IGMP support Yes (V1/V2/V3)
IGMP snooping Yes, enabled by default
Port sensing Auto negotiation
Auto crossover MDI / MDIX
Auto sensing Full or Half Duplex (Gigabit is Full Duplex)
Ethernet connectivity 8 x Shielded Neutrik Ethercon connectors
Fiber connectivity 2 x slot for rugged fiber connectors
Ethernet port speed 1Gbps
Serial None
Power connectivity 1x Neutrik powerCON TRUE1
Power input 100-240VAC, 50-60Hz
Power consumption Maximum 20W Maximum 150W with PoE
Fuse None
Backup power input None
Backup PoE power input None
PoE Optional on all ports (up to 130W in total)
Supported protocols Avnu AVB/MILAN
Dante©
RAVENNA/AES67©
Ethersound©
Q-SYS/Q-LAN
REAC©
sACN
ArtNet
MANet2
HogNet
RTTrPL (BlackTraX)
IEEE 802.1p CoS (Class of Service)
DiffServ (DSCP)
PoE (802.3af) (optional)
PoE+ (optional), IEEE 1588 PTP V2
Sound protocol compliance Yes (low jitter)
Ethernet compliance IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
Display and jog None
Configuration Through the built-in web server
Status LEDs Global status LEDs: Power, PoE power, RLinkX and mode
Port status LEDs: PoE, MultiLinkX, RLinkX, groups, link/activity and port speed
Dark mode available
Colored RGB LEDs: Yes
Mounting Truss, rack or wall
Enclosure Robust metal housing
Dimensions (W x D x H) 220 x 330 x 44 mm (8,66" x 13" x 1,73")
Weight 2,8 kg
Packaging 530 x 330 x 80 mm (21" x 13" x 3,15")
Environment Operating temperature: 0 to +50 °C (non-PoE version), 0 to +40 °C (PoE version)
Storage temperature: -10 to +70 °C
Humidity (non condensing): 5 to 95% RH
Noise level @1m Max 18dBA (Ambient: 0 – 35°C)
Max 24dBA (Ambient: 35 – 50°C)
Max 18dBA (PoE <80W, Ambient: 0 – 35°C)
Max 24dBA (PoE <80W, Ambient: 35 – 40°C)
Max 18dBA (PoE >80W, Ambient: 0 – 30°C)
Max 24dBA (PoE >80W, Ambient: 30 – 40°C)
Certificates/Approvals cSGSus Mark, CE, CB certificate, RoHS
Standards IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024 (pending for approval)
