Luminex GigaCore 16xt - 1GB Network Switch for AV Systems (12 x 1GB / 4 x SFP / Rev A)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

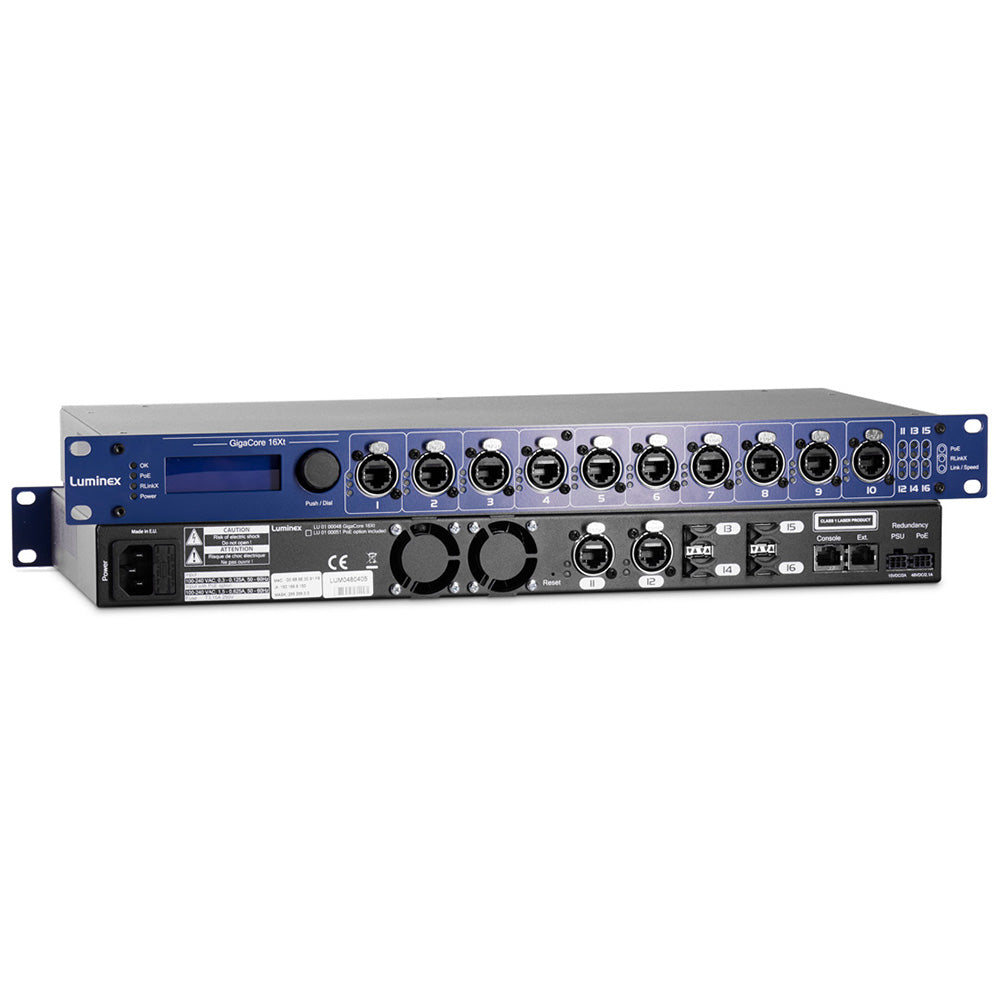

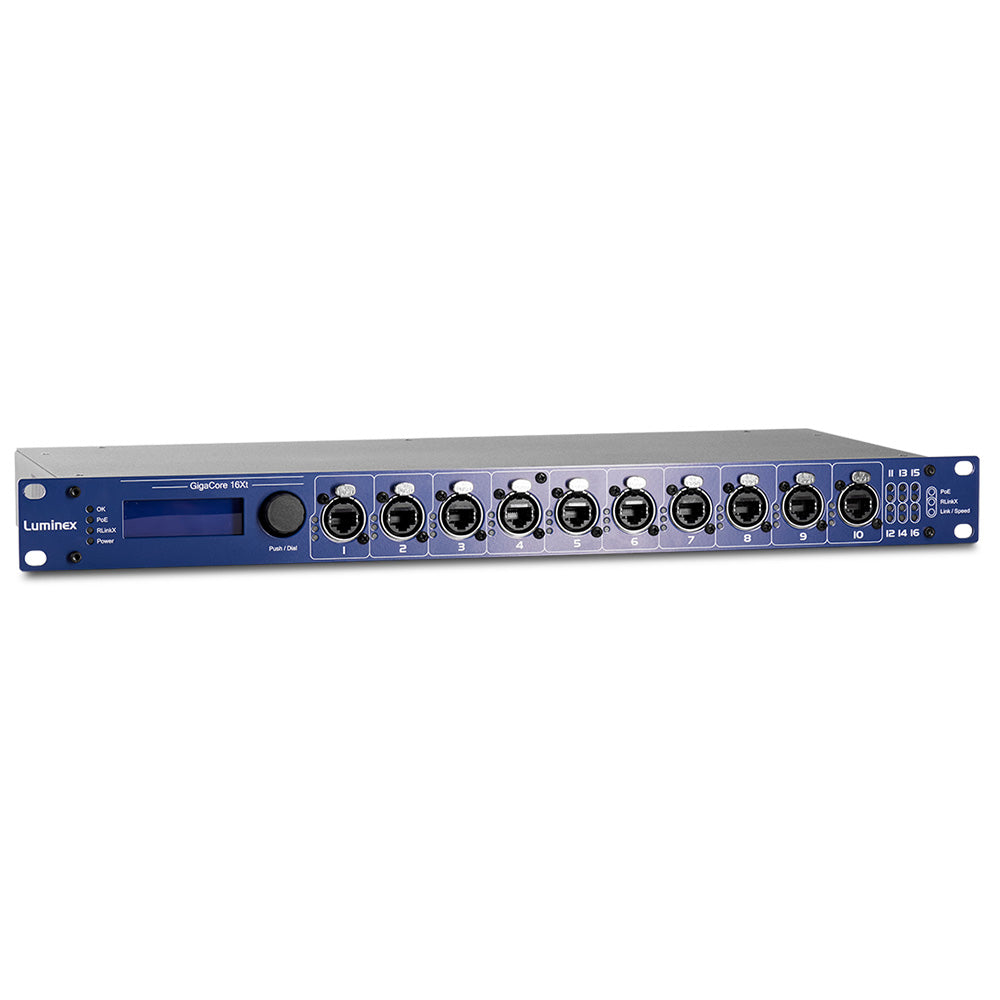

A pre-configured ethernet switch designed for professional AV solutions, perfect for touring and live events.
Tailored for AV industry
Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
Easy set-up with front display
Easy group function with pre-configured VLAN's for a quick set-up (without IT knowledge).
Touring approved
Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.
Converged networking
Transfer multiple protocols (Danteª, RAVENNA/AES67¨, ArtNet, MANet 1+2, sACN,Q-LAN É)
Ultimate link redundancy
RLinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.
PoE+ (optional)
Don't worry about power plugs anymore. PoE+ powers-up all compatible devices within the network.
Manage and monitor your complete system with Araneo
For optimised consistency, all GigaCore switches can be managed with a single network-wide tool: Araneo
Araneo's online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore. Monitor your network with confidence and act before the show gets interrupted!
In offline mode, Araneo lets you plan the complete network topology and GigaCore settings in advance. Reducing network commissioning time to a mere click of a button. Araneo Health Check proactively checks vital parameters of your network and ensures consistency throughout.
Focus on being creative again.
Stop wasting time on programming your network or rely on someone else to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: 'being creative'!
Optional: Redundant Power Supply Unit (RPSU)
Connect the GigaCore 16Xt to a GigaCore RPSU for ultimate redundancy, even on power level (and PoE). If for some reason the built-in power supply fails, the RPSU keeps your system up and running. Note: For pre Rev-A models only.
When distance matters: Fiber to the rescue.
The GigaCore 16Xt provides users with four SFP cages for Fiber connectivity. Just connect a multimode or single mode Fiber transceiver to each SFP cage and it will enable you to cover greater distances with a total link immunity up to 10km!
| Most suitable applications | Touring and live events |
| PoE | Optional on front ports only (up to 160W) |
| RLinkX (Link redundancy) | Yes |
| Groups (VLAN segmentation) | Yes |
| MultiLinkX (Link aggregation) | Yes |
| Profile manager | Yes |
| Memory | 4Mb |
| MAC address table | 8192 Entries |
| Address learning / Aging | Self learning, Auto aging |
| Switching throughput 64 Byte | Yes |
| Jumbo frames | MTU up to 9600 |
| IGMP support | Yes (V1/V2/V3) |
| IGMP snooping | Yes, enabled by default |
| Port sensing | Auto negotiation |
| Auto crossover | MDI / MDIX |
| Auto sensing | Full or Half Duplex (Gigabit is Full Duplex) |
| Ethernet connectivity | 12 x Shielded Neutrik Ethercon connectors |
| Fiber connectivity | 4 x SFP cages |
| Ethernet port speed | 1Gbps |
| Serial | 1 x serial RJ45 console port |
| Power connectivity | 1 x IEC (14C) inlet with fuse holder 1 x redundant power input on Molex Micro-Fit 6 pin connector (Pre REV-A models only) 1 x redundant PoE input on Molex Micro-Fit 6 pin connector (Pre REV-A models only) |
| Power input | 100-240VAC, 50-60Hz |
| Power consumption | Maximum 30W Maximum 180W with PoE |
| Fuse | 3.15A 250V Slow Blow |
| Backup power input | 15VDC / 2A |
| Backup PoE power input | 48VDC / 3.4A |
| PoE | Optional on front ports only (up to 160W) |
| Supported protocols | Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2 |
| Sound protocol compliance | Yes (low jitter) |
| Ethernet compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet |
| Display and jog | Yes |
| Configuration | Through the built-in web server or with the front end display menu |
| Status LEDs | Global status LEDs: Device, power, PoE power, RLinkX Port status LEDs: PoE, RLinkX, link/activity and port speed Colored RGB LEDs: No |
| Mounting | Rack |
| Enclosure | Robust metal housing |
| Dimensions (W x D x H) | 482 x 204,3 x 44 mm (19" x 8.04" x 1.73") |
| Weight | 3 kg |
| Packaging | 545 x 335 x 80 mm (21,5" x 13,2" x 3,15") |
| Environment | Operating temperature: 0 to +50 ÁC Storage temperature: -10 to +70 ÁC Humidity (non condensing): 5 to 95% RH |
| Noise level @1m | Max 30dBA (PoE or Non PoE, Ambient: 0 _ 35ÁC) Max 42dBA (PoE or Non PoE, Ambient: 35 _ 50ÁC) |
| BTU | TBC |
| Certificates/Approvals | CE, RoHS |
| Standards | EN 60950-1, EN 55022, EN 55024 |
A pre-configured ethernet switch designed for professional AV solutions, perfect for touring and live events.
Tailored for AV industry
Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
Easy set-up with front display
Easy group function with pre-configured VLAN's for a quick set-up (without IT knowledge).
Touring approved
Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.
Converged networking
Transfer multiple protocols (Danteª, RAVENNA/AES67¨, ArtNet, MANet 1+2, sACN,Q-LAN É)
Ultimate link redundancy
RLinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.
PoE+ (optional)
Don't worry about power plugs anymore. PoE+ powers-up all compatible devices within the network.
Manage and monitor your complete system with Araneo
For optimised consistency, all GigaCore switches can be managed with a single network-wide tool: Araneo
Araneo's online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore. Monitor your network with confidence and act before the show gets interrupted!
In offline mode, Araneo lets you plan the complete network topology and GigaCore settings in advance. Reducing network commissioning time to a mere click of a button. Araneo Health Check proactively checks vital parameters of your network and ensures consistency throughout.
Focus on being creative again.
Stop wasting time on programming your network or rely on someone else to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: 'being creative'!
Optional: Redundant Power Supply Unit (RPSU)
Connect the GigaCore 16Xt to a GigaCore RPSU for ultimate redundancy, even on power level (and PoE). If for some reason the built-in power supply fails, the RPSU keeps your system up and running. Note: For pre Rev-A models only.
When distance matters: Fiber to the rescue.
The GigaCore 16Xt provides users with four SFP cages for Fiber connectivity. Just connect a multimode or single mode Fiber transceiver to each SFP cage and it will enable you to cover greater distances with a total link immunity up to 10km!
| Most suitable applications | Touring and live events |
| PoE | Optional on front ports only (up to 160W) |
| RLinkX (Link redundancy) | Yes |
| Groups (VLAN segmentation) | Yes |
| MultiLinkX (Link aggregation) | Yes |
| Profile manager | Yes |
| Memory | 4Mb |
| MAC address table | 8192 Entries |
| Address learning / Aging | Self learning, Auto aging |
| Switching throughput 64 Byte | Yes |
| Jumbo frames | MTU up to 9600 |
| IGMP support | Yes (V1/V2/V3) |
| IGMP snooping | Yes, enabled by default |
| Port sensing | Auto negotiation |
| Auto crossover | MDI / MDIX |
| Auto sensing | Full or Half Duplex (Gigabit is Full Duplex) |
| Ethernet connectivity | 12 x Shielded Neutrik Ethercon connectors |
| Fiber connectivity | 4 x SFP cages |
| Ethernet port speed | 1Gbps |
| Serial | 1 x serial RJ45 console port |
| Power connectivity | 1 x IEC (14C) inlet with fuse holder 1 x redundant power input on Molex Micro-Fit 6 pin connector (Pre REV-A models only) 1 x redundant PoE input on Molex Micro-Fit 6 pin connector (Pre REV-A models only) |
| Power input | 100-240VAC, 50-60Hz |
| Power consumption | Maximum 30W Maximum 180W with PoE |
| Fuse | 3.15A 250V Slow Blow |
| Backup power input | 15VDC / 2A |
| Backup PoE power input | 48VDC / 3.4A |
| PoE | Optional on front ports only (up to 160W) |
| Supported protocols | Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2 |
| Sound protocol compliance | Yes (low jitter) |
| Ethernet compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet |
| Display and jog | Yes |
| Configuration | Through the built-in web server or with the front end display menu |
| Status LEDs | Global status LEDs: Device, power, PoE power, RLinkX Port status LEDs: PoE, RLinkX, link/activity and port speed Colored RGB LEDs: No |
| Mounting | Rack |
| Enclosure | Robust metal housing |
| Dimensions (W x D x H) | 482 x 204,3 x 44 mm (19" x 8.04" x 1.73") |
| Weight | 3 kg |
| Packaging | 545 x 335 x 80 mm (21,5" x 13,2" x 3,15") |
| Environment | Operating temperature: 0 to +50 ÁC Storage temperature: -10 to +70 ÁC Humidity (non condensing): 5 to 95% RH |
| Noise level @1m | Max 30dBA (PoE or Non PoE, Ambient: 0 _ 35ÁC) Max 42dBA (PoE or Non PoE, Ambient: 35 _ 50ÁC) |
| BTU | TBC |
| Certificates/Approvals | CE, RoHS |
| Standards | EN 60950-1, EN 55022, EN 55024 |
