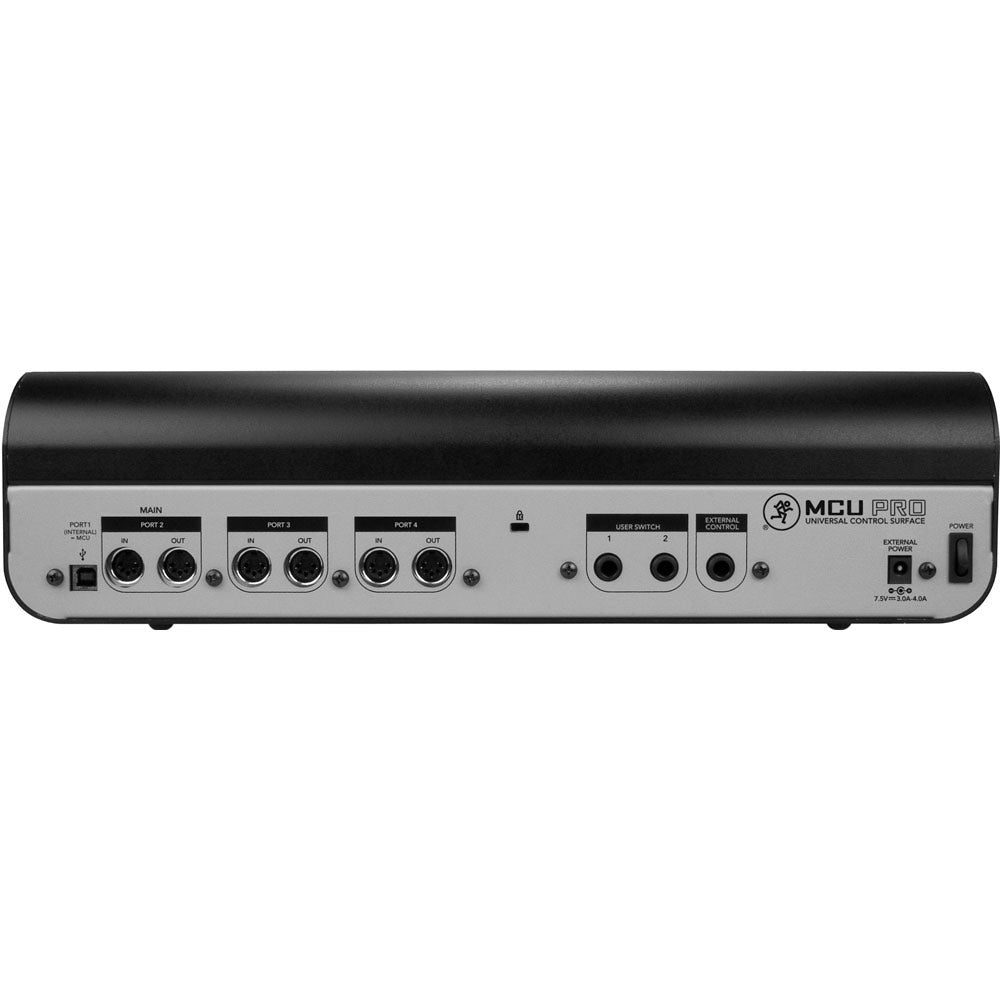

Mackie MCU PRO Workstation Control Surface



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:MACK-MCUPRO

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • Without Mackie Control Universal Pro, your music production software just isn’t complete. MCU Pro rounds out your software’s functionality to deliver the ultimate in hands-on command. In fact, your software was designed with MCU Pro in mind. Developers access the MCU Pro via its unique communication protocol — pioneered by Mackie — and determine precisely how MCU Pro works for you. That means MCU Pro integrates with your software like no other hardware controller. Say goodbye to sub-par responsiveness to your mix adjustments, trying to remember which knobs are assigned to which parameter, and the tedious process of MIDI mapping. With MCU Pro, you get deep, intuitive control of mix and plug-in parameters, real-time visual feedback and set up is plug and play —without any MIDI mapping whatsoever!

    Features

    • Proprietary Mackie communication protocol for seamless music production software integration
    • 100mm touch-sensitive Alps motorized faders
    • V-Pot control over software, plug-in effects and virtual instruments
    • More than 50 dedicated push-buttons for fine control of software parameters
    • Tape-style transport controls
    • Full meter display with track names and parameters
    • Quick cursor-style buttons for Up, Down, Left, Right and Zoom
    • Onboard USB MIDI interface for direct connection to Mac or PC and up to 3 additional pieces of external MIDI gear
    • Software-specific Lexan overlays included
    • Expandable via optional Mackie Control Extender Pro and C4 Pro modules
    • Includes Tracktion 3™ Music Production Software for Mac or PC

    And MCU Pro goes far beyond simple faders and transport controls — it gives you the most comprehensive feature set on the market. With nine Alps touch-sensitive faders, a full-sized backlit LCD and V-Pots for fast tweaking, MCU Pro is the only desktop control surface that can truly make your music production experience complete. With optional expandability via Mackie Control Extender Pro, MCU Pro is also the only software control surface that can grow with your studio.

    Each fader channel also has a genuine Mackie rotary V-Pot, surrounded by an LED collar to indicate the current value, and dedicated buttons for record ready, solo, mute, channel select, and signal present LED. In addition, the master section includes buttons for navigating channels — individually or in banks of eight — as well as for software specific controls like assigning I/O, sends, EQ, dynamics, and plug-ins to name a few.

  • AC Power Requirements
    Power Requirements7.5V Dc, 3.0A-4.0A
    External AC-DC Adapter1.0A, 100-240 VAC,
    50-60Hz
    Operating Temperature0º-40ºC
    32º-104ºF
    Input/Output, USB, Faders
    I/0Midi in/Midi Out
    USB FormatUSB 1.1
    Faders100mm Alps Touch Sensitive Motorized Faders
    Construction Features
    Basic DesignTrapezoidal
    FinishHigh durability black paint
    Physical Properties
    Height4.4in/113mm
    width16.5in/419mm
    Depth16.9in/429mm
    Weight16.8lb/7.6kg
