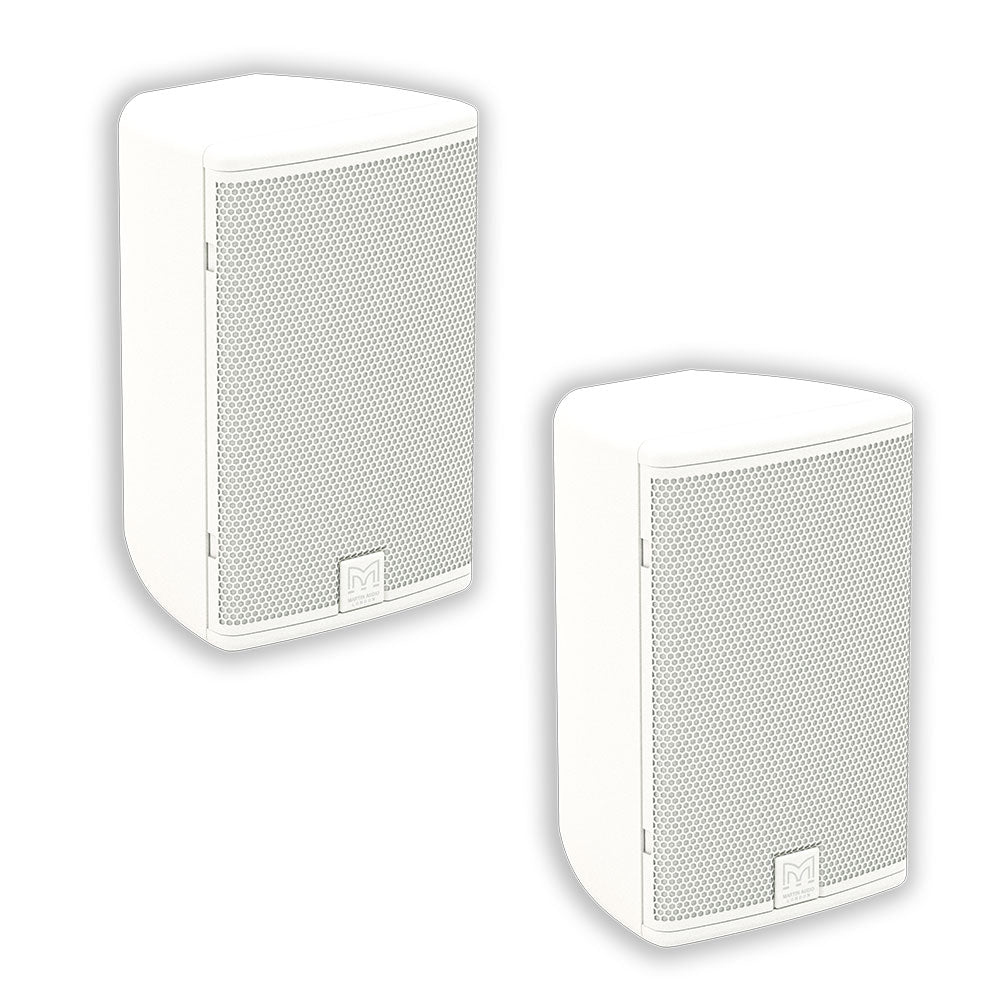

Martin Audio A55T Ultra-Compact 2-Way Install Loudspeaker (White) - Pair


  • Dale #:

    MAAU-A55TWKIT
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Queens location. In-store pick-up is available Monday through Friday from 8:30 am to 5:00 pm

Description

The ADORN A55T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applicati... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ADORN A55T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.

Features:

  • Contemporary, unobtrusive design
  • High output capability
  • High fidelity sound
  • Low and high-frequency overload protection
  • 70V/100V line transformer
  • Vertical or horizontal orientation
  • Wide 110° x 80° coverage
  • Wall bracket included
  • 5-year warranty

Suggested Applications:

  • Retail outlets
  • Cafes, bars and restaurant chains
  • Hotels and convention centres
  • Educational facilities
  • Corporate offices


The A55T is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX.

Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 50W AES, 200W peak and can produce 113dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 65Hz.

The A55T incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch. The recommended amplifier is the VIA5002 in conjunction with a suitable line transformer. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.

Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied.

The VIA5002 amplifier in combination with a Martin Audio DX0.5 controller will be perfect partners for small scale efficient installations, or with the DX4.0 controller for larger more complex installations, which could then also be managed by Martin Audio’s VU-NET control software platform.

The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.

More +

Product Specs

TYPE Ultra-Compact passive two-way system, front ported bass reflex
FREQUENCY RESPONSE 90Hz-17kHz ± 3dB
-10dB @ 65
DRIVERS
  • LF: 5.25” /1” high-temp voice coil, coated paper, cone, rubber surround, ferrite motor, pressed steel chassis
  • HF: 0.75” silk dome, neodymium motor
RATED POWER 50W AES, 200W peak
RECOMMENDED AMPLIFIER VIA5002 [In conjunction with suitable line transformer]
SENSITIVITY 90dB/1W/1m
MAXIMUM SPL 113dB peak
NOMINAL IMPEDANCE 16Ω
DISPERSION (-6DB) 110° H x 80° V
CROSSOVER 3.5kHz passive (LF and HF auto-resetting fuses)
TRANSFORMER TAPS
  • 70V: 30w / 15w / 7.5w / 3.75w
  • 100V: 30w / 15w / 7.5w
RECOMMENDED HIGH-PASS FILTER 60Hz 24dB/oct
ENCLOSURE ABS, UL 94V-0 rated
FINISH Black or white
GRILLE Perforated steel
CONNECTORS Push terminals
FITTINGS Wall bracket included
DIMENSIONS EXCL. BRACKET
  • (W) 152mm x (H) 245mm x (D) 140mm
  • (W) 6in x (H) 9.6in x (D) 5.5in
WEIGHT 2.81kg (6.2lbs)
ACCESSORIES
  • Waterproof connector cover
  • Water resistant grille

More +
