DALE SKU # MAAU-ACP55TW

Martin Audio ACP-55T - Compact Two-Way 5.35-Inch Pendant Loudspeaker (Black / Pair)

Contact us

  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    As part of the ADORN commercial loudspeaker series, the ACP-55T is a compact, two-way pendant loudspeaker designed for background and foreground applications hat require premium performance and cost competitiveness in spaces with open ceiling architecture.

    Features:

    • High performance two-way pendant speaker
    • 5.25" (135mm) LF driver and 0.75" (19mm) HF dome tweeter
    • Wide 150° conical coverage pattern reduces speaker count required for even coverage
    • 70V/100V multi-tap line transformer or 16-ohm low-impedance operation
    • Low and high-frequency overload protection
    • Quick release, bezel-less grille
    • UL94V-0 rated baffle and enclosure
    • 5-year warranty

    The ACP-55T brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotel atriums and exhibition spaces to retail outlets, bars and restaurants.

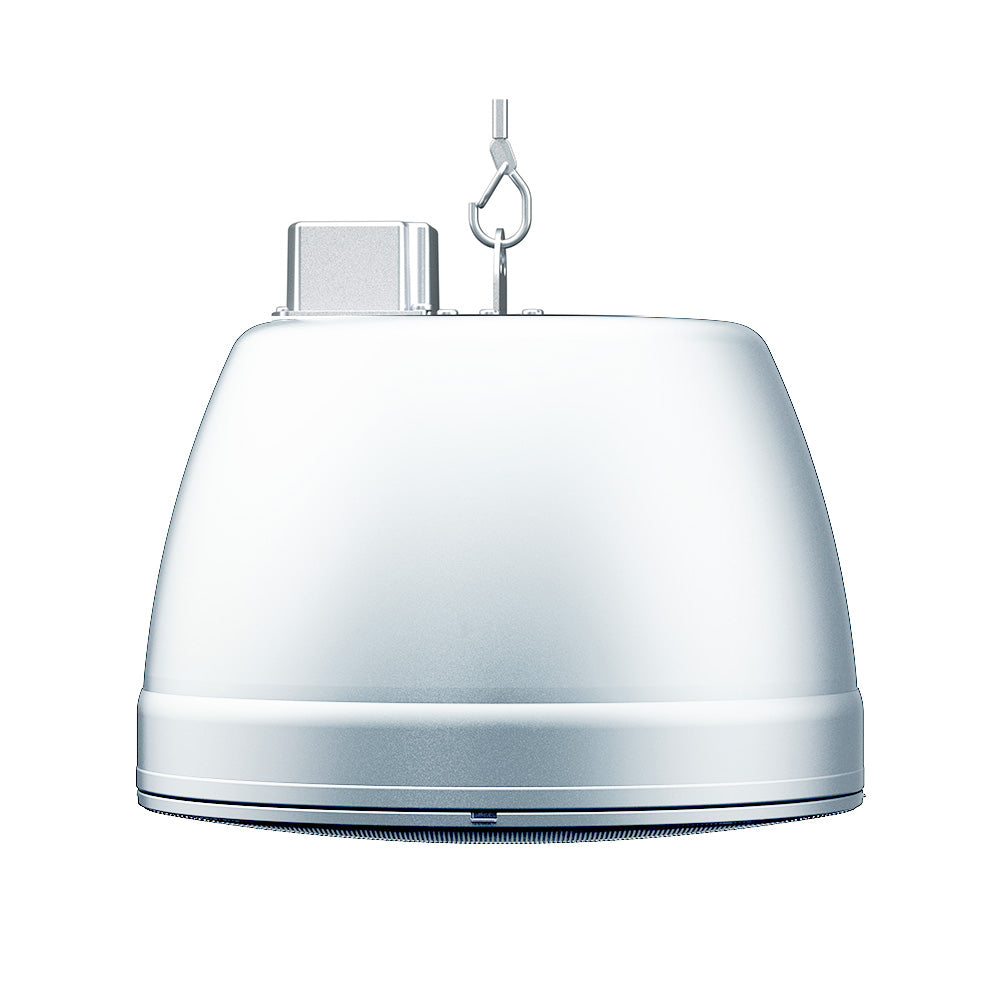

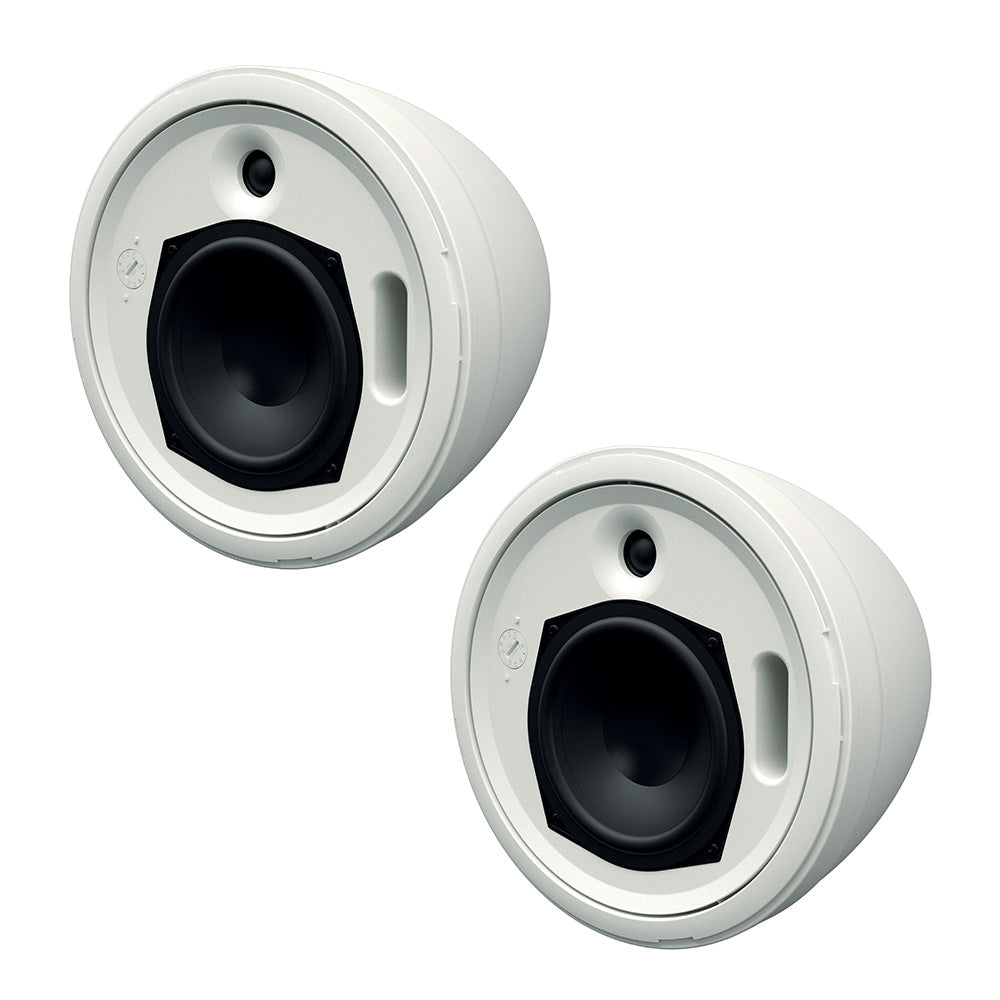

    Comprising a 5.25" (135mm) LF driver and a 0.75" (19mm) silk-dome tweeter, the ACP-55T produces 109dB peak output at 1 metre and delivers superb sound quality for both music and speech reproduction. Its stylish pendant enclosure is equipped with a single-point mounting system plus provision for attaching a safety cable.

    The consistent and wide 150° conical coverage of the ACP-55T reduces the number of speakers required for even coverage — leading to a reduction in installation cost.

    It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch at the top of the pendant enclosure. The switch also provides for 16-ohm low impedance operation — enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high- frequency sections are individually protected against overload by auto-resetting thermal fuses.

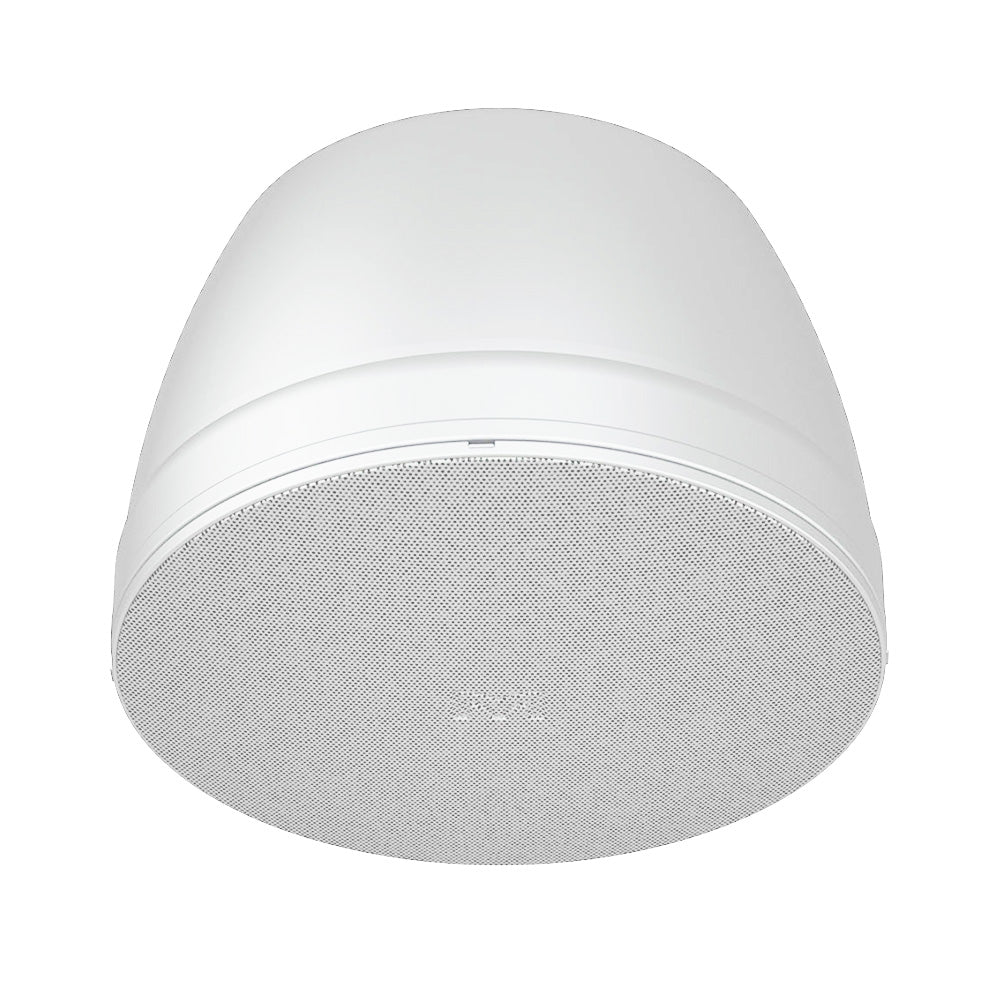

    The grille is bezel-less for a clean look, its bayonet fitting is easy to remove without the use of tools and finished in white or black to match ADORN on-wall loudspeakers and may also be painted to blend with any décor.

    Applications:

    • Retail outlets
    • Cafes, bars and restaurants
    • Museums and Houses of Worship
    • Hotels, casinos and concourses
    • Exhibition spaces and convention centres
    • Transportation facilities
    TYPEPassive two-way pendant speaker, ported bass reflex
    FREQUENCY RESPONSE98Hz-20kHz ± 3dB
    -10dB @ 56Hz
    DRIVERS
    • LF: 5.25" /1" high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
    • HF: 0.75" silk dome, neodymium motor
    RATED POWER50W AES, 200W peak
    RECOMMENDED AMPLIFIERVIA2004 (for low-impedance operation)
    SENSITIVITY86dB / 1W(4V) / 1m (full space)
    MAXIMUM SPL109dB peak
    NOMINAL IMPEDANCE16?
    DISPERSION (-6DB)150¡ conical up to 7kHz
    CROSSOVER3kHz passive (LF and HF auto-resetting fuses
    TRANSFORMER TAPS
    • 70V: 30w / 15w / 7.5w / 3.75w
    • 100V: 30w / 15w / 7.5w
    RECOMMENDED HIGH-PASS FILTER60Hz 24dB/oct
    ENCLOSUREUL 94V-0 rated ABS baffle and enclosure
    FINISHBlack or white
    GRILLEPerforated steel, powder-coated, bayonet fitting
    CONNECTORSCeramic connector (in and link)
    DIMENSIONS
    • (OD) 246mm x (D) 238mm
    • (OD) 9.7in x (D) 9.35in
    WEIGHT3.46kg (7.62lbs)

    As part of the ADORN commercial loudspeaker series, the ACP-55T is a compact, two-way pendant loudspeaker designed for background and foreground applications hat require premium performance and cost competitiveness in spaces with open ceiling architecture.

    Features:

    • High performance two-way pendant speaker
    • 5.25" (135mm) LF driver and 0.75" (19mm) HF dome tweeter
    • Wide 150° conical coverage pattern reduces speaker count required for even coverage
    • 70V/100V multi-tap line transformer or 16-ohm low-impedance operation
    • Low and high-frequency overload protection
    • Quick release, bezel-less grille
    • UL94V-0 rated baffle and enclosure
    • 5-year warranty

    The ACP-55T brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotel atriums and exhibition spaces to retail outlets, bars and restaurants.

    Comprising a 5.25" (135mm) LF driver and a 0.75" (19mm) silk-dome tweeter, the ACP-55T produces 109dB peak output at 1 metre and delivers superb sound quality for both music and speech reproduction. Its stylish pendant enclosure is equipped with a single-point mounting system plus provision for attaching a safety cable.

    The consistent and wide 150° conical coverage of the ACP-55T reduces the number of speakers required for even coverage — leading to a reduction in installation cost.

    It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch at the top of the pendant enclosure. The switch also provides for 16-ohm low impedance operation — enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high- frequency sections are individually protected against overload by auto-resetting thermal fuses.

    The grille is bezel-less for a clean look, its bayonet fitting is easy to remove without the use of tools and finished in white or black to match ADORN on-wall loudspeakers and may also be painted to blend with any décor.

    Applications:

    • Retail outlets
    • Cafes, bars and restaurants
    • Museums and Houses of Worship
    • Hotels, casinos and concourses
    • Exhibition spaces and convention centres
    • Transportation facilities
    TYPEPassive two-way pendant speaker, ported bass reflex
    FREQUENCY RESPONSE98Hz-20kHz ± 3dB
    -10dB @ 56Hz
    DRIVERS
    • LF: 5.25" /1" high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
    • HF: 0.75" silk dome, neodymium motor
    RATED POWER50W AES, 200W peak
    RECOMMENDED AMPLIFIERVIA2004 (for low-impedance operation)
    SENSITIVITY86dB / 1W(4V) / 1m (full space)
    MAXIMUM SPL109dB peak
    NOMINAL IMPEDANCE16?
    DISPERSION (-6DB)150¡ conical up to 7kHz
    CROSSOVER3kHz passive (LF and HF auto-resetting fuses
    TRANSFORMER TAPS
    • 70V: 30w / 15w / 7.5w / 3.75w
    • 100V: 30w / 15w / 7.5w
    RECOMMENDED HIGH-PASS FILTER60Hz 24dB/oct
    ENCLOSUREUL 94V-0 rated ABS baffle and enclosure
    FINISHBlack or white
    GRILLEPerforated steel, powder-coated, bayonet fitting
    CONNECTORSCeramic connector (in and link)
    DIMENSIONS
    • (OD) 246mm x (D) 238mm
    • (OD) 9.7in x (D) 9.35in
    WEIGHT3.46kg (7.62lbs)
