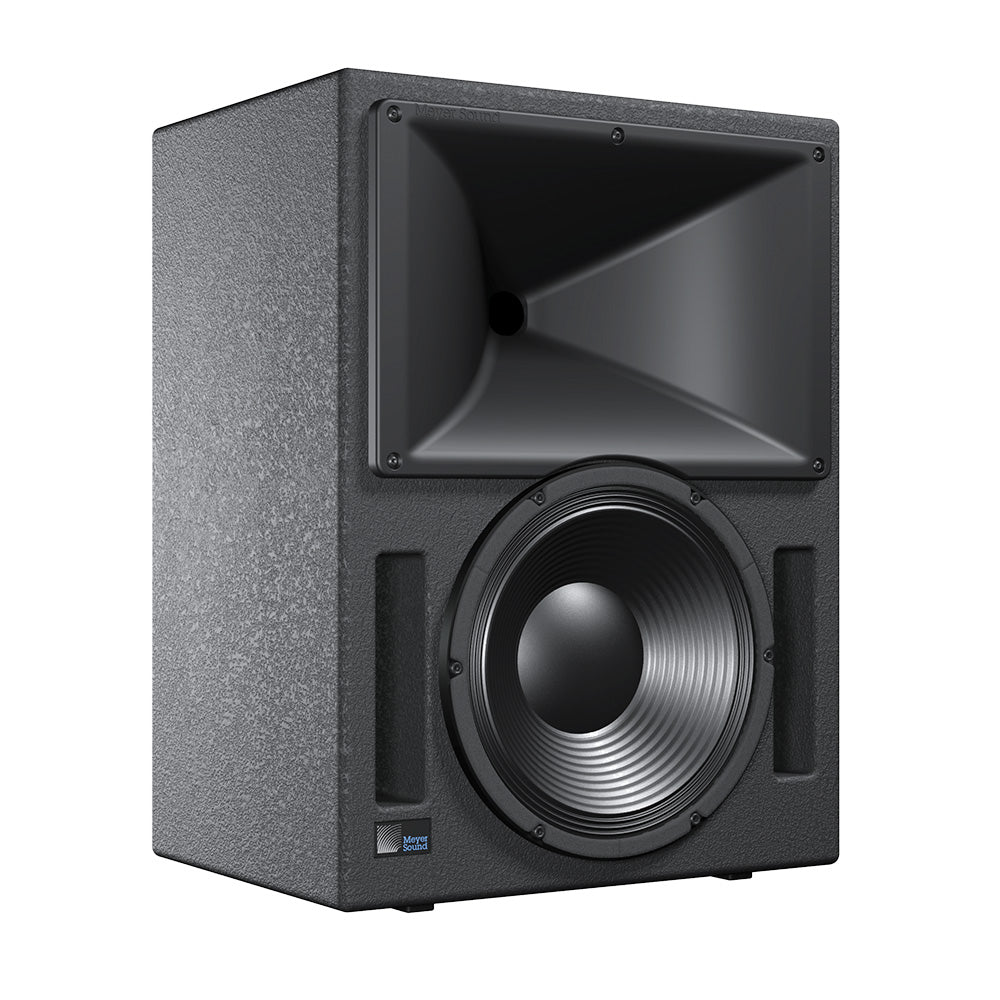

Meyer Sound Acheron Designer - Cinema Monitor Loudspeaker System

At the heart of Meyer Sound's EXP line of cinema products are the Acheron® high-performance screen channel loudspeakers. The Acheron Designer is the most compact of the Acheron models, making it an excellent choice for sound design suites, screening rooms, private theatres, and small commercial theatres. Optimized for installation behind perforated screens, the Acheron Designer combines the advantages of self-powered technology and innovative horn design to deliver exceptional, precise coverage for the left, right, and center sound channels for cinema.

The Acheron Designer uses the same patentpending horn technology and high-frequency compression driver as the other Acheron models, delivering the same 38 Hz to 17 kHz frequency response. This consistency of fidelity between Acheron models ensures that soundtracks monitored with the Acheron Designer translate accurately when played back in larger rooms with the Acheron 100, Acheron 80, Acheron Studio, or other calibrated cinema system.

Designed specifically for cinema, the Acheron horn features a very soft roll-off beyond its 80-degree horizontal by 50-degree vertical coverage pattern. The extremely well-behaved horn ensures an accurate acoustic crossover and consistent vertical coverage pattern through the critical crossover range between the low- and high-frequency drivers. The optimized crossover point places most of the dialog in the horn, which is ideal for cinema applications.

Designed and manufactured at Meyer Sound's headquarters in Berkeley, California, the Acheron Designer's drivers include one 12-inch lowfrequency cone driver, housed in an optimally tuned, ported enclosure, and one high-frequency 4-inch diaphragm compression driver. The drivers yield uncompromising quality and are powered by sophisticated onboard amplification. The selfpowered design ensures consistent results and simplifies installations in both new and existing rooms.

A proprietary two-channel, Class-D amplifier powers each driver channel independently. Onboard processing includes driver protection circuitry, an electronic crossover, and correction filters, ensuring flat frequency and phase responses. The rear-mounted, recessed heat sink yields efficient convection cooling, and allows the unit to be placed flat against walls, when necessary.

The optional RMS™ remote monitoring system provides comprehensive monitoring of system parameters on a Windows®-based computer.

The Acheron Designer enclosure is constructed of premium birch plywood and coated with a lowgloss, black-textured finish. The cabinet is fitted with two attachment points on the bottom for the optional MYA-DES cradle-style yoke, allowing the unit to be suspended from a single hanging point. An optional, black cloth grille frame is available for installations where the Acheron Designer is not placed behind a screen.

Features:

• High peak power output with ultralow distortion
• Exceptional fidelity and extended highfrequency performance
• Constant-Q horn yields uniform response throughout coverage area
• Extraordinarily flat amplitude and phase response for tonal accuracy
• Seamless integration with HMS-10 surround loudspeakers and X-800C subwoofer

Suggested Applications:

• Sound design suites
• Small theatres
• Custom, private theatres
• Re-recording stages
• Mixing for postproduction facilities
