Meyer Sound Amie - Two-Way Active Reference Monitor (Single)


  • Dale #:

    MYSL-0924900101
  • Availability:

    Special Order Item
  • Meyer Sound products are built to order in the USA - contact one of our Sales Professionals for lead time.

Description

The Amie precision studio monitor is a compact, high-performance loudspeaker designed for critical audio workflows where accurate translation to larger systems is a requirement. Amie traces its lineage to Meyer Sound's Acheron® screen channel loudspeakers, sharing core technology that makes it id... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

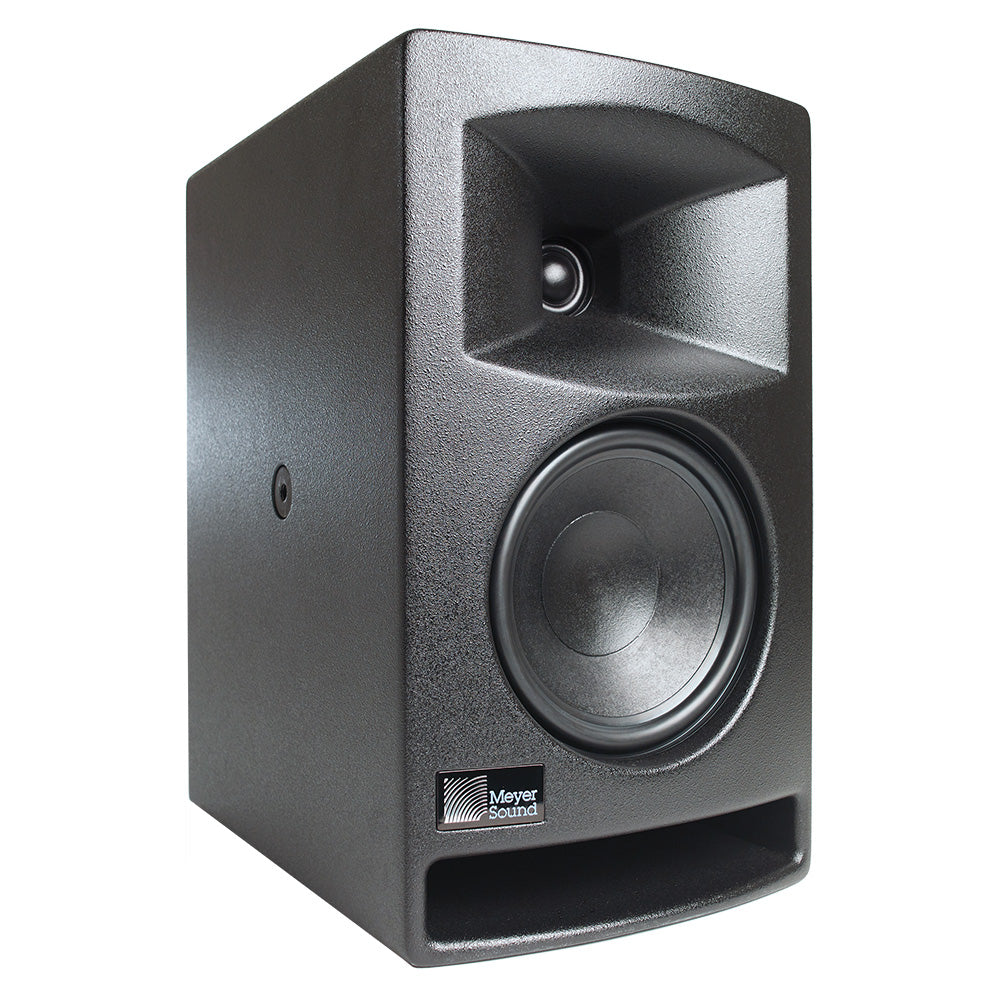

The Amie precision studio monitor is a compact, high-performance loudspeaker designed for critical audio workflows where accurate translation to larger systems is a requirement. Amie traces its lineage to Meyer Sound's Acheron® screen channel loudspeakers, sharing core technology that makes it ideal for film, broadcast, music, and game postproduction.

Amie is equally suited for both stereo and surround monitoring in small- to mediumsized rooms, and is the perfect solution for facilities where the destination is a larger production room. With its flat frequency response, Amie accurately reproduces source material at different listening levels and with its power-to-size ratio can make your edit room sound like the mixing stage.

Sophisticated onboard signal processing and crossover circuitry optimize phase response, ensuring transparency and precise spatial imaging. When monitoring with Amie, editors and sound designers can trust that their work in the editing suite will successfully translate to the mix stage.

Engineered for sonic linearity, Amie exhibits uniform response over its full dynamic range. Advanced driver protection circuitry allows for graceful handling of peak material with very low distortion, yielding a comfortable listening experience - allowing engineers to work in extended sessions with minimal fatigue.

Amie's high-frequency transducer is a silkinfused dome tweeter fed to a constant directivity waveguide that yields uniform, focused coverage with smooth roll-off outside the coverage area. Its low-frequency transducer is a long-excursion cone driver designed for to behave linear. An optimized, low turbulence cabinet port enhances power handling and extends low-end response.

Powered by a proprietary 2-channel class D amplifier, Amie boasts ample headroom, low distortion, and low self-noise, delivering consistent performance even at high sound pressure levels, allowing it to reproduce the most demanding soundtracks with uncompromising precision. The self-powered design simplifies room installations. Loopthrough power connectors streamline setup of multichannel systems.

Amie's enclosure is constructed from premium birch plywood, coated with an attractive lowgloss, textured black finish. Side attachment points accommodate an optional U-bracket, which can mount on walls and ceilings, or attach to a pole mount. In addition the optional Desk mount allows Amie to be placed on a desk with the ability to tilt.

Features:

  • Seamless translation to larger cinema systems
  • Flat frequency and phase response for sonic accuracy
  • Uniform tonal balance over a wide dynamic range
  • Constant-directivity waveguide yields focused coverage
  • Handles high SPL and peaks with very low distortion
  • Self-powered for simplified setup and increased reliability
  • Individually tested for consistent performance

Solutions:

  • Small- to medium-sized editing rooms
  • Stereo and surround mixing for film and video postproduction
  • Broadcast monitoring
  • Music editing and mixing
  • High-end playback systems

More +

Product Specs

Acoustical
Frequency Range 45 Hz – 20 kHz
Phase Response 350 Hz – 20 kHz ±30 degrees
Coverage Horizontal 80 degrees
Vertical 50 degrees
Crossover 1500 Hz
Transducers Low Frequency One 6.5-inch long-excursion cone driver
High Frequency One 1-inch dome tweeter on a constant-directivity waveguide
Audio I/O
Connectors XLR 3-pin female input with XLR 3-pin male loop output
Nominal Input Sensitivity 6.0 dBV (2.0 V rms, 2.8 V peak) continuous is typically the onset of limiting for noise and music
Amplifier
Type Class D, 2-channels with electronic crossover
AC Power
Connectors powerCON 20 with loop output out (up to 7 Amie Loudspeakers can be safely looped)
Safety Rated Voltage Range 100–240 V AC, 50–60 Hz
Turn-on/off Points 90 V AC turn-on, no turn-off; internal fuse protection above 265 V AC
Max. Long-Term Cont. Current 0.65 A rms (115 V AC); 0.35 A rms (230 V AC); 0.77 A rms (100 V AC)
Physical
Dimensions 9.00 inches W x 15.30 inches H x 13.24 inches D
(229 mm x 389 mm x 336 mm)
Weight 25 lbs (11.3 kg)
Enclosure Premium birch plywood with low-gloss, textured black finish
Mounting 3/8”-16 threaded side attachment points; for optional mounting accessories
