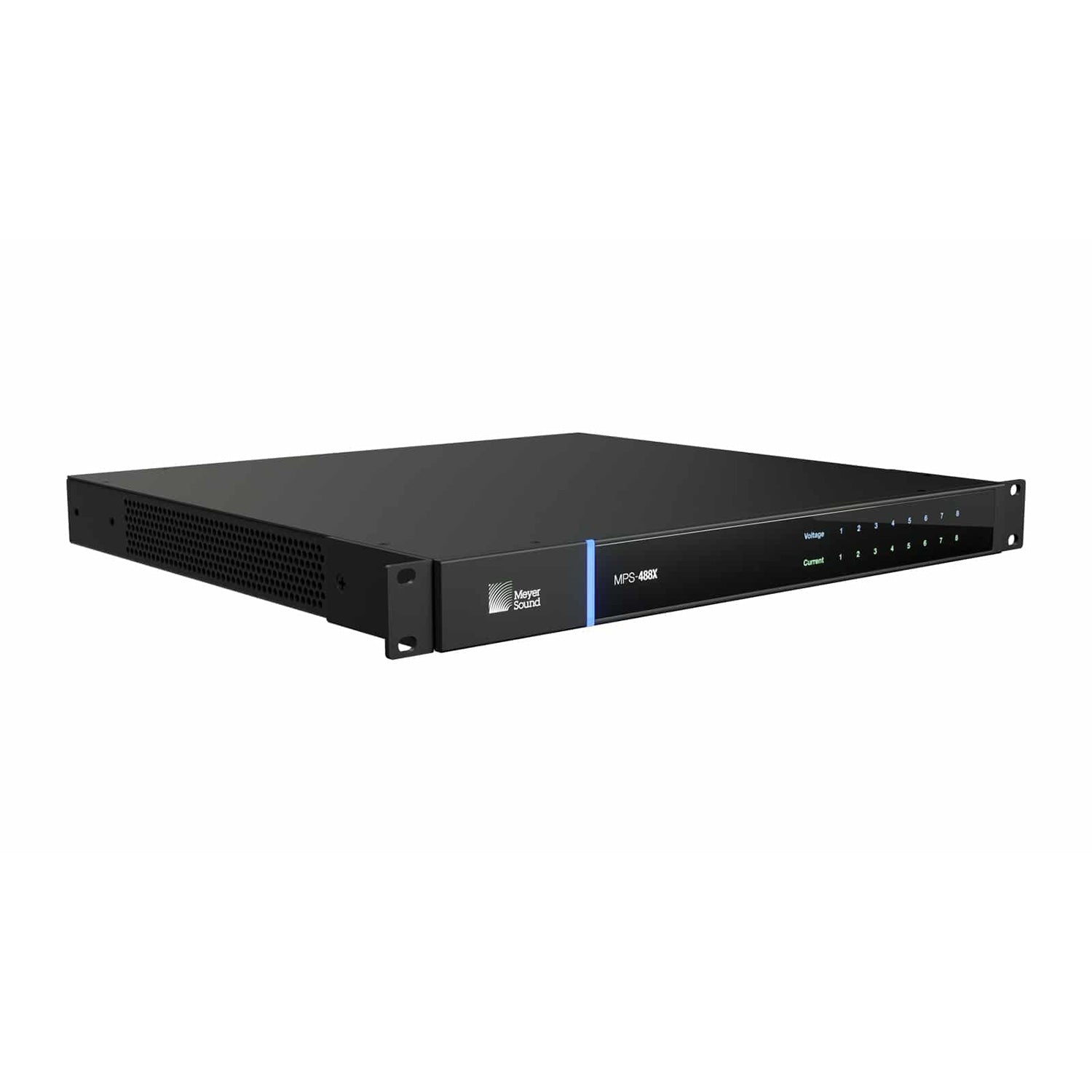

Meyer Sound MPS488X IntelligentDC Power Supply - Power and Audio Hub for Installed Sound
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
MPS-488X and MPS-482HP are the core stations of Meyer Sound's IntelligentDC technology, which combines all the sonic benefits of self-powered loudspeakers with the installation ease of low-voltage systems by delivering balanced audio and DC power together over composite cables. Its applications include corporate systems, hospitality suites, home theatre, retail, and anywhere high-quality distributed audio is desired.
MPS-488X provides 8 channels of balanced audio and DC power via field-friendly Phoenix connectors. For added flexibility, toggle switches can route audio inputs to one or more channel outputs.
Front-panel LEDs provide real-time feedback on critical data such as voltage status and load current levels; A built-in RJ45 port lets users access telemetry data and manage device firmware. Telemetry data can be monitored remotely on a Mac or PC using Meyer Sound's free Nebra software.
The MPS-488X is ideal for use with Meyer Sound's 48V DC IntelligentDC line of loudspeakers, including the powerful ULTRA‑X20 family, the UP‑4slim ultra-compact loudspeaker, and the USW‑112XP compact subwoofer. Multiple Ashby‑5C, Ashby‑8C, or MM‑4XP loudspeakers can be driven from each channel maximizing power and efficiency in just 1RU of space.
| FRONT PANEL | |
| LEDs per channel | Eight blue LEDs to indicate presence of output voltage Eight green LEDs to indicate load current |
| REAR PANEL | |
| Audio Input | Eight male 3-pin Phoenix connectors Seven Link Switches |
| Channel Output | Eight male 5-pin Phoenix connectors |
| Output Wiring | Two pins for DC power, three pins for balanced audio Pin 1: 48 V DC - (chassis/earth ground) Pin 2: 48 V DC + Pin 3: Audio shield/chassis/earth ground Pin 4: Signal - Pin 5: Signal + |
| Output Voltage | 1 48 V DC per channel (with intelligent circuit protection against surges and shorts) |
| AC POWER | |
| AC Connector | Neutrik powerCON TRUE1 TOP (True Outdoor Protection) |
| Voltage Selection | Automatic |
| Safety Rated Voltage Range | 100Ð240 V AC; 50Ð60 Hz; 1350 W maximum |
| TELEMETRY | |
| Software | Via the "Monitoring" RJ45 connector, standard Ethernet network connection to computer running Meyer Sound's Nebra software, includes Wink/identify and mute functions, reports power supply temperature and fan speed, voltage and current values for each output channel. |
| PHYSICAL | |
| Dimensions | 1RU in height; W: 19.00 in (483 mm) x H: 1.73 in (44 mm) x D: 16.22 in (412 mm) |
| Weight | 15.1 lb (6.9 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | From 32 ¡F (0 ¡C) to 113 ¡F (45 ¡C) |
| Non-operating Temperature | Below -40 ¡F (-40 ¡C), above 167 ¡F (75 ¡C) |
| Humidity | Up to 95% at 35 ¡C |
| Operating Altitude | Up to 5000m (16,000 ft) |
| Non-Operating Altitude | Above 12,000 m (39,000 ft) |
MPS-488X and MPS-482HP are the core stations of Meyer Sound's IntelligentDC technology, which combines all the sonic benefits of self-powered loudspeakers with the installation ease of low-voltage systems by delivering balanced audio and DC power together over composite cables. Its applications include corporate systems, hospitality suites, home theatre, retail, and anywhere high-quality distributed audio is desired.
MPS-488X provides 8 channels of balanced audio and DC power via field-friendly Phoenix connectors. For added flexibility, toggle switches can route audio inputs to one or more channel outputs.
Front-panel LEDs provide real-time feedback on critical data such as voltage status and load current levels; A built-in RJ45 port lets users access telemetry data and manage device firmware. Telemetry data can be monitored remotely on a Mac or PC using Meyer Sound's free Nebra software.
The MPS-488X is ideal for use with Meyer Sound's 48V DC IntelligentDC line of loudspeakers, including the powerful ULTRA‑X20 family, the UP‑4slim ultra-compact loudspeaker, and the USW‑112XP compact subwoofer. Multiple Ashby‑5C, Ashby‑8C, or MM‑4XP loudspeakers can be driven from each channel maximizing power and efficiency in just 1RU of space.
| FRONT PANEL | |
| LEDs per channel | Eight blue LEDs to indicate presence of output voltage Eight green LEDs to indicate load current |
| REAR PANEL | |
| Audio Input | Eight male 3-pin Phoenix connectors Seven Link Switches |
| Channel Output | Eight male 5-pin Phoenix connectors |
| Output Wiring | Two pins for DC power, three pins for balanced audio Pin 1: 48 V DC - (chassis/earth ground) Pin 2: 48 V DC + Pin 3: Audio shield/chassis/earth ground Pin 4: Signal - Pin 5: Signal + |
| Output Voltage | 1 48 V DC per channel (with intelligent circuit protection against surges and shorts) |
| AC POWER | |
| AC Connector | Neutrik powerCON TRUE1 TOP (True Outdoor Protection) |
| Voltage Selection | Automatic |
| Safety Rated Voltage Range | 100Ð240 V AC; 50Ð60 Hz; 1350 W maximum |
| TELEMETRY | |
| Software | Via the "Monitoring" RJ45 connector, standard Ethernet network connection to computer running Meyer Sound's Nebra software, includes Wink/identify and mute functions, reports power supply temperature and fan speed, voltage and current values for each output channel. |
| PHYSICAL | |
| Dimensions | 1RU in height; W: 19.00 in (483 mm) x H: 1.73 in (44 mm) x D: 16.22 in (412 mm) |
| Weight | 15.1 lb (6.9 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | From 32 ¡F (0 ¡C) to 113 ¡F (45 ¡C) |
| Non-operating Temperature | Below -40 ¡F (-40 ¡C), above 167 ¡F (75 ¡C) |
| Humidity | Up to 95% at 35 ¡C |
| Operating Altitude | Up to 5000m (16,000 ft) |
| Non-Operating Altitude | Above 12,000 m (39,000 ft) |
