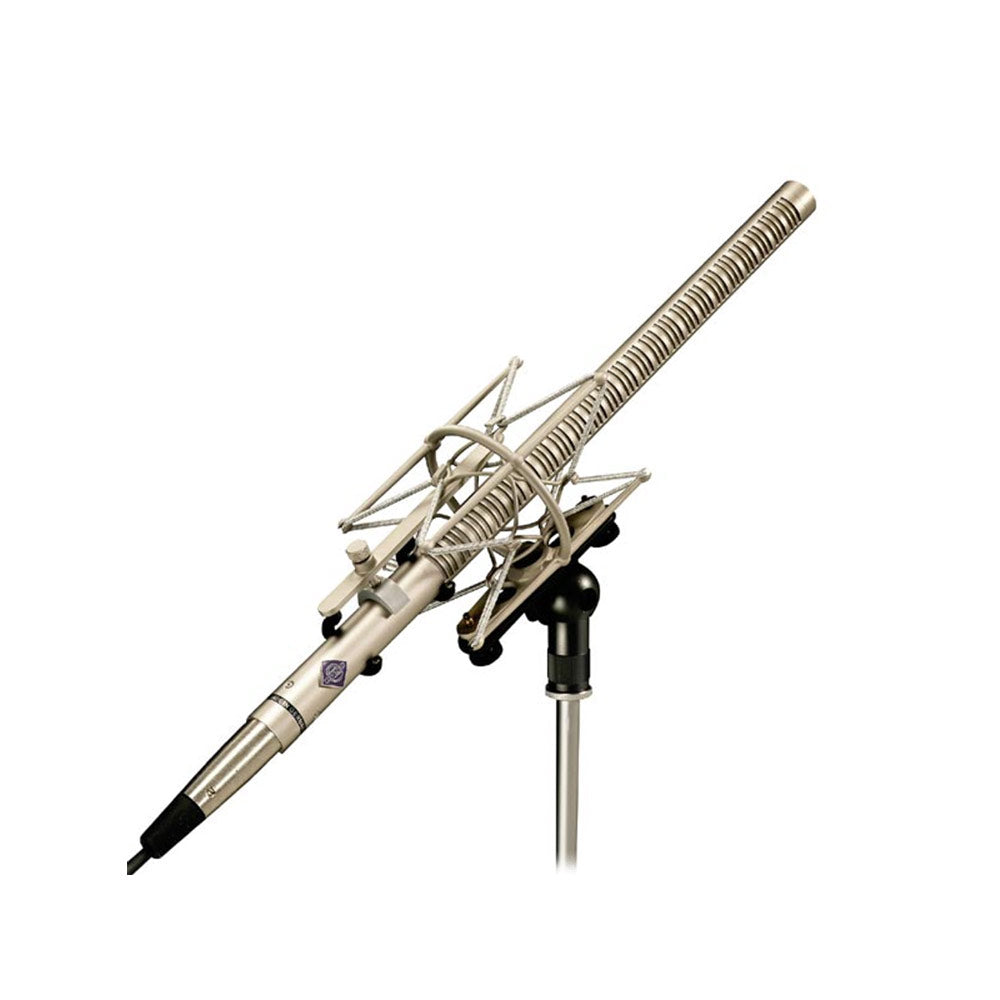

Neumann KMR82I Super-Cardioid Long Shotgun Condenser Microphone - Nickel
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The KMR 82 is a shotgun microphone with a high directivity that remains within the acceptance angle independent of the frequency. The advantage is that a sound source, for example an actor on stage, will not change its apparent tonal balance when moving within this area.
Features
- Interference tube microphone with shotgun directional characteristic
- Interference/pressure-gradient transducer
- High lateral and back attenuation
- 45Îç-recording angle
- Switchable filter or preattenuation features
- Extensive accessories for outdoor use
- Light weight - 250 g
Shotgun microphones are particularly useful in recording situations where a microphone cannot be positioned within the desired distance of the sound source to produce a sufficiently loud signal level. Typical applications are film and video recordings, where the microphone should not appear in the picture. The KMR 82 is very often used on stage.
| Acoustical operating principle | Interference transducer |
| Directional pattern | Supercardioid/lobe |
| Frequency range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 21 mV/Pa |
| Rated impedance | 150 ohms |
| Rated load impedance | 1 kohms |
| Equivalent noise level, CCIR1) | 23 dB |
| Equivalent noise level, A-weighted1) | 12 dB-A |
| Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) | 71 dB |
| Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) | 82 dB |
| Maximum SPL for THD 0.5%2) | 128 dB |
| Maximum output voltage | 2.6 dBu |
| Dynamic range of the microphone amplifier (A-weighted) | 116 dB |
| Supply voltage (P48, IEC 61938) | 48 V ± 4 V |
| Current consumption (P48, IEC 61938) | 0.7 mA |
| Matching connector | XLR3F |
| Weight | 250 g |
| Diameter | 21 mm |
| Length | 395 mm |
