Neumann KU 100 Dummy Head Binaural Stereo Microphone System


  • Dale #:

    NEUM-KU100
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The KU 100 dummy head is a binaural stereo microphone. It resembles the human head and has two microphone capsules built into the ears. When listening through high-quality headphones it gives the illusion of being right at the scene of the acoustic events. When using the KU 100 dummy head, the bi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

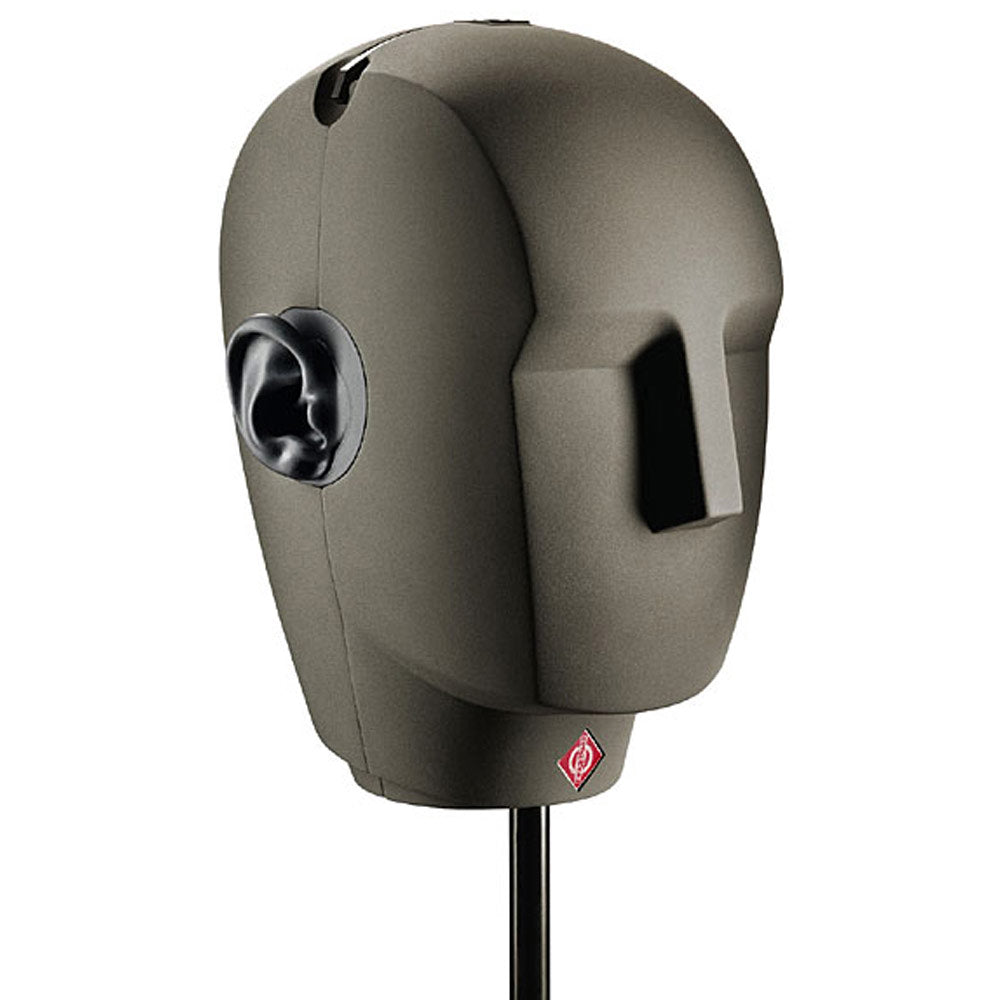

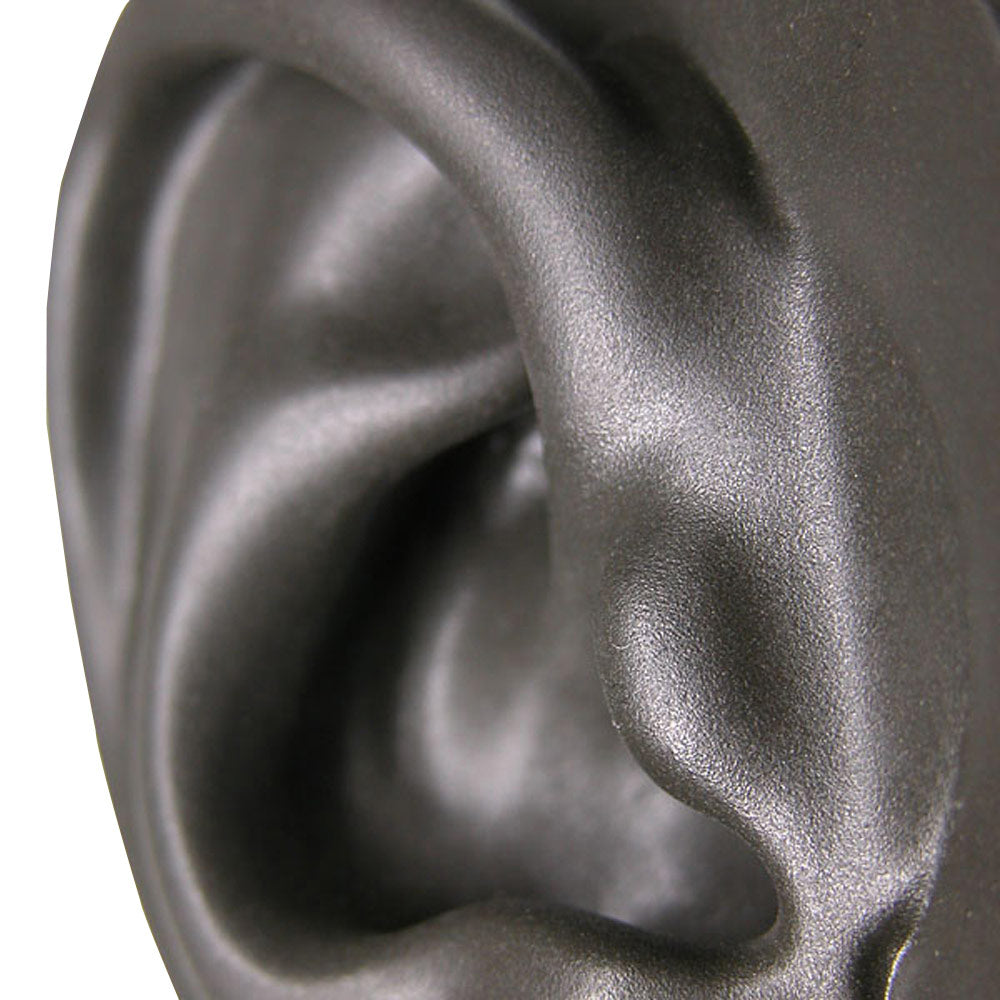

The KU 100 dummy head is a binaural stereo microphone. It resembles the human head and has two microphone capsules built into the ears. When listening through high-quality headphones it gives the illusion of being right at the scene of the acoustic events. When using the KU 100 dummy head, the binaural stereo experience moves the listener into the scene of the original performance, in contrast to other space-related recording techniques, where the acoustic event is moved to the listener. The dummy head is also used in many industrial applications as a measuring device, for example in acoustic research. The KU 100 can be operated with typical 48 V phantom powering, or from an external power supply unit, or from the built-in battery. At the bottom of the unit is a switch for the different power supply modes, as well as connectors for balanced and unbalanced output signals. Inside the head are additional switches for 10 dB attenuation and the high-pass filter.

Features

  • Dummy head for head-related stereophony
  • Pressure transducer with flat diffuse-field frequency response
  • Loudspeaker compatible
  • Transformerless circuitry
  • Two-stage switchable low frequency roll-off
  • Switchable 10 dB preattenuation
  • Balanced and unbalanced outputs (XLR and BNC)

More +

Product Specs

Acoustical operating principlePressure transducer
Directional patternEar
Frequency range20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm20 mV/Pa
Rated impedance50 ohms balanced, 200 ohms unbalanced
Rated load impedance1 kohms
Equivalent noise level, CCIR29 dB
Equivalent noise level, A-weighted16 dB-A
Signal-to-noise ratio, CCIR (rel. 94 dB SPL)65 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)78 dB
Maximum SPL for THD 0.5%135 dB
Maximum SPL for THD 0.5% with preattenuation145 dB
Maximum output voltage1950 mV
Dynamic range of the microphone amplifier (A-weighted)119 dB
Supply voltage (P48, IEC 61938)200 ... 240 V / 48 V ± 4 V / 6 x 1.5 V
Current consumption (P48, IEC 61938)2 x 2 mA
Matching connectorXLR3F / XLR5F
Weight3500 g
Height280 mm
Width180 mm
Depth220 mm
