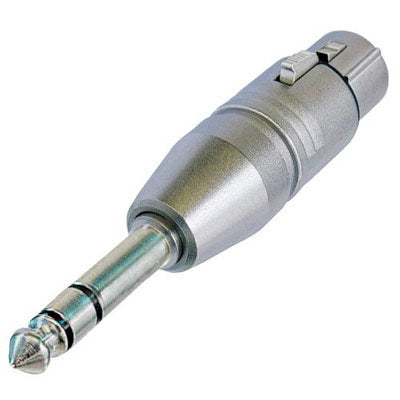

Neutrik NA3FP-UW Adapter - 3 Pin Female XLR to 1/4" Stereo Plug - Unwired
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NA3FP-UW Adapter - 3 Pin Female XLR to 1/4" Stereo Plug - Unwired
Sale price$7.90
Regular price$10.70
Description

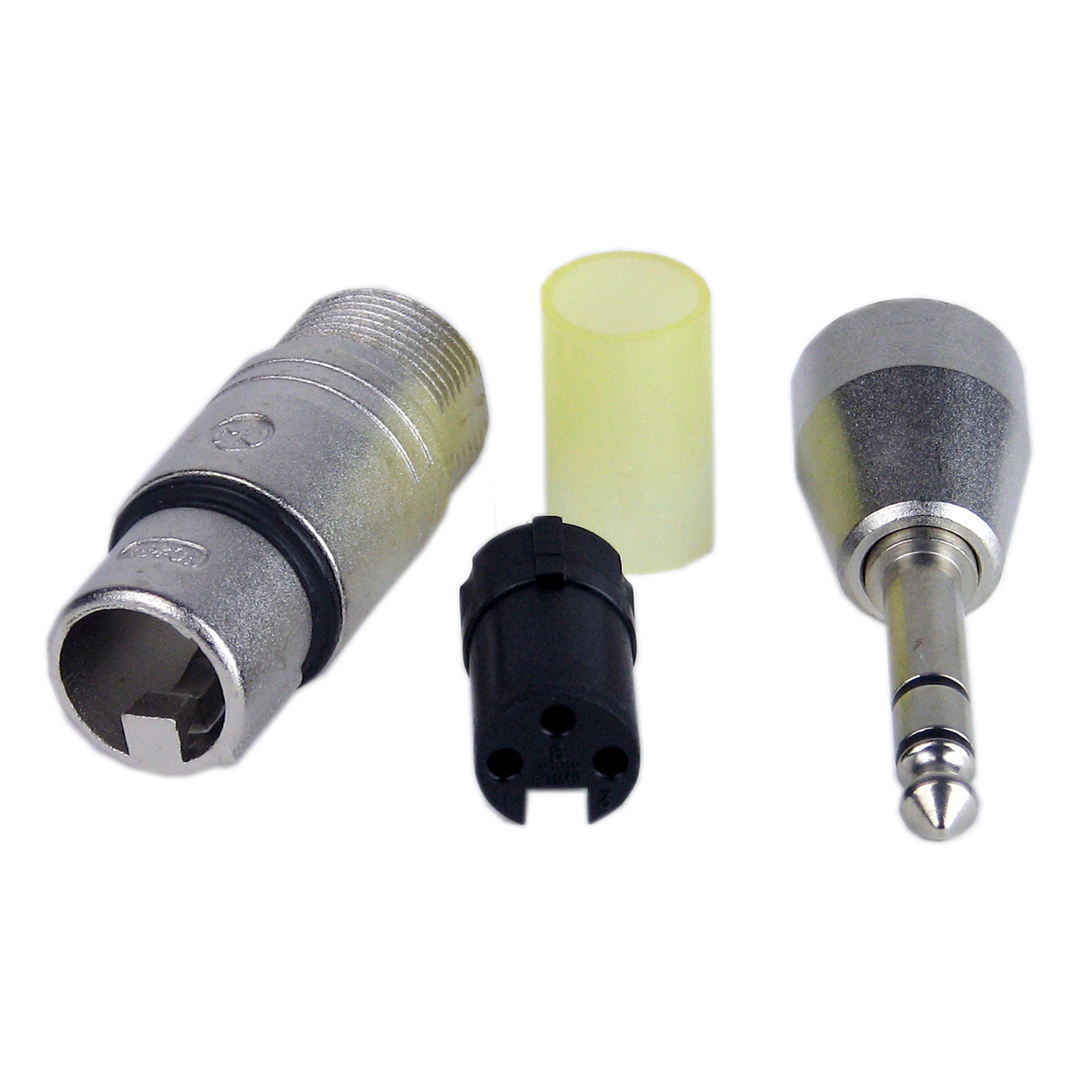

3 pole XLR female - Stereo 1/4 plug (Tip, Ring, Sleeve contact)
Features
- Versatile adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
- Rugged diecast shell for best reliability.
| Connector Type | Adapter |
| Electrical | |
| Contact resistance | <=3 mohms (XLR) |
| Dielectric strength | 1.5 kV dc /> 1 kVdc (XLR/Plug) |
| Insulation resistance | > 2 Gohms |
| Mechanical | |
| Locking device | Latch lock |
| Material | |
| Contact plating | 2 µm Ag/2 µm Ni |
| Contacts | Bronze (CuSn6) (XLR) |
| Contacts | Brass (CuZn39Pb3) (plug) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | gal Cu/Ni |
| Environmental | |
| Temperature range | -20 ¡C to +65 ¡C |
3 pole XLR female - Stereo 1/4 plug (Tip, Ring, Sleeve contact)
Features
- Versatile adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
- Rugged diecast shell for best reliability.
| Connector Type | Adapter |
| Electrical | |
| Contact resistance | <=3 mohms (XLR) |
| Dielectric strength | 1.5 kV dc /> 1 kVdc (XLR/Plug) |
| Insulation resistance | > 2 Gohms |
| Mechanical | |
| Locking device | Latch lock |
| Material | |
| Contact plating | 2 µm Ag/2 µm Ni |
| Contacts | Bronze (CuSn6) (XLR) |
| Contacts | Brass (CuZn39Pb3) (plug) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | gal Cu/Ni |
| Environmental | |
| Temperature range | -20 ¡C to +65 ¡C |
