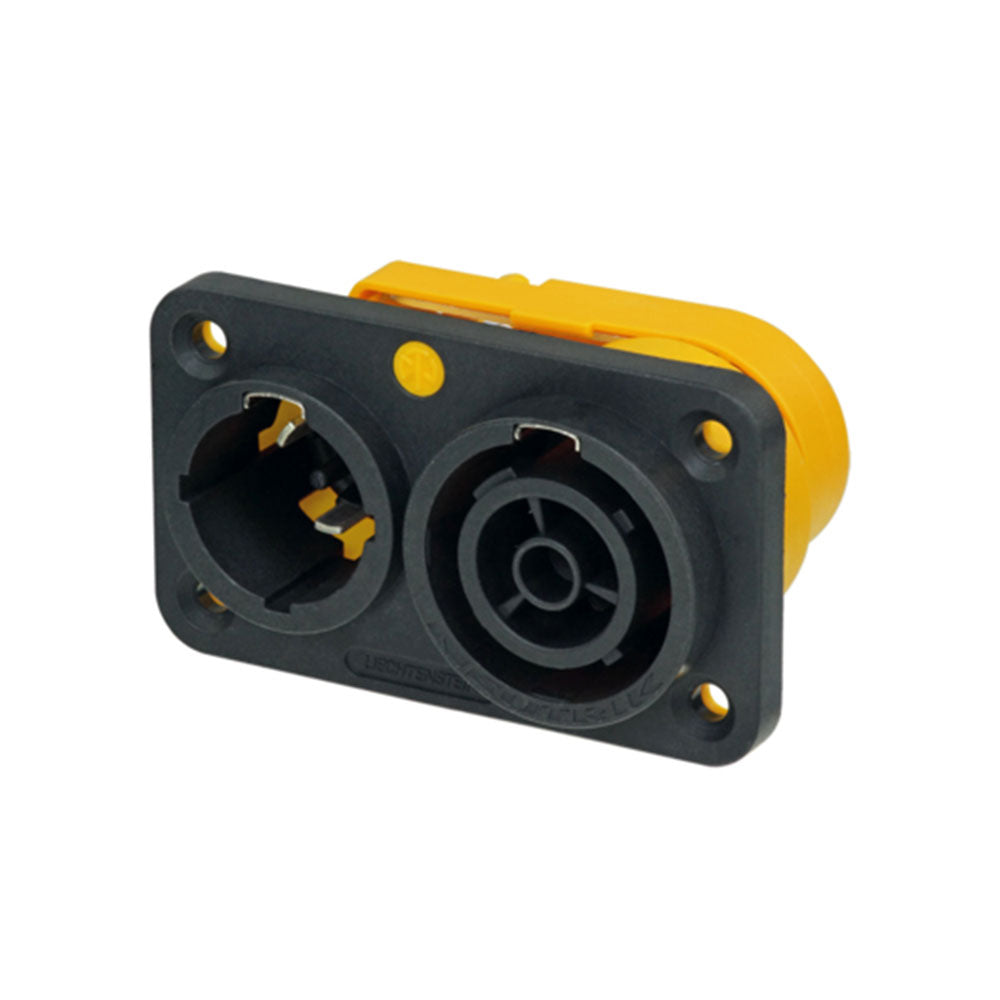

Neutrik NAC3PX - PowerCON TRUE1 Panel Mount Appliance Input / Output Combination
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Appliance inlet-outlet combination, 1/4'' flat tab terminals
The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features:
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- ENEC certified according to IEC 60320
- UL recognized components
- P65 ingress protection in combination with SCNAC-PX (mated or with closed cap)
| Contact resistance | ² 3 m½ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 G½ (after damp heat test IEC 68-2-30) |
| Number of electronical contacts | 2 + PE |
| Rated current per contact | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V ac |
| Lifetime | > 5000 mating cycles |
| Wiresize | 2.5 mm_ |
| Wiresize | 12 AWG |
| Contact plating | 2 µm Ag |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Spring Copper (CuSn0.2) |
| Flammability | UL 94 V-0 |
| Temperature range | -30 ¡C - +80 ¡C |
Appliance inlet-outlet combination, 1/4'' flat tab terminals
The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features:
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- ENEC certified according to IEC 60320
- UL recognized components
- P65 ingress protection in combination with SCNAC-PX (mated or with closed cap)
| Contact resistance | ² 3 m½ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 G½ (after damp heat test IEC 68-2-30) |
| Number of electronical contacts | 2 + PE |
| Rated current per contact | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V ac |
| Lifetime | > 5000 mating cycles |
| Wiresize | 2.5 mm_ |
| Wiresize | 12 AWG |
| Contact plating | 2 µm Ag |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Spring Copper (CuSn0.2) |
| Flammability | UL 94 V-0 |
| Temperature range | -30 ¡C - +80 ¡C |
