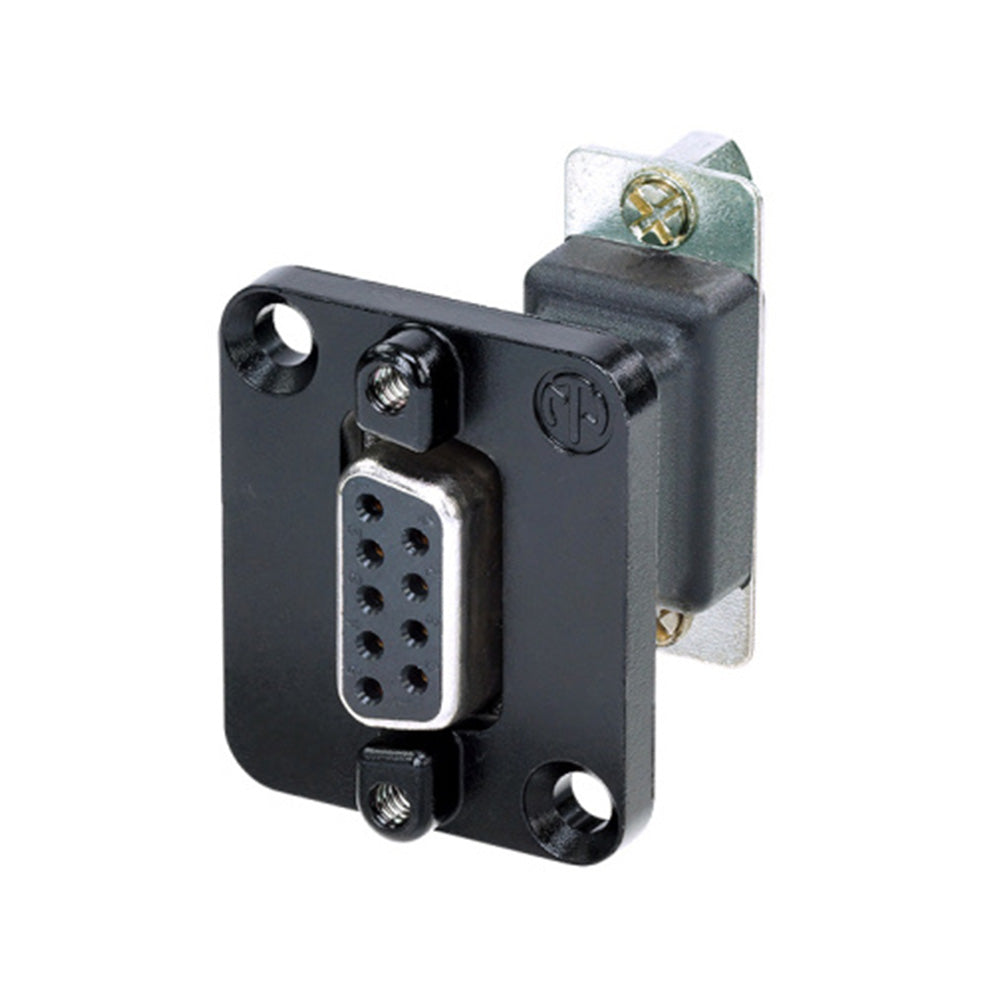

Neutrik NADB9FF-B D Series DB9 Feed Thru Connector (Black)


  • Dale #:

    NEUT-NADB9FFB
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

9 pole D-SUB feedthrough, female to female, black D-shape housing. Features: Ideal for audio networking and integration of equipment into video systems Universally accepted standard D-shape housing Read More

Free Shipping (orders over $50)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

9 pole D-SUB feedthrough, female to female, black D-shape housing.

Features:

  • Ideal for audio networking and integration of equipment into video systems
  • Universally accepted standard D-shape housing

More +

Product Specs

Gender female - female
Contact resistance 30 mΩ
Insulation resistance > 5 GΩ
Number of electronical contacts 9
Rated current per contact 3 A
Rated voltage 50 V ac
Dielectric strength > 0.5 kVac
Panel thickness 4 mm
Wiring Feedthrough
Mounting direction Front mounting
Chassis shape D
Contact plating Au
Contacts Brass (CuZn39Pb3)
Insert Steel , tin plated, PBT
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Flammability UL 94 V-0
Temperature range -25 °C to +85 °C
