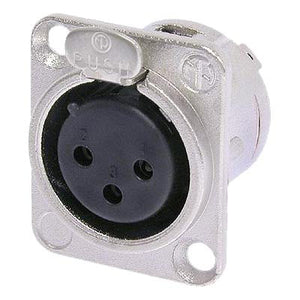

Neutrik NC3FD-L D Series 3 Pin Female XLR Panel Mount Connector
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NC3FD-L D Series 3 Pin Female XLR Panel Mount Connector
Sale price$6.87
Regular price$7.67
Description
XLR Chassis Connectors / DL Series: Unified metal shell for male and female. RF-protected. Solder springs. UL recognized component. Please note that this connector must be ordered in multiples of 50
| TECHNICAL DATA: Electrical: | |
| Number of contacts | 3 - 7 |
| Rated voltage | 50 V ac |
| Contact resistance | = 5 m |
| Insulation resistance - initial | > 2 G |
| - after damp heat test | > 1 G (IEC 68-2-30) |
| Dielectric strength | 1500 V dc |
| Mechanical | |
| Lifetime | > 1000 mating cycles |
| Insertion / withdrawal force | = 20 N |
| Retention method (Female versions only) | |
| - standard | latch lock |
| - «-0« version | retention spring |
| Separating force | = 20 N |
| Rated current | |
| 3 pole | 16 A |
| 4 pole | 10 A |
| 5 and 6 pole | 7.5 A |
| 7 pole | 5 A |
| AWG | |
| 3 pole | 2.5 mm_/14 AWG |
| 4 pole | 1.5 mm_/16 AWG |
| 5 und 6 pole | 1.0 mm_/18 AWG |
| 7 pole | 1.0 mm_/18 AWG |
| Capacitance between contacts | |
| 3 pole | = 4 pF |
| 4 pole | = 7 pF |
| 5 und 6 pole | = 7 pF |
| 7 pole | = 9 pF |
| Materials | |
| Shell | ZnAl4Cu1, gal Ni or black Cr plating |
| Insert | PA 6.6 30% GR (glass reinforced) |
| Contacts | - female (4-7pole) / male: CuZn39Pb3 |
| Contact surface | gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni |
| Latch lock / spring | CK 67 steel, treated |
| Environmental | |
| Temperature range | -30¡ C to + 80¡ C |
| Flammability | UL 94HB |
| Solderability | complies with IEC 68-2-20 |
| Compatibility | |
| PCB versions (4 / 5 pole) | horizontal PCB mounting, fastening by chassis mounting holes with M3 threads or by self tapping PLASTITE¨* screws with thread 2.9x1.06 (tri-rondular) direct to PC |
XLR Chassis Connectors / DL Series: Unified metal shell for male and female. RF-protected. Solder springs. UL recognized component. Please note that this connector must be ordered in multiples of 50
| TECHNICAL DATA: Electrical: | |
| Number of contacts | 3 - 7 |
| Rated voltage | 50 V ac |
| Contact resistance | = 5 m |
| Insulation resistance - initial | > 2 G |
| - after damp heat test | > 1 G (IEC 68-2-30) |
| Dielectric strength | 1500 V dc |
| Mechanical | |
| Lifetime | > 1000 mating cycles |
| Insertion / withdrawal force | = 20 N |
| Retention method (Female versions only) | |
| - standard | latch lock |
| - «-0« version | retention spring |
| Separating force | = 20 N |
| Rated current | |
| 3 pole | 16 A |
| 4 pole | 10 A |
| 5 and 6 pole | 7.5 A |
| 7 pole | 5 A |
| AWG | |
| 3 pole | 2.5 mm_/14 AWG |
| 4 pole | 1.5 mm_/16 AWG |
| 5 und 6 pole | 1.0 mm_/18 AWG |
| 7 pole | 1.0 mm_/18 AWG |
| Capacitance between contacts | |
| 3 pole | = 4 pF |
| 4 pole | = 7 pF |
| 5 und 6 pole | = 7 pF |
| 7 pole | = 9 pF |
| Materials | |
| Shell | ZnAl4Cu1, gal Ni or black Cr plating |
| Insert | PA 6.6 30% GR (glass reinforced) |
| Contacts | - female (4-7pole) / male: CuZn39Pb3 |
| Contact surface | gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni |
| Latch lock / spring | CK 67 steel, treated |
| Environmental | |
| Temperature range | -30¡ C to + 80¡ C |
| Flammability | UL 94HB |
| Solderability | complies with IEC 68-2-20 |
| Compatibility | |
| PCB versions (4 / 5 pole) | horizontal PCB mounting, fastening by chassis mounting holes with M3 threads or by self tapping PLASTITE¨* screws with thread 2.9x1.06 (tri-rondular) direct to PC |
