Description
The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

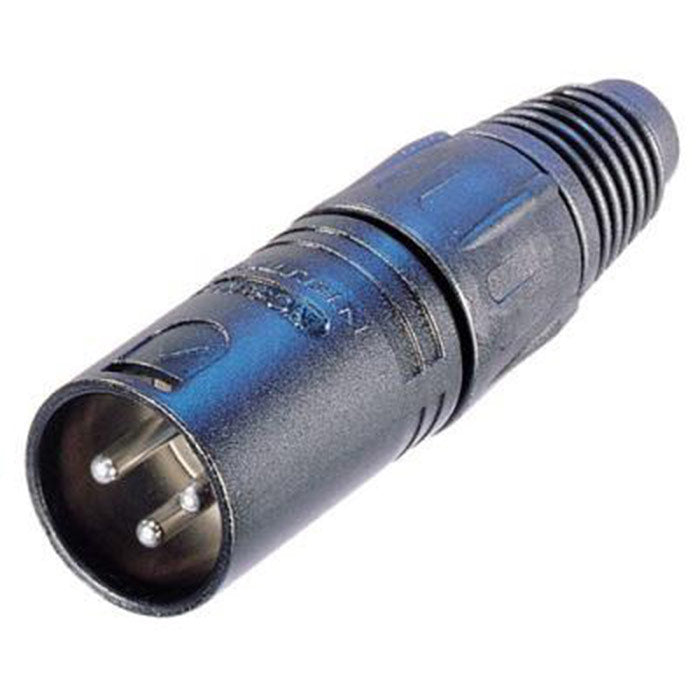

3 pole male cable connector with black metal housing and gold contacts.
Features:
- Rugged zinc diecast shell, long lasting and durable
Chuck type strain relief system for secure clamping of cables - Boot with rubber gland gives high protection against bending stresses
- Coloured rings and boots available for coding and marking
- UL recognized components
Product | |
Connector Type | XLR |
Gender | male |
Electrical | |
Capacitance between contacts | ≤ 4ÊpF |
Contact resistance | ≤ 3Êmohms |
Dielectric strength | 1,5ÊkVdc |
Insulation resistance | > 2ÊGohmsÊ(initial) |
Insulation resistance | > 1ÊGohmsÊ(after damp heat test) |
Rated current per contact | 16ÊA |
Rated voltage | 50ÊV |
Mechanical | |
Cable O.D. | 3.5 - 8.0Êmm |
Insertion force | ≤ 20ÊN |
Withdrawal force | ≤ 20ÊN |
Lifetime | > 1000Êmating cycles |
Wire size | max. 2.5Êmm_ |
Wire size | max. 14ÊAWG |
Wiring | Solder contacts |
Locking device | latch lock |
Material | |
Boot | Polyuretan |
Bushing | Polyamide (PA6 15% GR) |
Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 30 % GR) |
Locking element | St3K32 (latch) / Ck 67 (spring) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Black chromium |
Strain relief | Polyacetal (POM) |
Environmental | |
Approvals | UL |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 ¡C to +80Ê¡C |
The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
3 pole male cable connector with black metal housing and gold contacts.
Features:
- Rugged zinc diecast shell, long lasting and durable
Chuck type strain relief system for secure clamping of cables - Boot with rubber gland gives high protection against bending stresses
- Coloured rings and boots available for coding and marking
- UL recognized components
Product | |
Connector Type | XLR |
Gender | male |
Electrical | |
Capacitance between contacts | ≤ 4ÊpF |
Contact resistance | ≤ 3Êmohms |
Dielectric strength | 1,5ÊkVdc |
Insulation resistance | > 2ÊGohmsÊ(initial) |
Insulation resistance | > 1ÊGohmsÊ(after damp heat test) |
Rated current per contact | 16ÊA |
Rated voltage | 50ÊV |
Mechanical | |
Cable O.D. | 3.5 - 8.0Êmm |
Insertion force | ≤ 20ÊN |
Withdrawal force | ≤ 20ÊN |
Lifetime | > 1000Êmating cycles |
Wire size | max. 2.5Êmm_ |
Wire size | max. 14ÊAWG |
Wiring | Solder contacts |
Locking device | latch lock |
Material | |
Boot | Polyuretan |
Bushing | Polyamide (PA6 15% GR) |
Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 30 % GR) |
Locking element | St3K32 (latch) / Ck 67 (spring) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Black chromium |
Strain relief | Polyacetal (POM) |
Environmental | |
Approvals | UL |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 ¡C to +80Ê¡C |
